Hualing Heavy Truck 390 hp 8X4(12 wheels) Truck-Mounted Crane (China VI)
EXW
Export quote
Hualing M5 Heavy Truck truck-mounted crane
Main model photos
436 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Hualing Heavy Truck 390 hp 8X4(12 wheels) Truck-Mounted Crane (China VI) | 8x4 / 390hp / China VI | ||
| Hualing Heavy Truck 345 hp 8X4(12 wheels) 8 m Truck-Mounted Crane | 8x4 / 345hp / China V | ||
| Hualing Heavy Truck 336hp 8X4(12 wheels) Truck-Mounted Crane Chassis | 8x4 / 336hp / China IV | ||
| Hualing Heavy Truck 270hp 6X4(10 wheels) Truck-Mounted Crane | 6x4 / 270hp / China IV |

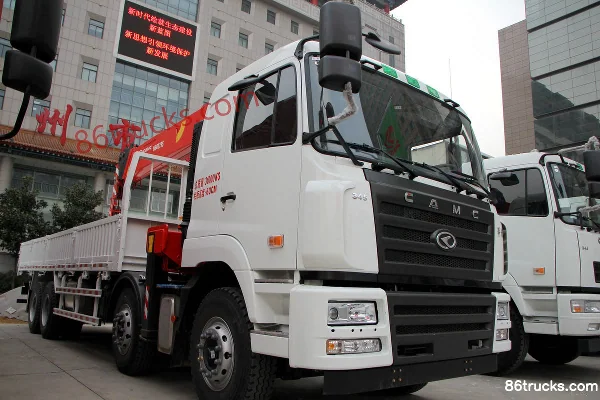

Hualing Heavy Truck 345 hp 8X4(12 wheels) 8 m Truck-Mounted Crane
EXW
Export quote
Hualing Heavy Truck 336hp 8X4(12 wheels) Truck-Mounted Crane Chassis
EXW
Export quote
Hualing Heavy Truck 270hp 6X4(10 wheels) Truck-Mounted Crane
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 11.99×2.55×3.82 / 11.99×2.5×3.82 / 11.99×2.5×3.75 / 11.99×2.495×3.75m
Type: Truck with crane / truck-mounted crane
Drive type: 8X4 / 6X4
Wheelbase: 2240+4215+1350 / 5850+1350mm
Rated mass: 8.575 / 11.5 / 12 / 9ton
GVWR: 31 / 25ton
Front/rear suspension: 1.37/2.815 / 1.495/2.69 / 1.45/2.735 / 1.45/3.34m
Energy Type: Diesel
Body Parameters
Crane model: HSQZ3105 / HSQ3004
Lifting capacity: 12ton
crane self-weight: 8 / 7ton
Vehicle certification code: AH5310JSQ2L6 / AH5310JSQ0L5 / HN5310JSQ0L4 / HN5251JSQ0L4
Body Brand: Hualing
Engine parameters
Injection System: Common Rail
Engine Brand: Hanma / Weichai
Engine Model: Hanma CM6D18.390 60 / Hanma CM6D18.345 50 / WeichaiWP10.336E40 / WeichaiWP10.270E40
Displacement: 9.84 / 9.726L
Emission standard: China VI / China V / China IV
Max output power: 287 / 254 / 247 / 199kW
Max hp: 390 / 345 / 336 / 270Horsepower
Max torque: 1835 / 1660 / 1500 / 1270N·m
Max torque speed: 1100-1400 / 1300-1600 / 1200-1500rpm
Rated speed: 1900rpm
Chassis Specs
Chassis Brand: Hualing
Chassis Series: Hualing Heavy Truck
Chassis Model: HN1310B39D2M6J / HN1310X34D6M5J / HN1310C27D6M4J / HN1250C27E8M4J
Frame Dimensions: 290(8+8) / 290(8+6)mm
rear axle description: HL460 / HL300A / HL458
Axle ratio: 3.73 / 5.263 / 4.44 / 4.875
Leaf spring count: 4/4/5,9/9/12 / 9/9/12 / 9/12
Transmission Parameters
Number of gears: 12 / 9Gear
Transmission Model: Fast Gear12JSD180TA / Hanma9SDB1851 / Fast Gear9JS150T-B / Fast Gear9JS119
Cab parameters
Cab: European-style flat top / Hualing Heavy Truck Flat Top
Tire
Tire Size: 11.00R20 18PR / 11.00R20
Number of tires: 12 / 10pcs
FAQ
What kind of truck is Hualing Hualing M5 Heavy Truck truck-mounted crane?
Hualing Hualing M5 Heavy Truck is an export-oriented truck-mounted crane lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Hualing M5 Heavy Truck truck-mounted crane cover?
Hualing M5 Heavy Truck truck-mounted crane mainly covers: Drive: 6x4 / 8x4; Horsepower: 270 hp / 336 hp / 345 hp / 390 hp; Emission: China IV / China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Hualing M5 Heavy Truck truck-mounted crane?
For Hualing M5 Heavy Truck truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Hualing M5 Heavy Truck truck-mounted crane include?
Hualing M5 Heavy Truck truck-mounted crane currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Hualing M5 Heavy Truck truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
