Hualing Heavy Truck 336hp 8X4(12 wheels) Truck-Mounted Crane Chassis

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 2240+4215+1350mm
Cab dimensions:: 11.99×2.5×3.75m
Type:: truck-mounted crane
GVWR:: 31ton
Front/rear suspension:: 1.45/2.735m
Drive 8X4 (12 wheels)
Horsepower 336
Rated mass: 12ton
Emission China IV

Overview

The Hualing Heavy Truck 336hp 8X4(12 wheels) Truck-Mounted Crane Chassis is a truck-mounted crane featuring 31t GVW and 8X4 (12 wheels) drive. On the powertrain side, it comes with a Weichai engine, 336 hp, China IV emissions and Diesel fuel.

China IV 336 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.99×2.5×3.75m
Type: truck-mounted crane
Drive type: 8X4
Wheelbase: 2240+4215+1350mm
Rated mass: 12ton
GVWR: 31ton
Front/rear suspension: 1.45/2.735m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Brand: Weichai
Engine Model: WeichaiWP10.336E40
fuel type: Diesel
Displacement: 9.726L
Emission standard: China IV
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1500N·m
Max torque speed: 1300-1600rpm
Rated speed: 1900rpm
Body Parameters
Vehicle certification code: HN5310JSQ0L4
Body Brand: Hualing

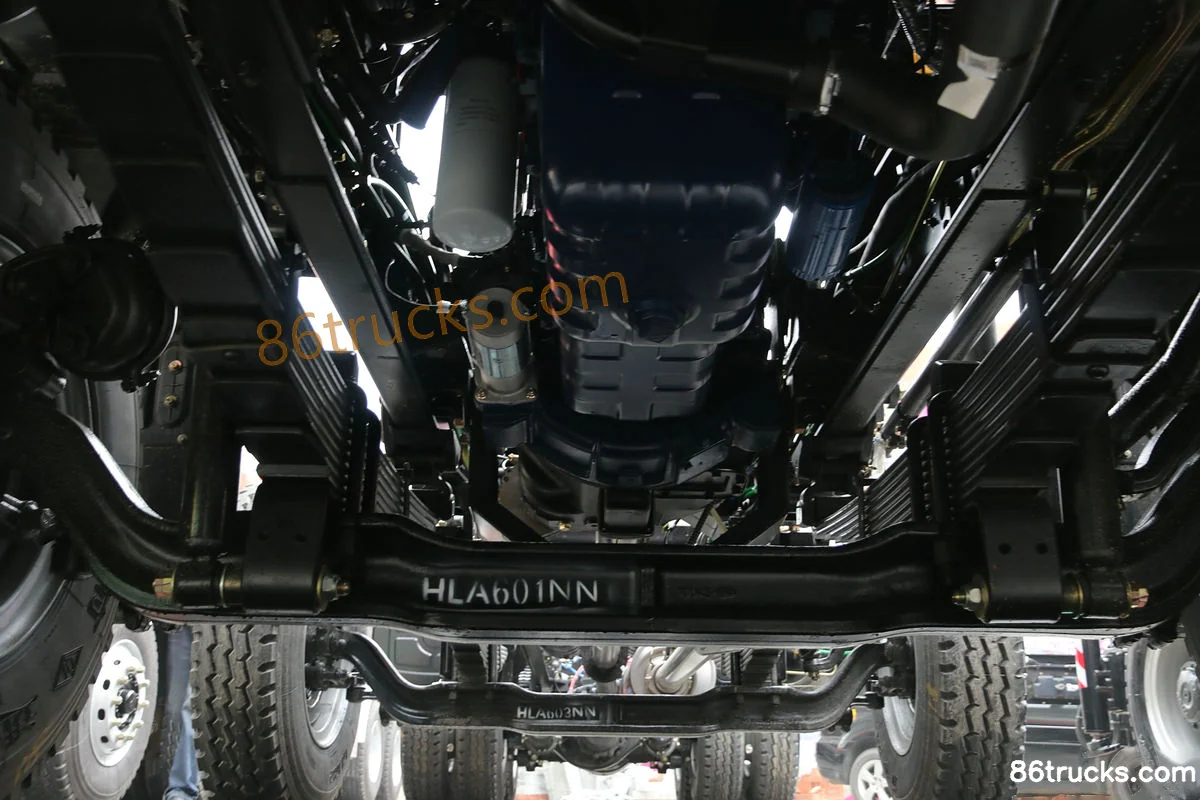

Chassis Specs
Chassis Brand: Hualing
Chassis Series: Hualing Heavy Truck
Chassis Model: HN1310C27D6M4J
Frame Dimensions: 290(8+6)mm
rear axle description: HL458
Axle ratio: 4.44
Leaf spring count: 9/12
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear9JS150T-B
Cab parameters
Cab: Hualing Heavy Truck Flat Top

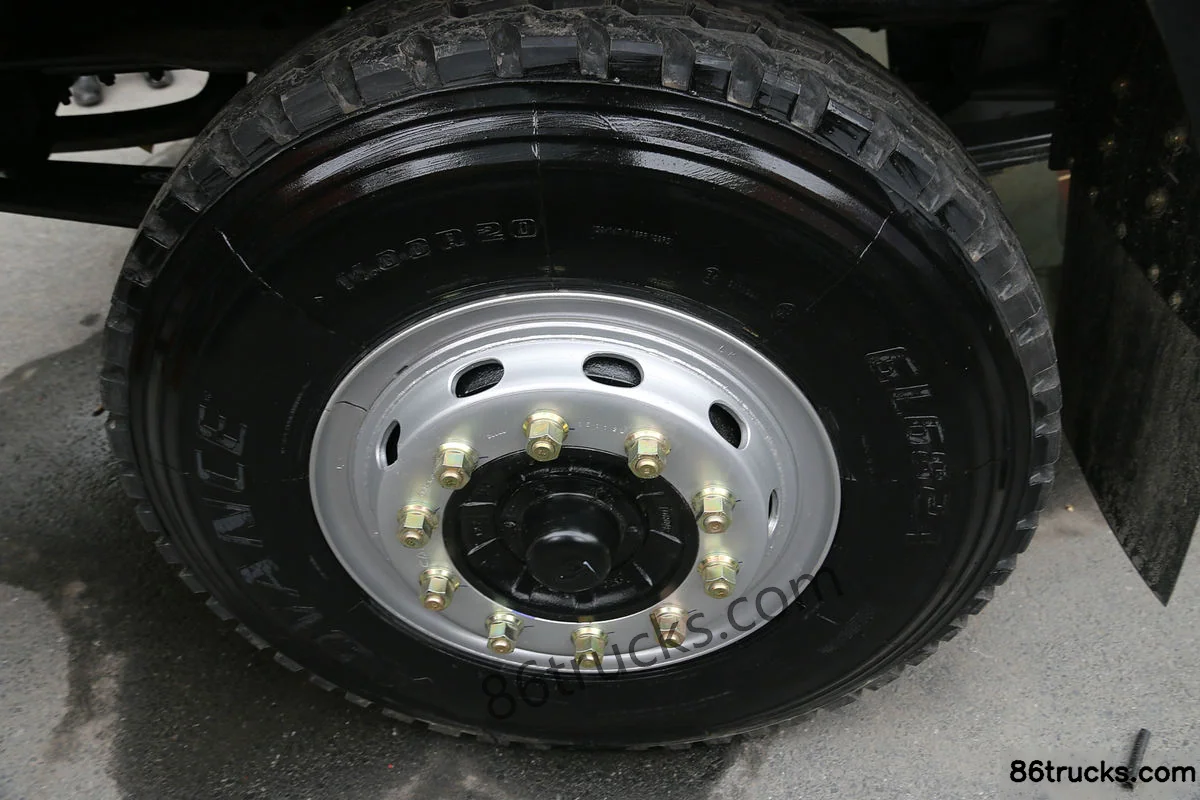

Tire
Tire Size: 11.00R20
Number of tires: 12pcs

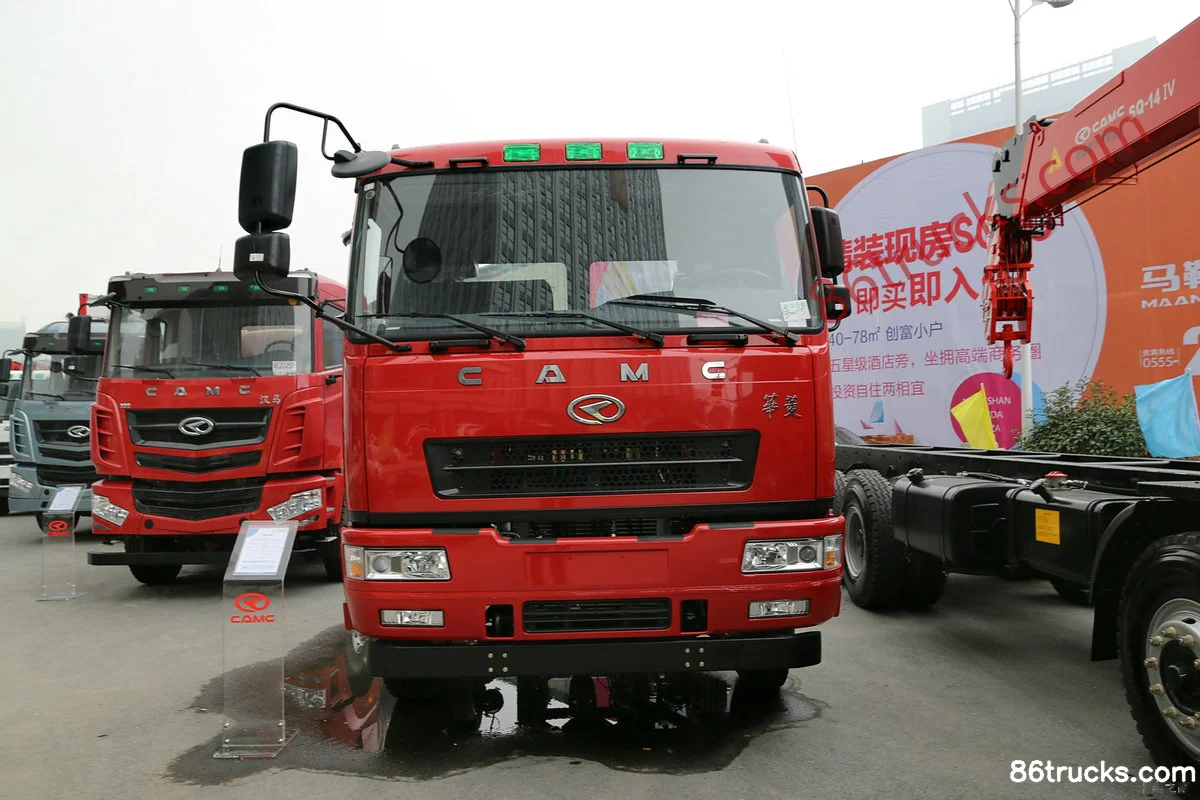

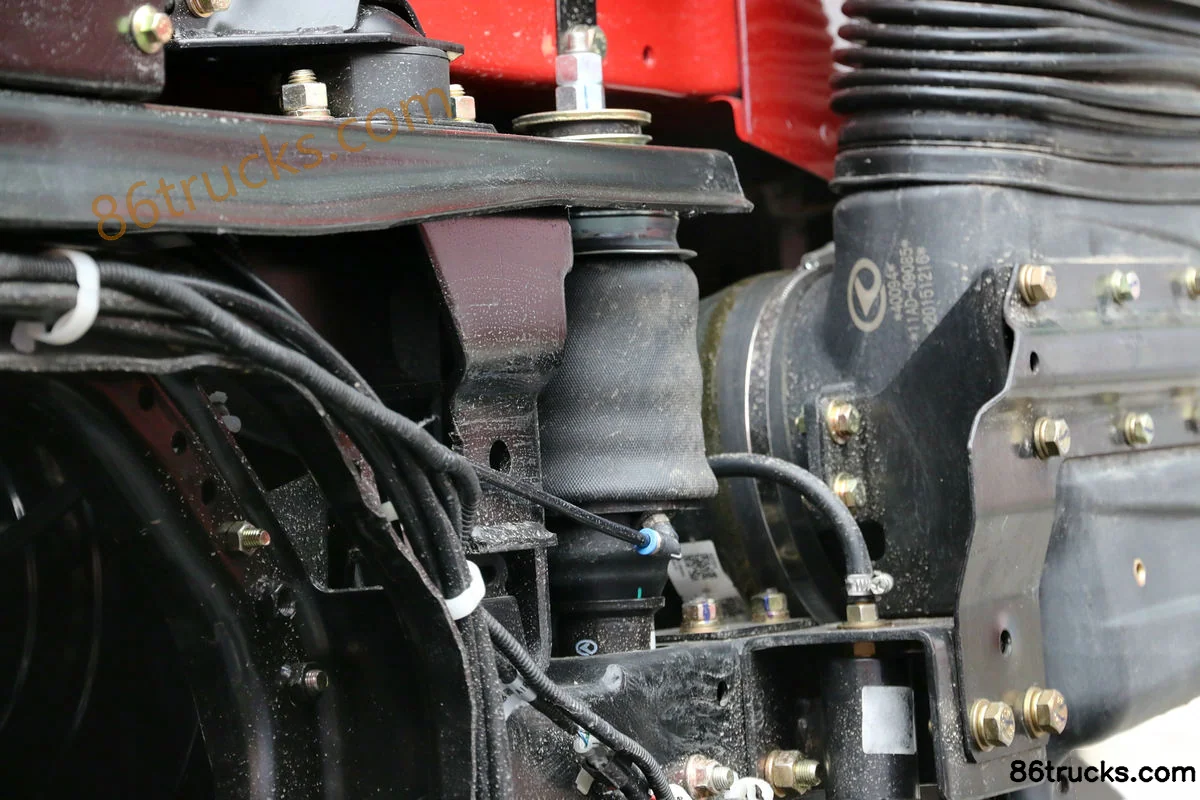

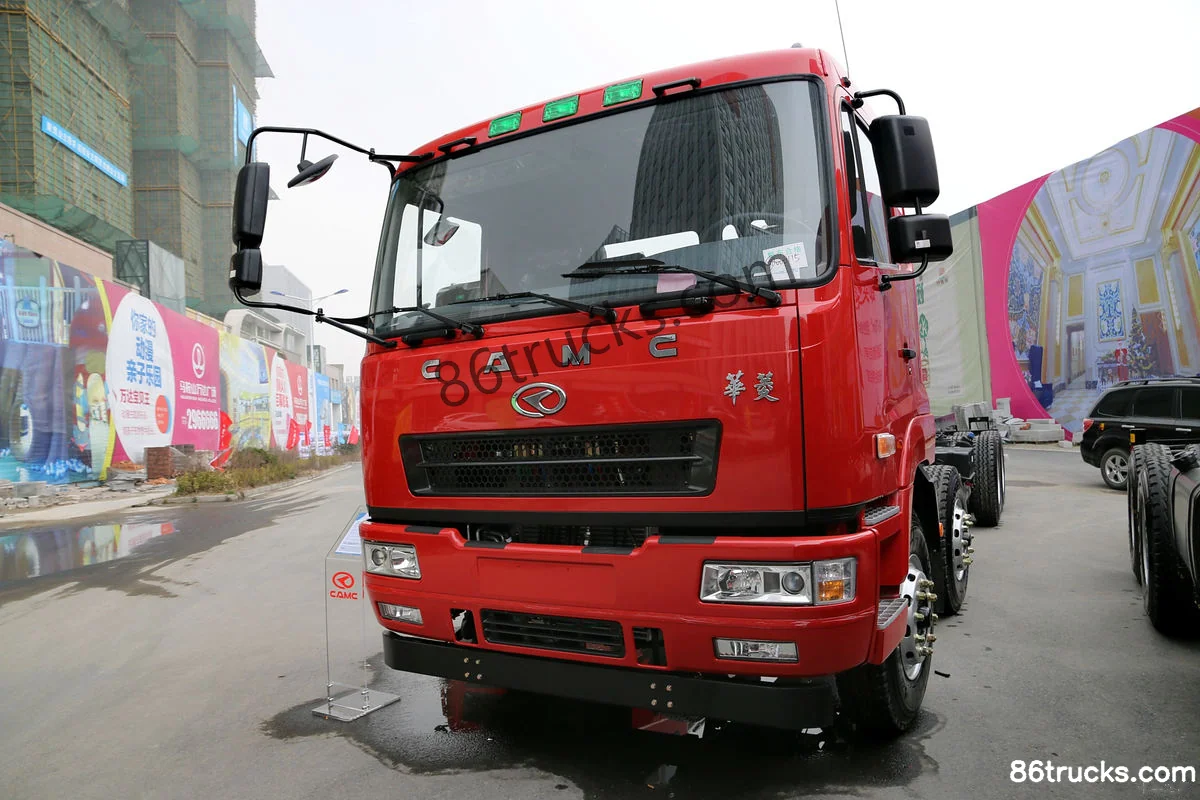

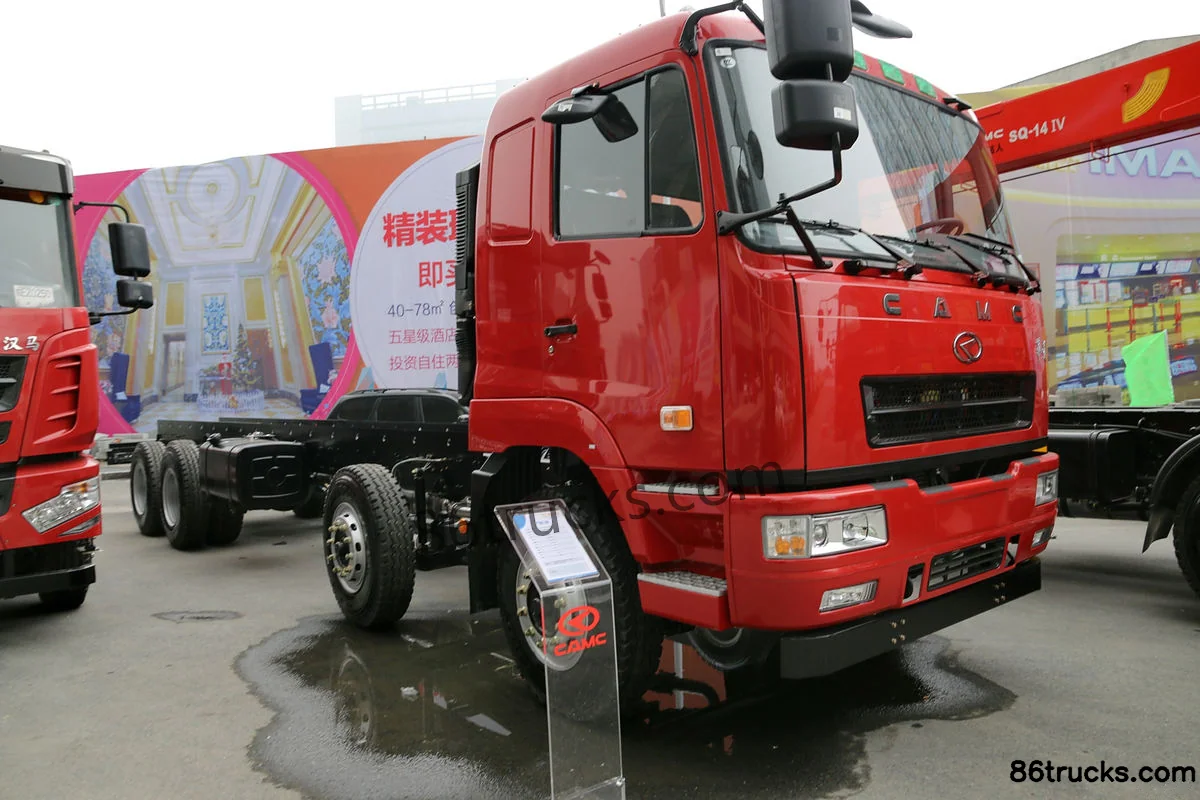

Photos

Exterior3

Chassis3

6 photos

FAQ

What emission standard does Hualing Heavy Truck 336hp 8X4(12 wheels) Truck-Mounted Crane Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hualing Heavy Truck 336hp 8X4(12 wheels) Truck-Mounted Crane Chassis?

Key specs of Hualing Heavy Truck 336hp 8X4(12 wheels) Truck-Mounted Crane Chassis: Drive: 8x4; Horsepower: 336 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing Heavy Truck 336hp 8X4(12 wheels) Truck-Mounted Crane Chassis suited for?

Hualing Heavy Truck 336hp 8X4(12 wheels) Truck-Mounted Crane Chassis is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Hualing Heavy Truck 336hp 8X4(12 wheels) Truck-Mounted Crane Chassis differ from other variants in the same series?

Hualing Heavy Truck 336hp 8X4(12 wheels) Truck-Mounted Crane Chassis belongs to Hualing M5 Heavy Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing Heavy Truck 336hp 8X4(12 wheels) Truck-Mounted Crane Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing Heavy Truck 336hp 8X4(12 wheels) Truck-Mounted Crane Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
