Hualing Heavy Truck 390 hp 8X4(12 wheels) Truck-Mounted Crane (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Wheelbase:: 2240+4215+1350mm
Cab dimensions:: 11.99×2.55×3.82m
Type:: Truck with crane
GVWR:: 31ton
Lifting capacity: 12ton
Drive 8X4 (12 wheels)
Horsepower 390
Rated mass: 8.575ton

Overview

The Hualing Heavy Truck 390 hp 8X4(12 wheels) Truck-Mounted Crane (China VI) is a truck-mounted crane featuring 12ton tank capacity, 31t GVW and 8X4 (12 wheels) drive. On the powertrain side, it comes with 390 hp, China VI emissions and Diesel fuel.

China VI 390 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.99×2.55×3.82m
Type: Truck with crane
Drive type: 8X4
Wheelbase: 2240+4215+1350mm
Rated mass: 8.575ton
GVWR: 31ton
Front/rear suspension: 1.37/2.815m
Energy Type: Diesel
Body Parameters

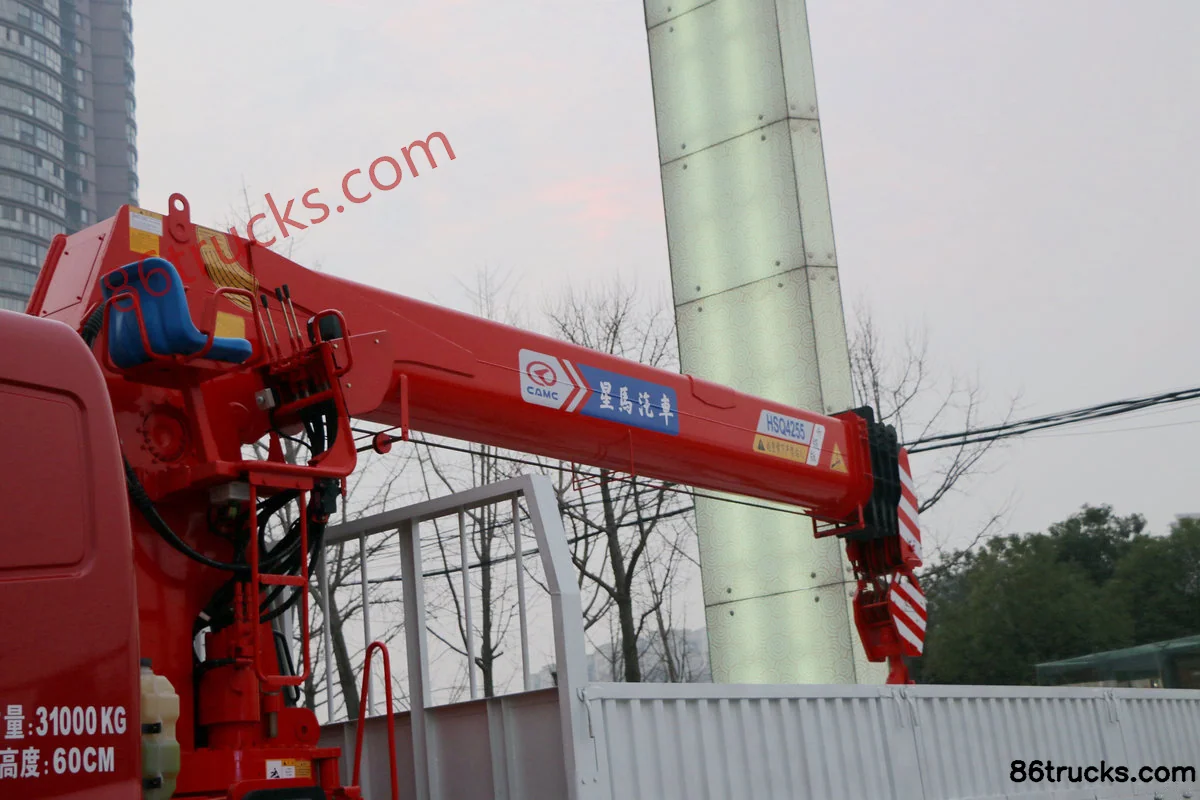

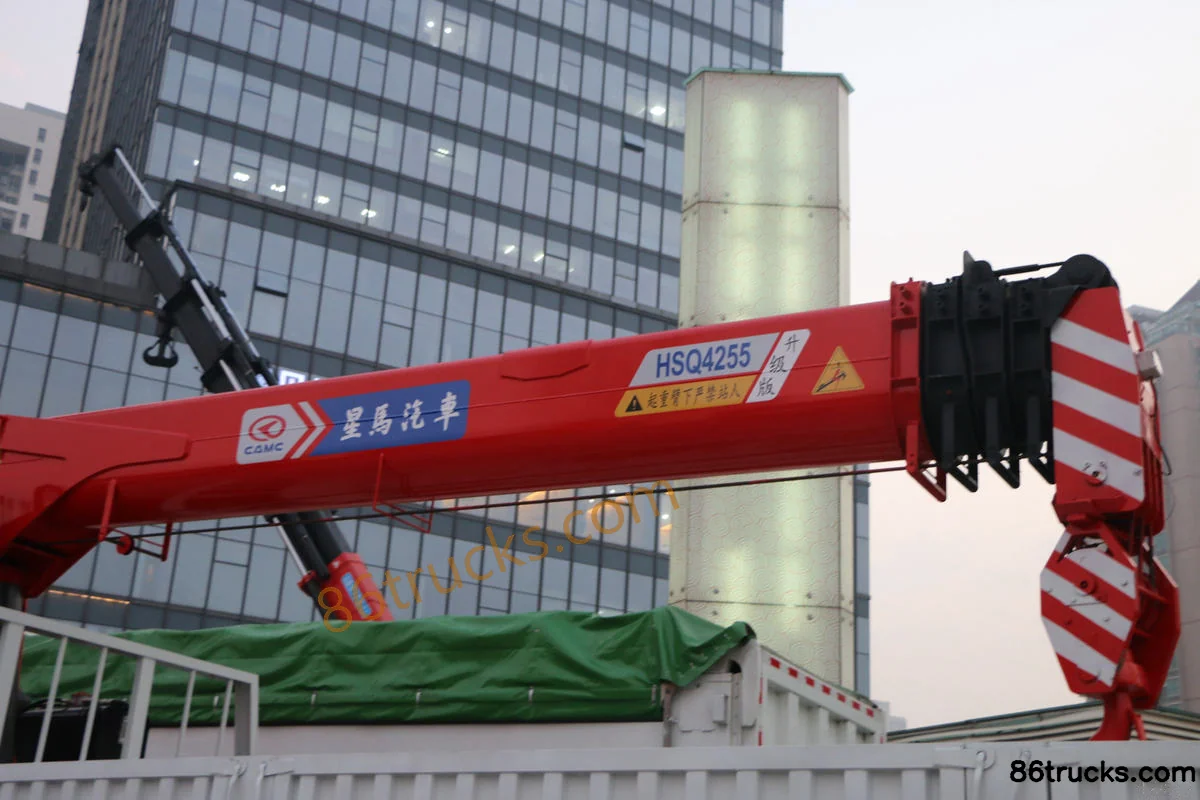

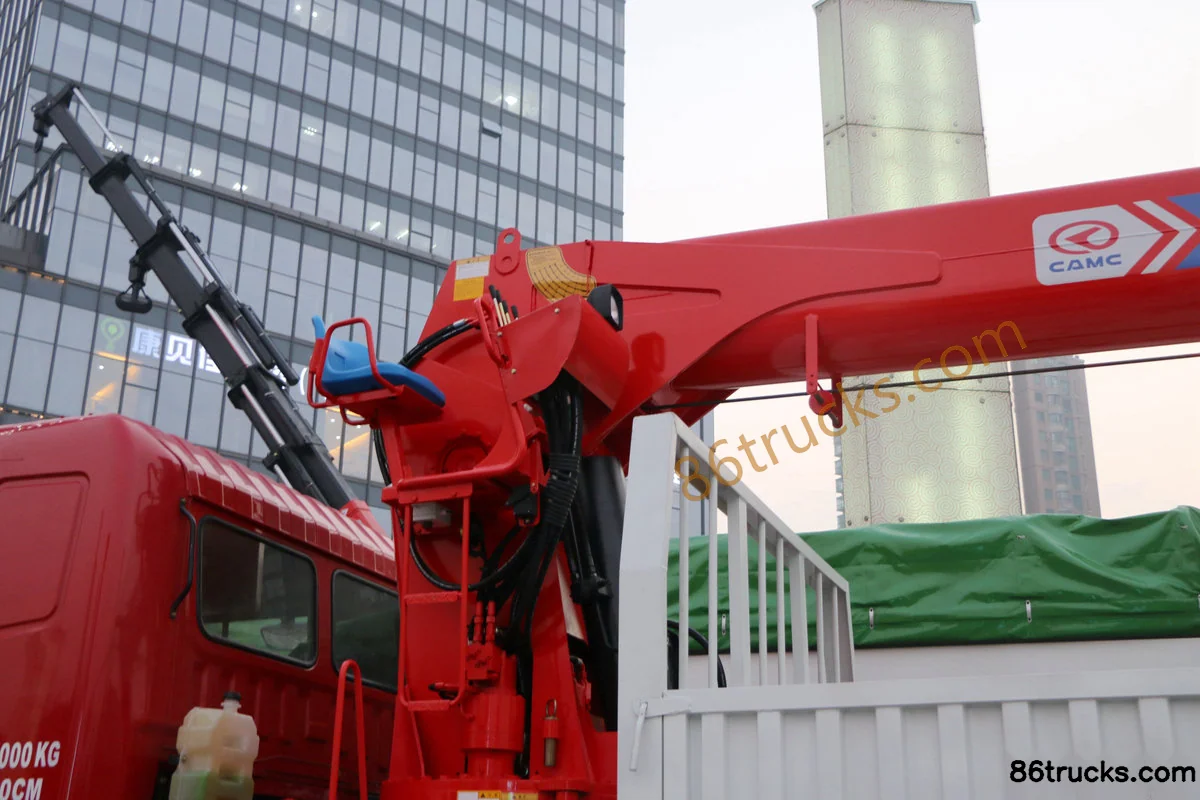

Crane model: HSQZ3105
Lifting capacity: 12ton
crane self-weight: 8ton
Vehicle certification code: AH5310JSQ2L6
Body Brand: Hualing
Engine parameters
Engine Brand: Hanma
Engine Model: Hanma CM6D18.390 60
fuel type: Diesel
Displacement: 9.84L
Emission standard: China VI
Max output power: 287kW
Max hp: 390Horsepower
Max torque: 1835N·m
Max torque speed: 1100-1400rpm
Rated speed: 1900rpm
Chassis Specs
Chassis Brand: Hualing
Chassis Series: Hualing Heavy Truck
Chassis Model: HN1310B39D2M6J
rear axle description: HL460
Axle ratio: 3.73
Leaf spring count: 4/4/5,9/9/12
Transmission Parameters
Number of gears: 12Gear
Transmission Model: Fast Gear12JSD180TA
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs

Photos

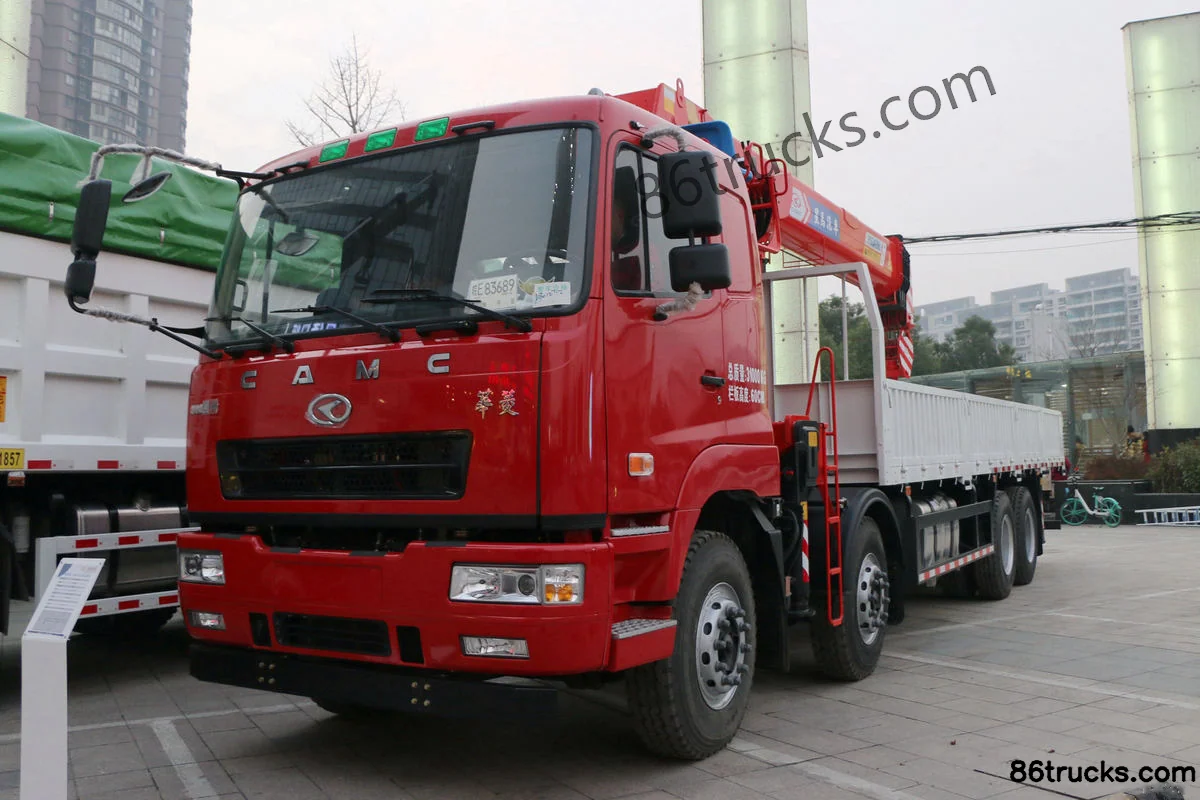

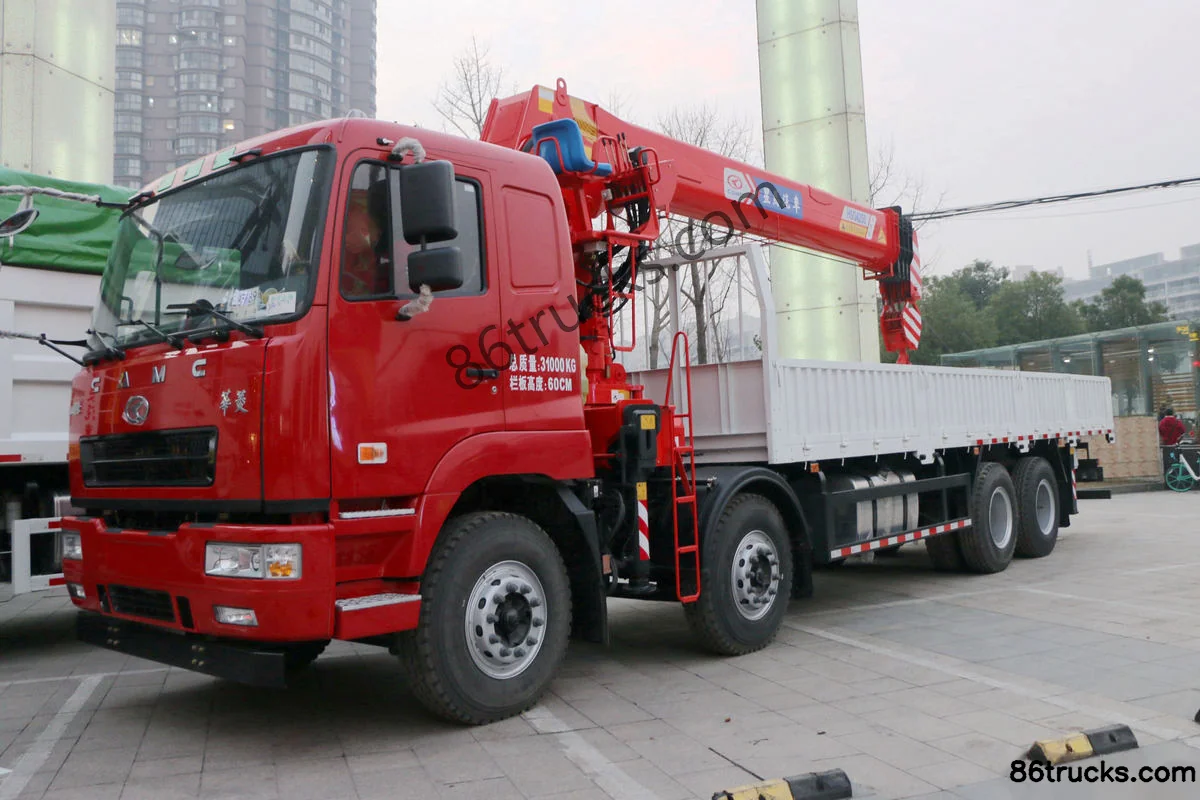

Exterior3

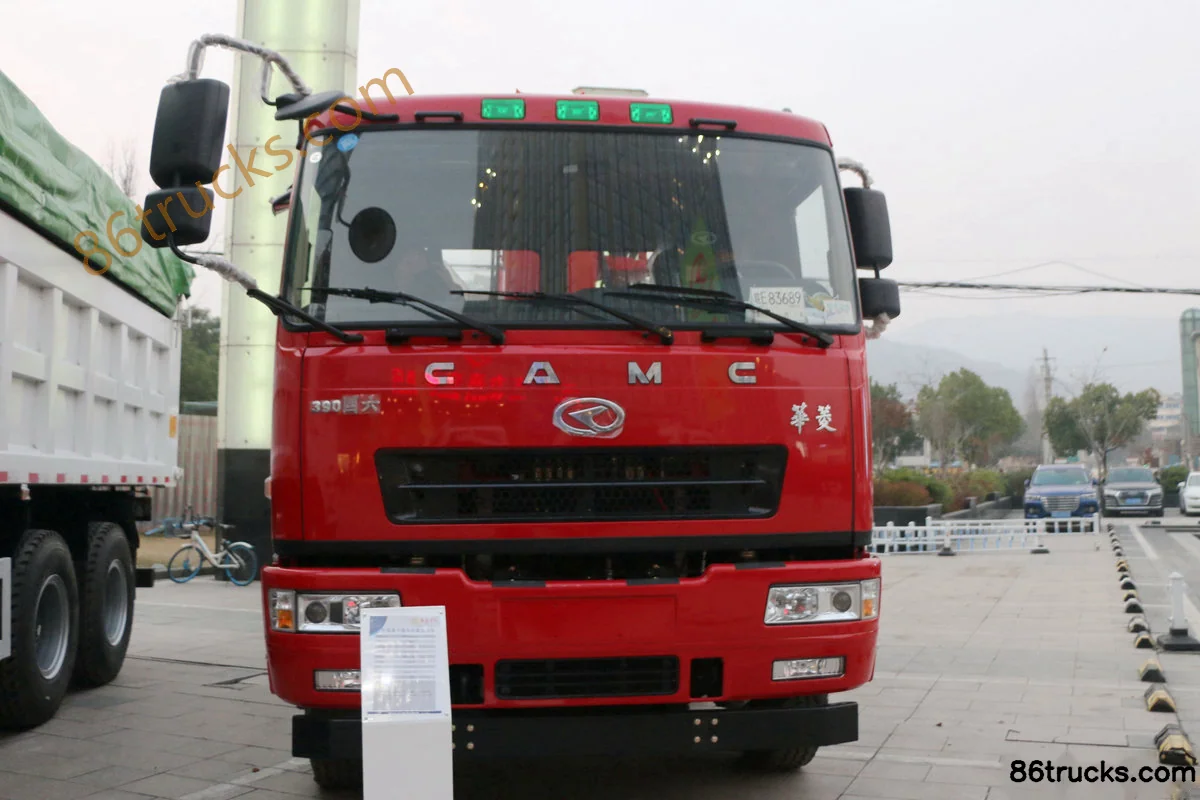

Cab1

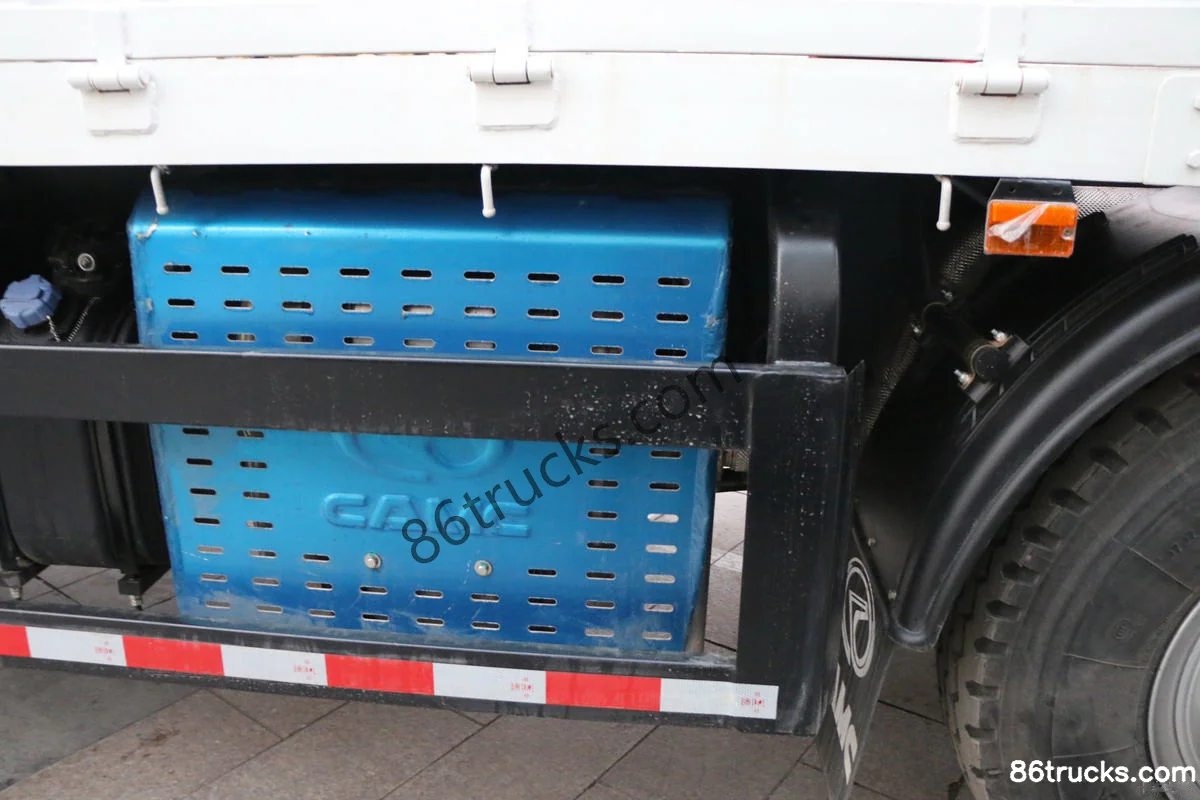

Chassis3

7 photos

FAQ

What emission standard does Hualing Heavy Truck 390 hp 8X4(12 wheels) Truck-Mounted Crane (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hualing Heavy Truck 390 hp 8X4(12 wheels) Truck-Mounted Crane (China VI)?

Key specs of Hualing Heavy Truck 390 hp 8X4(12 wheels) Truck-Mounted Crane (China VI): Drive: 8x4; Horsepower: 390 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing Heavy Truck 390 hp 8X4(12 wheels) Truck-Mounted Crane (China VI) suited for?

Hualing Heavy Truck 390 hp 8X4(12 wheels) Truck-Mounted Crane (China VI) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Hualing Heavy Truck 390 hp 8X4(12 wheels) Truck-Mounted Crane (China VI) differ from other variants in the same series?

Hualing Heavy Truck 390 hp 8X4(12 wheels) Truck-Mounted Crane (China VI) belongs to Hualing M5 Heavy Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing Heavy Truck 390 hp 8X4(12 wheels) Truck-Mounted Crane (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing Heavy Truck 390 hp 8X4(12 wheels) Truck-Mounted Crane (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
