Sinotruk Tengshi 130hp 4X2(6 wheels) 4.5m Dump Truck

Export reference
From $31,667
MSRP ¥22.8M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.8ton
Wheelbase:: 2650+1200mm
Tire Size:: 7.00R16LT 8PR
Rated payload: 17.07ton
Drive 4X2 (6 wheels)
Horsepower 130
Cargo box type: Dump type

Overview

The Sinotruk Tengshi 130hp 4X2(6 wheels) 4.5m Dump Truck is a Heavy truck featuring 17.07t payload, 25t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP4.6NQ220E50 engine, 130 hp, China VI emissions and Fast Gear transmission.

China VI 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW3254K263EEA
Drive type: 4X2
Wheelbase: 2650+1200mm
engine: WeichaiWP4.6NQ220E50
transmission: Fast Gear 10-Speed
Cab length: 7.08m
Cab width: 2.36m
Cab height: 2.6m
Front track width: 1840mm
rear track: 1915/1750mm
Curb Weight: 7.8ton
Rated payload: 17.07ton
GVWR: 25ton
Origin: Chengdu, Sichuan
tonnage class: Heavy truck
Approach angle: 17°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.3NQ130E61
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.29L
Emission standard: China VI
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 380N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: 4-valve, high-pressure common rail, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear 10-Speed
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.5m
Cargo box width: 2.3m
Cargo box height: 1.2m
Cab parameters
Cab: Sleeper cab
Cab width: 2080mm
fuel tank
Fuel tank capacity: 150L
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 7000/11500kg
Leaf spring count: 9/5/10+8
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

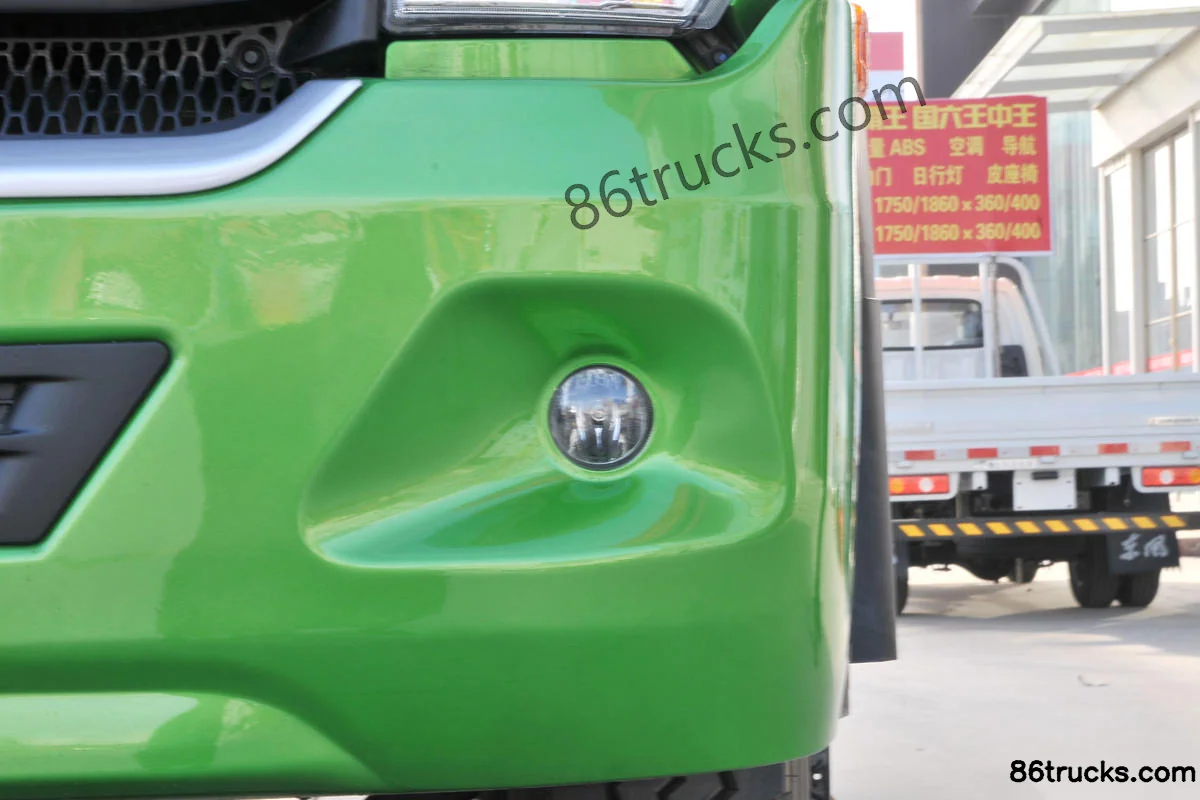

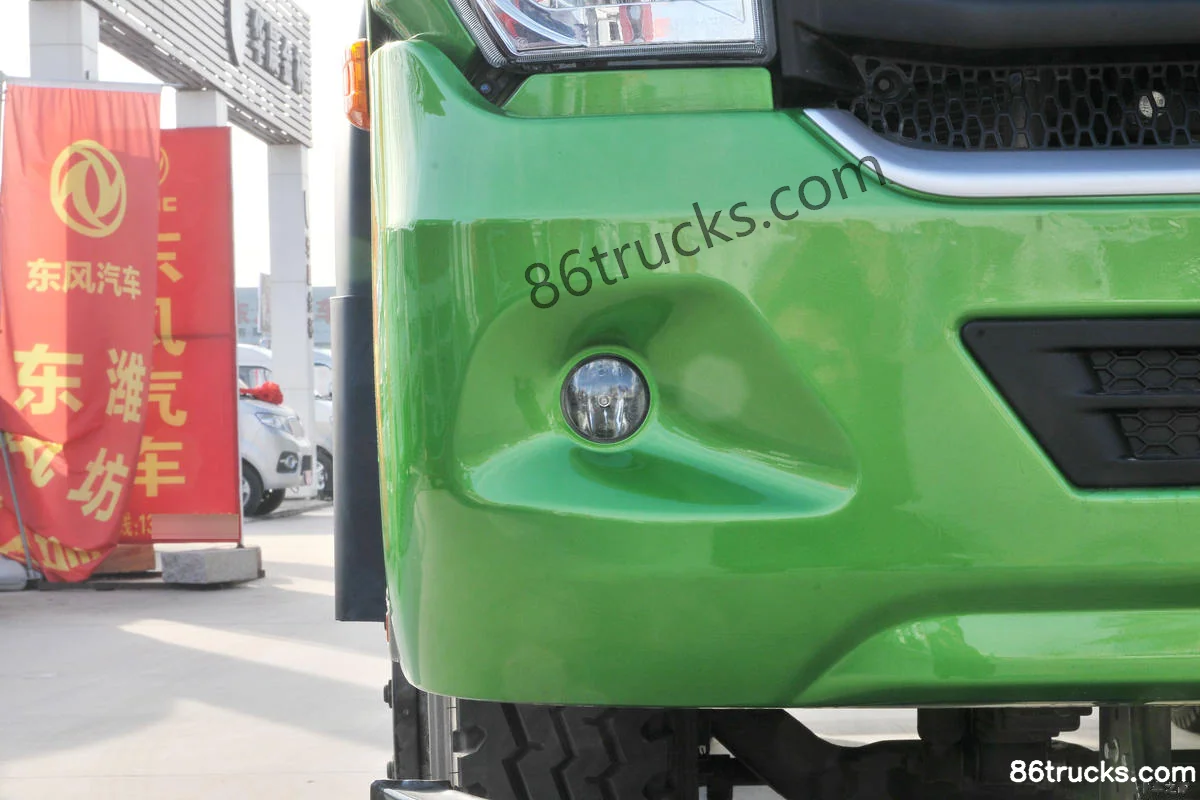

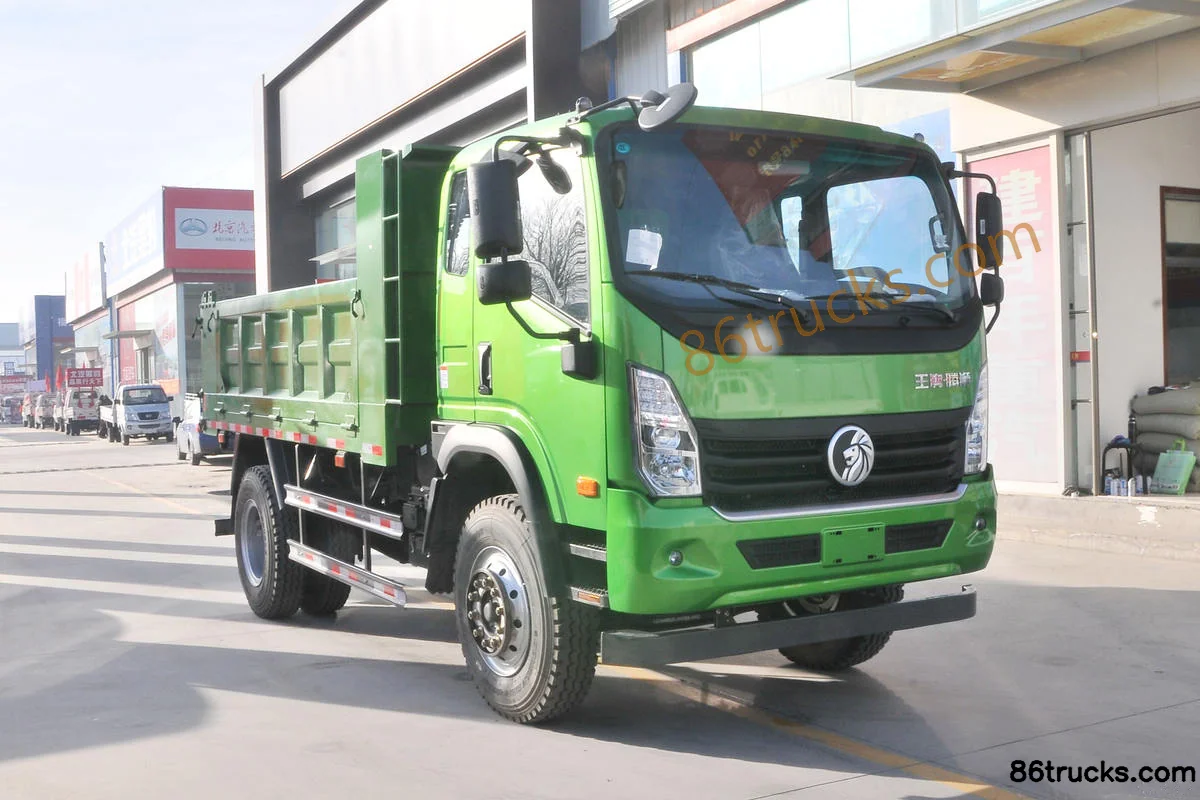

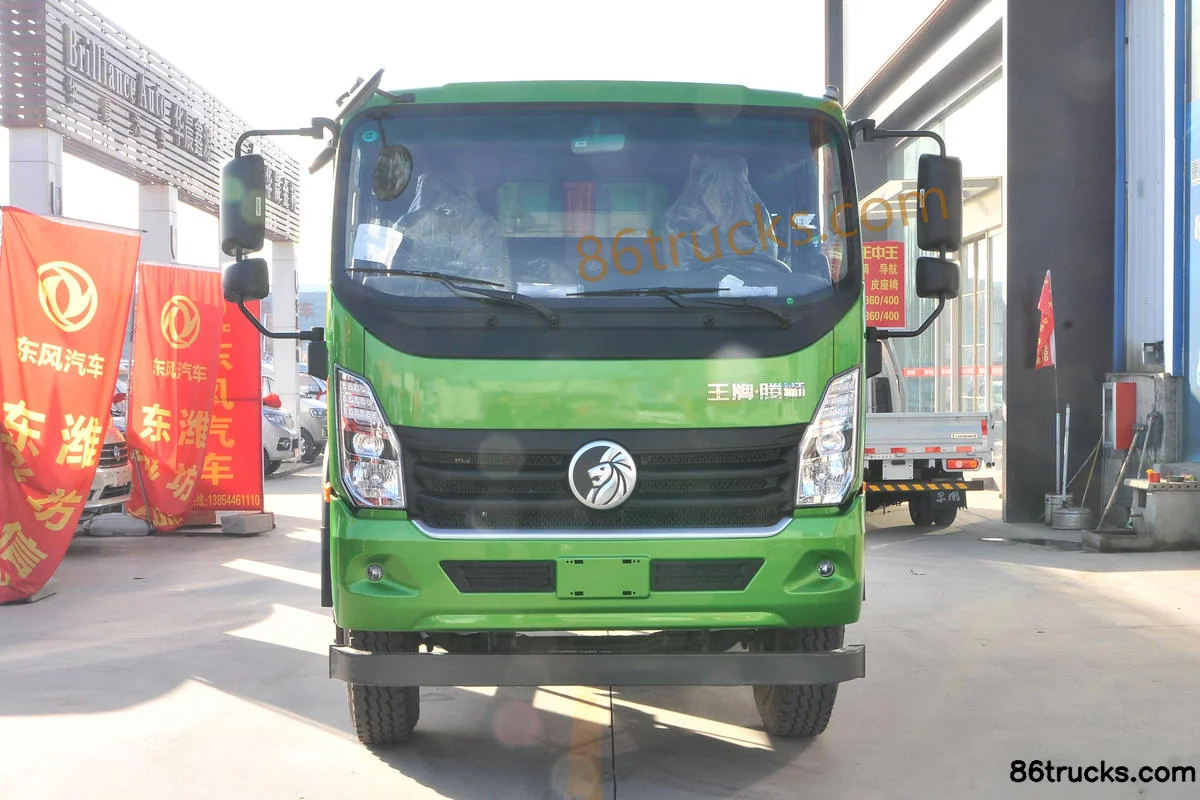

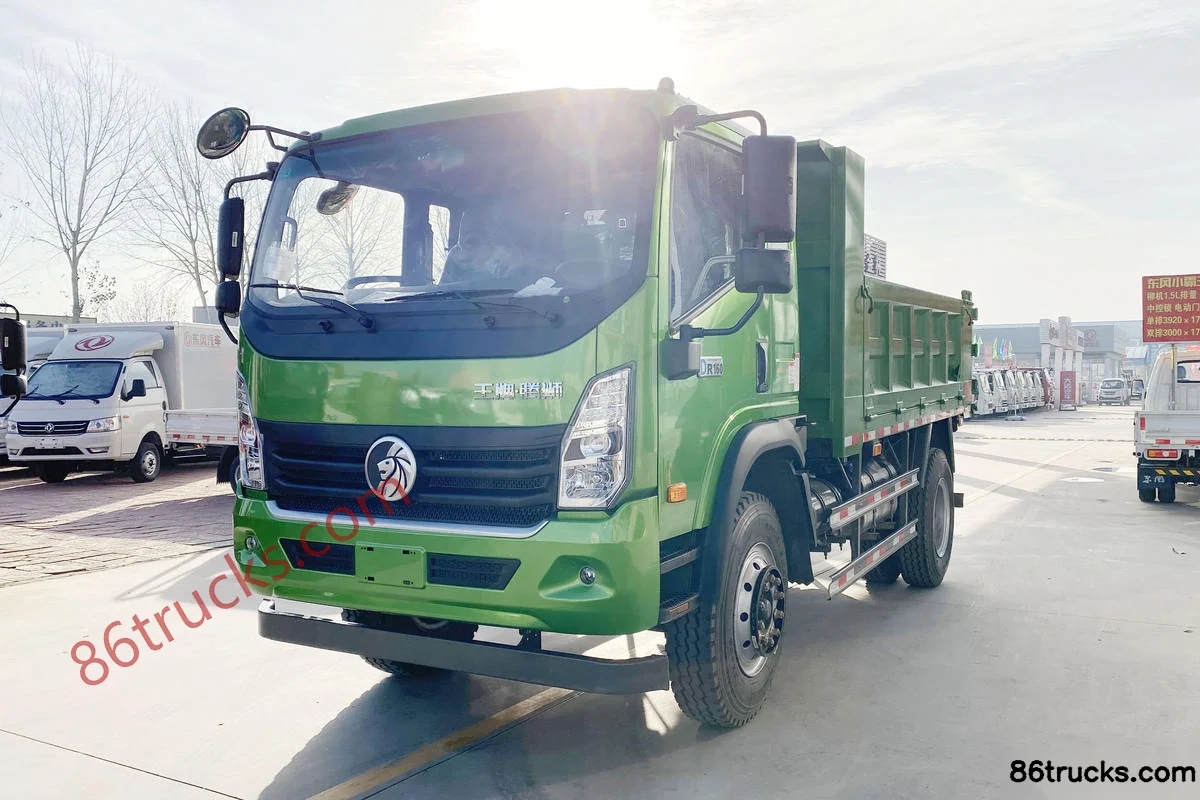

Exterior3

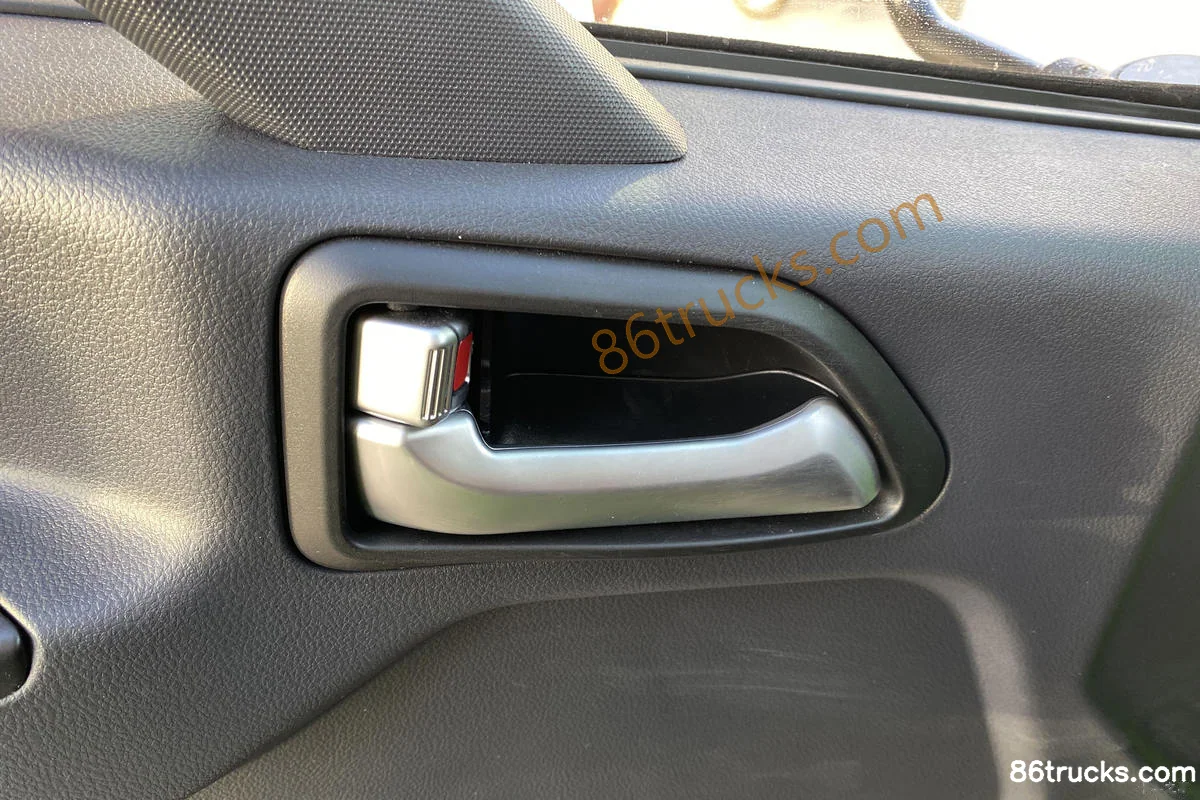

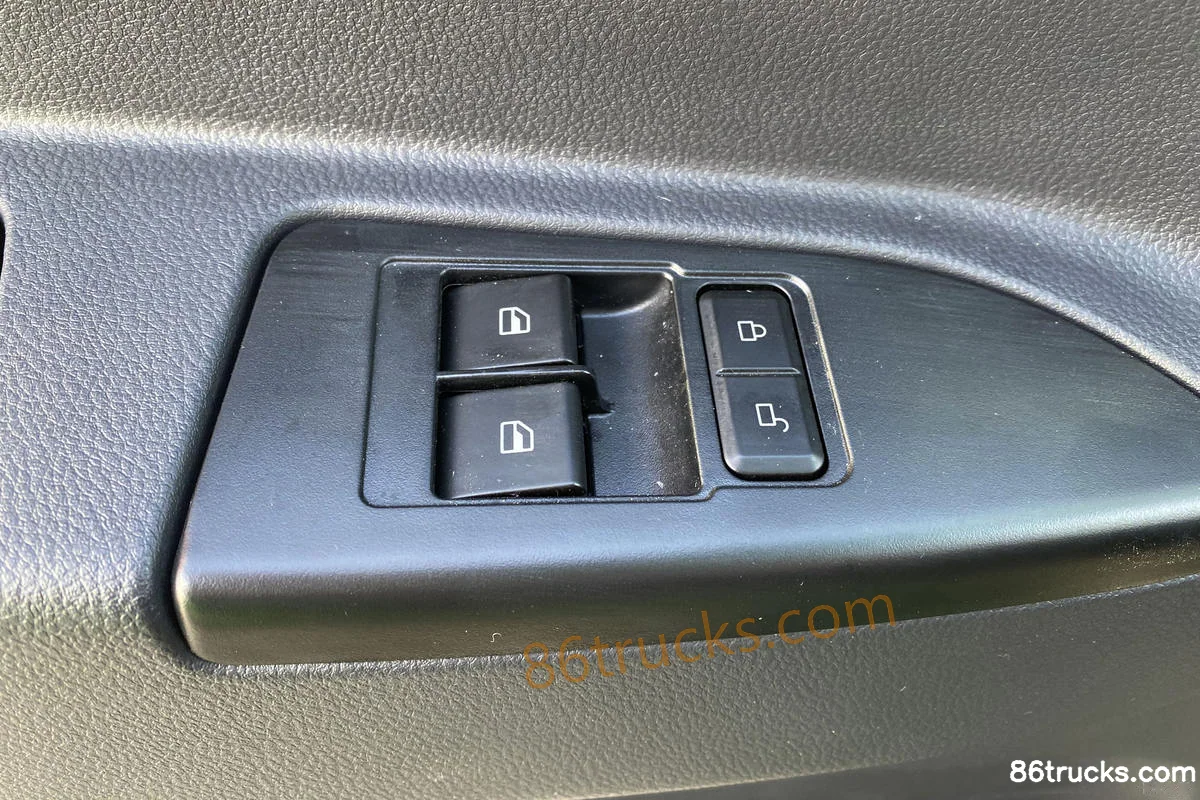

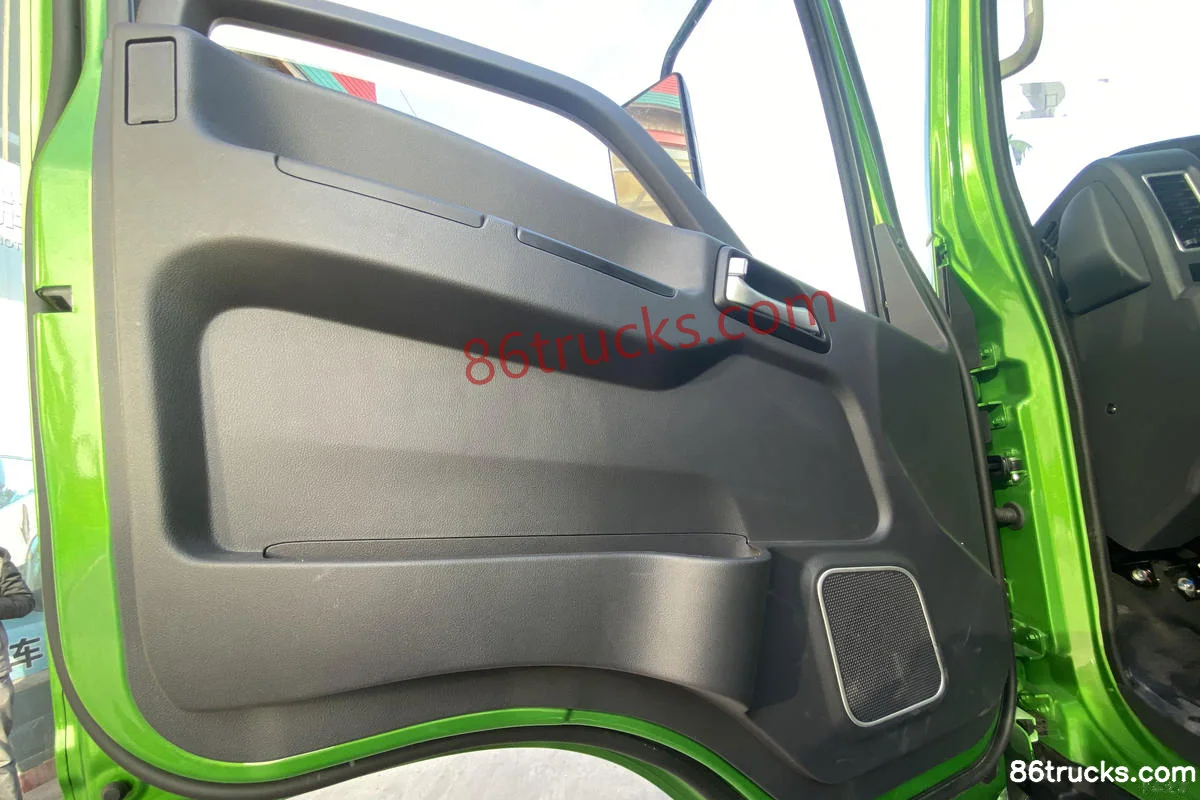

Cab3

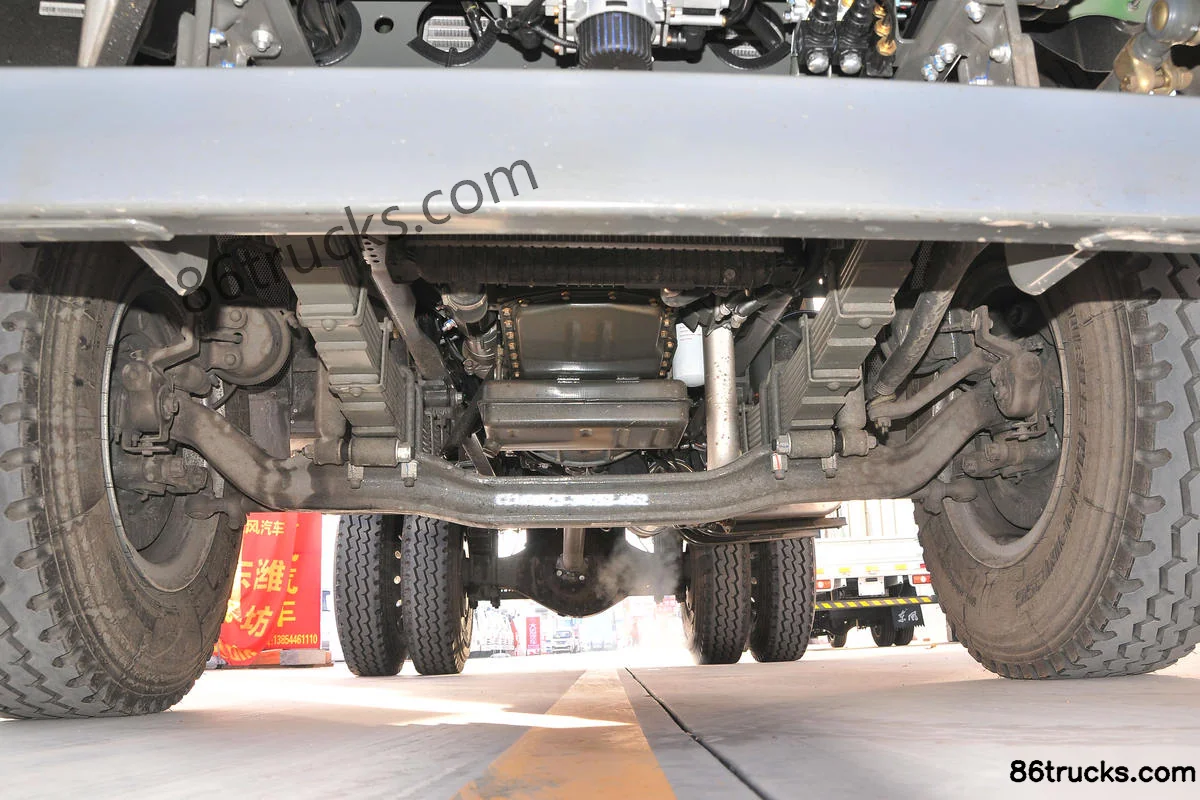

Chassis3

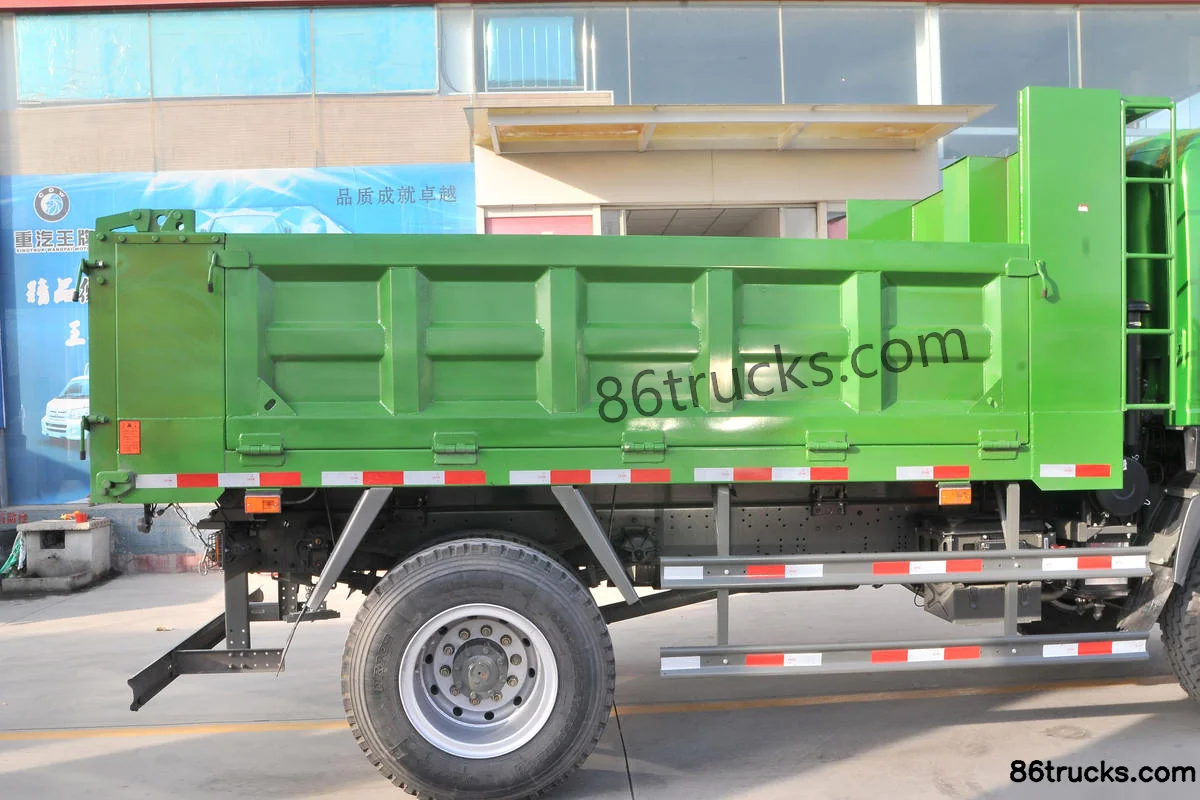

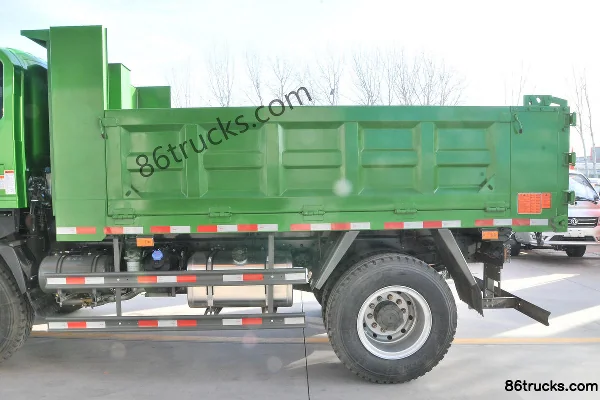

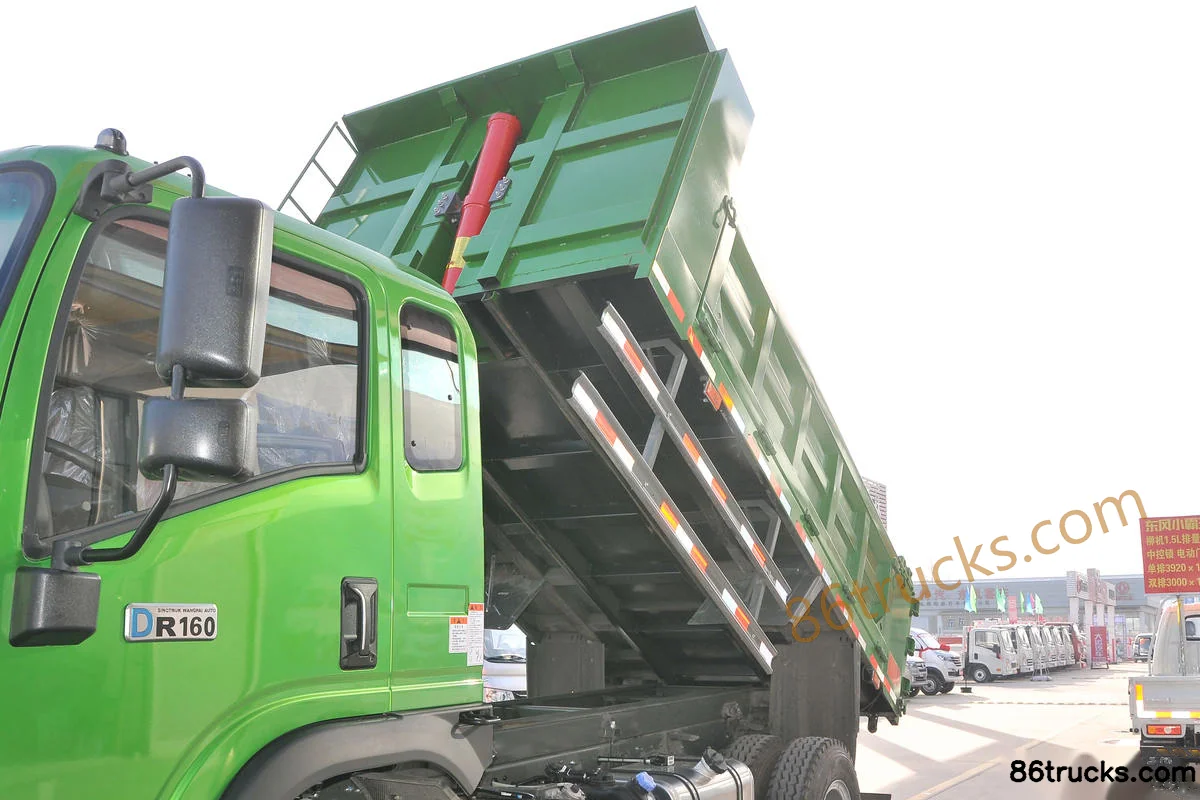

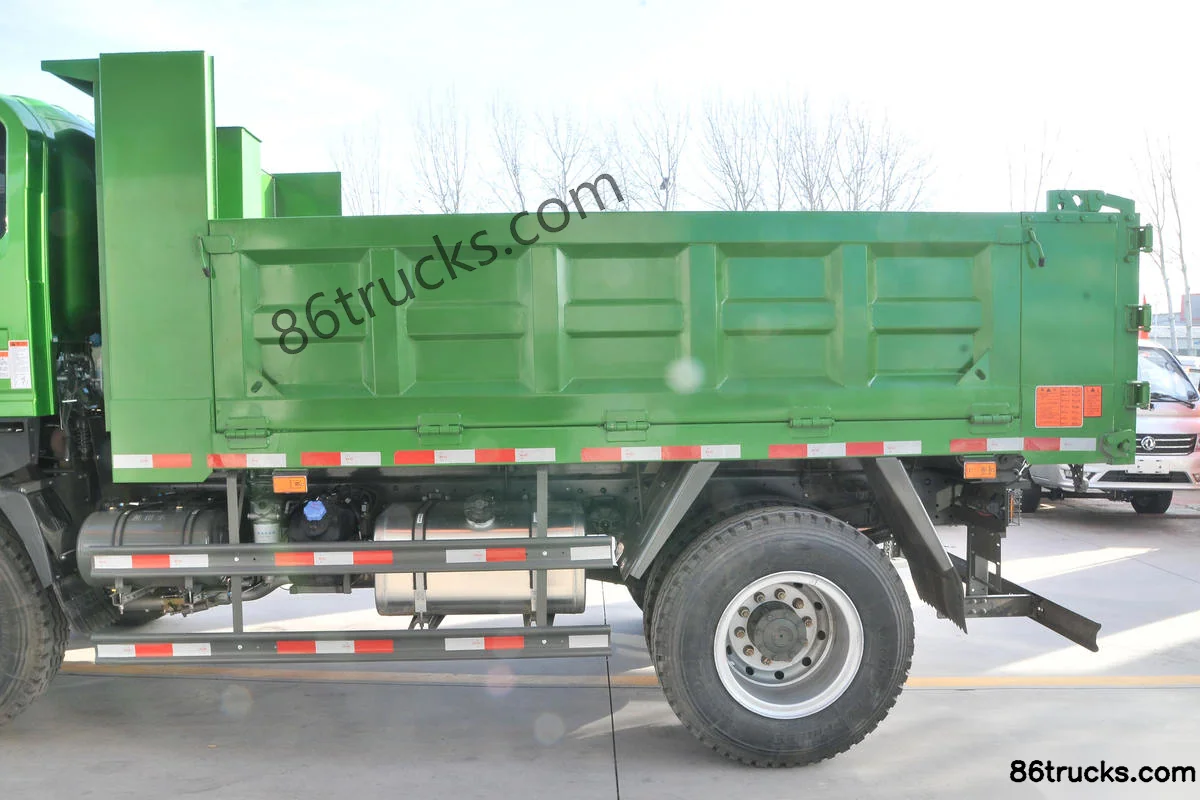

Body3

12 photos

FAQ

What is the export price of Sinotruk Tengshi 130hp 4X2(6 wheels) 4.5m Dump Truck, and what does it include?

Sinotruk Tengshi 130hp 4X2(6 wheels) 4.5m Dump Truck export reference is about From $31,667; MSRP is ¥22.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Tengshi 130hp 4X2(6 wheels) 4.5m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Tengshi 130hp 4X2(6 wheels) 4.5m Dump Truck?

Key specs of Sinotruk Tengshi 130hp 4X2(6 wheels) 4.5m Dump Truck: Drive: 4x2; Horsepower: 130 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Tengshi 130hp 4X2(6 wheels) 4.5m Dump Truck suited for?

Sinotruk Tengshi 130hp 4X2(6 wheels) 4.5m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Tengshi 130hp 4X2(6 wheels) 4.5m Dump Truck differ from other variants in the same series?

Sinotruk Tengshi 130hp 4X2(6 wheels) 4.5m Dump Truck belongs to Sinotruk Tengshi Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Tengshi 130hp 4X2(6 wheels) 4.5m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Tengshi 130hp 4X2(6 wheels) 4.5m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
