Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck

Export reference
From $17,889
MSRP ¥12.88M CNY
Emission: China V
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.72ton
Wheelbase:: 3250mm
Tire Size:: 7.00R16LT 8PR,7.00-16LT 8PR,7.50R16LT 6PR,7.50-16LT 6PR
Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck exterior
View more photos (12)
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 131
Cargo box thickness: side1 bottom1, side2 bottom3, side3 bottom5, etc.

Overview

The Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck is a Light Truck featuring 1.645t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD25TCIE2 engine, 131 hp, China V emissions and WLY transmission.

China V 131 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): FD3041W17K5-5
Drive type: 4X2
Wheelbase: 3250mm
engine: Yunnei PowerD25TCIE2
transmission: WLYWLY10H35
Rear Axle Ratio: 6.167
Cab length: 5.995m
Cab width: 2.1/2.2m
Cab height: 2.18m
Front track width: 1560mm
rear track: 1590mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Rizhao, Shandong
tonnage class: Light Truck
Approach angle: 22°
departure angle: 17°
Remarks: Steering wheel material: magnesium-aluminum alloy/steel.
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD25TCIE2
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.499L
Emission standard: China V
Max output power: 96kW
Max hp: 131Horsepower
Max torque: 290N·m
Max torque speed: 1300-3100rpm
Rated speed: 3600rpm
Engine Type: Electronically controlled strong-cooling EGR
Transmission Parameters
Transmission Model: WLYWLY10H35
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
hydraulic cylinder brand & model: 100、110
Cargo box thickness: side1 bottom1, side2 bottom3, side3 bottom5, etc.
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.13m
Cargo box width: 2.01m
Cargo box height: 0.4m
Cargo box material: Q235A, CR780/980MS, etc.
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle allowable load: 1850kg
rear axle allowable load: 2645kg
Axle ratio: 6.167
Leaf spring count: 7/7+6,7/8+8
Aluminum wheels:
Tire
Tire Size: 7.00R16LT 8PR,7.00-16LT 8PR,7.50R16LT 6PR,7.50-16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
ASR traction control:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power interface:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
side skirt:
Aluminum air tank:
Diesel primary filter heating:
Service brake
Engine brake: Yes
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
smart configuration
Telematics System:

Photos

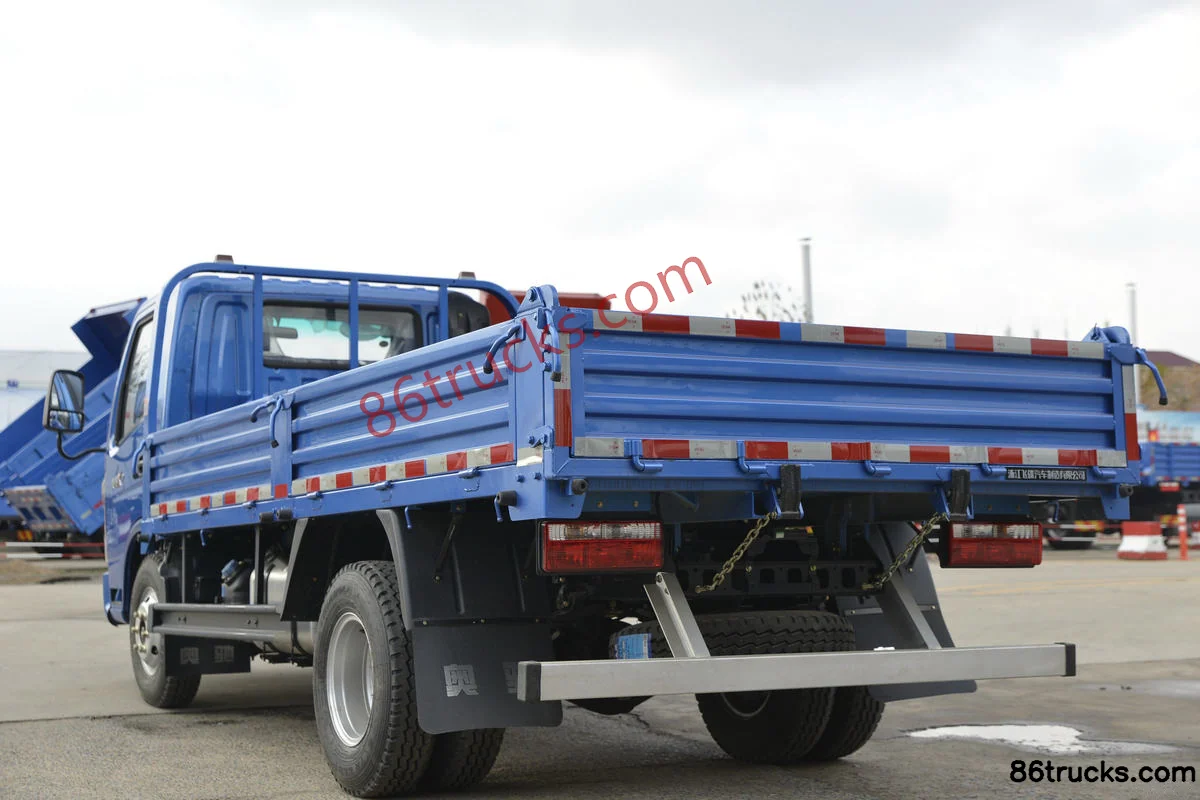

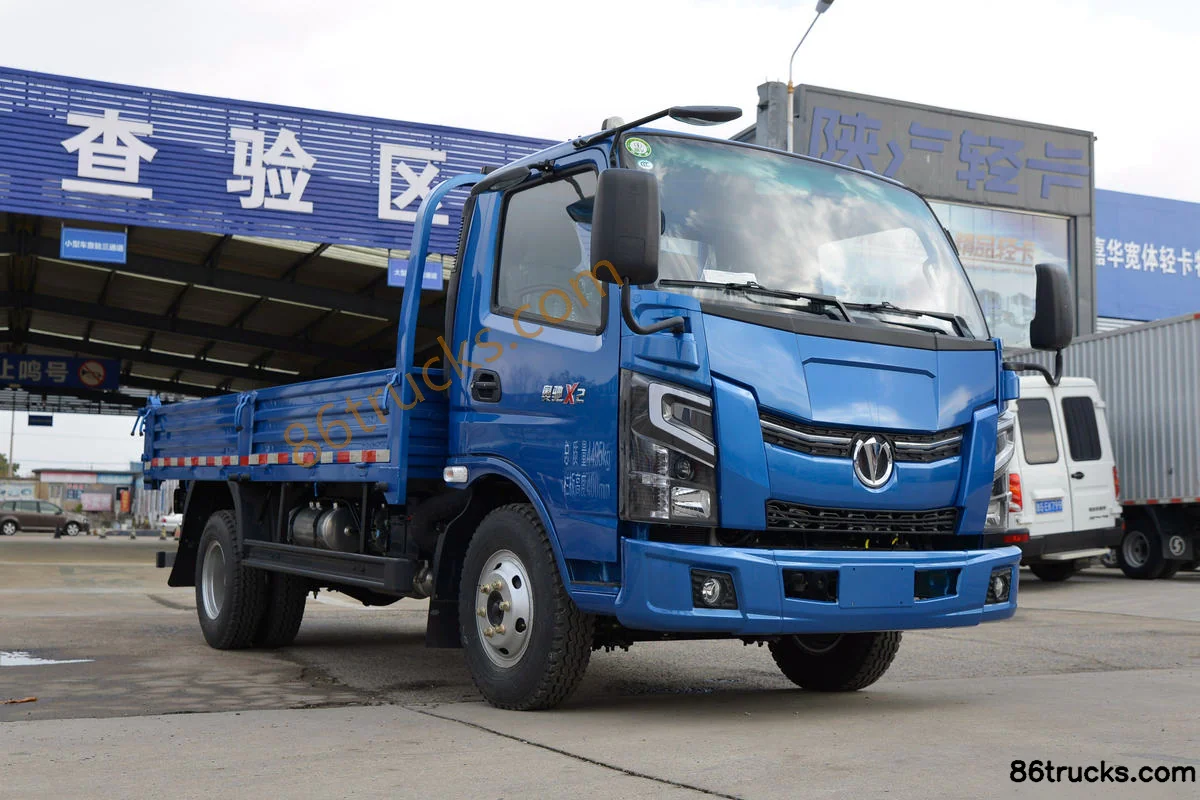

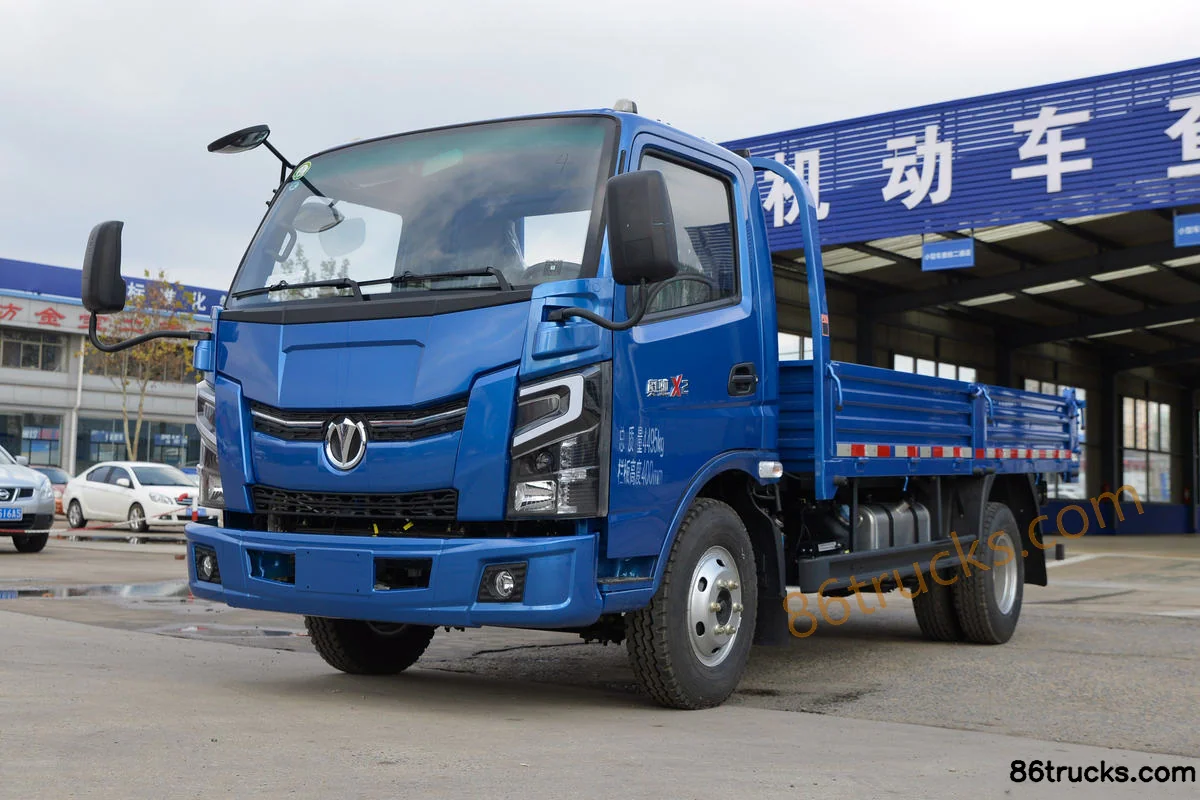

Exterior3

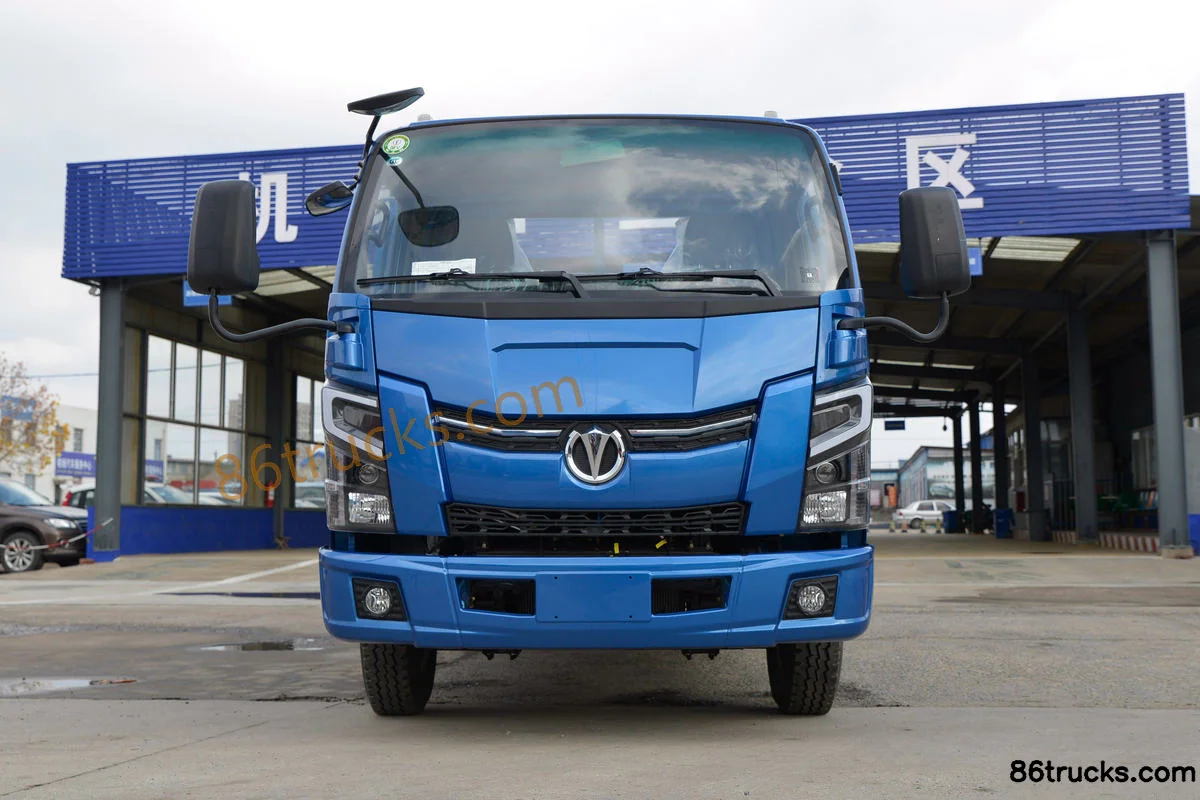

Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck Exterior (1) | 86Trucks Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck Exterior (2) | 86Trucks Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck Exterior (3) | 86Trucks

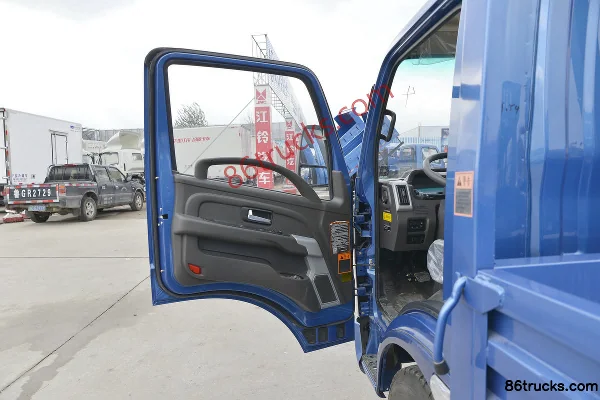

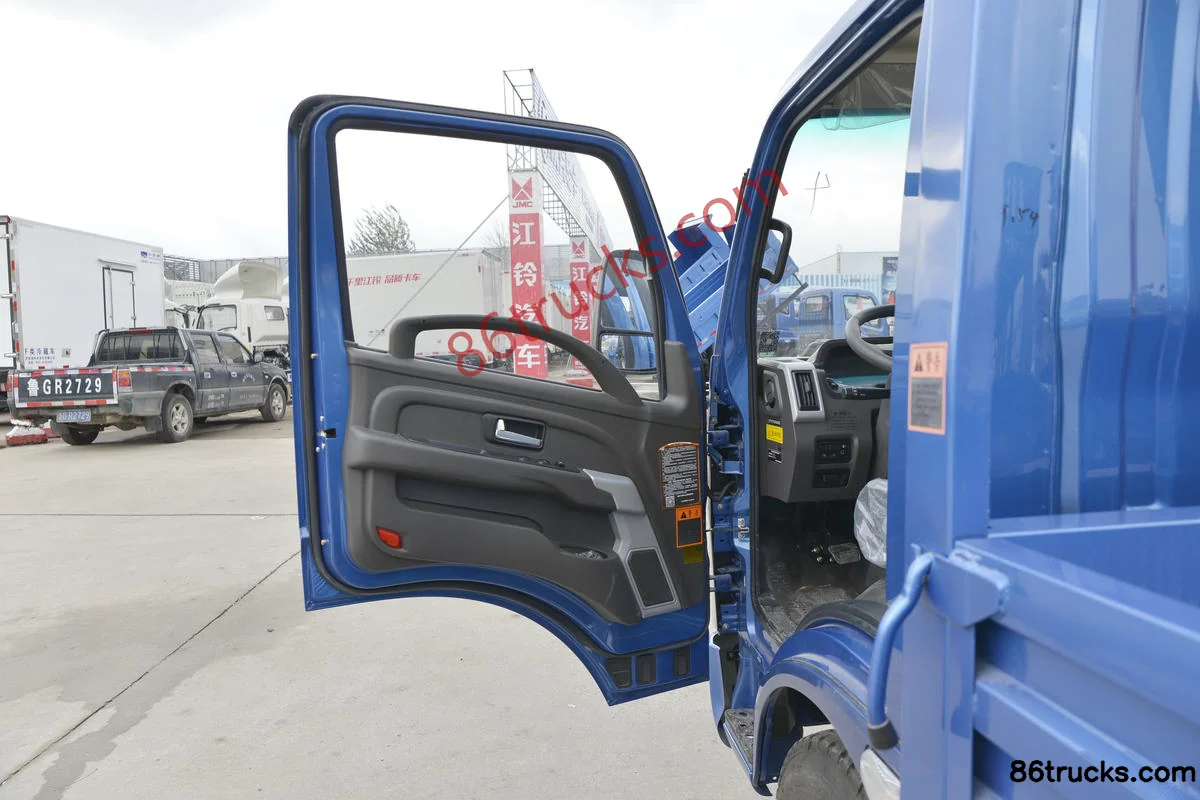

Cab3

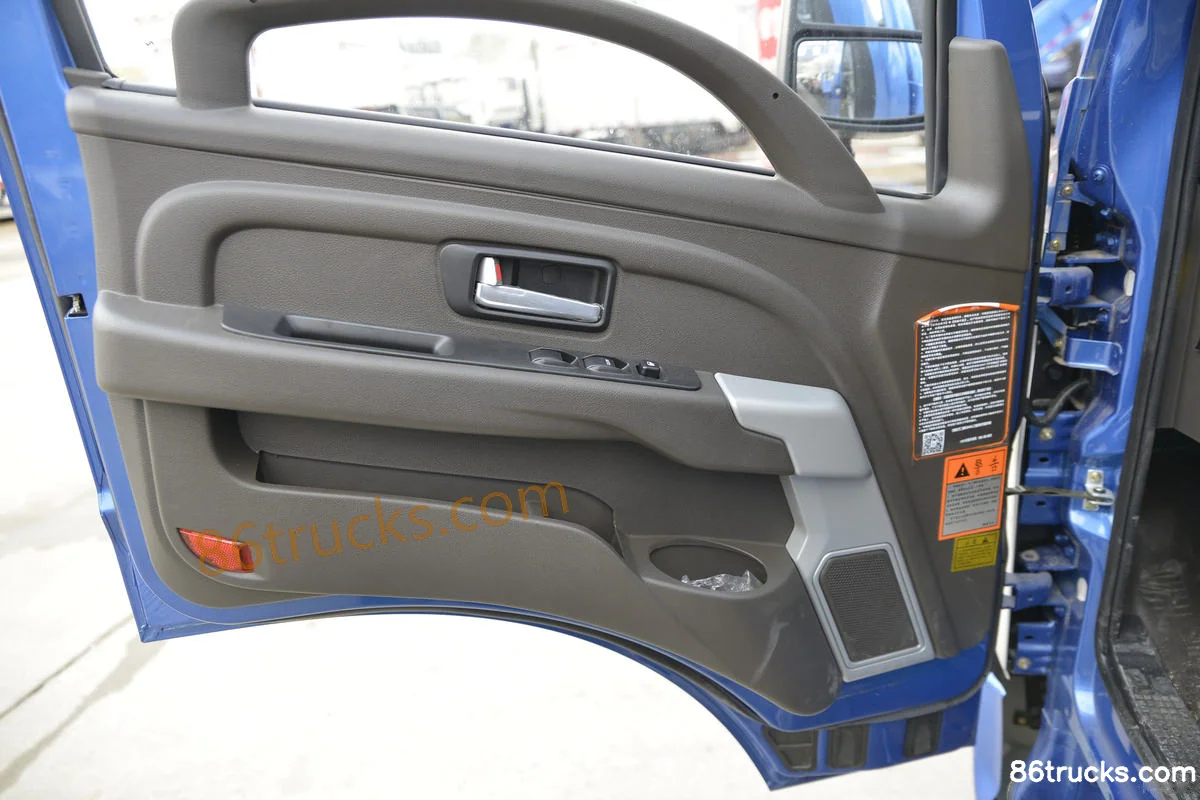

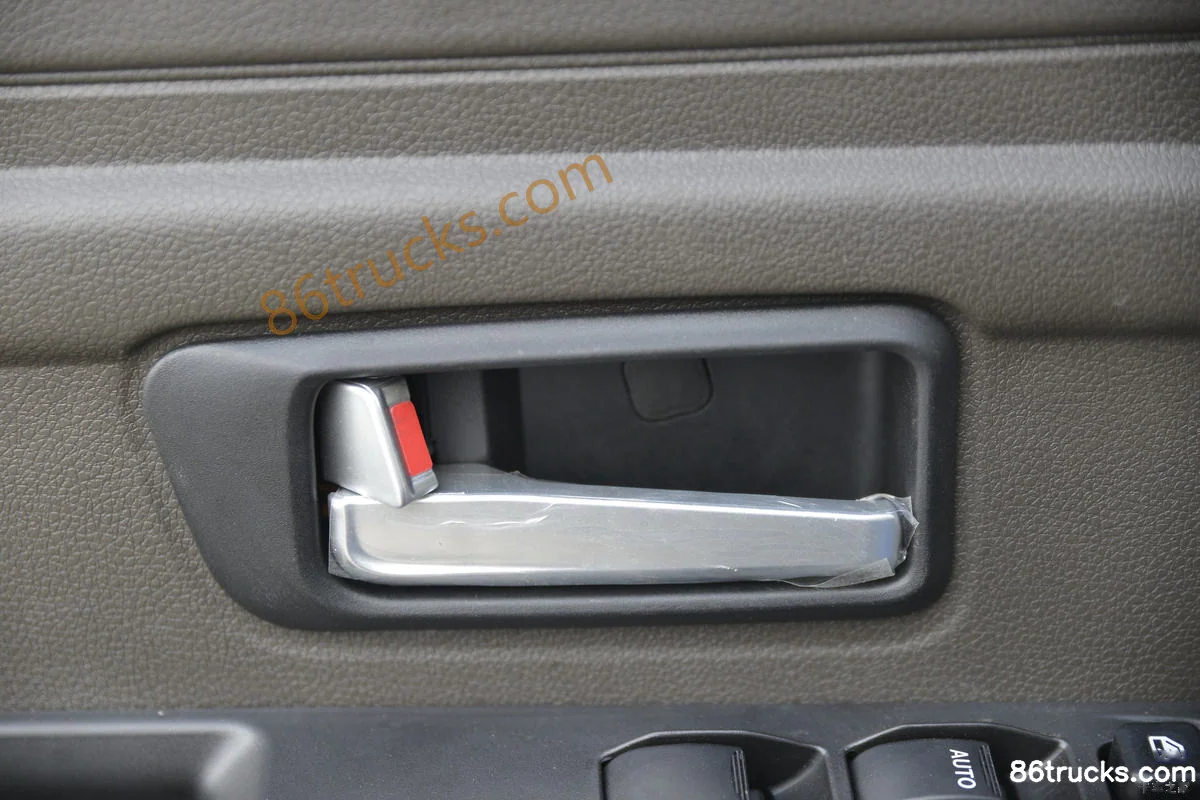

Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck Cab (1) | 86Trucks Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck Cab (2) | 86Trucks Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck Cab (3) | 86Trucks

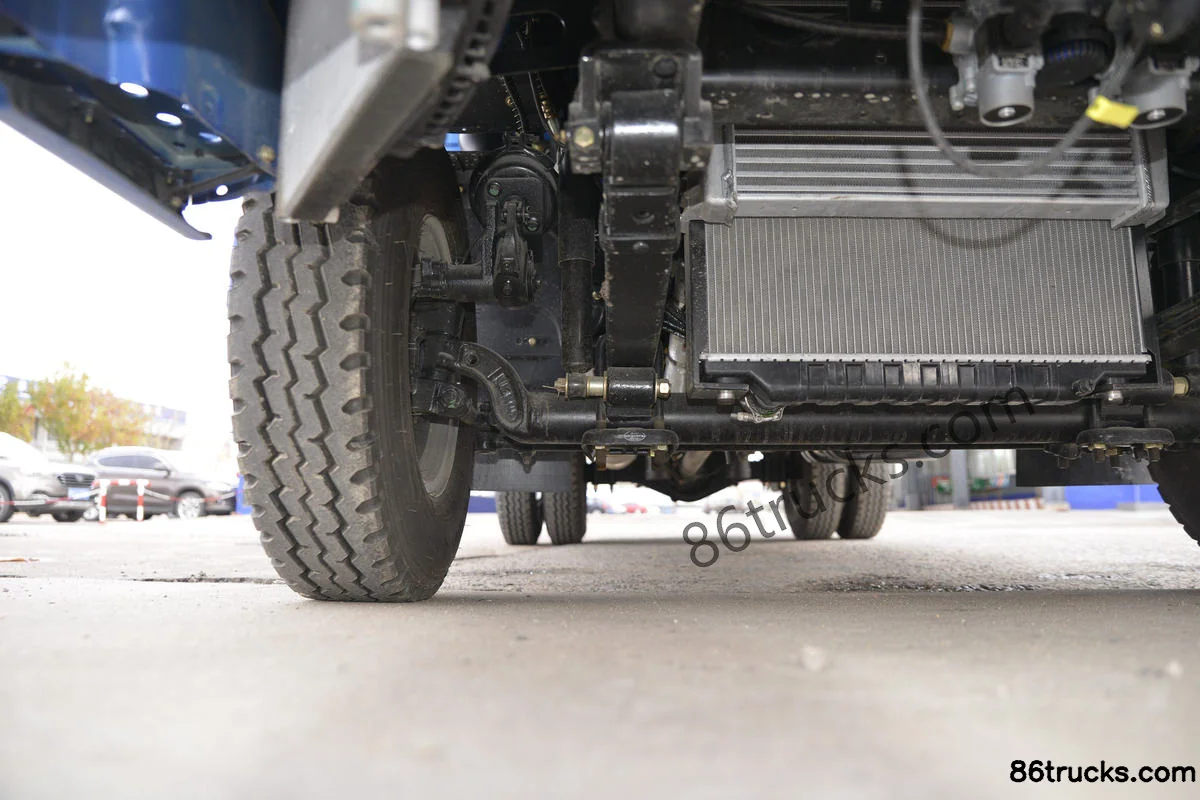

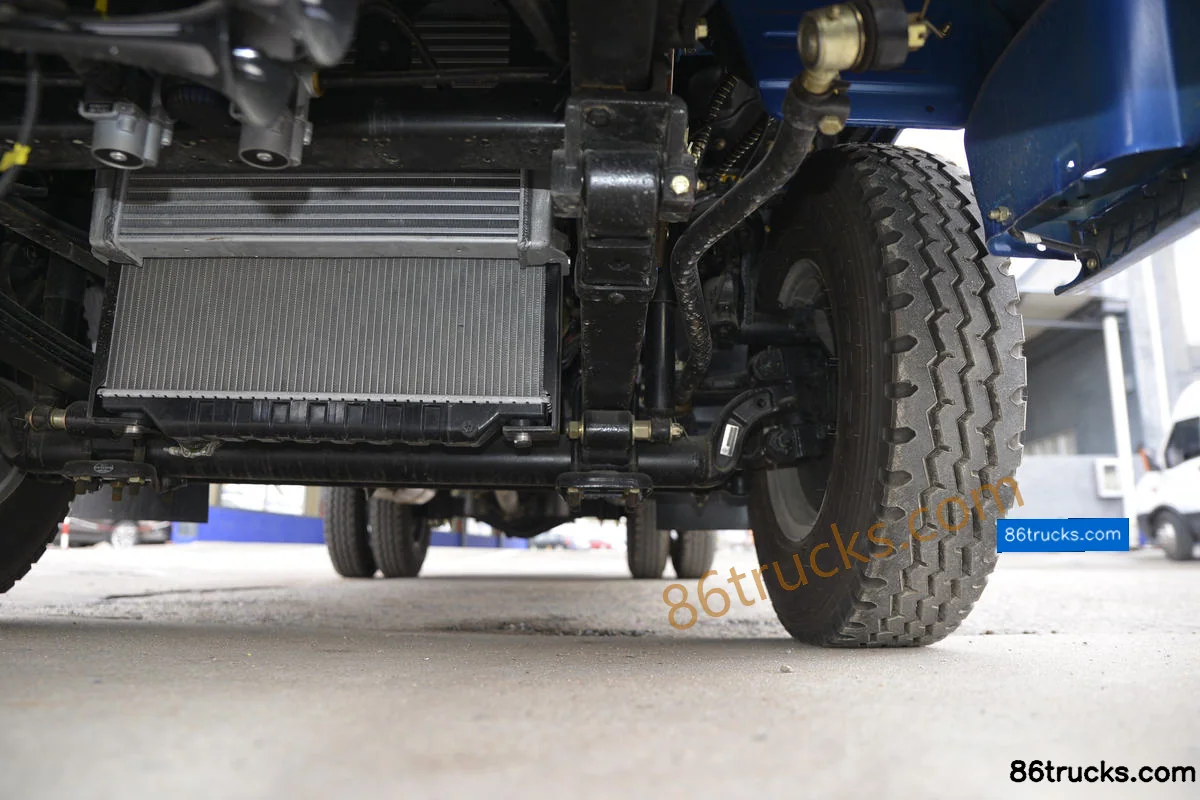

Chassis3

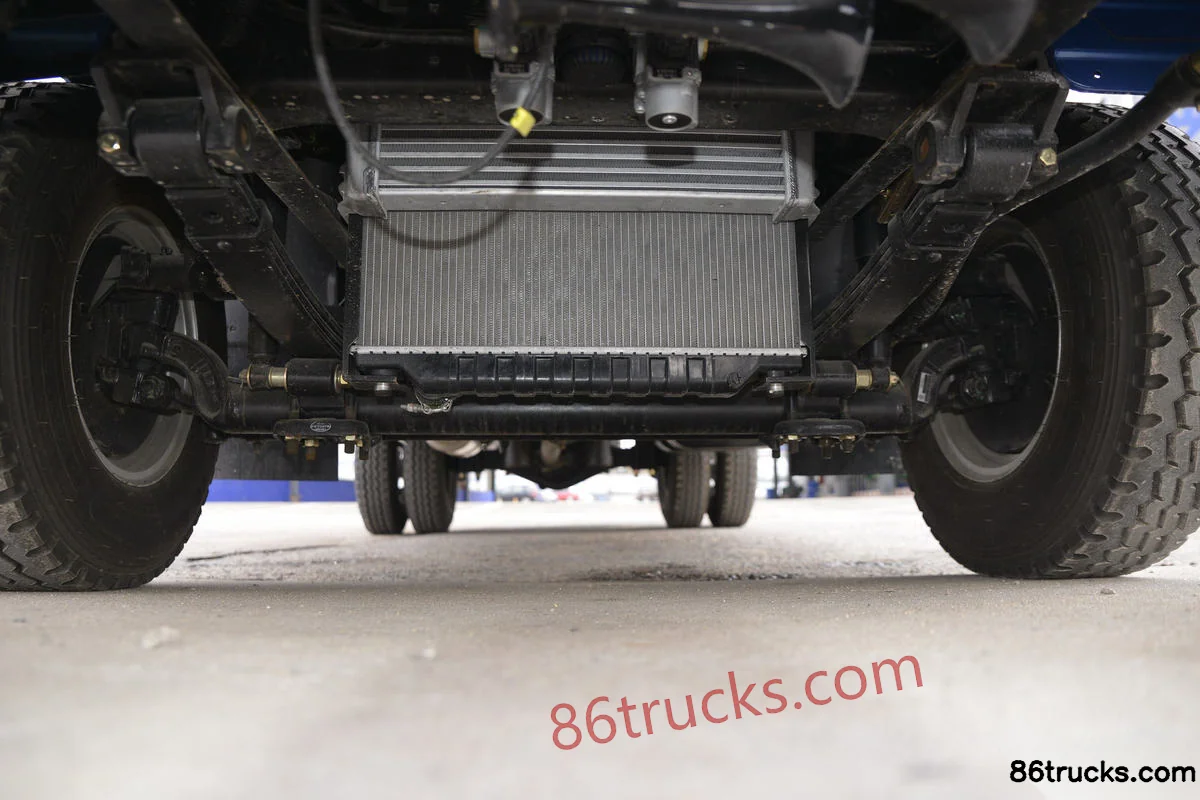

Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck Chassis (1) | 86Trucks Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck Chassis (2) | 86Trucks Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck Chassis (3) | 86Trucks

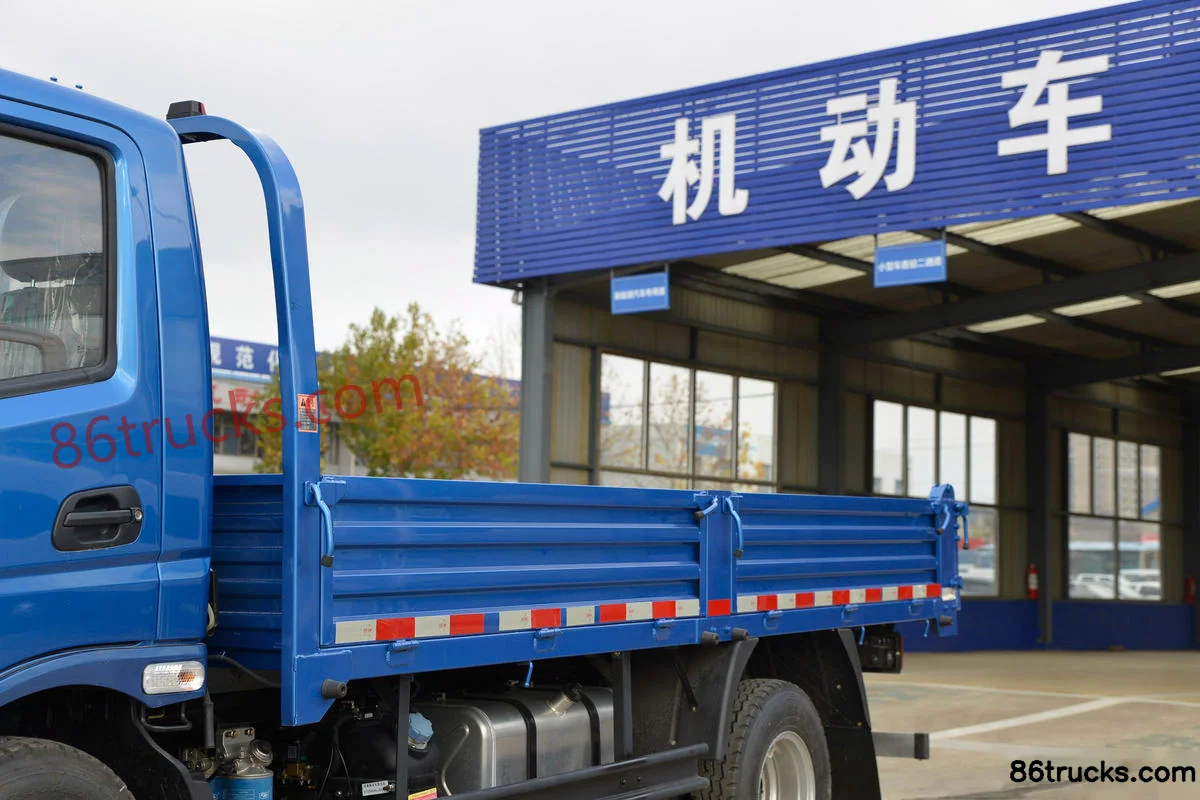

Body3

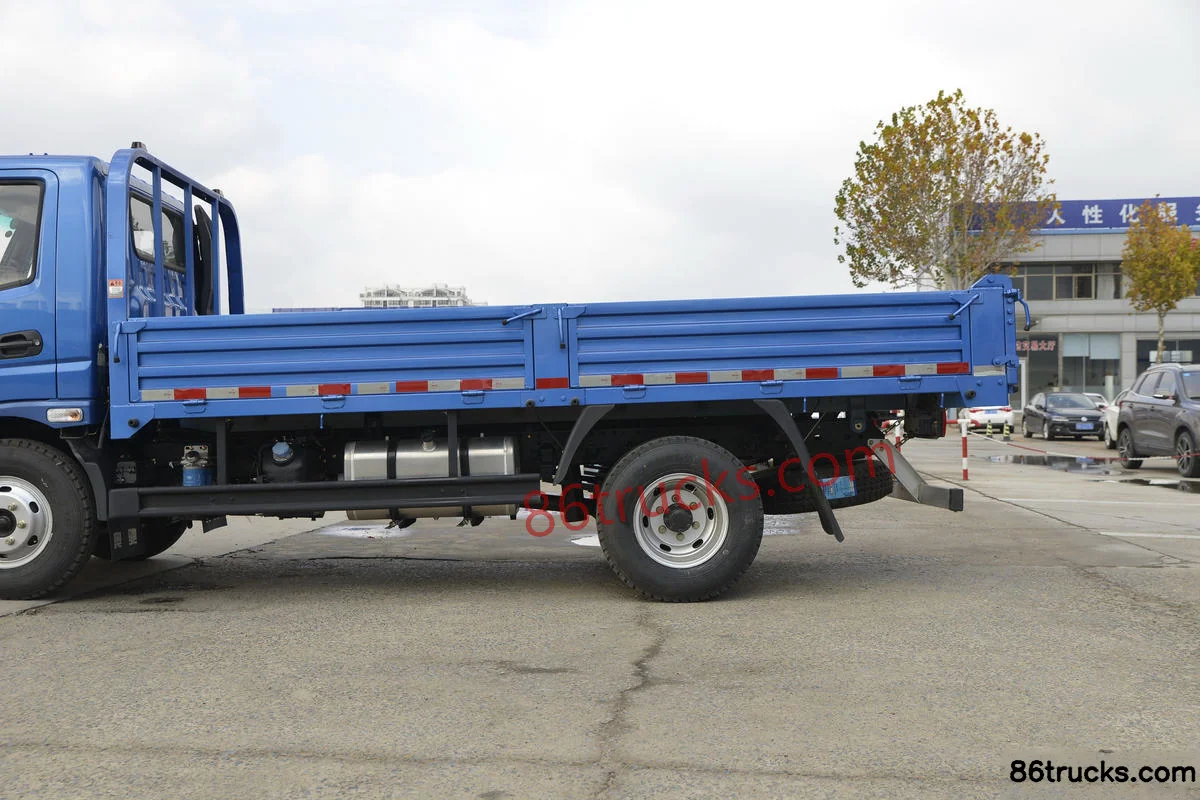

Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck Body (1) | 86Trucks Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck Body (2) | 86Trucks Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck Body (3) | 86Trucks

12 photos

FAQ

What is the export price of Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck, and what does it include?

Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck export reference is about From $17,889; MSRP is ¥12.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck?

Key specs of Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck: Drive: 4x2; Horsepower: 131 hp; Emission: China V; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck suited for?

Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck differ from other variants in the same series?

Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck belongs to Feidi Jinniu (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi X2 Series 131hp 4X2(6 wheels) 4.13m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
