Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.8m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.04ton
Wheelbase:: 1950+2700mm
Tire Size:: 11.00-20 18PR,11.00R20 18PR
Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.8m Dump Truck exterior
View more photos (9)
Rated payload: 12.755ton
Drive 6X2 (8 wheels)
Horsepower 220
Cargo box type: Rear-dump body

Overview

The Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.8m Dump Truck is a Medium-duty truck featuring 12.755t payload, 24.99t GVW, Rear-dump body cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYC6JA220-50 engine, 220 hp, China V emissions and Fast Gear transmission.

China V 220 Diesel 6X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): LZ3250M3CB
Drive type: 6X2
Wheelbase: 1950+2700mm
engine: YuchaiYC6JA220-50
transmission: Fast Gear8JS118
Rear Axle Ratio: 5.286
Cab length: 7.665m
Cab width: 2.495m
Cab height: 3.25m
Front track width: 1970/1970mm
rear track: 1860mm
Curb Weight: 12.04ton
Rated payload: 12.755ton
GVWR: 24.99ton
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 22°
departure angle: 20°
Remarks: (1) Optional electric lift (2) Optional air-suspension driver seat (3) Optional mechanical full-floating cab (4) Optional 11.00-20-18PR tires (5) Optional 4.875 ratio
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6JA220-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 860N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: Fast Gear8JS118
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 4.8m
Cargo box width: 2.35m
Cargo box height: 1.5m
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 250L
Chassis Specs
Front axle allowable load: 6995/6995kg
Frame Dimensions: 264×75×(6+4)mm
rear axle description: 457 stamped-welded axle
rear axle allowable load: 11000kg
Axle ratio: 5.286
Leaf spring count: 10/10/12+9,11/11/12+9
clutch: Φ395
Tire
Tire Size: 11.00-20 18PR,11.00R20 18PR
Number of tires: 8pcs
Control configuration
ABS:
Exterior features
Aluminum air tank:

Photos

Exterior3

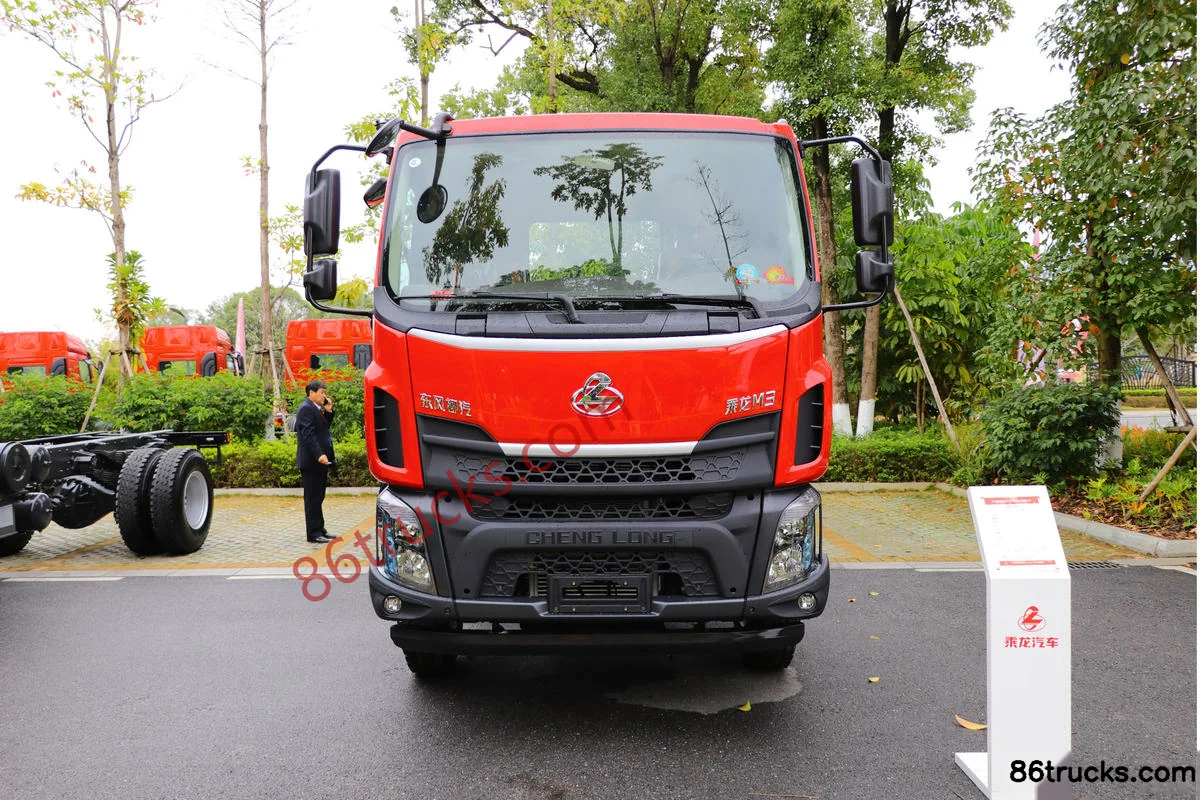

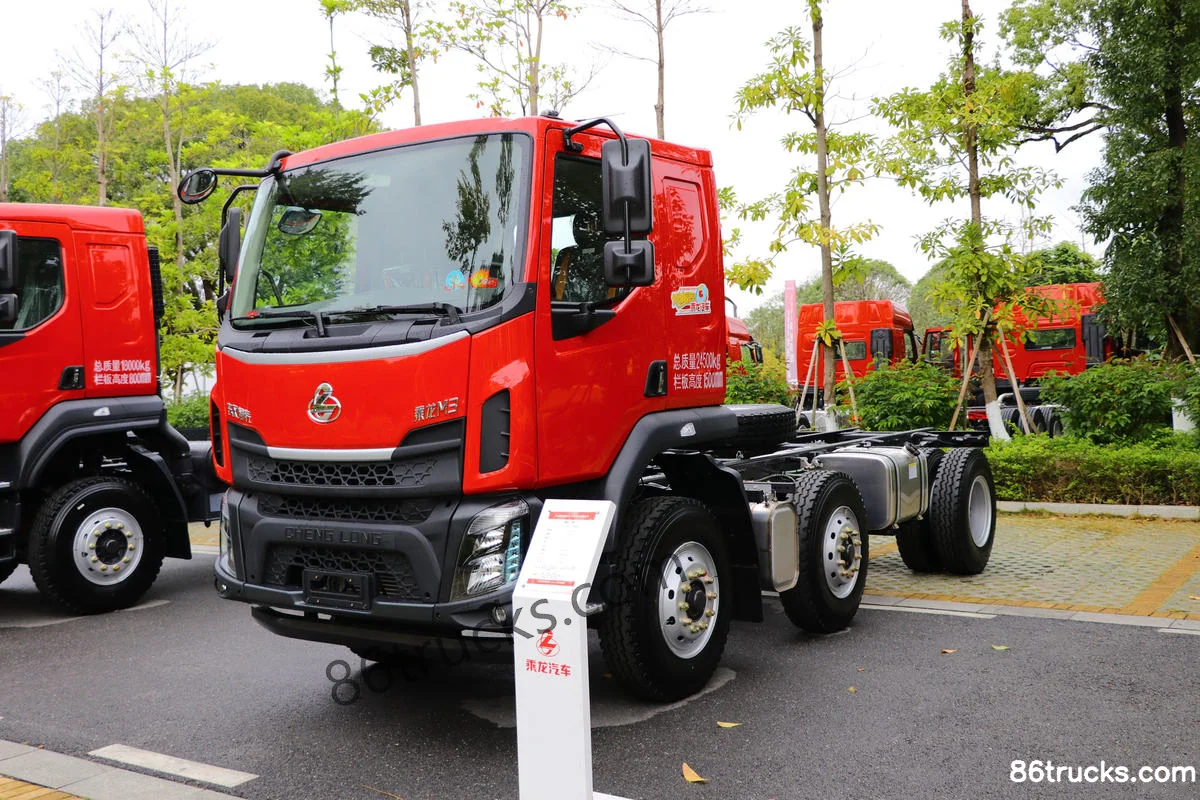

Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.8m Dump Truck Exterior (1) | 86Trucks Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.8m Dump Truck Exterior (2) | 86Trucks Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.8m Dump Truck Exterior (3) | 86Trucks

Cab3

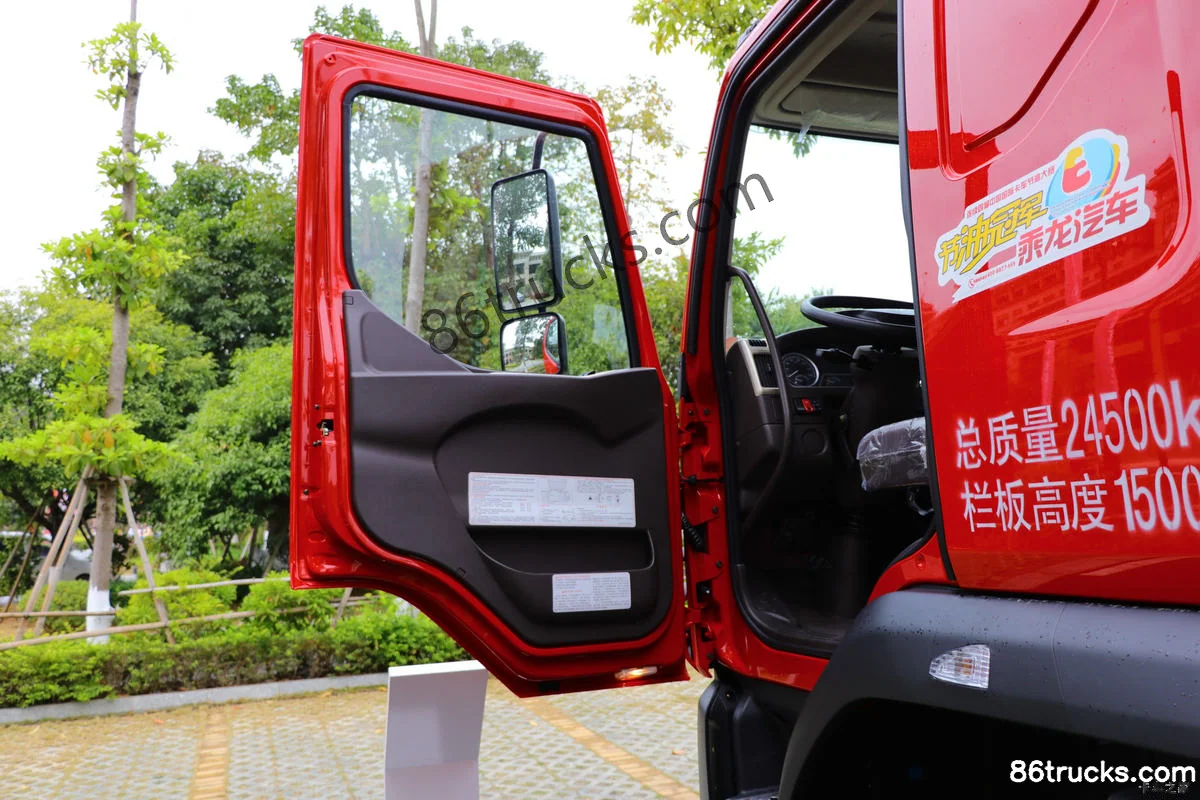

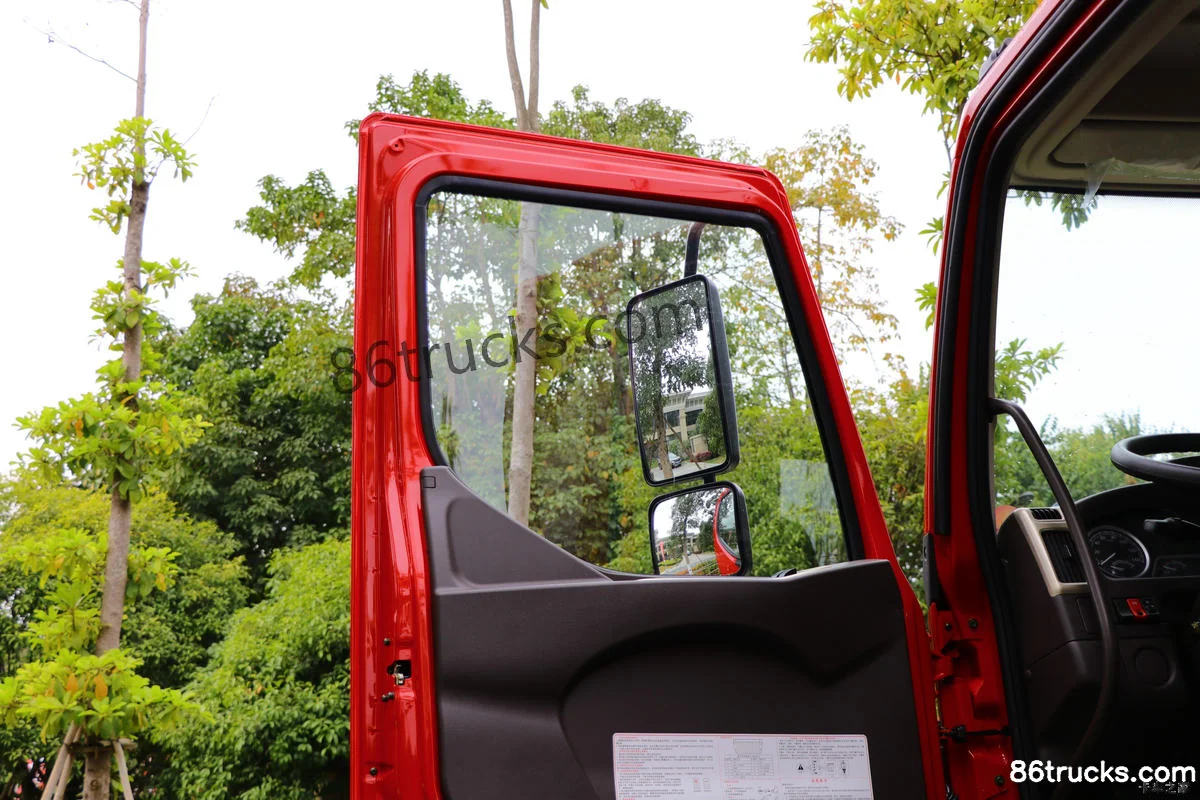

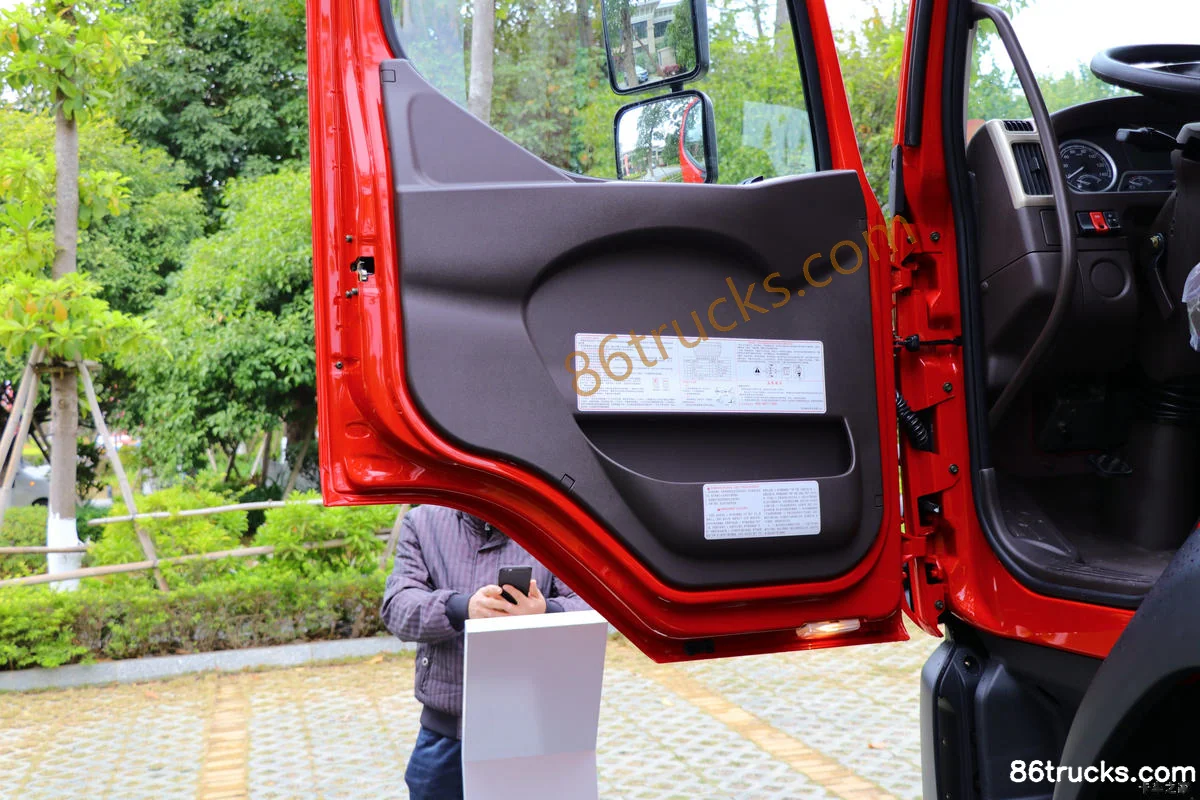

Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.8m Dump Truck Cab (1) | 86Trucks Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.8m Dump Truck Cab (2) | 86Trucks Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.8m Dump Truck Cab (3) | 86Trucks

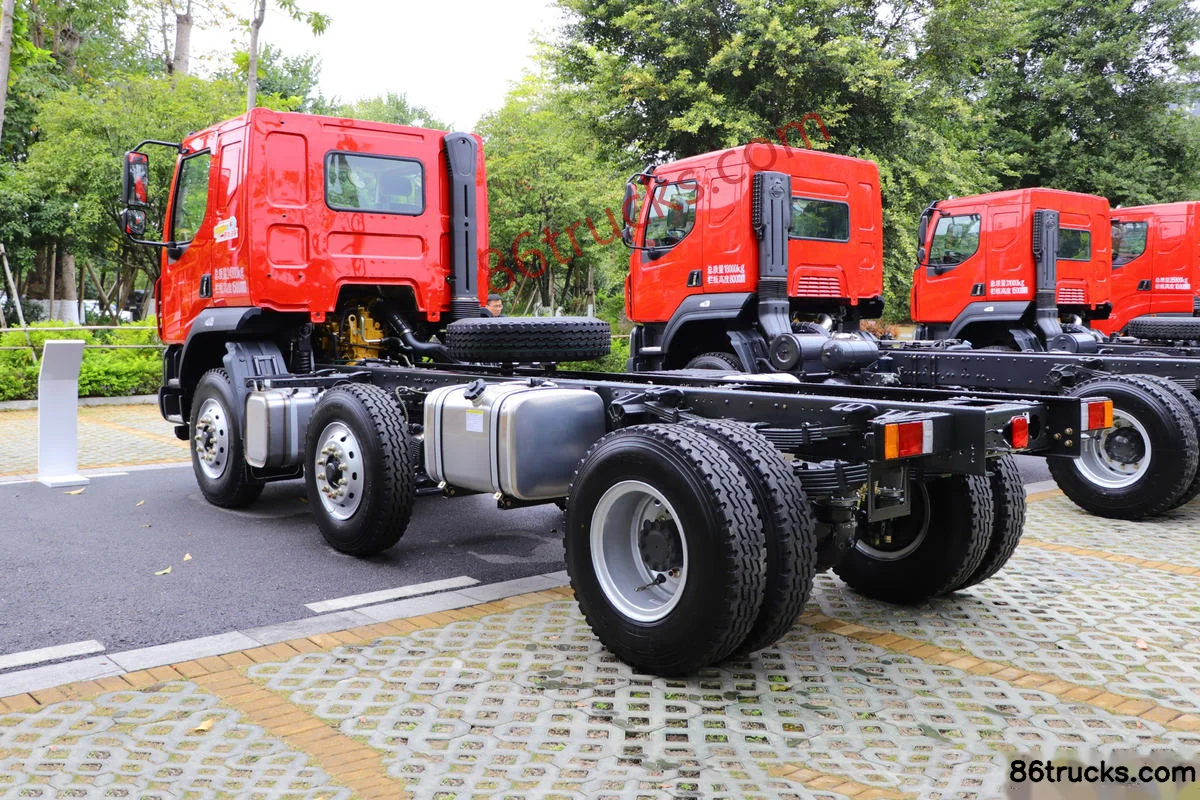

Chassis3

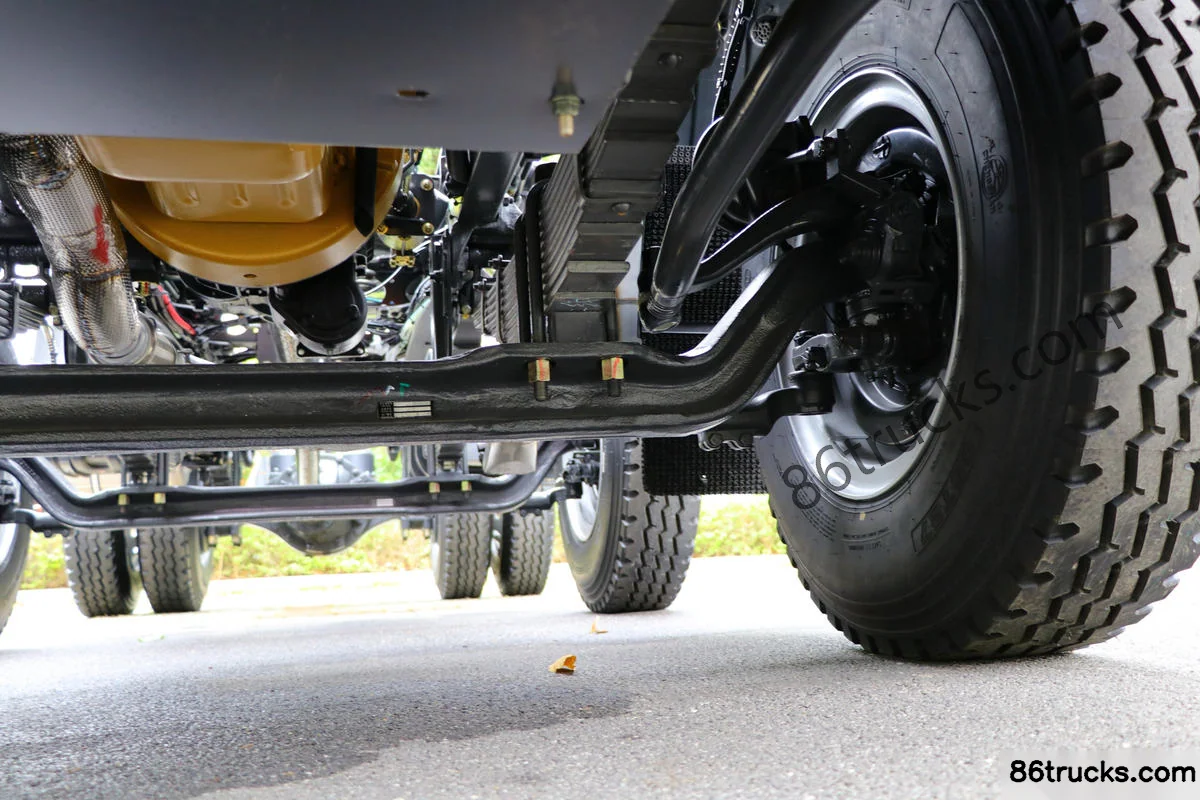

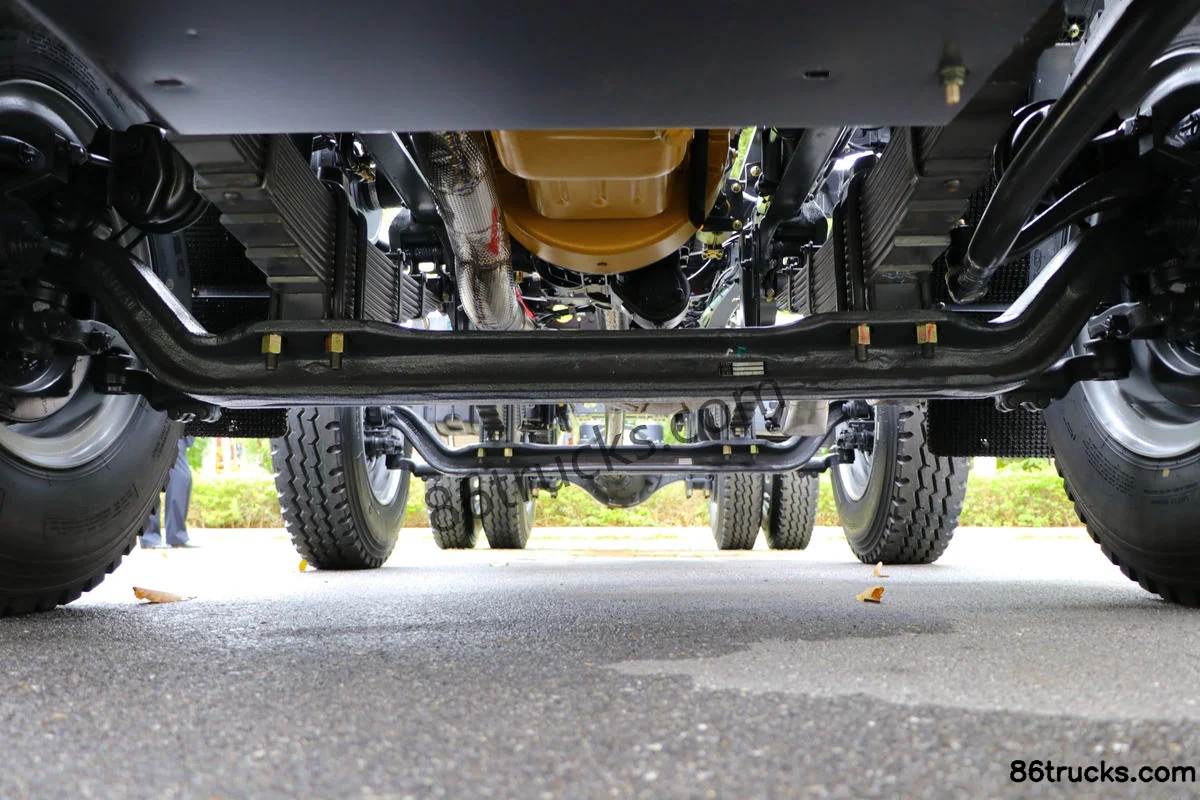

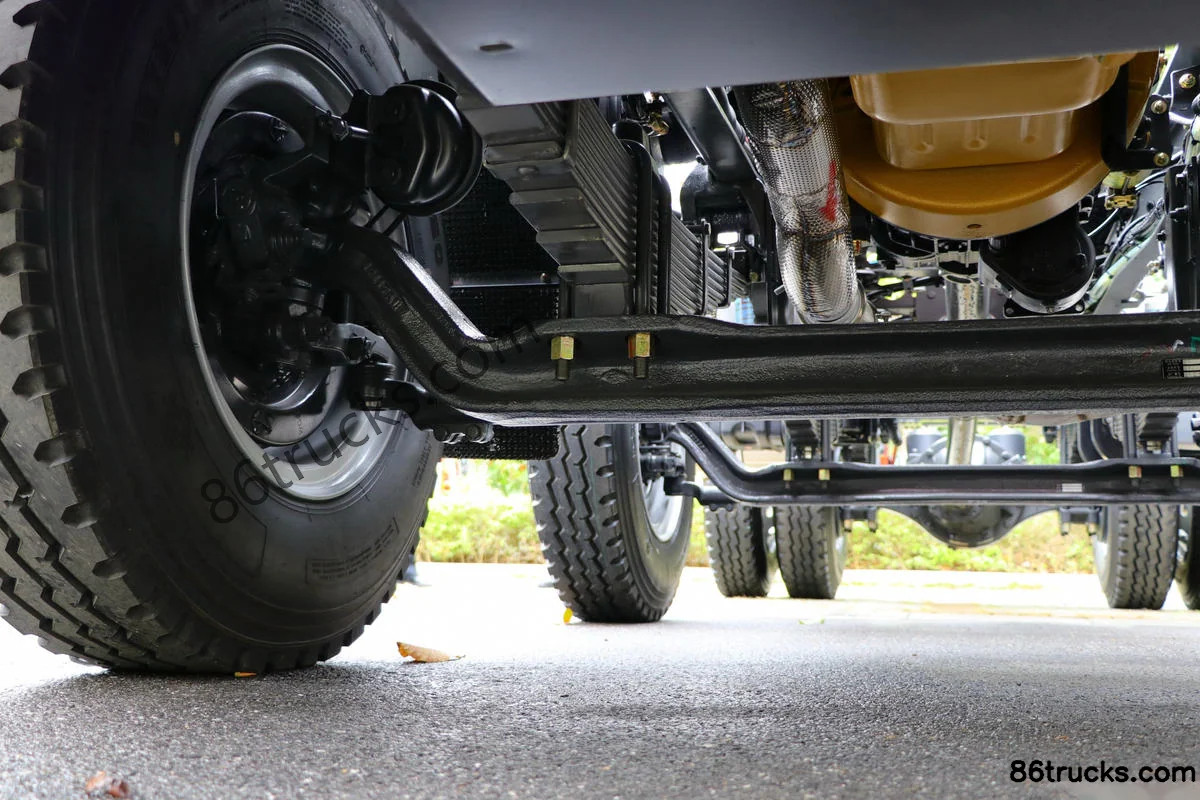

Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.8m Dump Truck Chassis (1) | 86Trucks Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.8m Dump Truck Chassis (2) | 86Trucks Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.8m Dump Truck Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.8m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.8m Dump Truck?

Key specs of Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.8m Dump Truck: Drive: 6x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.8m Dump Truck suited for?

Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.8m Dump Truck differ from other variants in the same series?

Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.8m Dump Truck belongs to Dongfeng New Chenglong M3 Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
