Sinotruk Haoman H3 160hp 4X2(6 wheels) Truck-mounted Crane

Export reference
From $31,667
MSRP ¥22.8M CNY
Fuel: Diesel
Wheelbase:: 3900mm
Cab dimensions:: 7.18×2.4×3.55m
Type:: truck-mounted crane
GVWR:: 11.2ton
Remarks:: Crane options: 5t, 6.3t, 7t
Drive 4X2 (6 wheels)
Horsepower 160
Rated mass: 4.545ton
Emission China VI

Overview

The Sinotruk Haoman H3 160hp 4X2(6 wheels) Truck-mounted Crane is a truck-mounted crane featuring 11.2t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 160 hp, China VI emissions and Diesel fuel.

China VI 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.18×2.4×3.55m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 3900mm
Rated mass: 4.545ton
GVWR: 11.2ton
Remarks: Crane options: 5t, 6.3t, 7t
Front/rear suspension: 1.175/1.625m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Brand: Weichai
Engine Model: WeichaiWP3NQ160E61
fuel type: Diesel
Displacement: 2.97L
Emission standard: China VI
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 480N·m
Max torque speed: 1400-2300rpm
Rated speed: 3000rpm
Body Parameters
Vehicle certification code: ZZ5048JSQD17EB0
Body Brand: Sinotruk
Chassis Specs
Chassis Brand: Sinotruk
Chassis Series: HOWO MAN H3
Chassis Model: ZZ1118G17FB0
Leaf spring count: 8/9+6
Transmission Parameters
Number of gears: 8Gear
Transmission Model: 8-speed gearbox
Tire
Tire Size: 8.25R20
Number of tires: 6pcs

Photos

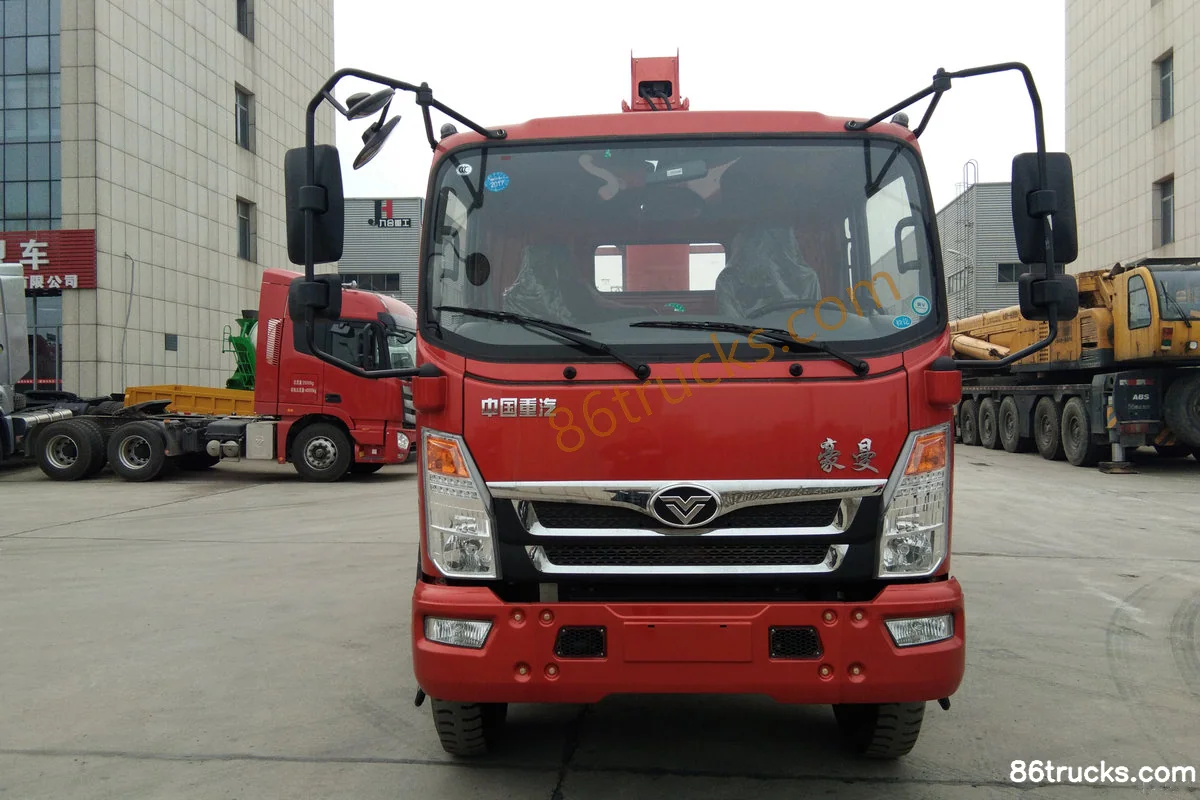

Exterior1

1 photos

FAQ

What is the export price of Sinotruk Haoman H3 160hp 4X2(6 wheels) Truck-mounted Crane, and what does it include?

Sinotruk Haoman H3 160hp 4X2(6 wheels) Truck-mounted Crane export reference is about From $31,667; MSRP is ¥22.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Haoman H3 160hp 4X2(6 wheels) Truck-mounted Crane use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Haoman H3 160hp 4X2(6 wheels) Truck-mounted Crane?

Key specs of Sinotruk Haoman H3 160hp 4X2(6 wheels) Truck-mounted Crane: Drive: 4x2; Horsepower: 160 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Haoman H3 160hp 4X2(6 wheels) Truck-mounted Crane suited for?

Sinotruk Haoman H3 160hp 4X2(6 wheels) Truck-mounted Crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk Haoman H3 160hp 4X2(6 wheels) Truck-mounted Crane differ from other variants in the same series?

Sinotruk Haoman H3 160hp 4X2(6 wheels) Truck-mounted Crane belongs to Sinotruk Pioneer Light Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Haoman H3 160hp 4X2(6 wheels) Truck-mounted Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Haoman H3 160hp 4X2(6 wheels) Truck-mounted Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
