Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.72ton
Wheelbase:: 2660mm
Tire Size:: 7.50R16 6PR

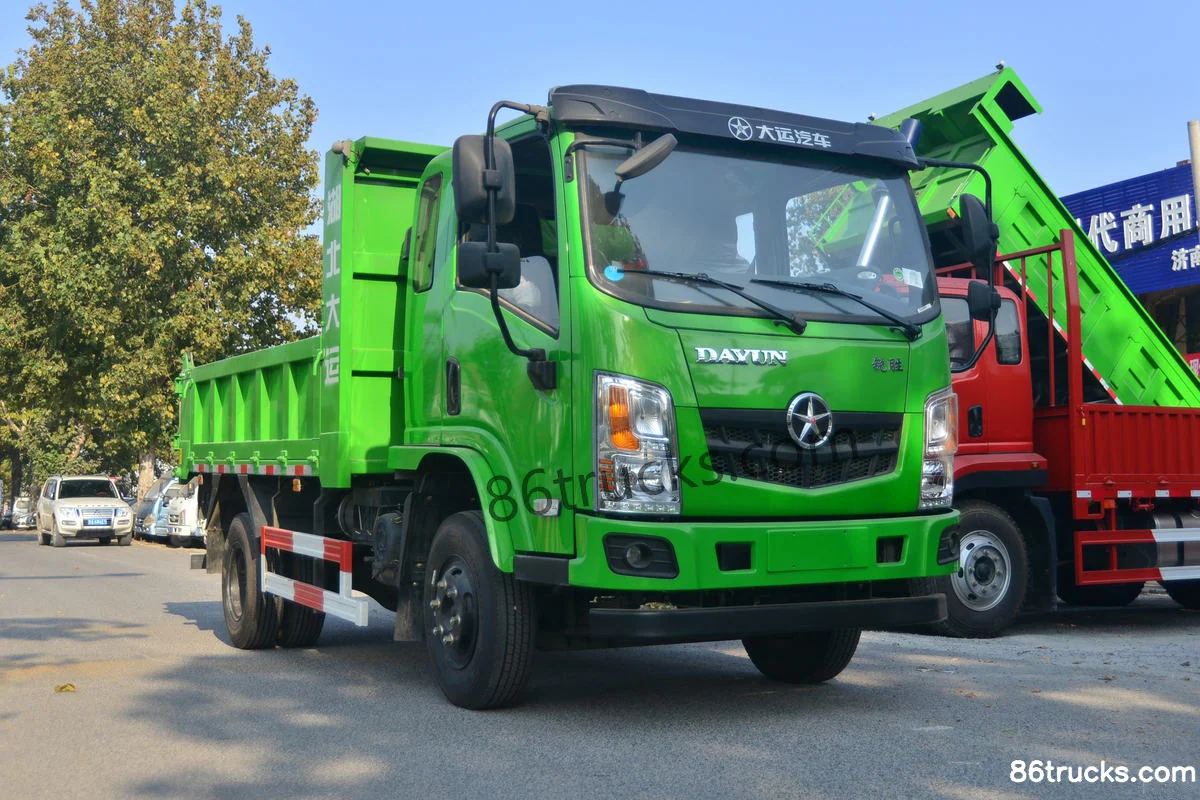

Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck exterior
View more photos (12)
Rated payload: 1.58ton
Drive 4X2 (6 wheels)
Horsepower 116
Cargo box type: Dump type

Overview

The Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck is a Light Truck featuring 1.58t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN33CRE1 engine, 116 hp, China V emissions and WLY transmission.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): DYQ3048D5AB
Drive type: 4X2
Wheelbase: 2660mm
engine: Yunnei PowerYN33CRE1
transmission: WLY5-speed
Rear Axle Ratio: 4.875
Cab length: 5.08m
Cab width: 2.03m
Cab height: 2.2m
Front track width: 1420mm
rear track: 1425mm
Curb Weight: 2.72ton
Rated payload: 1.58ton
GVWR: 4.495ton
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 20°
departure angle: 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN33CRE1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.298L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 315N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: WLY5-speed
Transmission Brand: WLY
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.2m
Cargo box width: 1.8m
Cargo box height: 0.6m
fuel tank
Fuel tank capacity: 90L
Chassis Specs
Front axle allowable load: 1795kg
rear axle allowable load: 2700kg
Axle ratio: 4.875
Leaf spring count: 9/10+8,3/8+6,5/7+6
Tire
Tire Size: 7.50R16 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior3

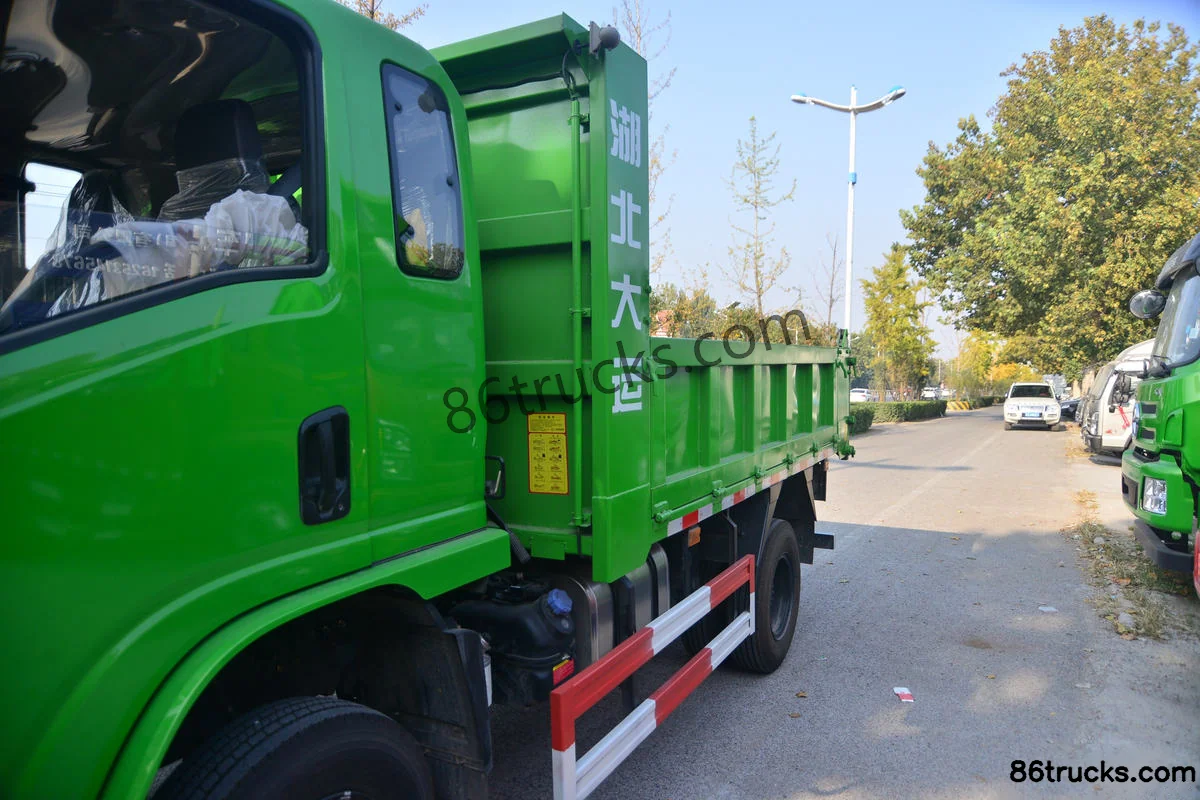

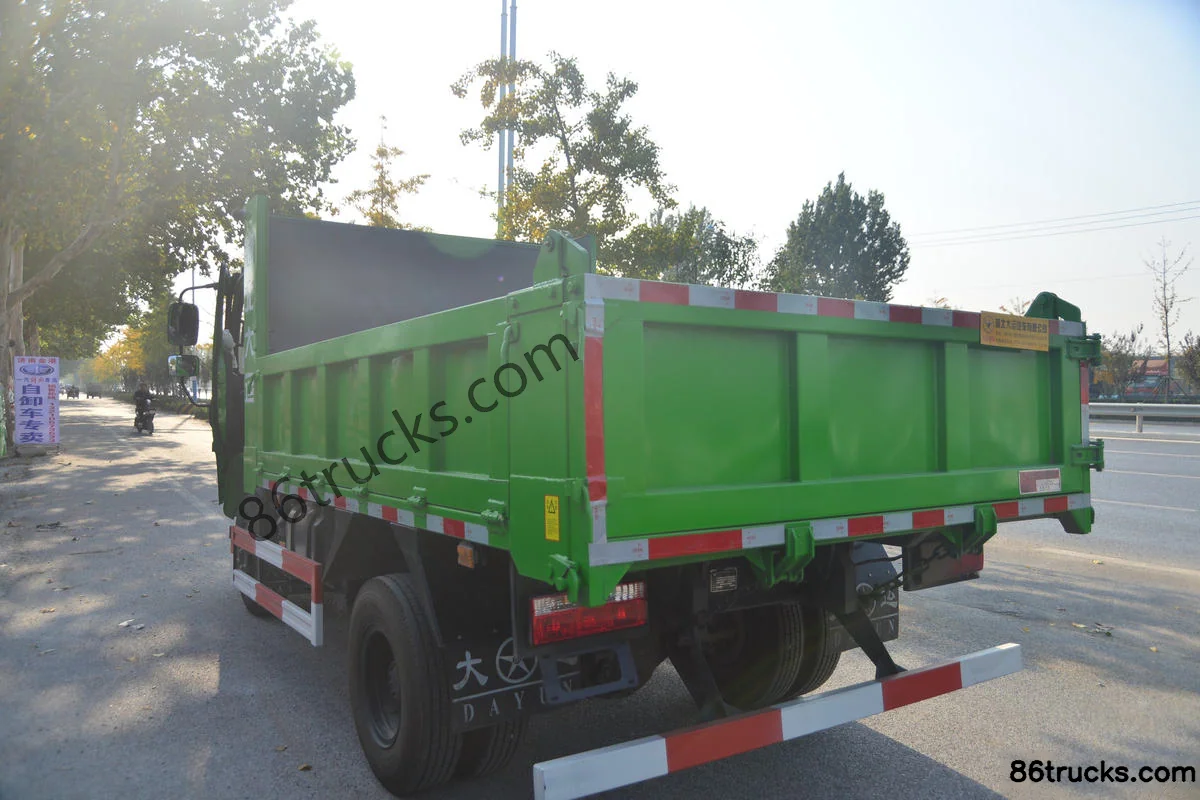

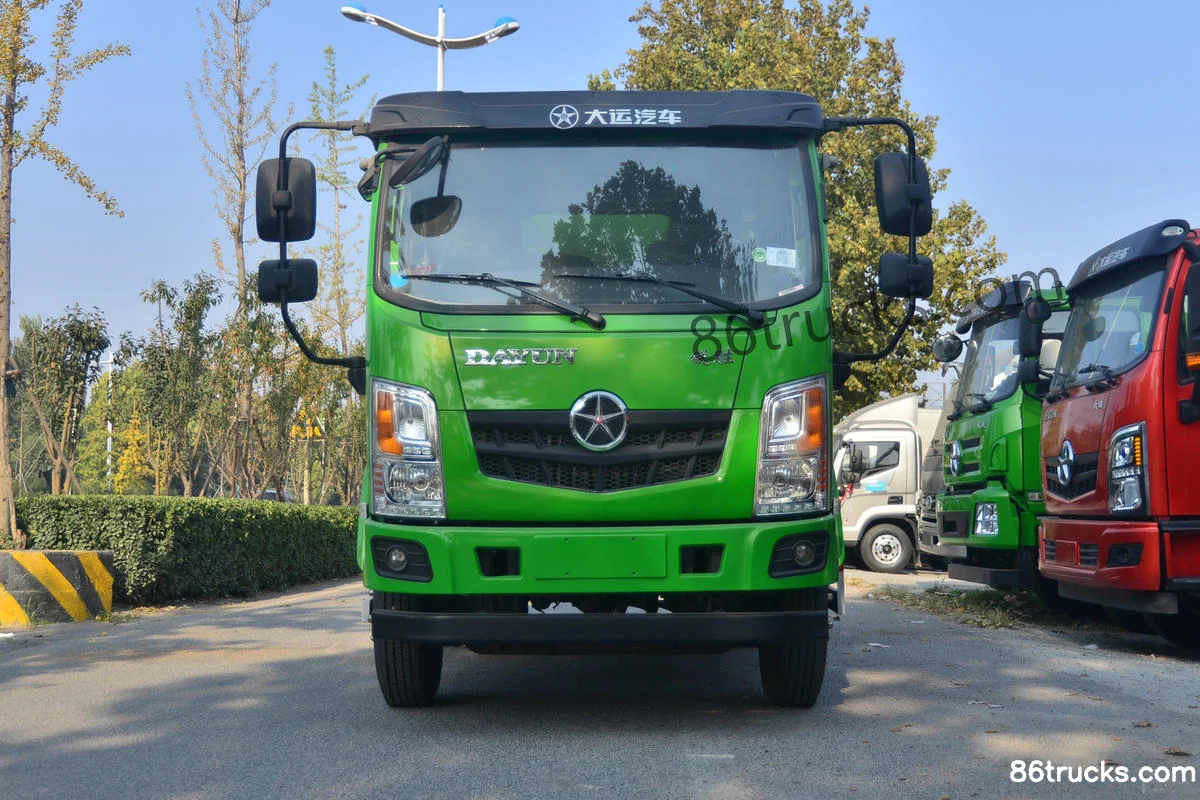

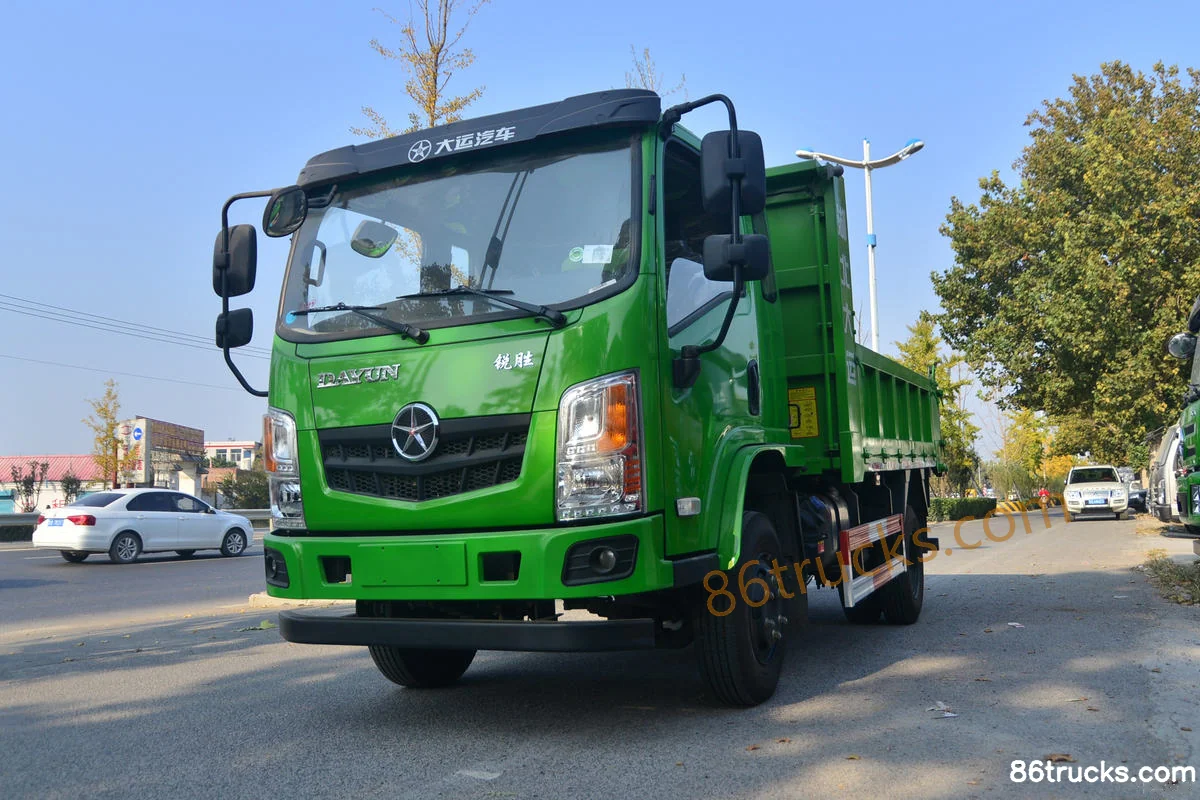

Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck Exterior (1) | 86Trucks Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck Exterior (2) | 86Trucks Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck Exterior (3) | 86Trucks

Cab3

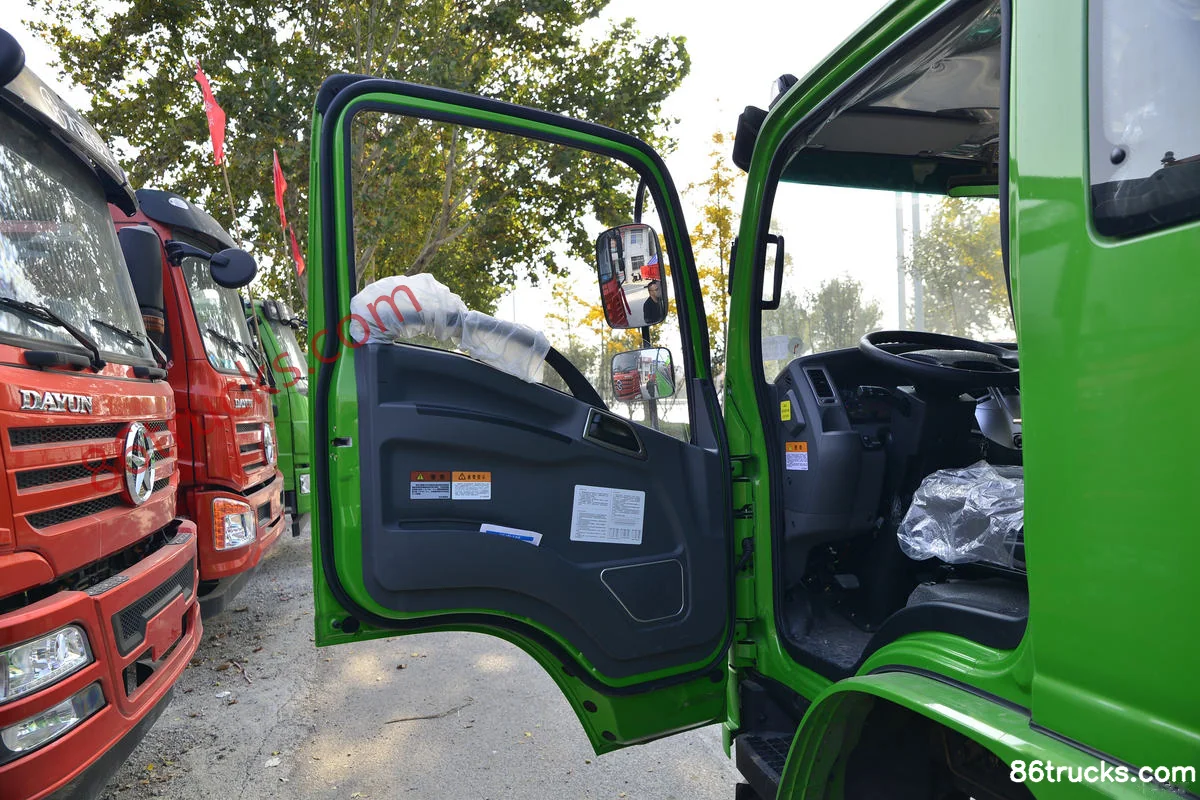

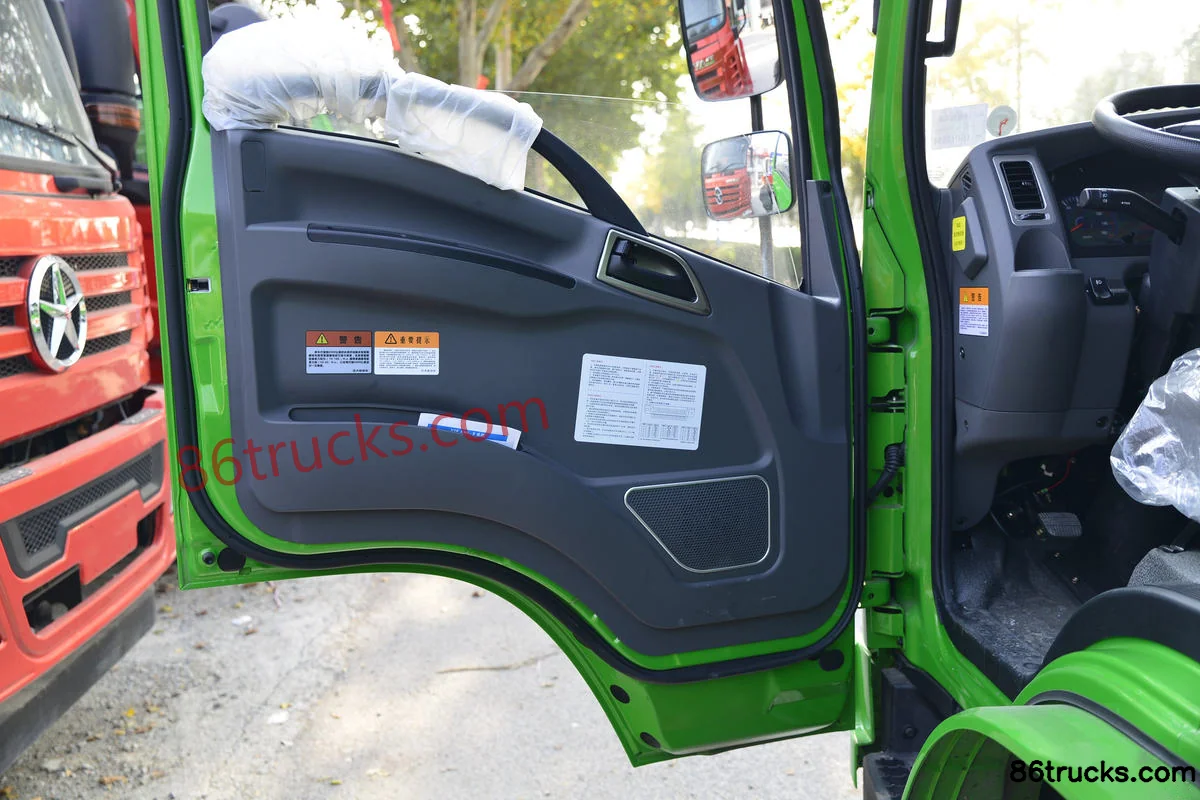

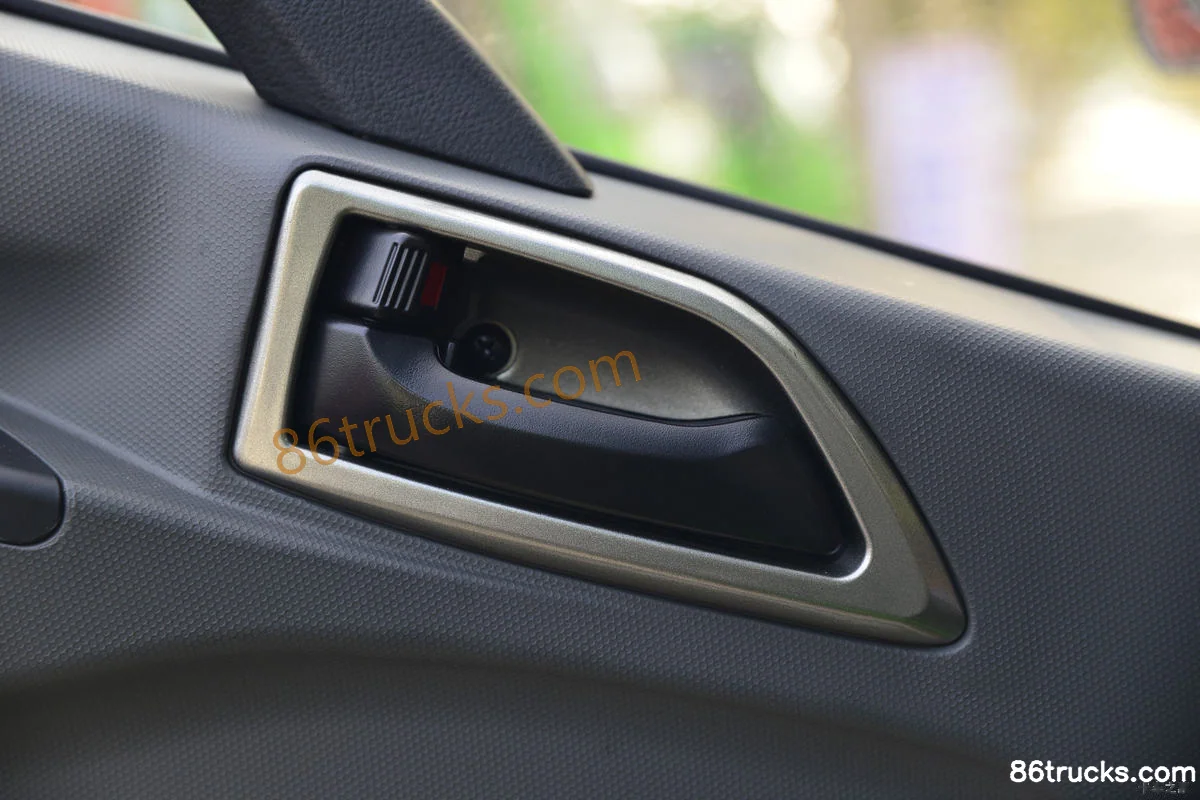

Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck Cab (1) | 86Trucks Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck Cab (2) | 86Trucks Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck Cab (3) | 86Trucks

Chassis3

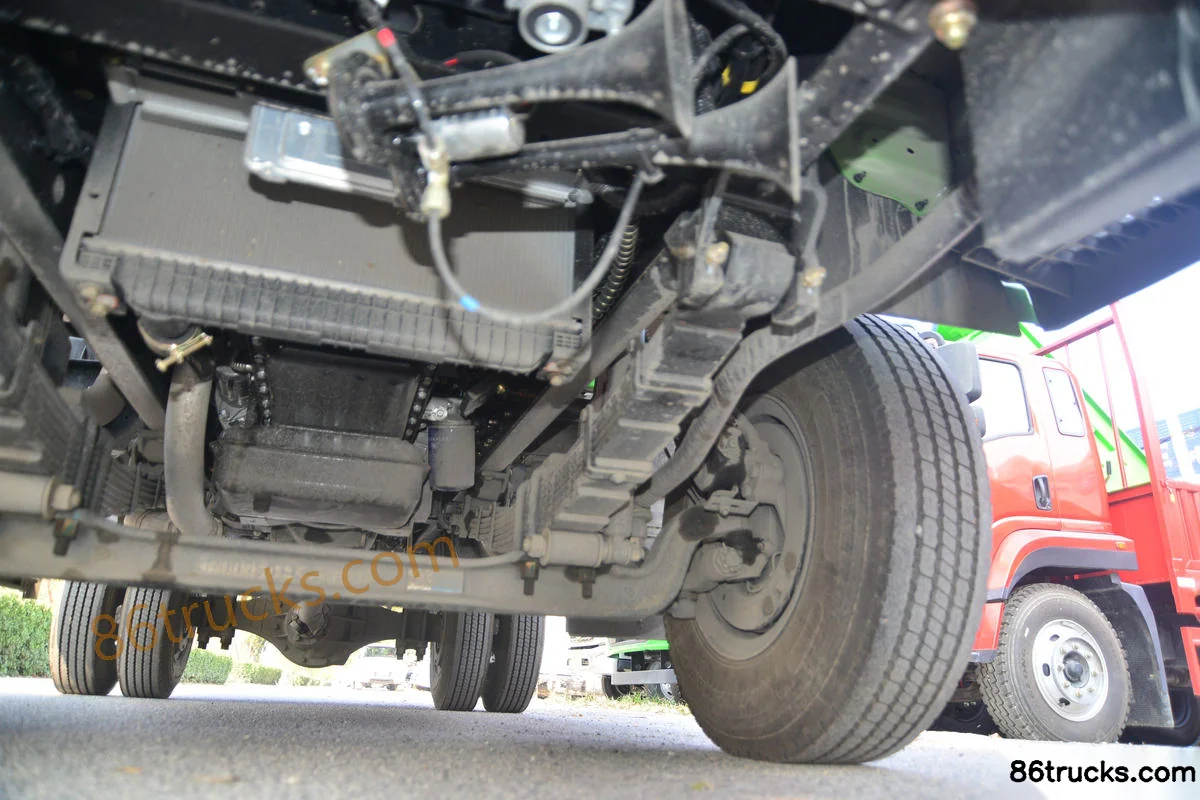

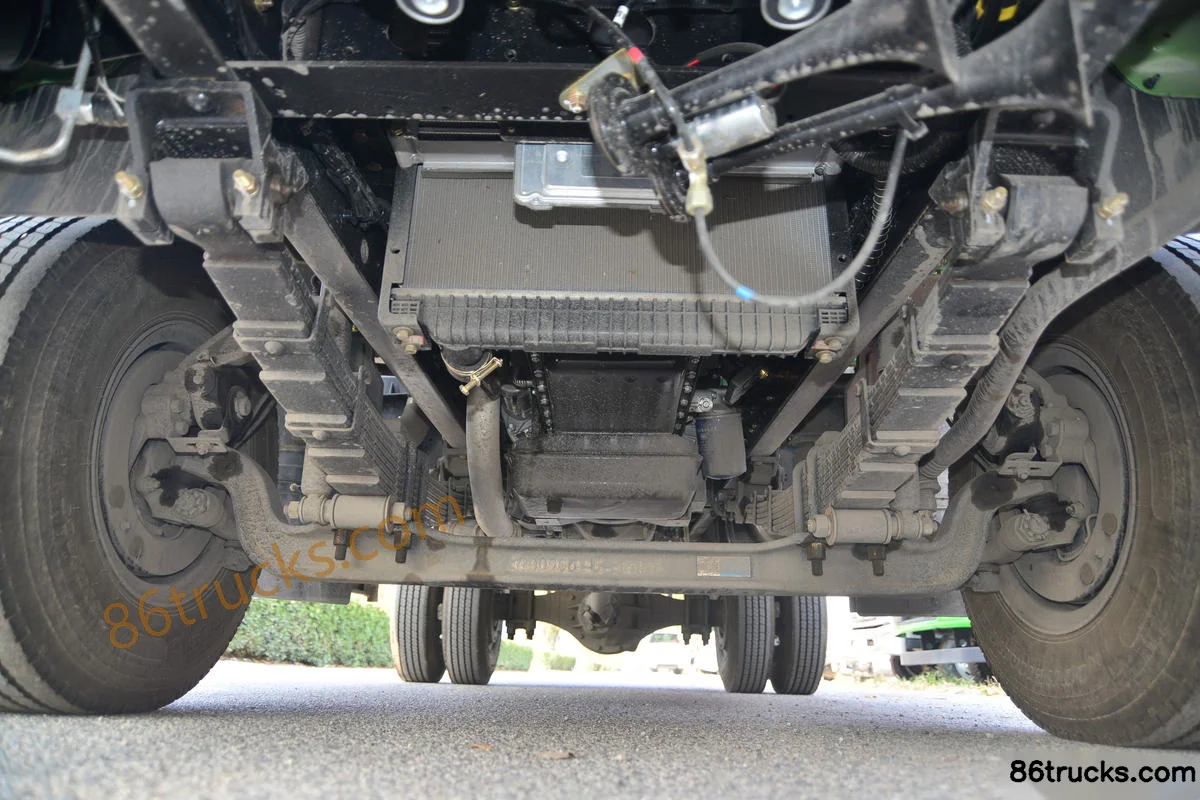

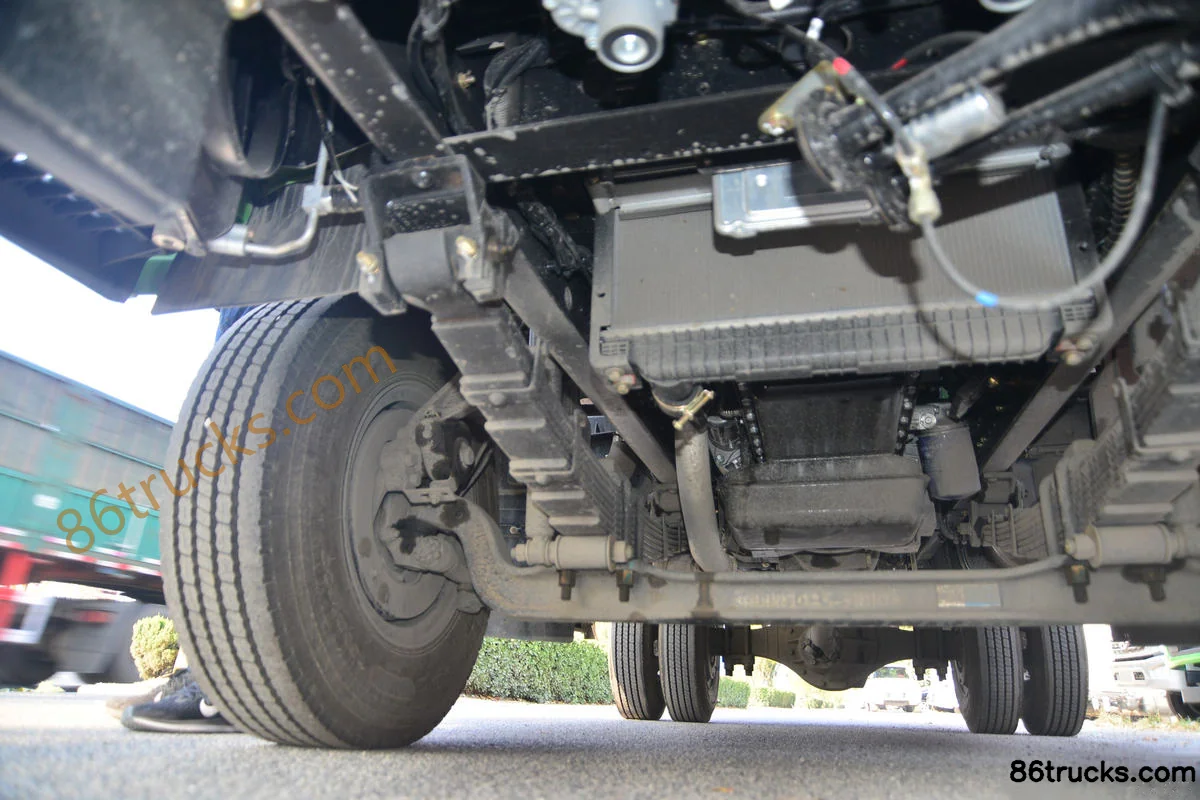

Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck Chassis (1) | 86Trucks Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck Chassis (2) | 86Trucks Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck Chassis (3) | 86Trucks

Body3

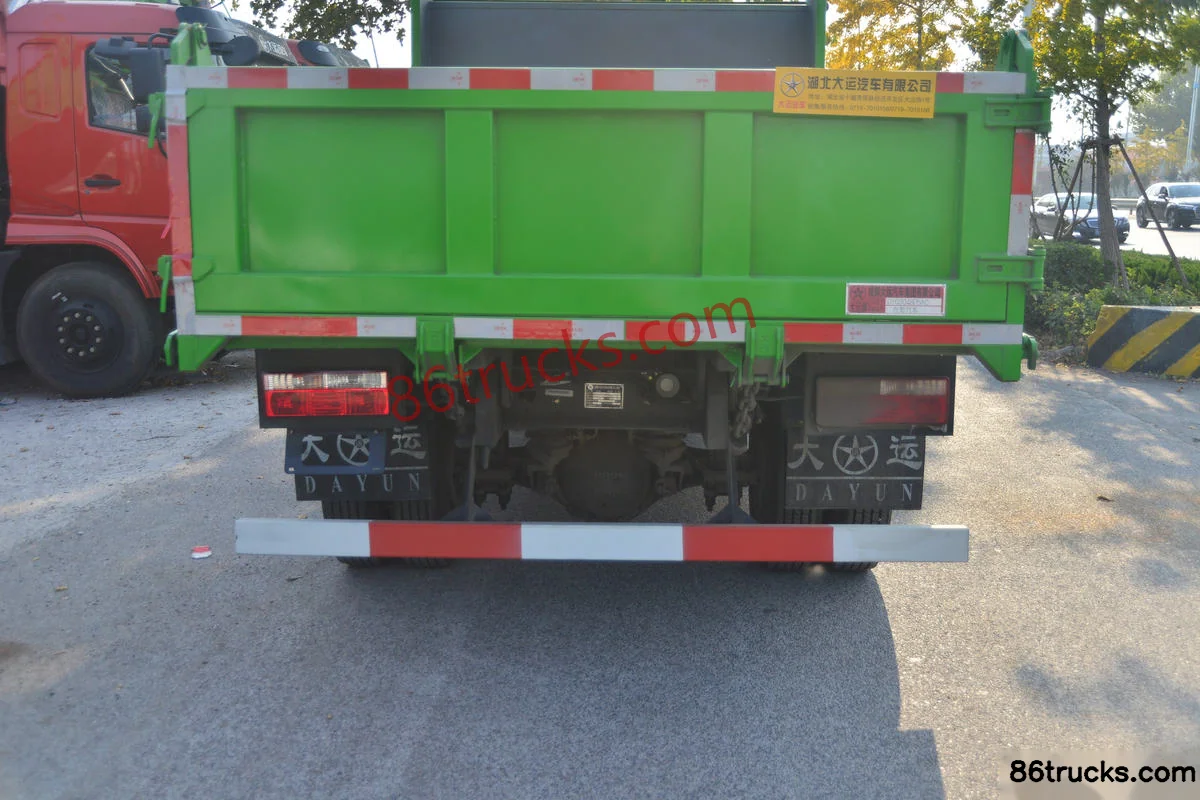

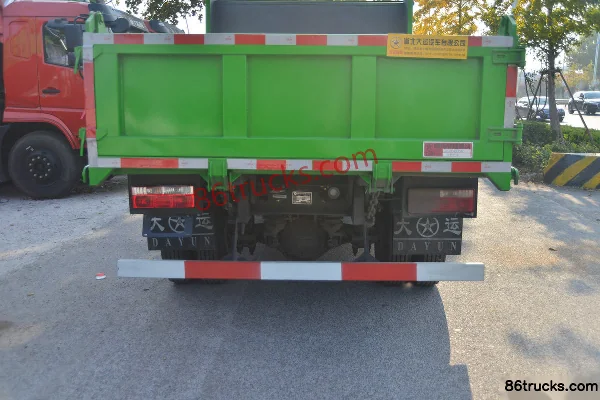

Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck Body (1) | 86Trucks Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck Body (2) | 86Trucks Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck?

Key specs of Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck: Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck suited for?

Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck differ from other variants in the same series?

Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck belongs to Dayun Ruisheng Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun Ruisheng 116hp 4X2(6 wheels) 3.2m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
