Yuejin Kaituo X500 160 hp 4X2(6 wheels) 3.8m Dump Truck (Direct Gear)

Export reference
From $23,750
MSRP ¥17.1M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.805ton
Wheelbase:: 3400mm
Tire Size:: 10.00-20 18PR,10.00R20 18PR
Rated payload: 9.995ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box type: U-shaped box

Overview

The Yuejin Kaituo X500 160 hp 4X2(6 wheels) 3.8m Dump Truck (Direct Gear) is a Light Truck featuring 9.995t payload, 17.995t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP4.1Q160E50 engine, 160 hp, China V emissions and Fast Gear transmission.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SH3182VGDCMW
Drive type: 4X2
Wheelbase: 3400mm
engine: WeichaiWP4.1Q160E50
transmission: Fast Gear8JS85E
Rear Axle Ratio: 6.5
Cab length: 6.145m
Cab width: 2.38m
Cab height: 2.7m
Front track width: 1740mm
rear track: 1725mm
Curb Weight: 7.805ton
Rated payload: 9.995ton
GVWR: 17.995ton
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Approach angle: 30°
departure angle: 13°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.1Q160E50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.088L
Emission standard: China V
Max output power: 115kW
Max hp: 160Horsepower
Max torque: 520N·m
Max torque speed: 1400-1800rpm
Rated speed: 2600rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: U-shaped box
Cargo box type: Dump type
Cargo box length: 3.8m
Cargo box width: 2.1m
Cargo box height: 0.8m
Cab parameters
Cab: Yuejin High Roof X500
Chassis Specs
Front axle allowable load: 6400kg
rear axle description: 153 rear axle
rear axle allowable load: 11595kg
Axle ratio: 6.5
Leaf spring count: 9/13+8
Tire
Tire Size: 10.00-20 18PR,10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

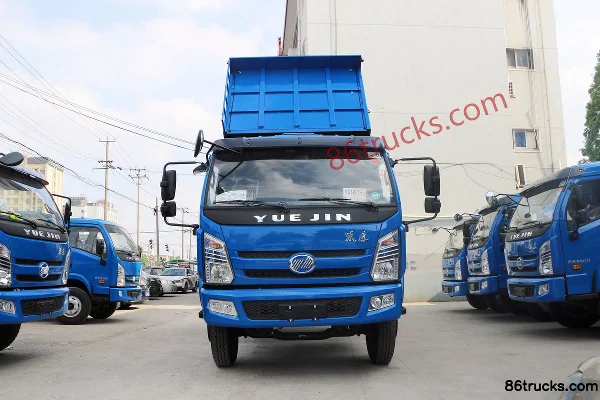

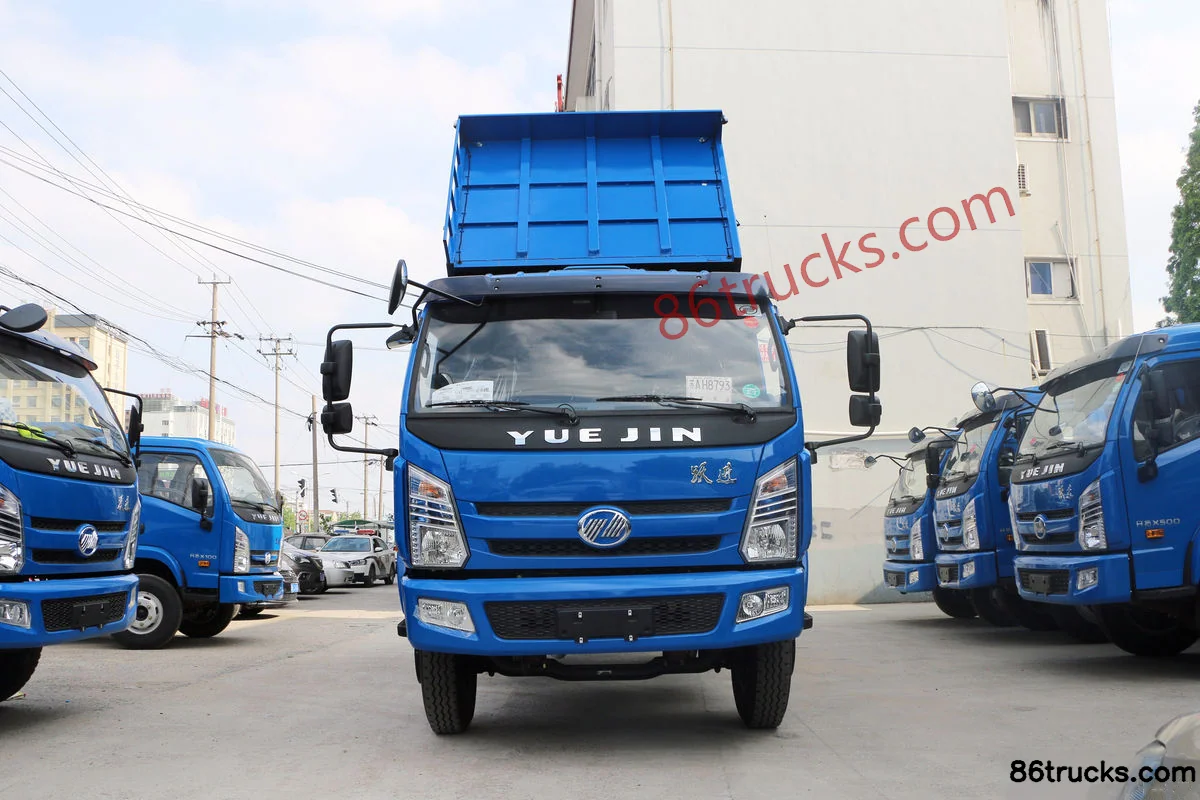

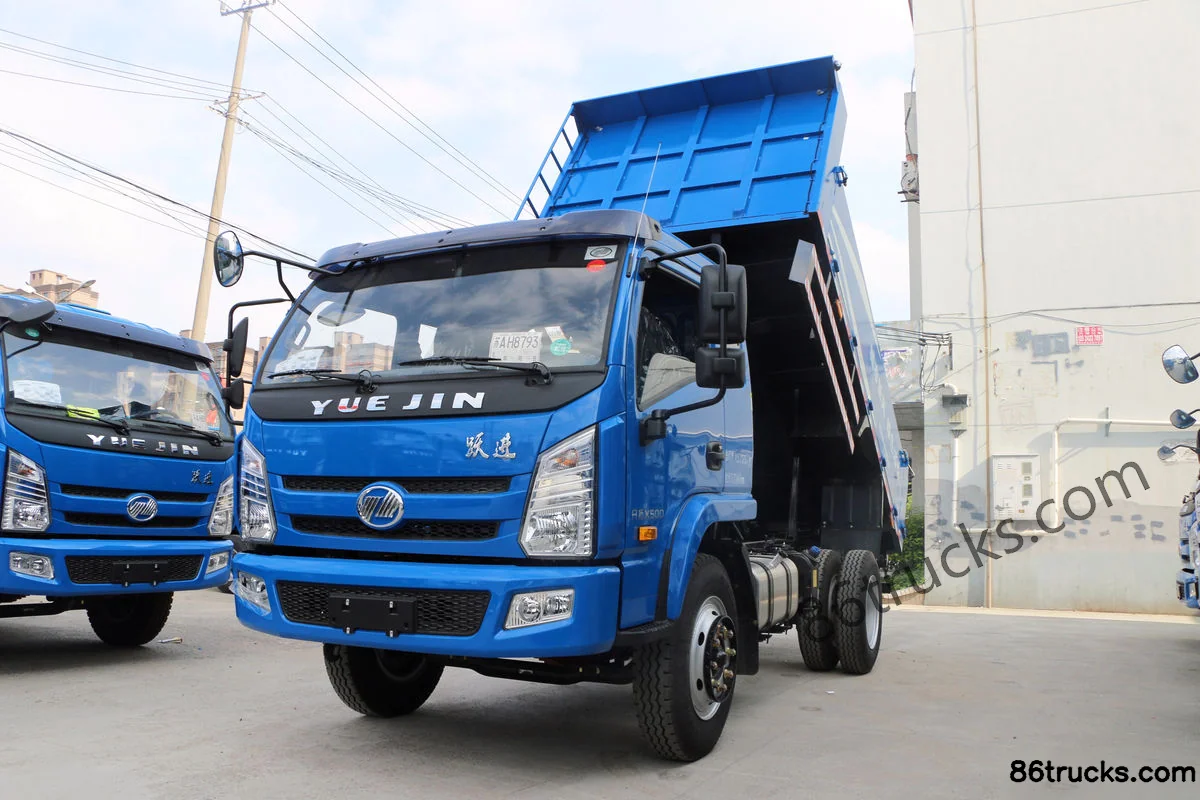

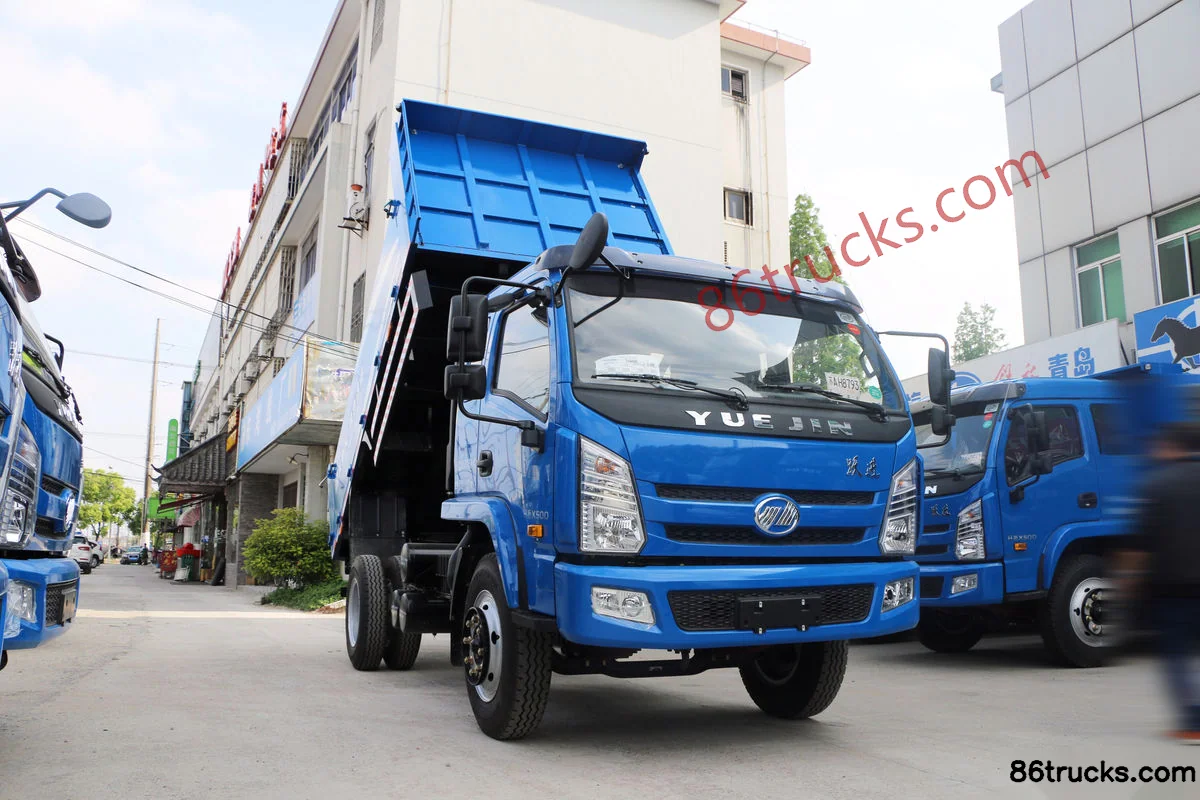

Exterior3

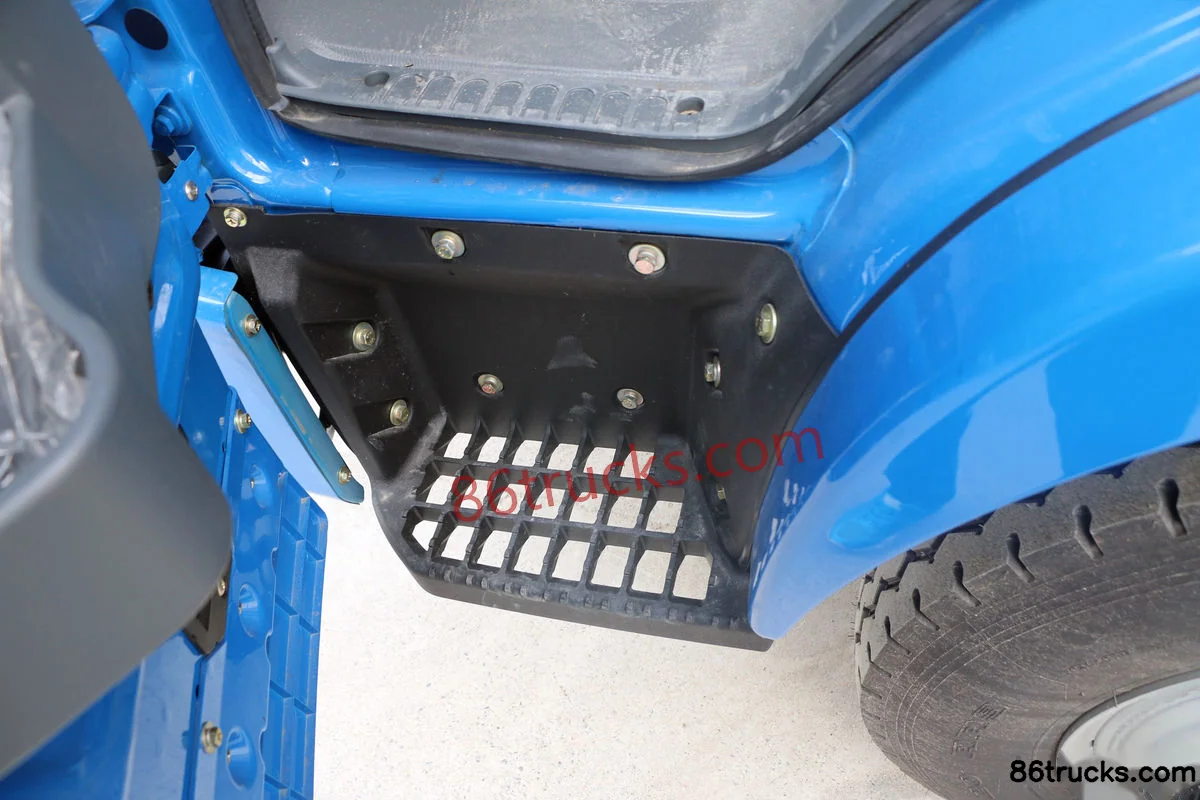

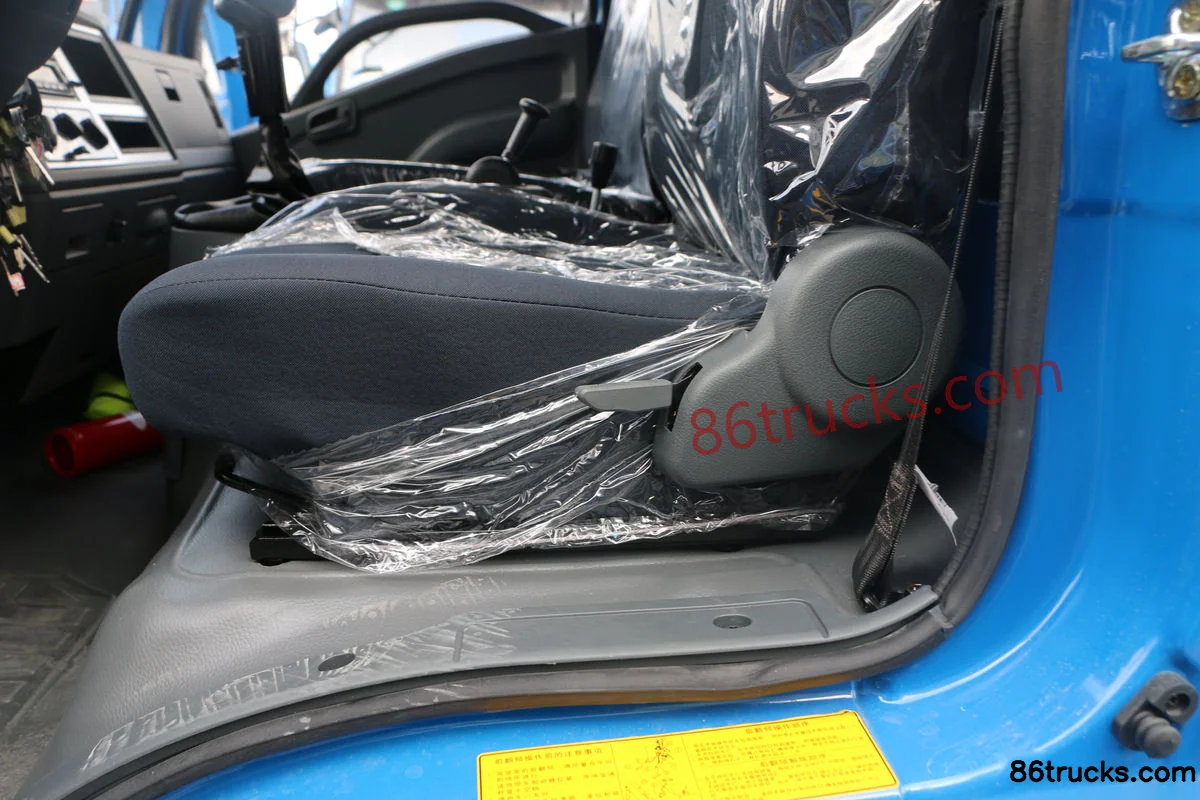

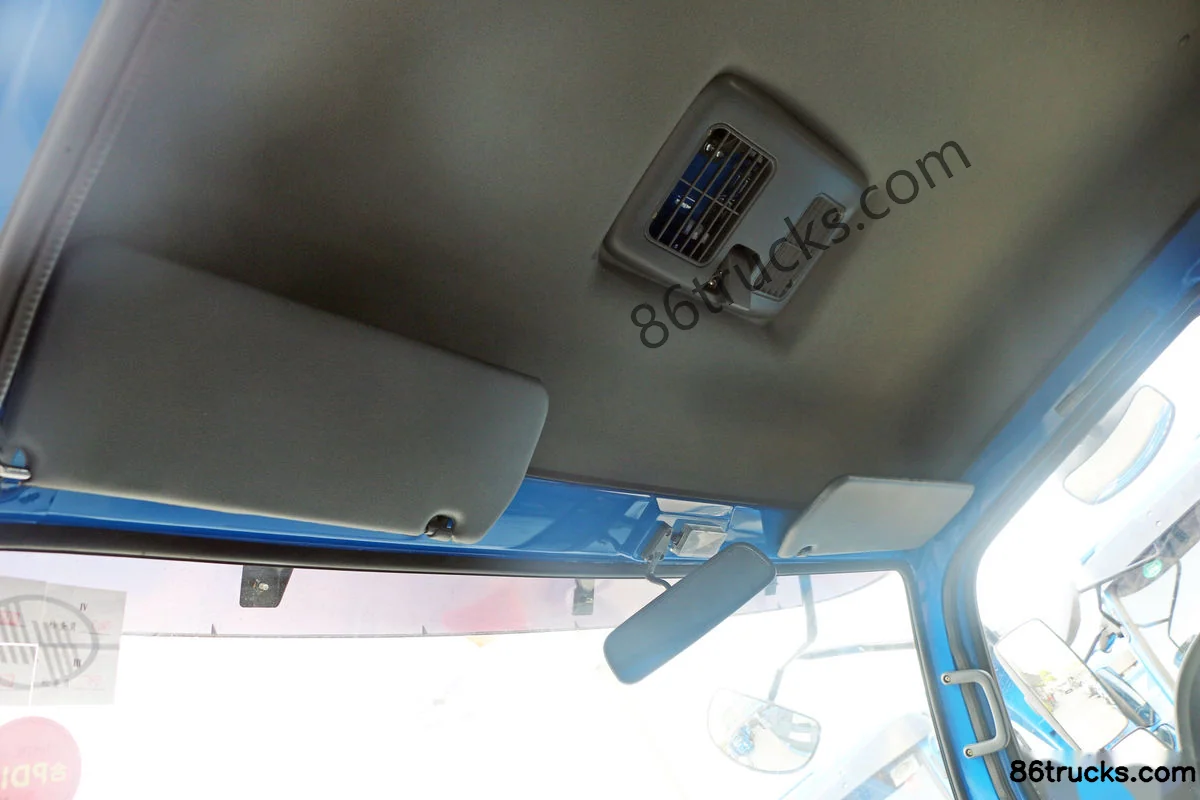

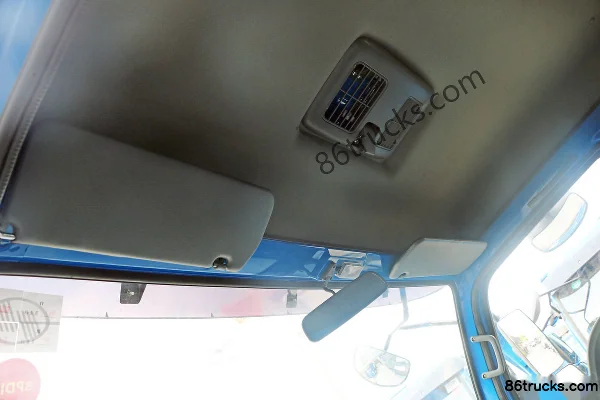

Cab3

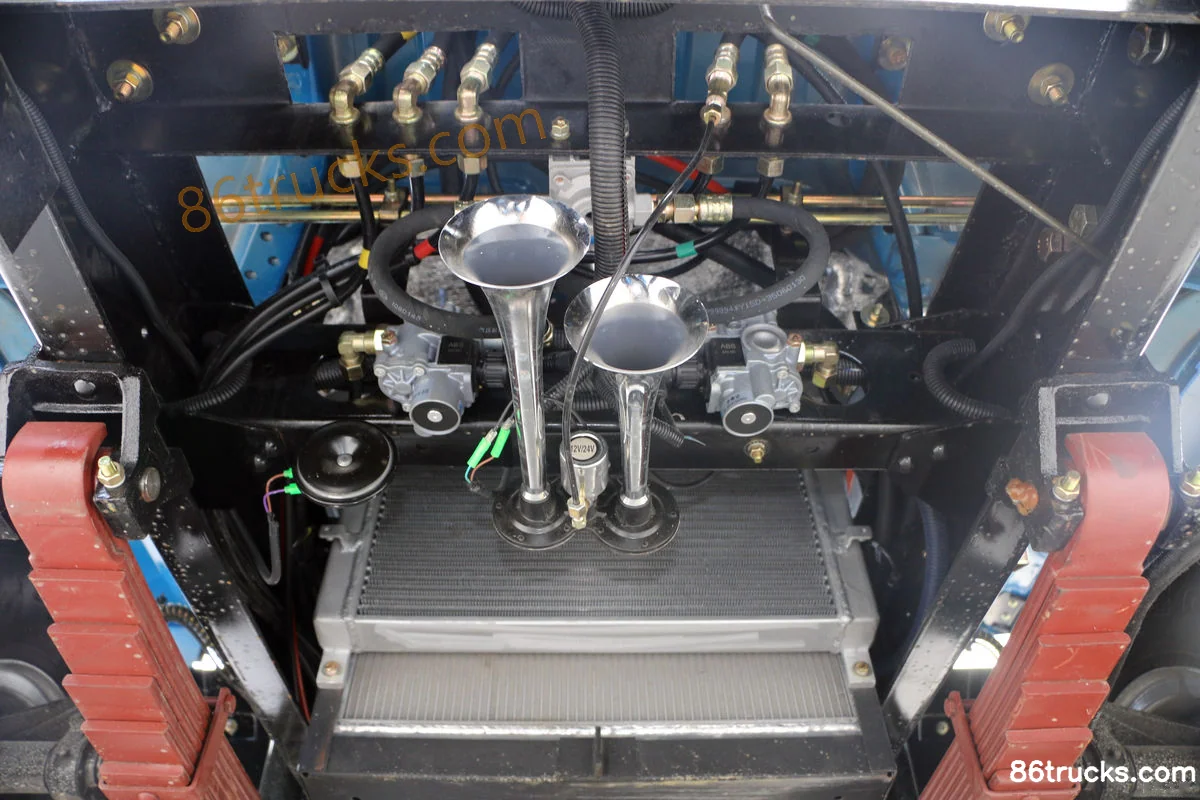

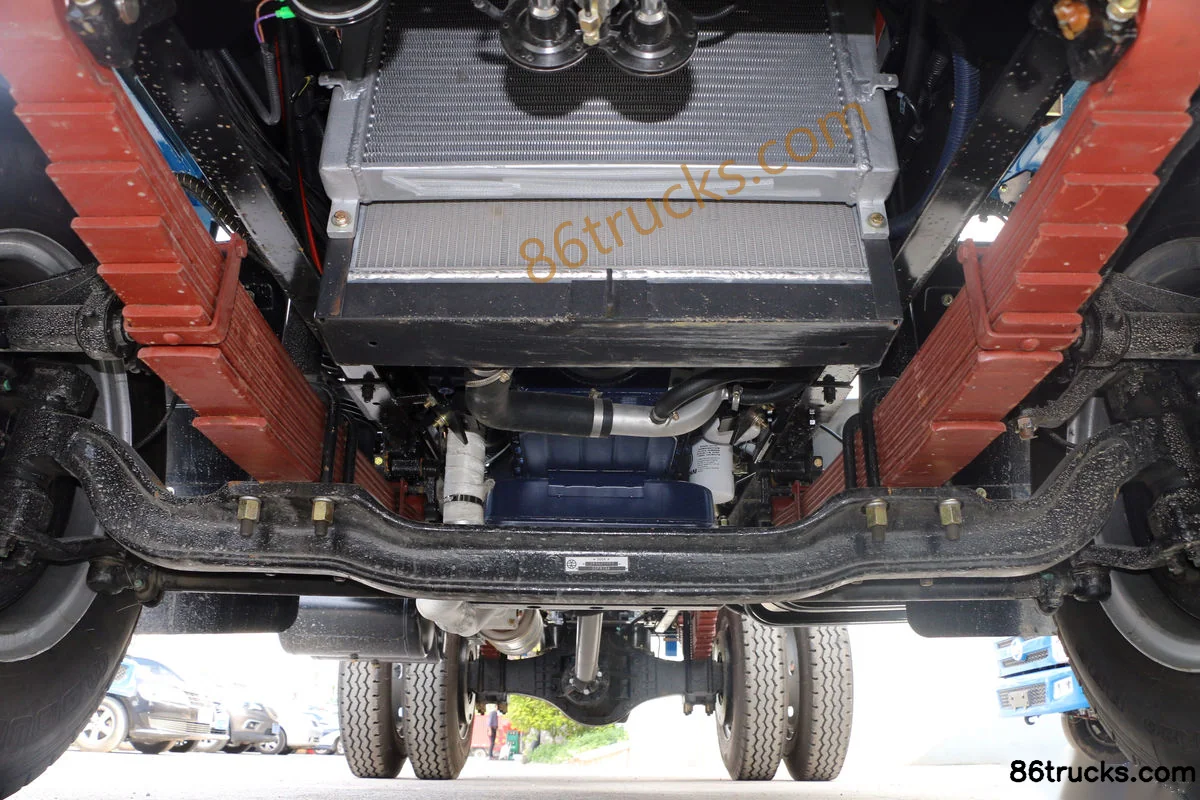

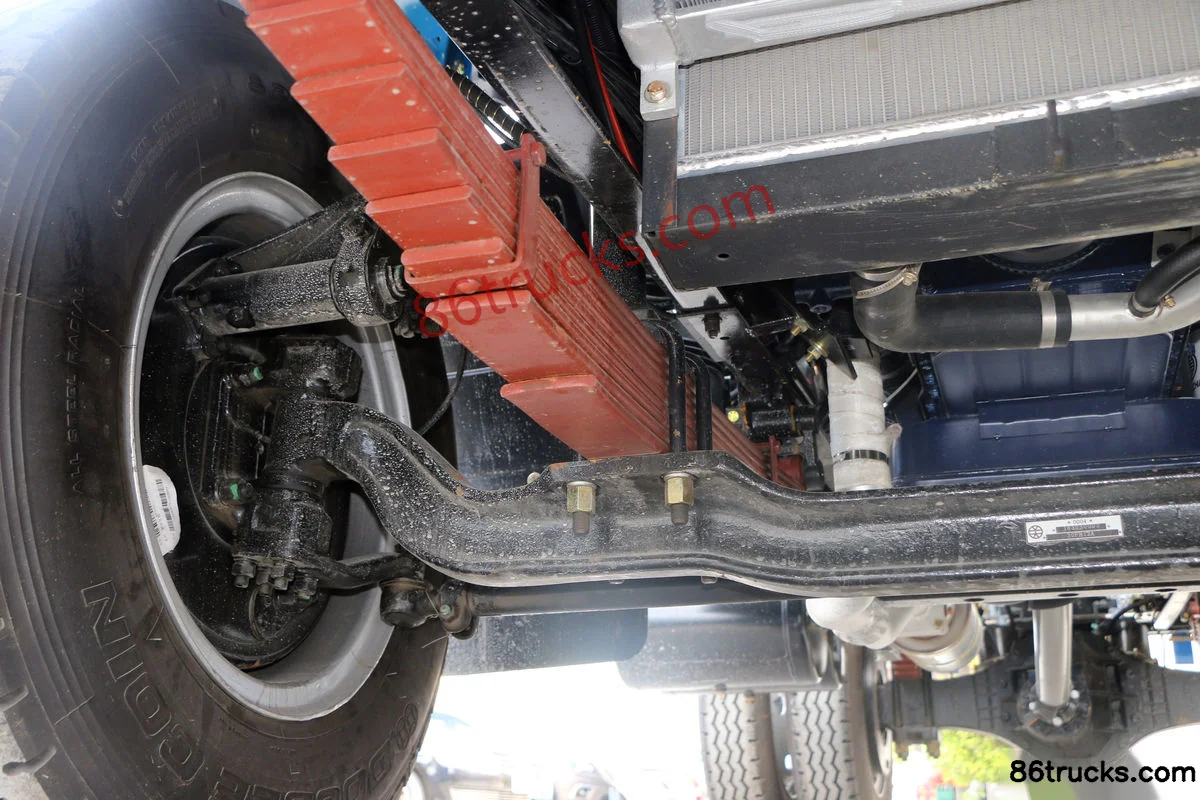

Chassis3

9 photos

FAQ

What is the export price of Yuejin Kaituo X500 160 hp 4X2(6 wheels) 3.8m Dump Truck (Direct Gear), and what does it include?

Yuejin Kaituo X500 160 hp 4X2(6 wheels) 3.8m Dump Truck (Direct Gear) export reference is about From $23,750; MSRP is ¥17.1M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Yuejin Kaituo X500 160 hp 4X2(6 wheels) 3.8m Dump Truck (Direct Gear) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Kaituo X500 160 hp 4X2(6 wheels) 3.8m Dump Truck (Direct Gear)?

Key specs of Yuejin Kaituo X500 160 hp 4X2(6 wheels) 3.8m Dump Truck (Direct Gear): Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Kaituo X500 160 hp 4X2(6 wheels) 3.8m Dump Truck (Direct Gear) suited for?

Yuejin Kaituo X500 160 hp 4X2(6 wheels) 3.8m Dump Truck (Direct Gear) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Yuejin Kaituo X500 160 hp 4X2(6 wheels) 3.8m Dump Truck (Direct Gear) differ from other variants in the same series?

Yuejin Kaituo X500 160 hp 4X2(6 wheels) 3.8m Dump Truck (Direct Gear) belongs to Yuejin Kaituo X500 Light-duty Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Kaituo X500 160 hp 4X2(6 wheels) 3.8m Dump Truck (Direct Gear)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Kaituo X500 160 hp 4X2(6 wheels) 3.8m Dump Truck (Direct Gear)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
