Union Truck U340 340 hp 6X4(10 wheels) 5.8m Dump Truck (Fuhua wheel hub reduction axle)

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.05ton
Wheelbase:: 3825+1350mm
Tire Size:: 12.00R20
Rated payload: 12.82ton
Drive 6X4 (10 wheels)
Horsepower 340
Cargo box type: Rear-dump body

Overview

The Union Truck U340 340 hp 6X4(10 wheels) 5.8m Dump Truck (Fuhua wheel hub reduction axle) is a Heavy truck featuring 12.82t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a United PowerYC6K1034-40 engine, 340 hp, China IV emissions and Fast Gear transmission.

China IV 340 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SQR3251D6T4-2
Drive type: 6X4
Wheelbase: 3825+1350mm
engine: United PowerYC6K1034-40
transmission: Fast Gear10JSD160
Rear Axle Ratio: 4.769
Cab length: 8.557m
Cab width: 2.5m
Cab height: 3.56m
Front track width: 2038mm
rear track: 1860/1860mm
Curb Weight: 12.05ton
Rated payload: 12.82ton
GVWR: 25ton
Origin: Wuhu, Anhui
tonnage class: Heavy truck
Approach angle: 23°
departure angle: 25°
Energy Type: Diesel
Engine parameters
Engine Brand: United Power
Engine Model: United PowerYC6K1034-40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 10.338L
Emission standard: China IV
Max output power: 250kW
Max hp: 340Horsepower
Max torque: 1500N·m
Max torque speed: 1100-1500rpm
Rated speed: 1900rpm
Engine Type: Self-developed single-point injection
Transmission Parameters
Transmission Model: Fast Gear10JSD160
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.8m
Cargo box width: 2.3m
Cargo box height: 1.16m
Chassis Specs
Frame Dimensions: 8+8mm
rear axle description: Fuwa hub reduction axle
rear axle allowable load: 16000kg
Axle ratio: 4.769
Leaf spring count: 12/13
Tire
Tire Size: 12.00R20
Number of tires: 10pcs

Photos

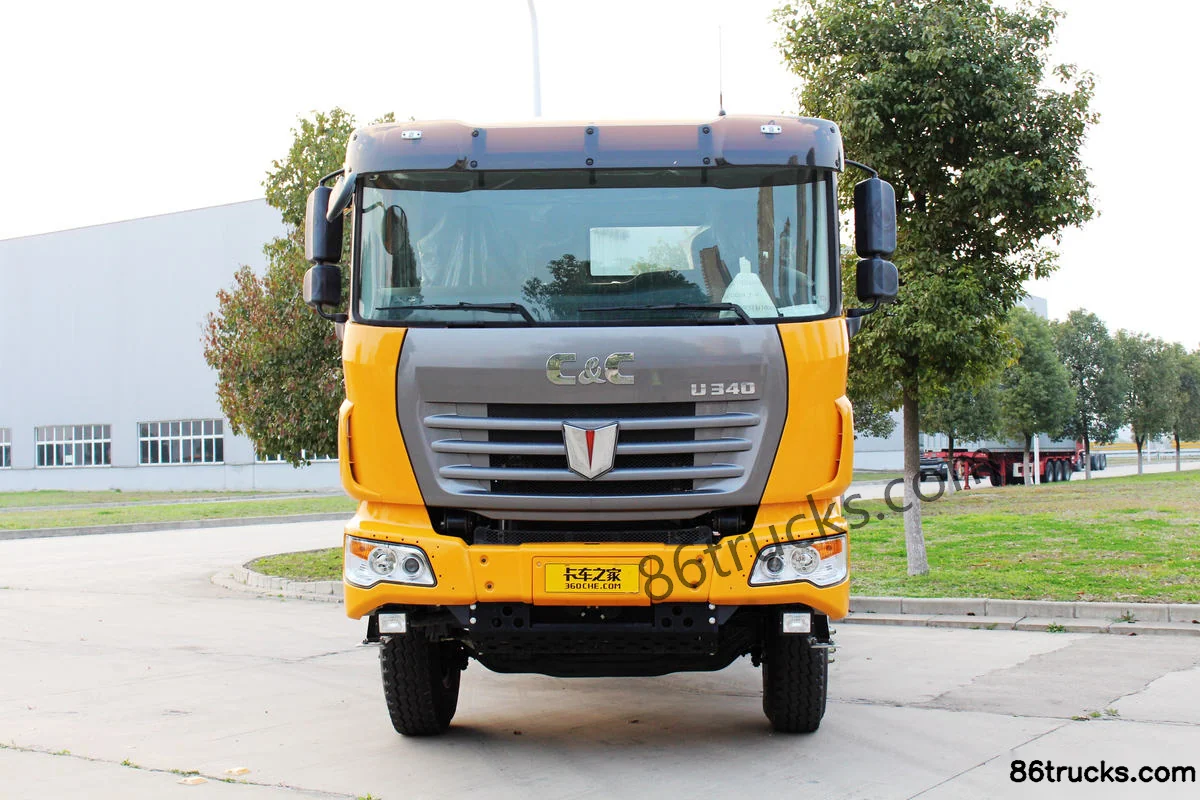

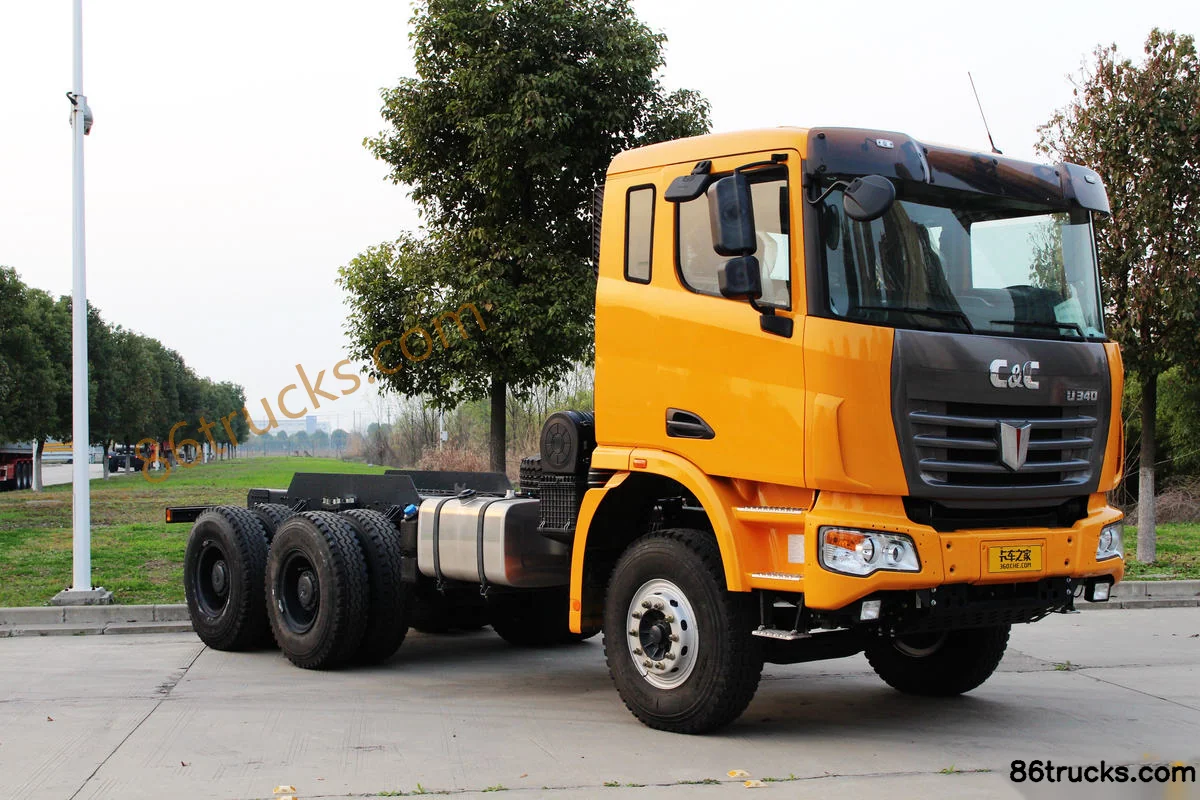

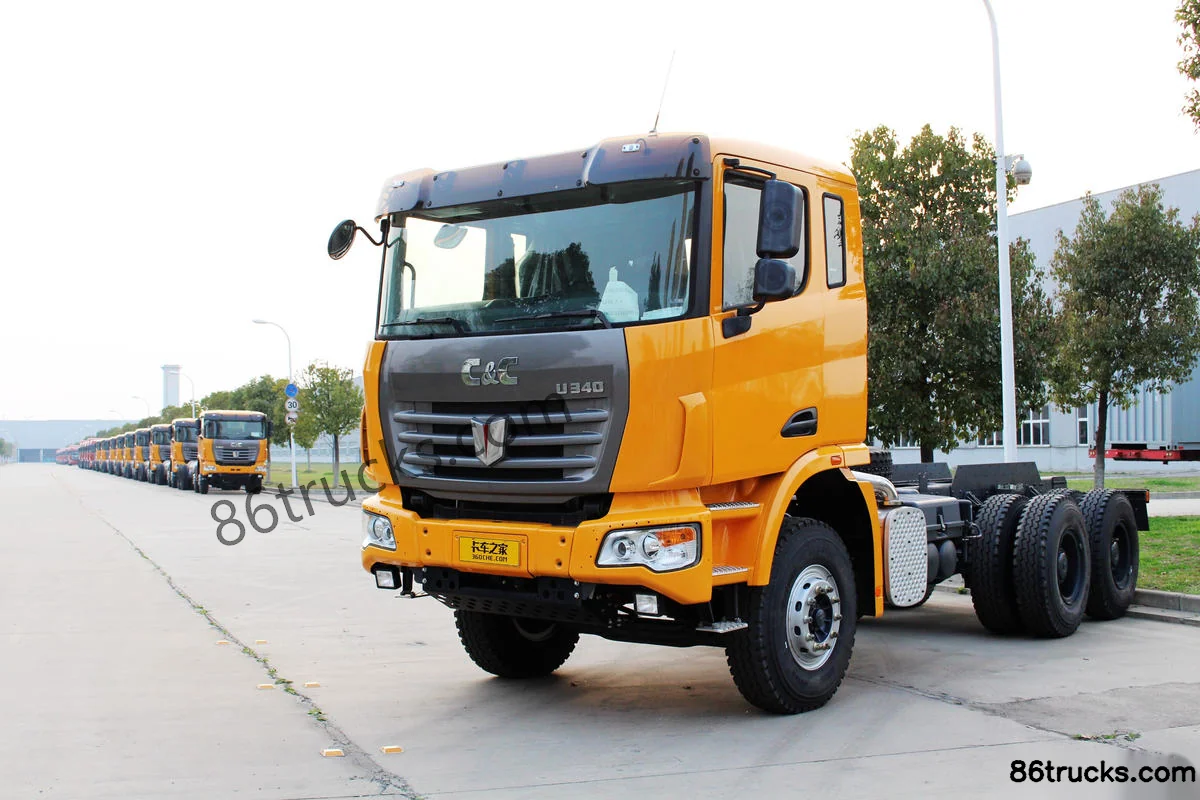

Exterior3

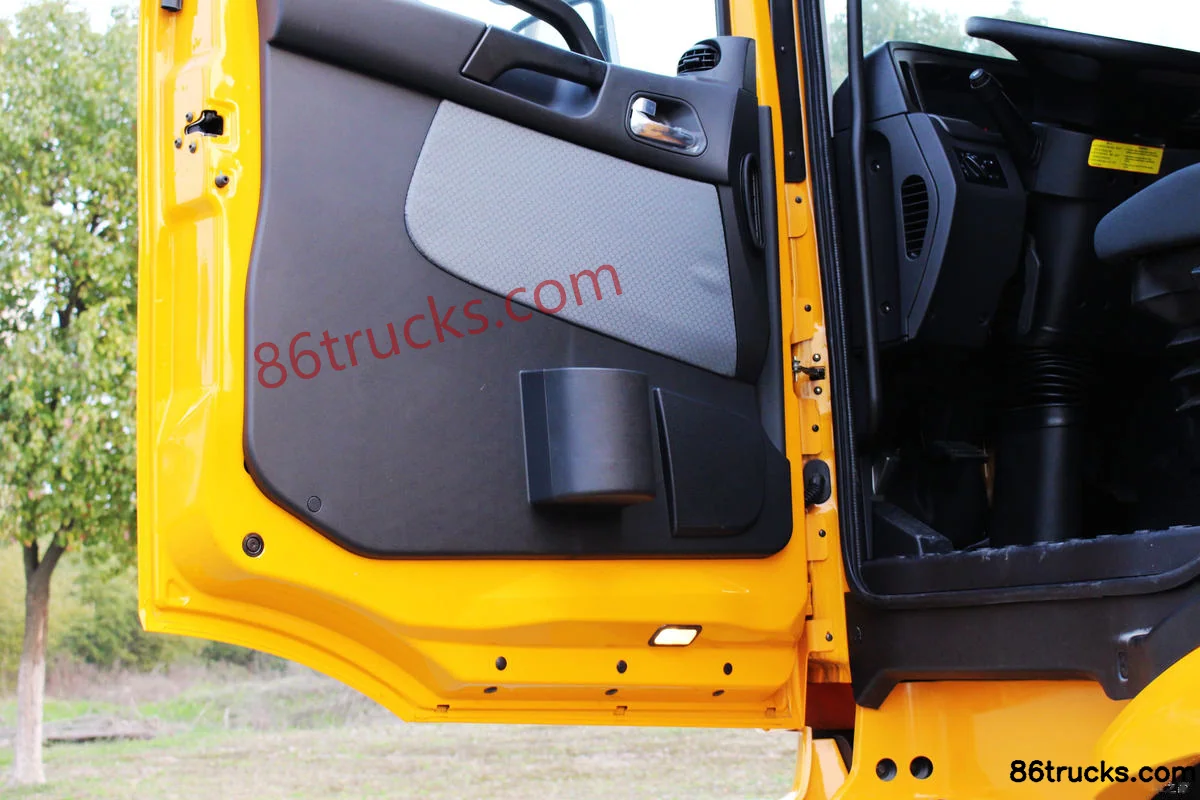

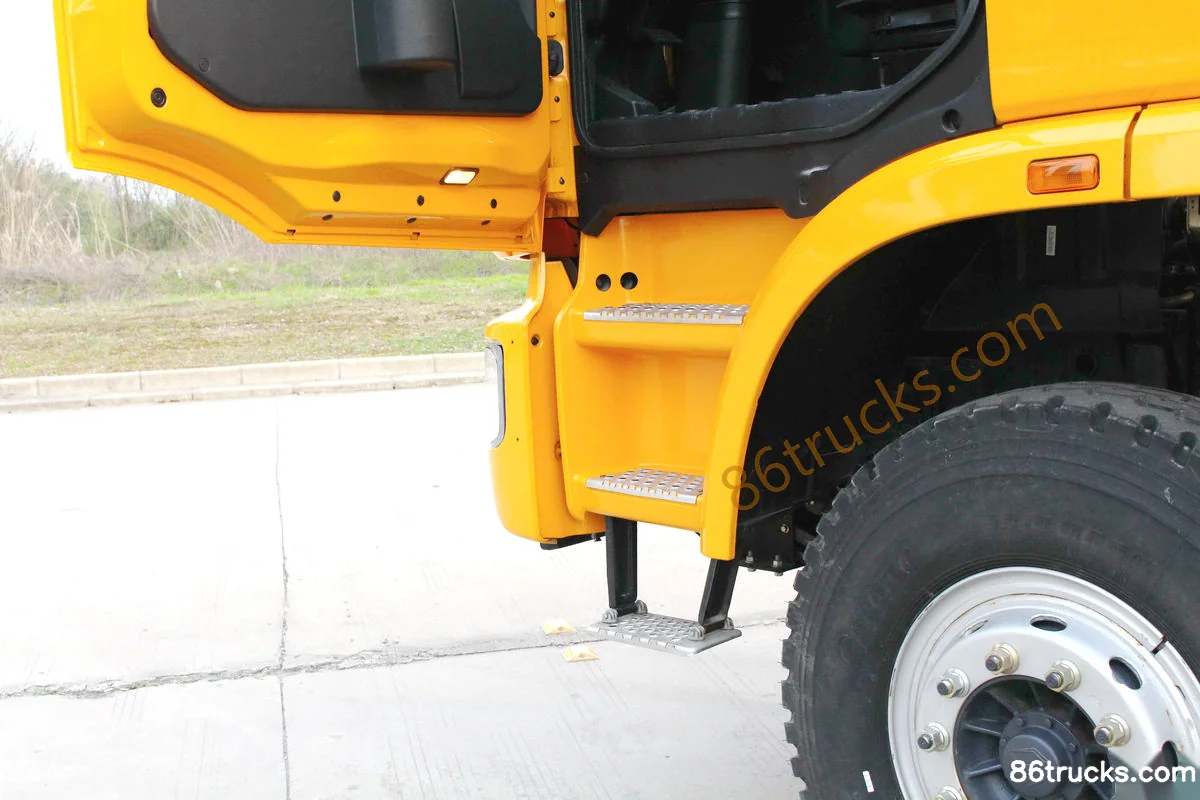

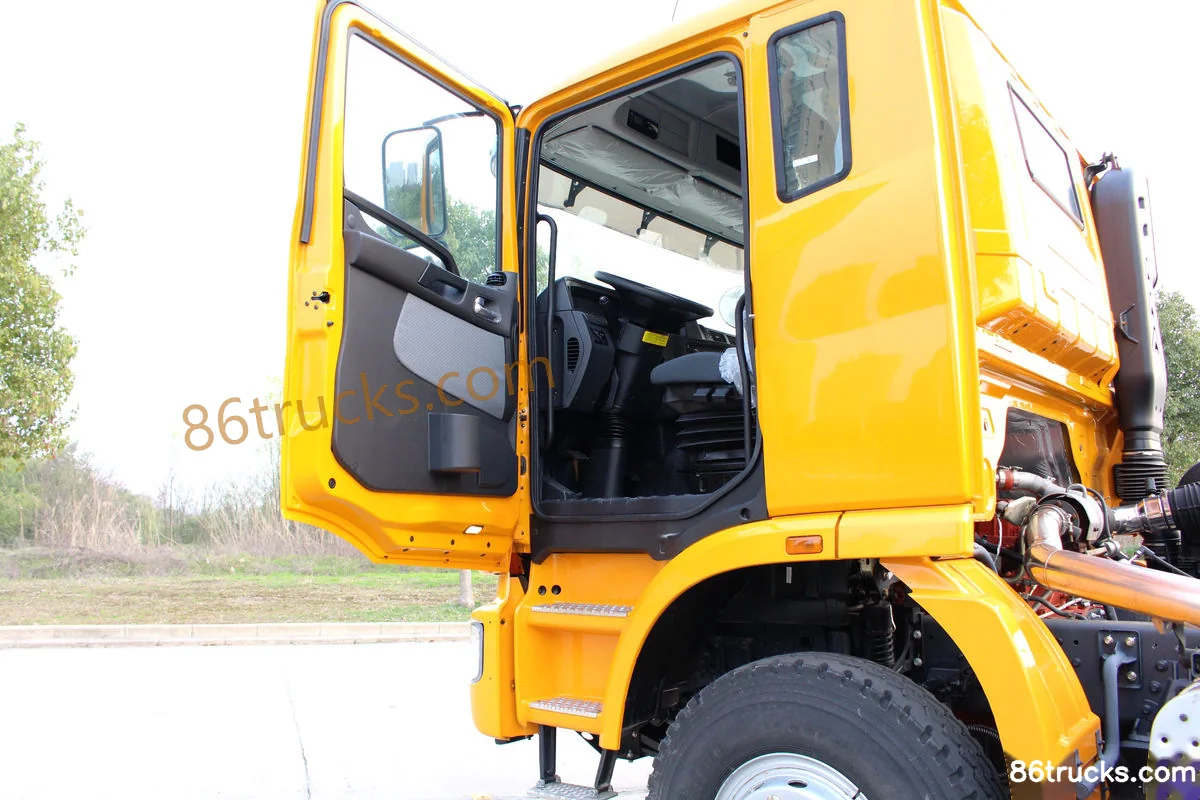

Cab3

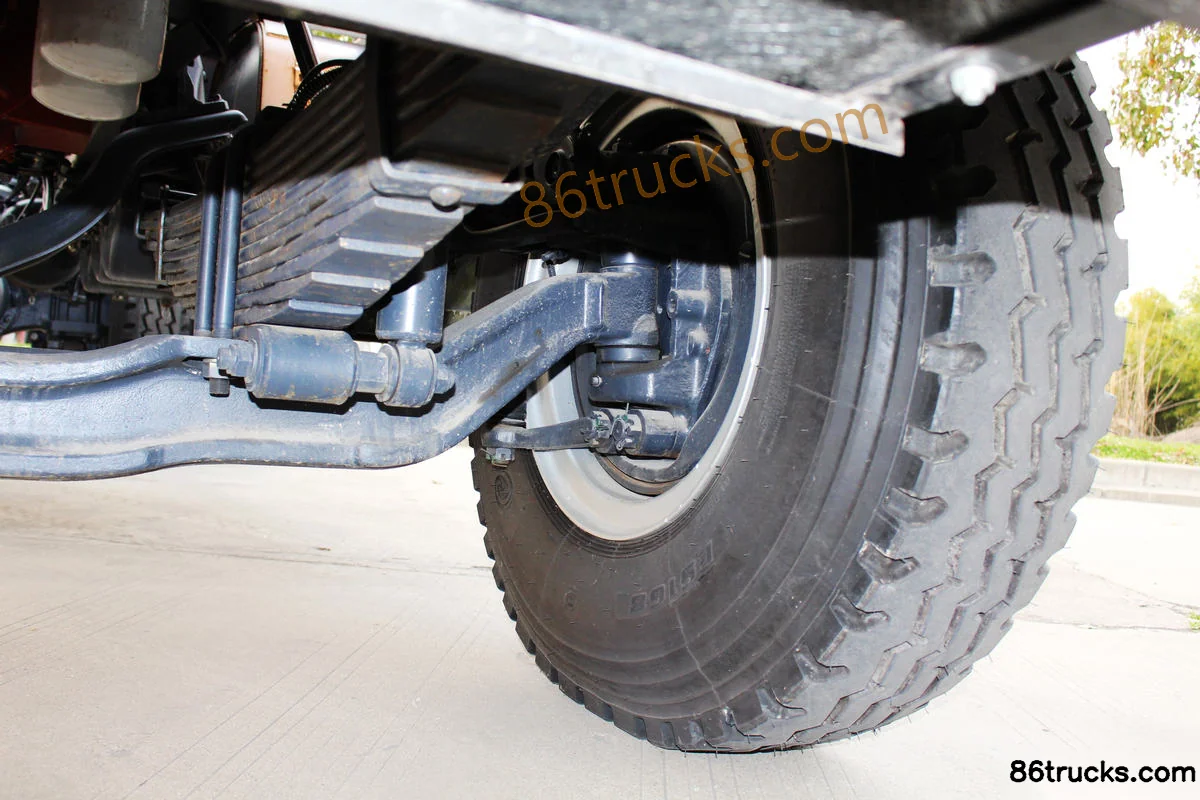

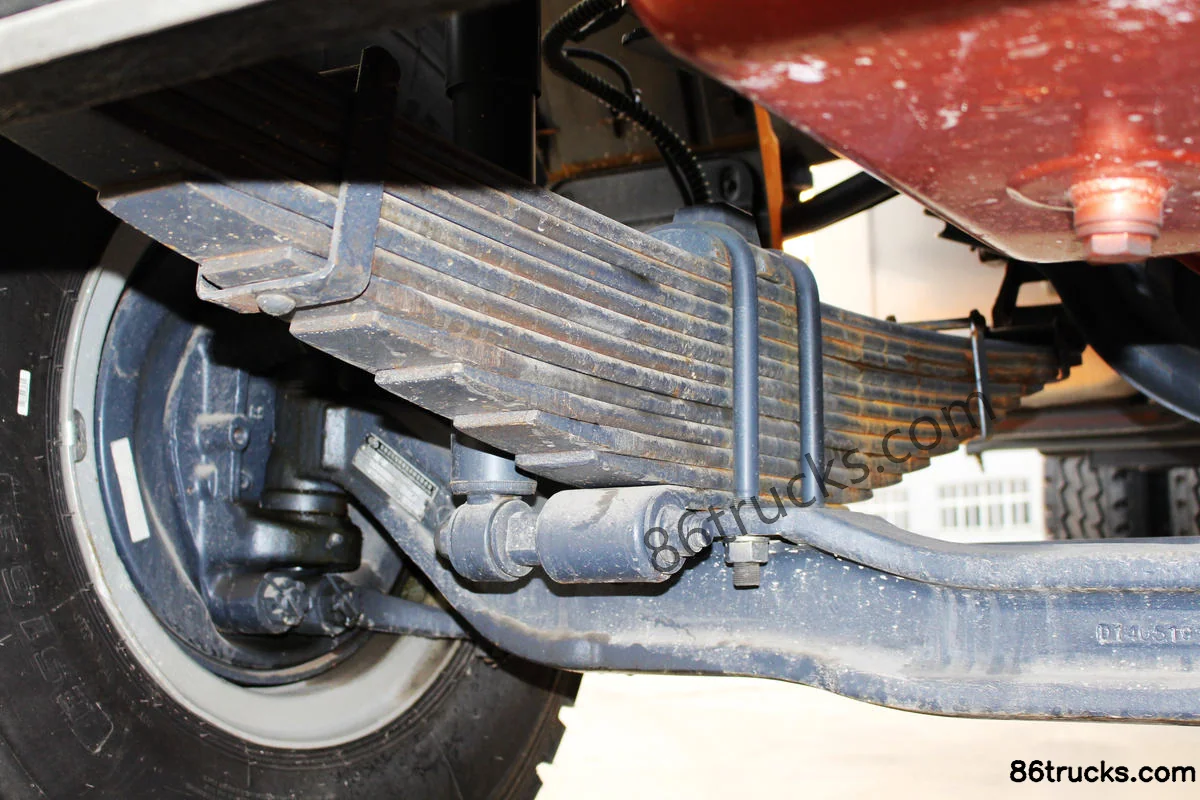

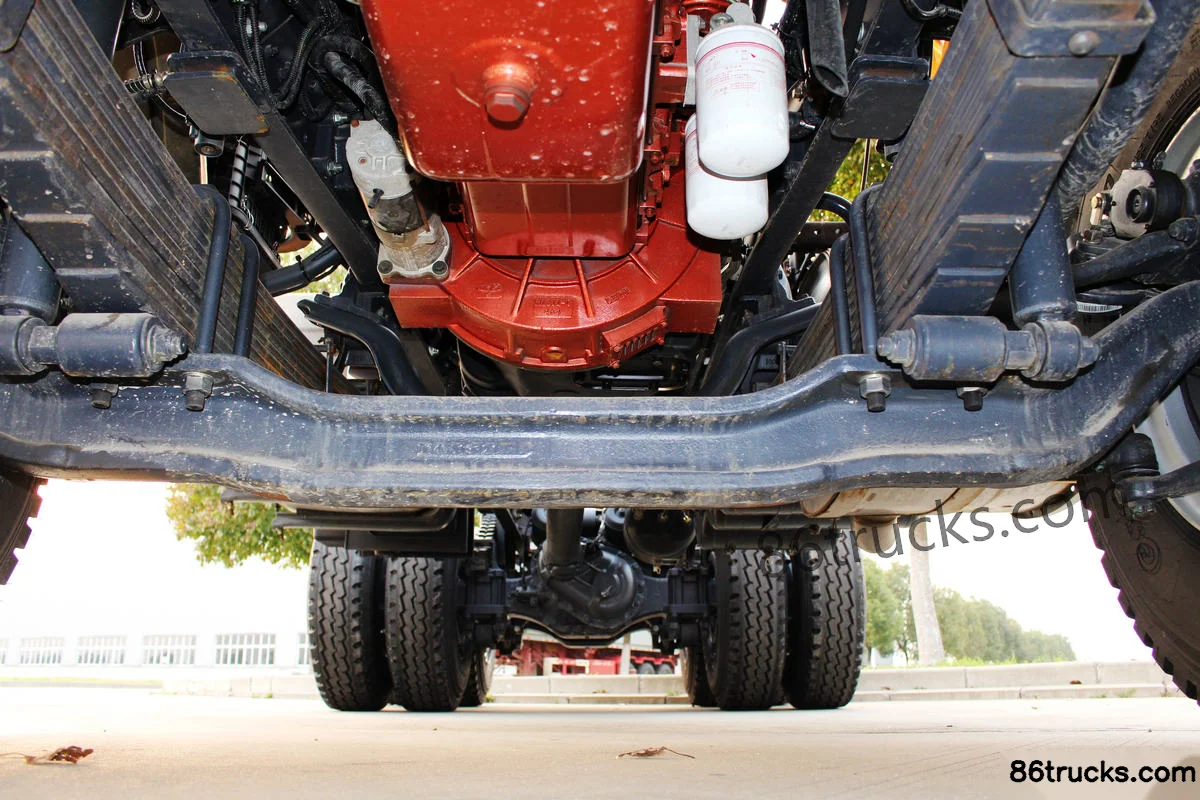

Chassis3

9 photos

FAQ

What emission standard does Union Truck U340 340 hp 6X4(10 wheels) 5.8m Dump Truck (Fuhua wheel hub reduction axle) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Union Truck U340 340 hp 6X4(10 wheels) 5.8m Dump Truck (Fuhua wheel hub reduction axle)?

Key specs of Union Truck U340 340 hp 6X4(10 wheels) 5.8m Dump Truck (Fuhua wheel hub reduction axle): Drive: 6x4; Horsepower: 340 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Union Truck U340 340 hp 6X4(10 wheels) 5.8m Dump Truck (Fuhua wheel hub reduction axle) suited for?

Union Truck U340 340 hp 6X4(10 wheels) 5.8m Dump Truck (Fuhua wheel hub reduction axle) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Union Truck U340 340 hp 6X4(10 wheels) 5.8m Dump Truck (Fuhua wheel hub reduction axle) differ from other variants in the same series?

Union Truck U340 340 hp 6X4(10 wheels) 5.8m Dump Truck (Fuhua wheel hub reduction axle) belongs to Union Truck U-Series Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Union Truck U340 340 hp 6X4(10 wheels) 5.8m Dump Truck (Fuhua wheel hub reduction axle)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Union Truck U340 340 hp 6X4(10 wheels) 5.8m Dump Truck (Fuhua wheel hub reduction axle)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
