Dongfeng Liuqi New Chenglong M3 185 hp 6X2(8 wheels) 5m dump truck

Export reference
From $25,000
MSRP ¥18M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 9.8ton
Wheelbase:: 1950+2700mm
Tire Size:: 10.00R20 16PR
Rated payload: 11.205ton
Drive 6X2 (8 wheels)
Horsepower 185
Cargo box type: Dump type

Overview

The Dongfeng Liuqi New Chenglong M3 185 hp 6X2(8 wheels) 5m dump truck is a Medium-duty truck featuring 11.205t payload, 21.2t GVW, Dump type cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYC4EG185-50 engine, 185 hp, China V emissions and Fast Gear transmission.

China V 185 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ3210M3CB
Drive type: 6X2
Wheelbase: 1950+2700mm
engine: YuchaiYC4EG185-50
transmission: Fast Gear8JS85F
Rear Axle Ratio: 5.833
Cab length: 7.745m
Cab width: 2.545m
Cab height: 3.1m
Front track width: 1970/1970mm
rear track: 1860mm
Curb Weight: 9.8ton
Rated payload: 11.205ton
GVWR: 21.2ton
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 22°
Remarks: Standard standard air filter, reinforced leaf springs, automatic slack adjuster; optional full-floating cab suspension, air-suspension driver seat, electric hydraulic tilt, extra-heavy-duty leaf springs, 5.286 ratio
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4EG185-50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.73L
Emission standard: China V
Max output power: 136kW
Max hp: 185Horsepower
Max torque: 700N·m
Max torque speed: 1300-1800rpm
Rated speed: 2500rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, high-pressure common rail
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: Fast Gear8JS85F
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: low roof
Lower Bunk Width: 580mm
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 250L
Chassis Specs
Front axle allowable load: 5600/5600kg
Frame Dimensions: 264(6+4)mm
rear axle description: 457 (narrow)
rear axle allowable load: 10000kg
Axle ratio: 5.833
Leaf spring count: 10/10/12+9
Suspension (front/rear): Non-independent suspension
Tire
Tire Size: 10.00R20 16PR
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
Power Windows:
Exterior features
Aluminum air tank:

Photos

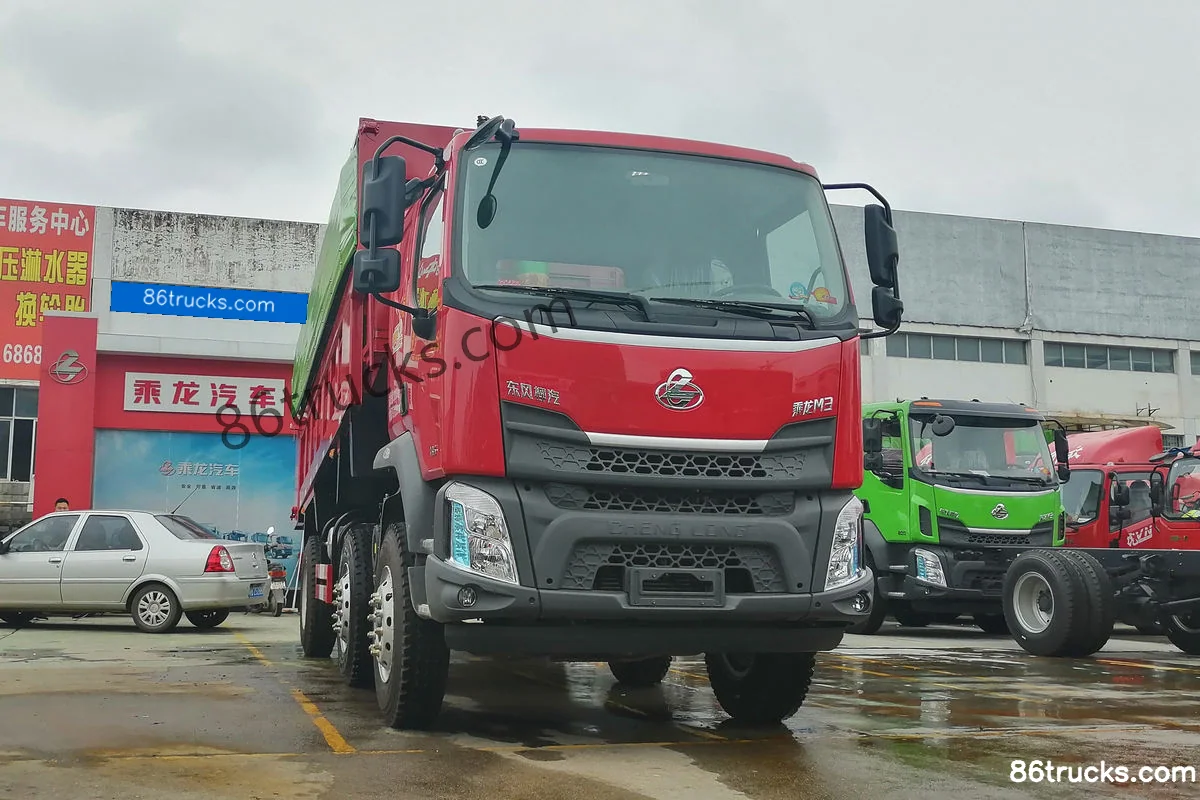

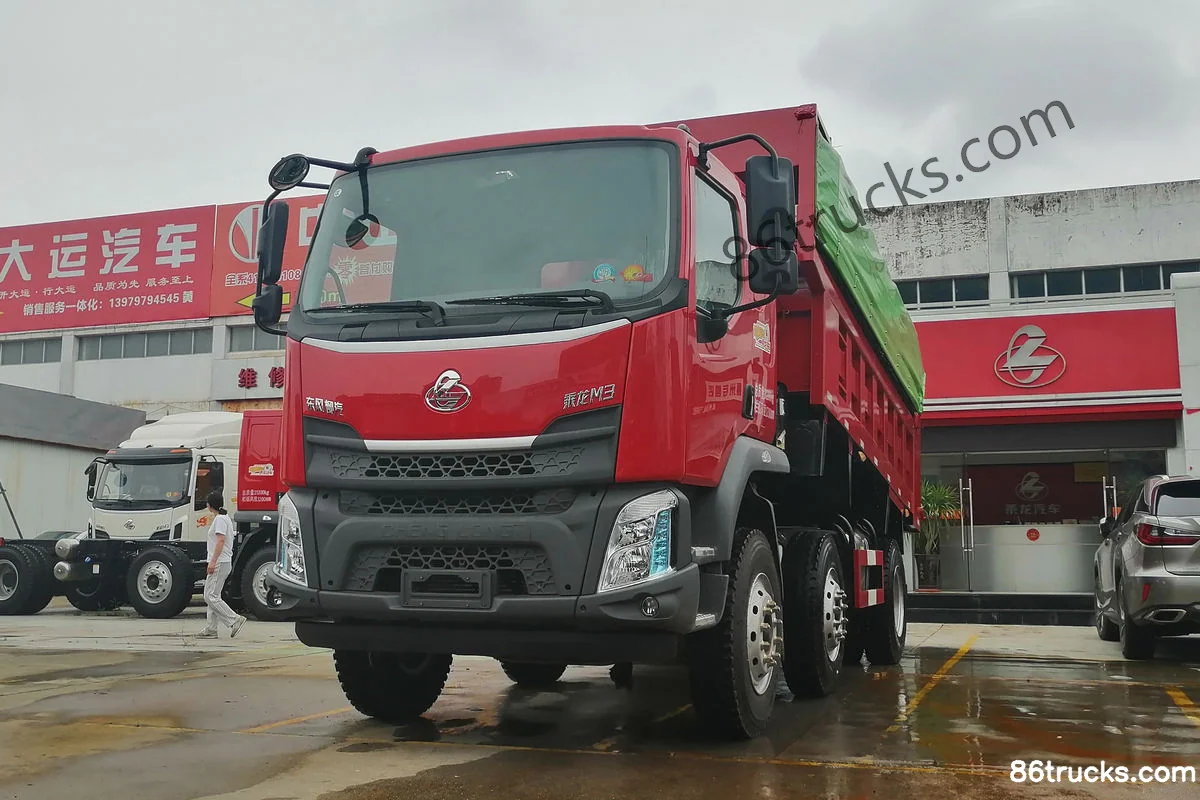

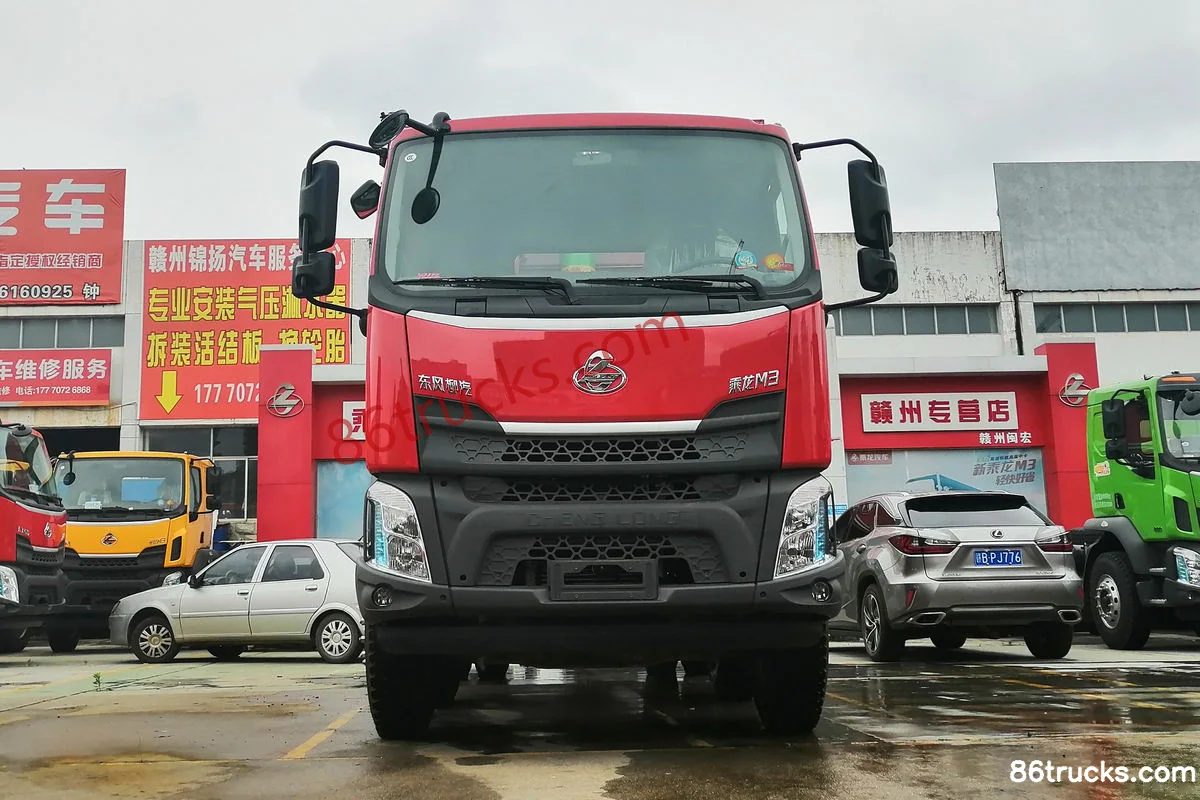

Exterior3

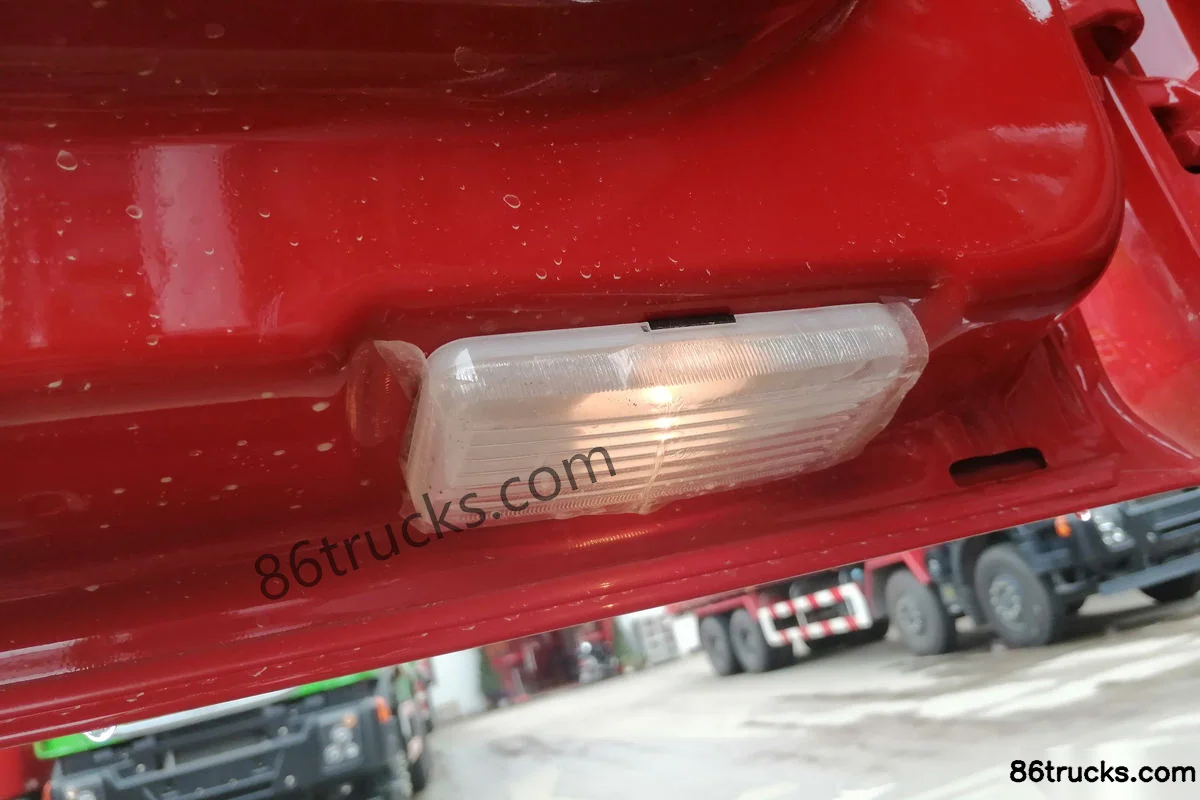

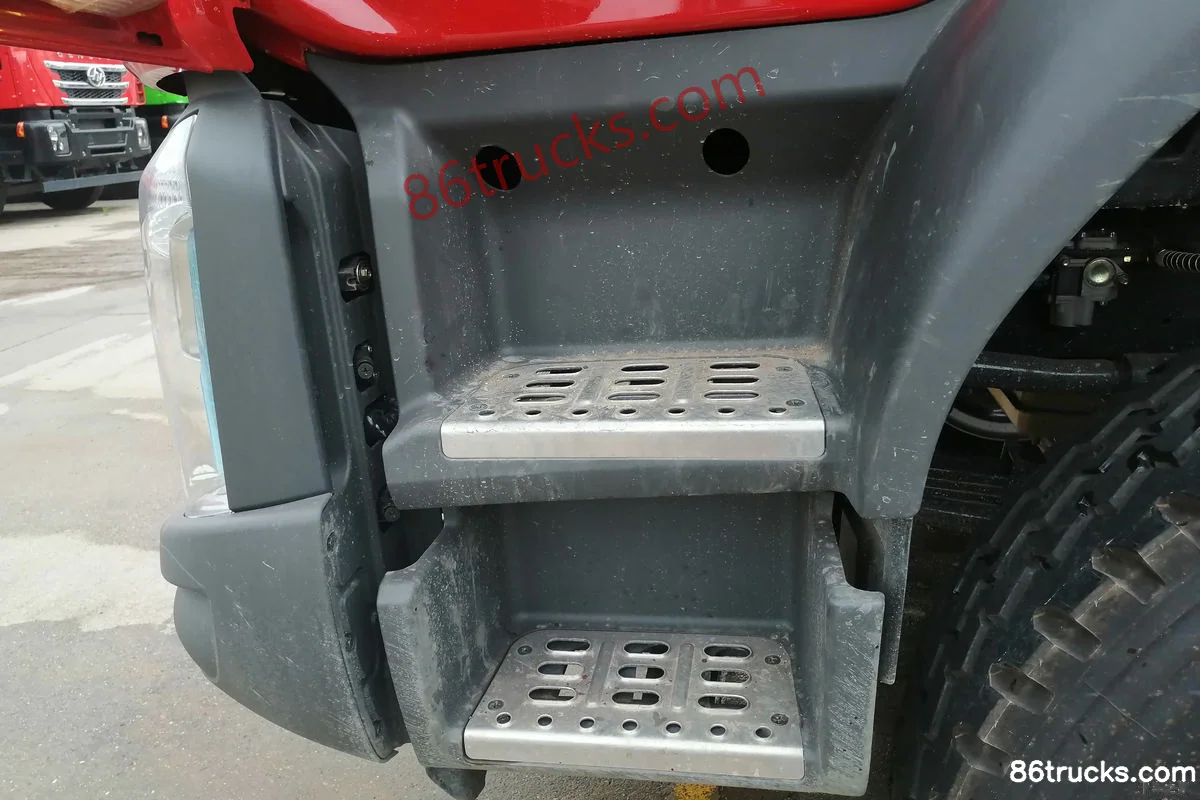

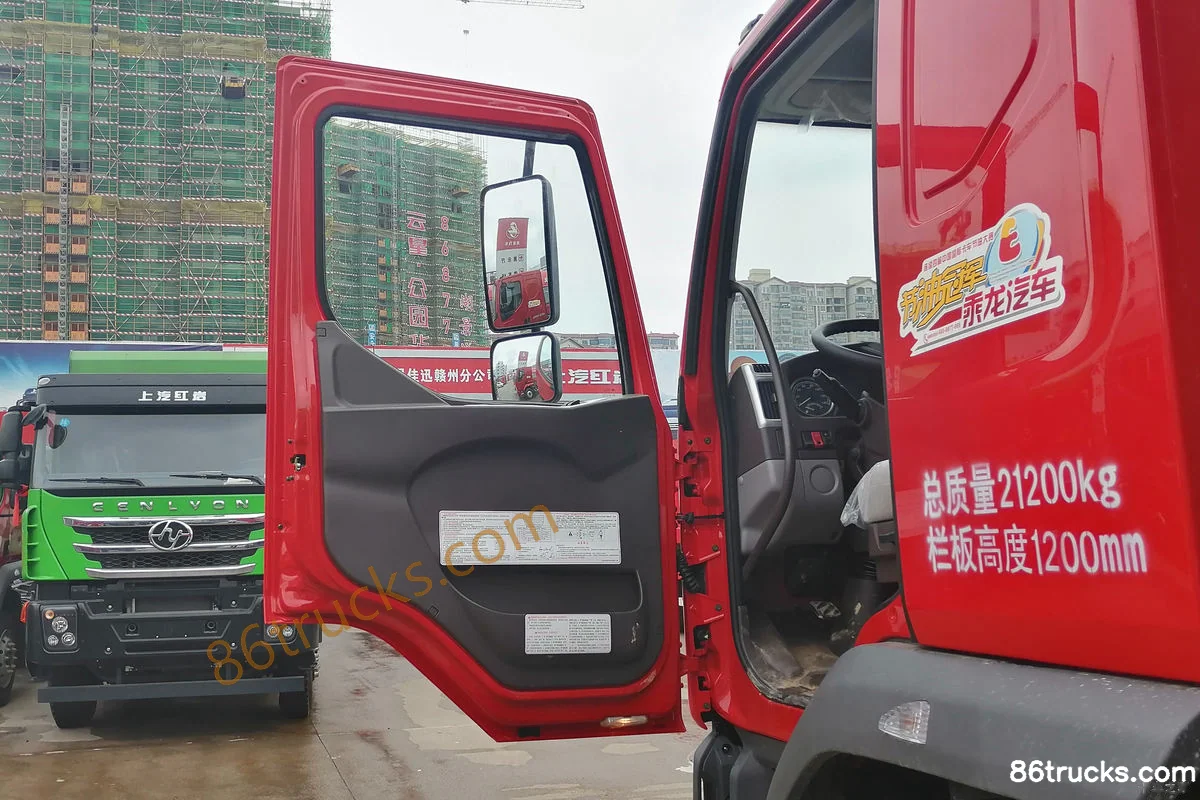

Cab3

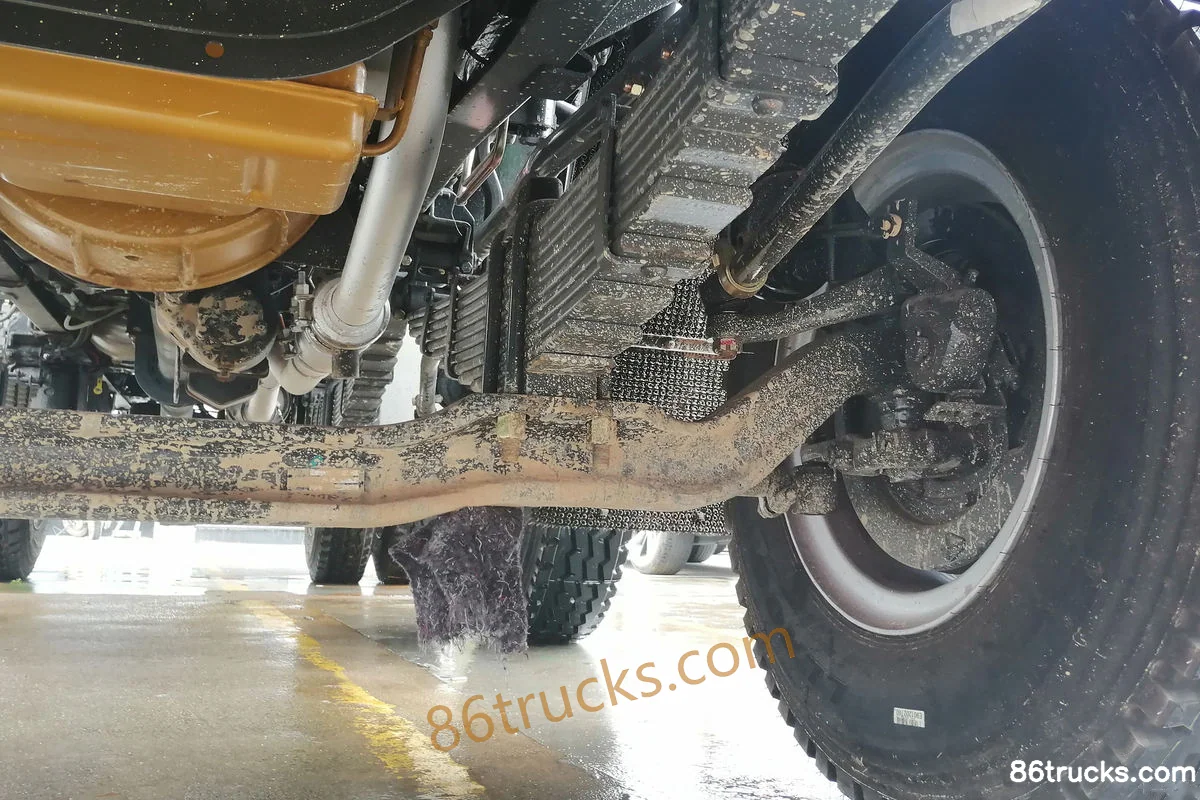

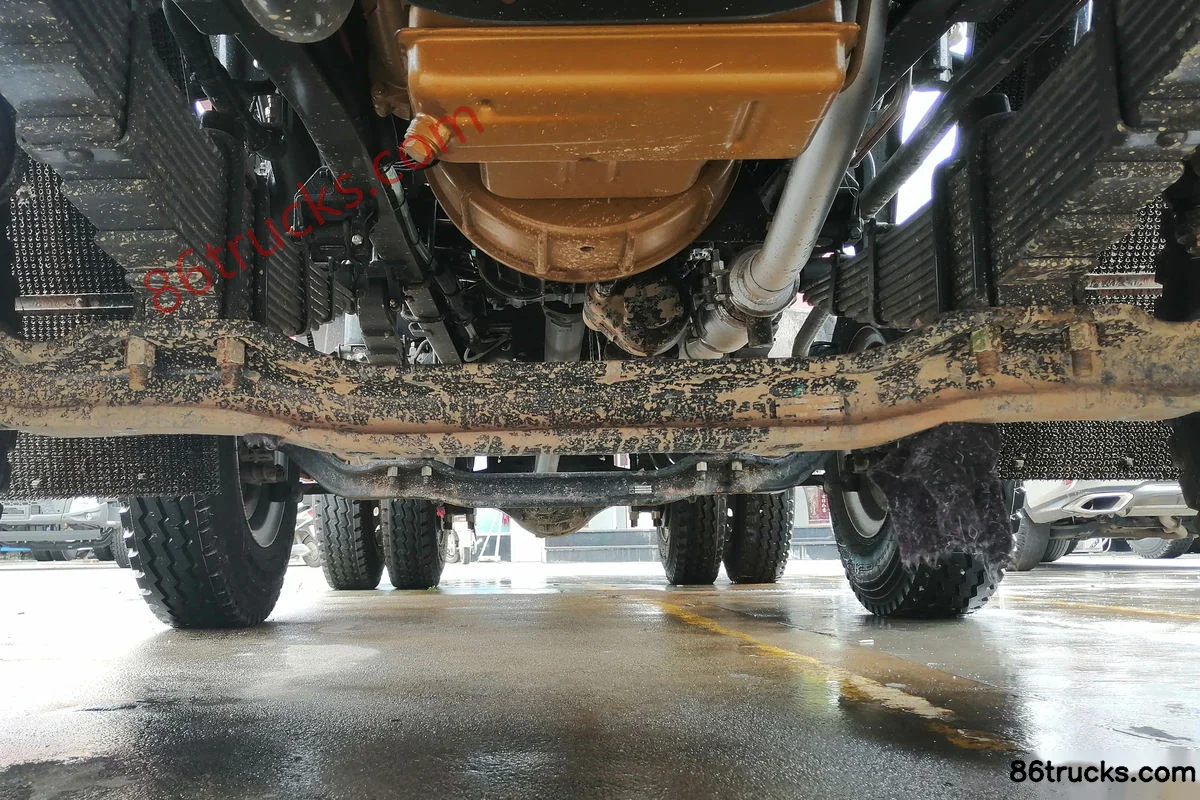

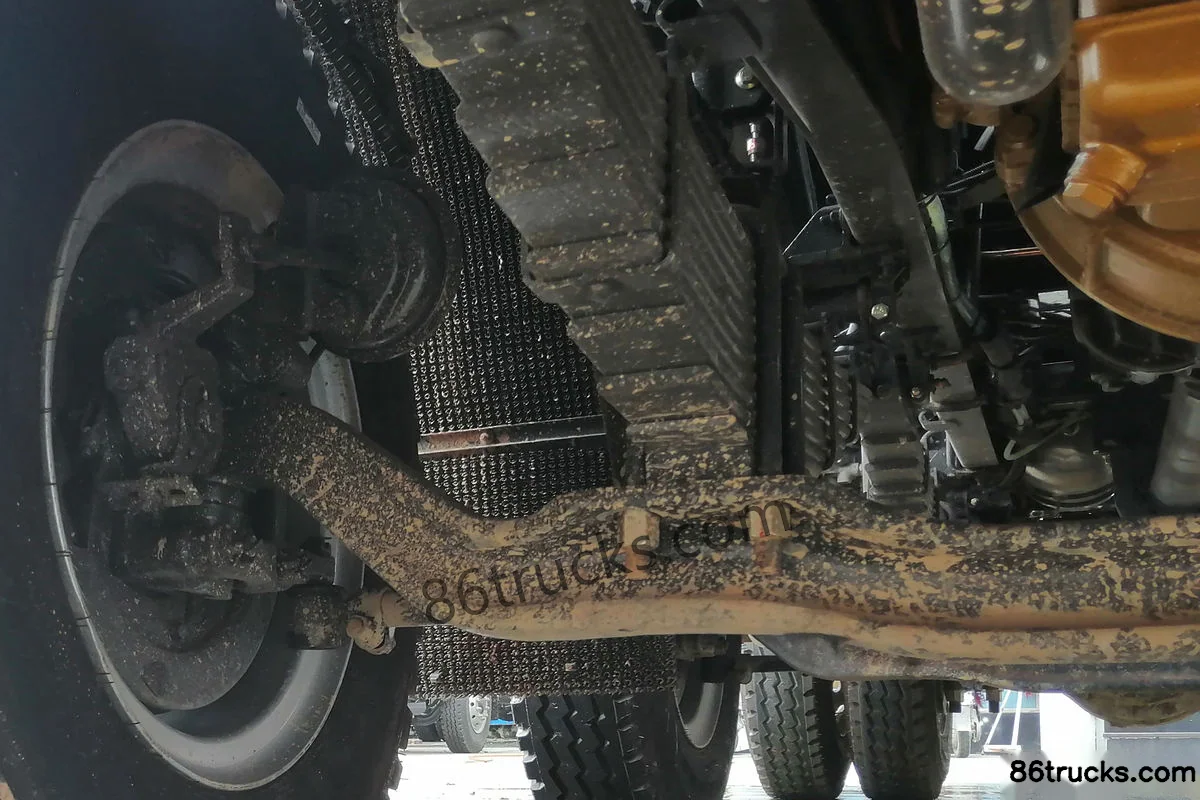

Chassis3

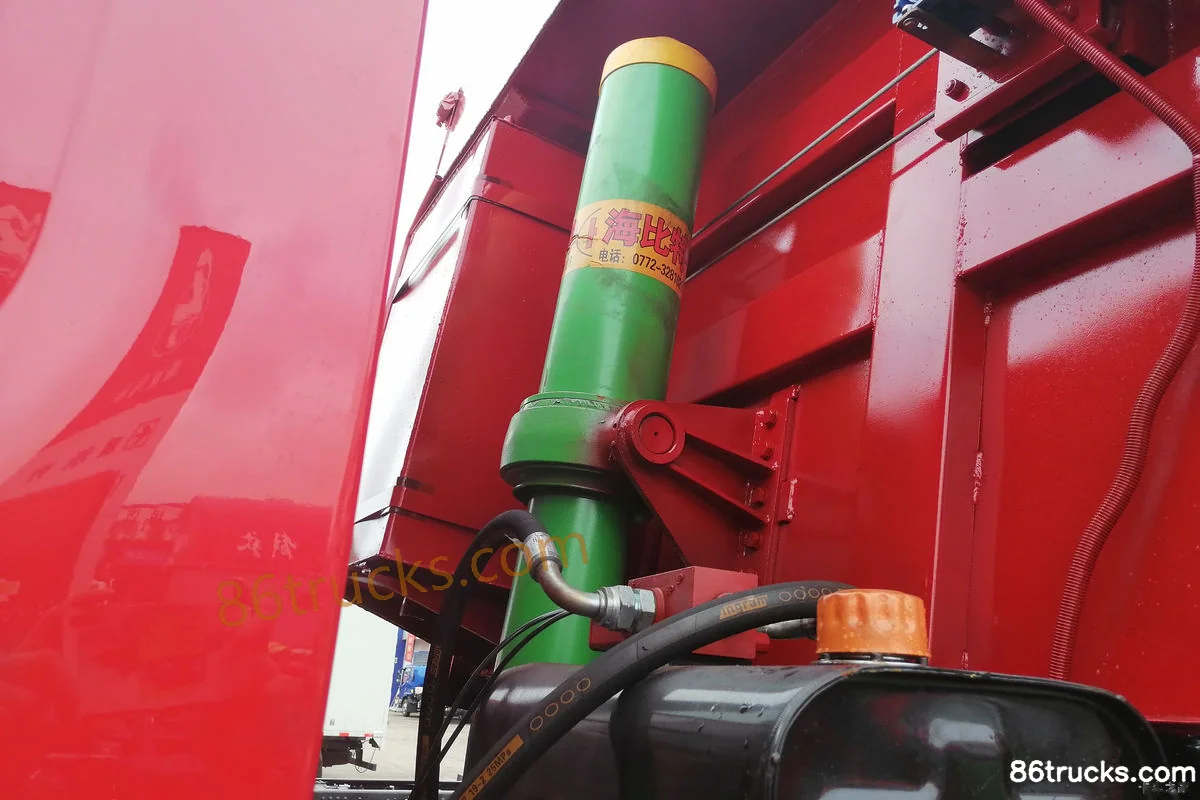

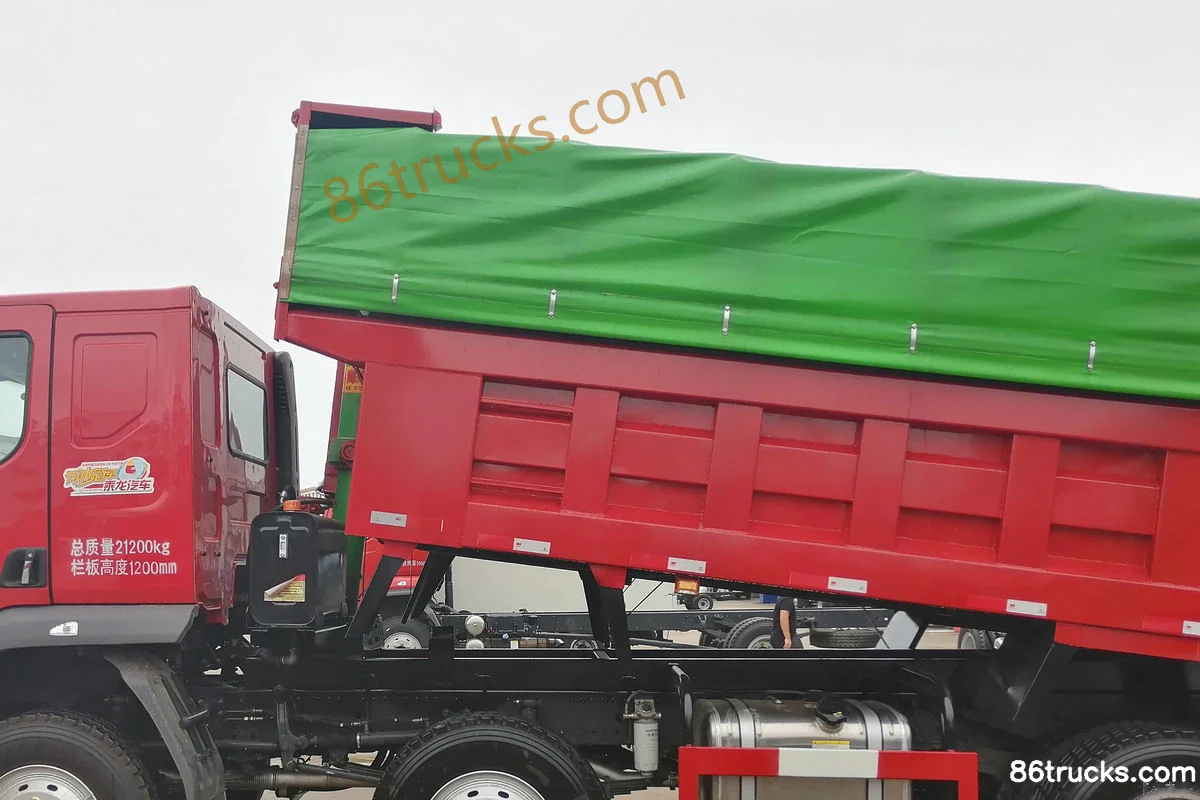

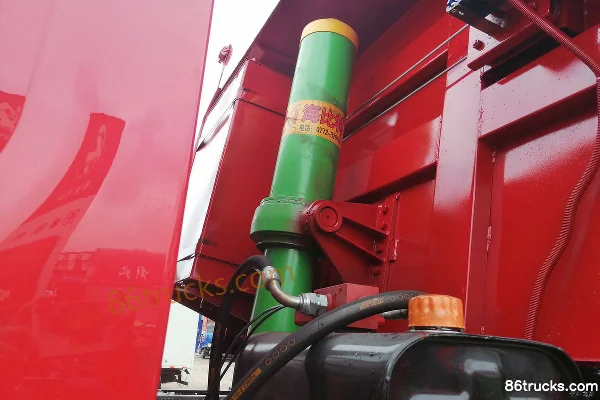

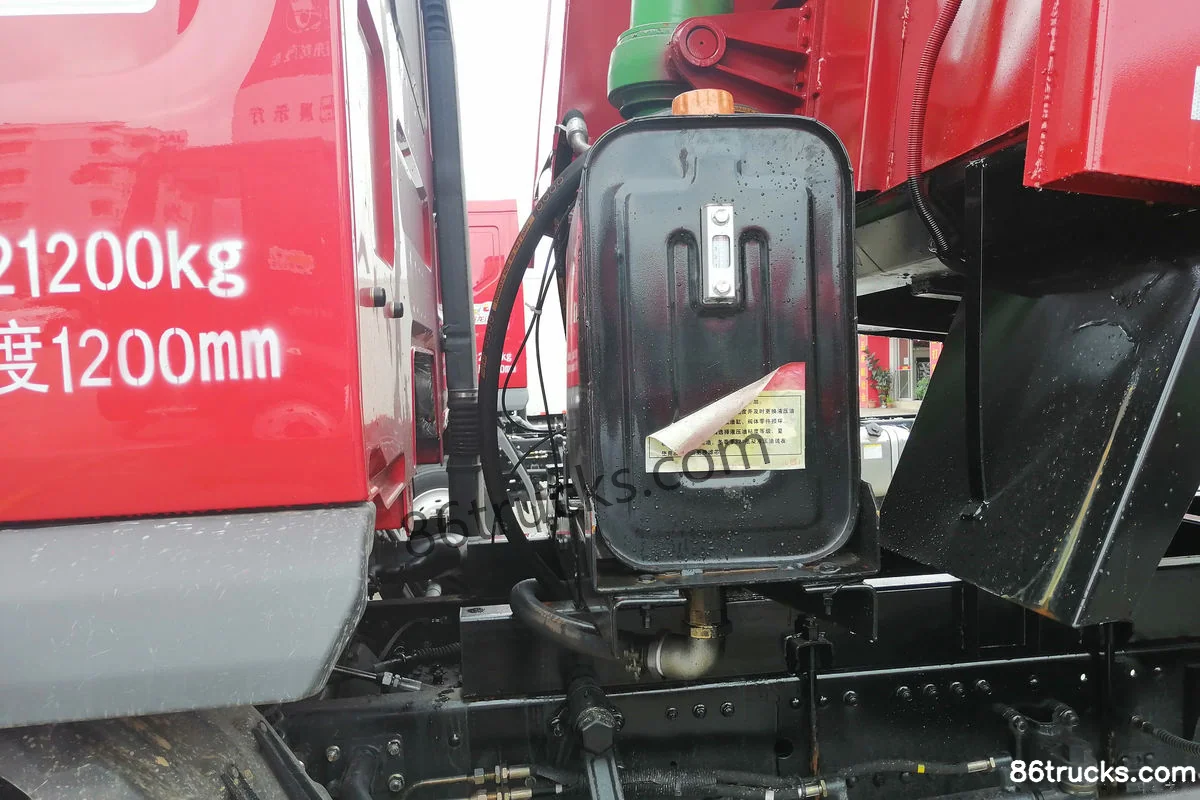

Body3

12 photos

FAQ

What is the export price of Dongfeng Liuqi New Chenglong M3 185 hp 6X2(8 wheels) 5m dump truck, and what does it include?

Dongfeng Liuqi New Chenglong M3 185 hp 6X2(8 wheels) 5m dump truck export reference is about From $25,000; MSRP is ¥18M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Liuqi New Chenglong M3 185 hp 6X2(8 wheels) 5m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi New Chenglong M3 185 hp 6X2(8 wheels) 5m dump truck?

Key specs of Dongfeng Liuqi New Chenglong M3 185 hp 6X2(8 wheels) 5m dump truck: Drive: 6x2; Horsepower: 185 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi New Chenglong M3 185 hp 6X2(8 wheels) 5m dump truck suited for?

Dongfeng Liuqi New Chenglong M3 185 hp 6X2(8 wheels) 5m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Liuqi New Chenglong M3 185 hp 6X2(8 wheels) 5m dump truck differ from other variants in the same series?

Dongfeng Liuqi New Chenglong M3 185 hp 6X2(8 wheels) 5m dump truck belongs to Dongfeng New Chenglong M3 Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi New Chenglong M3 185 hp 6X2(8 wheels) 5m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi New Chenglong M3 185 hp 6X2(8 wheels) 5m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
