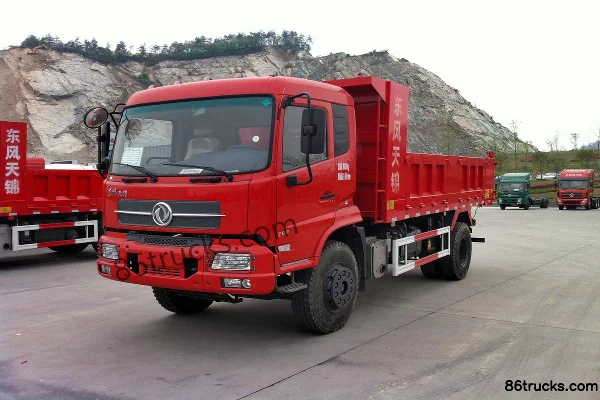

Dongfeng Commercial Vehicle Tianjin Medium Truck 220hp 4X2(6 wheels) 5.4m Dump Truck

Export reference
From $29,583
MSRP ¥21.3M CNY
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.815ton
Wheelbase:: 4500mm
Tire Size:: 11.00R20
Rated payload: 7.99ton
Drive 4X2 (6 wheels)
Horsepower 220
Cargo box thickness: side 3mm bottom 4mm

Overview

The Dongfeng Commercial Vehicle Tianjin Medium Truck 220hp 4X2(6 wheels) 5.4m Dump Truck is a Medium-duty truck featuring 7.99t payload, 16t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC6J220-42 engine, 220 hp, China IV emissions and Fast Gear transmission.

China IV 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFL3160BX6A
Drive type: 4X2
Wheelbase: 4500mm
engine: YuchaiYC6J220-42
transmission: Fast Gear8JS118
Rear Axle Ratio: 6.36
Cab length: 7.75m
Cab width: 2.5m
Cab height: 2.96m
Front track width: 1920mm
rear track: 1860mm
Curb Weight: 7.815ton
Rated payload: 7.99ton
GVWR: 16ton
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 25°
departure angle: 20°
Remarks: D530 flat-front single-row sleeper standard-roof cab
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6J220-42
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.494L
Emission standard: China IV
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 800N·m
Max torque speed: 1200-1700rpm
Rated speed: 2500rpm
Engine Type: Vertical, inline 6-cylinder, water-cooled, 4-stroke, electronic direct injection
Transmission Parameters
Transmission Model: Fast Gear8JS118
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box thickness: side 3mm bottom 4mm
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.4m
Cargo box width: 2.3m
Cargo box height: 0.8m
Cargo box material: high-strength steel
fuel tank
Fuel tank material: Steel
Fuel tank capacity: 280L
Chassis Specs
Front axle description: 6T
Front axle allowable load: 6000kg
Frame Dimensions: 300x90x[8+6]mm
rear axle description: 13T hub-reduction rear axle
rear axle allowable load: 10000kg
Axle ratio: 6.36
Leaf spring count: 8/10+8
Tire
Tire Size: 11.00R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of Dongfeng Commercial Vehicle Tianjin Medium Truck 220hp 4X2(6 wheels) 5.4m Dump Truck, and what does it include?

Dongfeng Commercial Vehicle Tianjin Medium Truck 220hp 4X2(6 wheels) 5.4m Dump Truck export reference is about From $29,583; MSRP is ¥21.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Commercial Vehicle Tianjin Medium Truck 220hp 4X2(6 wheels) 5.4m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianjin Medium Truck 220hp 4X2(6 wheels) 5.4m Dump Truck?

Key specs of Dongfeng Commercial Vehicle Tianjin Medium Truck 220hp 4X2(6 wheels) 5.4m Dump Truck: Drive: 4x2; Horsepower: 220 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianjin Medium Truck 220hp 4X2(6 wheels) 5.4m Dump Truck suited for?

Dongfeng Commercial Vehicle Tianjin Medium Truck 220hp 4X2(6 wheels) 5.4m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Commercial Vehicle Tianjin Medium Truck 220hp 4X2(6 wheels) 5.4m Dump Truck differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianjin Medium Truck 220hp 4X2(6 wheels) 5.4m Dump Truck belongs to Dongfeng Tianjin Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianjin Medium Truck 220hp 4X2(6 wheels) 5.4m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianjin Medium Truck 220hp 4X2(6 wheels) 5.4m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
