Dayun New N8E Heavy Truck 310hp 8X4(12 wheels) 7.3m³ Concrete Mixer Truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 13.45ton
Wheelbase:: 1800+3000+1350mm
Tire Size:: 11R22.5
Cab dimensions:: 9.8×2.5×3.85m
Truck Type:: concrete mixer truck
Rated payload: 17.42ton
Drive 8X4 (12 wheels)
Horsepower 310
Emission China V

Overview

The Dayun New N8E Heavy Truck 310hp 8X4(12 wheels) 7.3m³ Concrete Mixer Truck is a concrete mixer truck featuring 17.42t payload, 13.45ton GVW, 8X4 (12 wheels) drive and 9.8×2.5×3.85m cab. On the powertrain side, it comes with 310 hp, China V emissions and Diesel fuel.

China V 310 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.8×2.5×3.85m
Drive type: 8X4
Truck Type: concrete mixer truck
Wheelbase: 1800+3000+1350mm
Vehicle origin: Shanxi
Front/rear track width: Front track: 2030/2030mm; Rear track: 1860/1860mm
Curb Weight: 13.45ton
Rated payload: 17.42ton
Max. speed: 80km/h
Front/rear suspension: 1.43/2.22m
Engine parameters
Injection System: Common Rail (China V)
Engine Model: WeichaiWP10.310E53
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China V
Max output power: 228kW
Max hp: 310Horsepower
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, electronically controlled high-pressure common rail + SCR
Body Parameters
Mixing drum capacity: 7.3m³
Vehicle certification code: CGC5310GJBD5DDAD
Body Brand: Dayun
Chassis Specs
Chassis Series: Dayun New N8E
Chassis Model: CGC5310GJBD5DDAD
Front axle description: 153 front axle 5.5T
Frame Dimensions: 300×80×(8+5)mm
rear axle description: 457 rear axle 13T
Axle ratio: 4.875
Leaf spring count: 12/12/10
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear10JSD160
Tire
Tire Size: 11R22.5
Number of tires: 12pcs

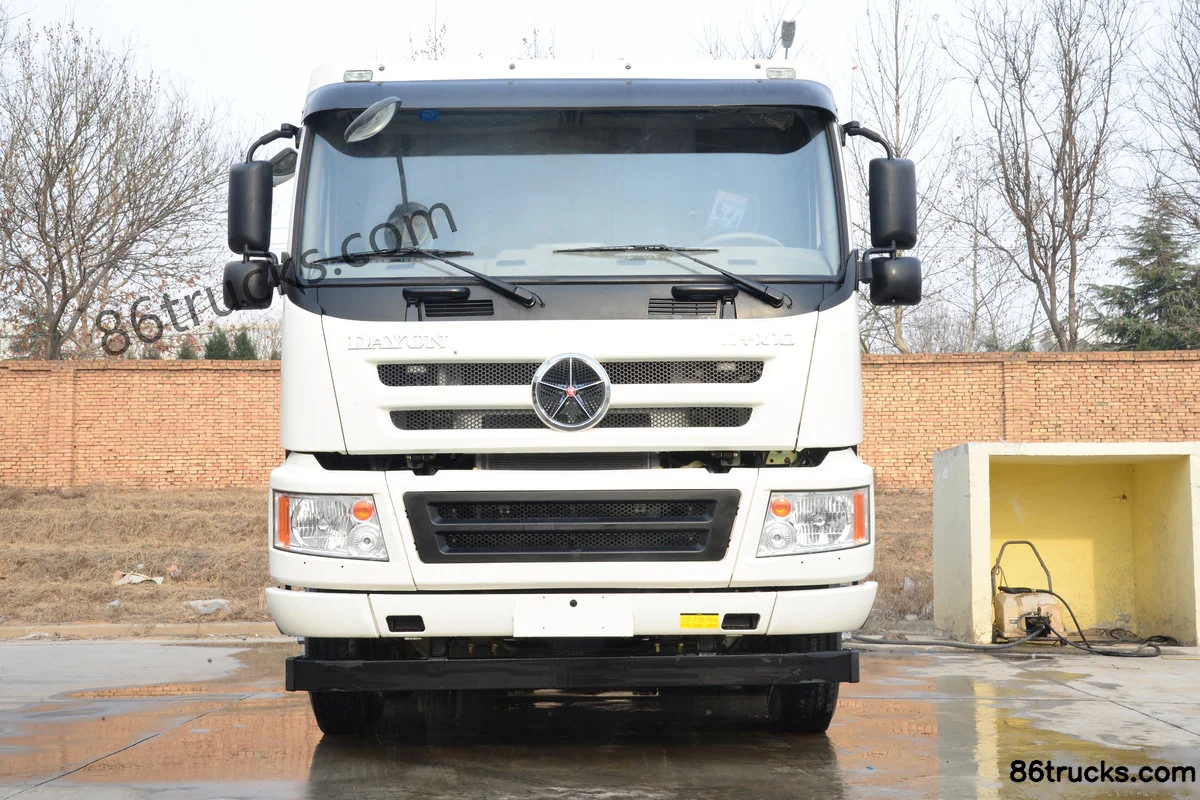

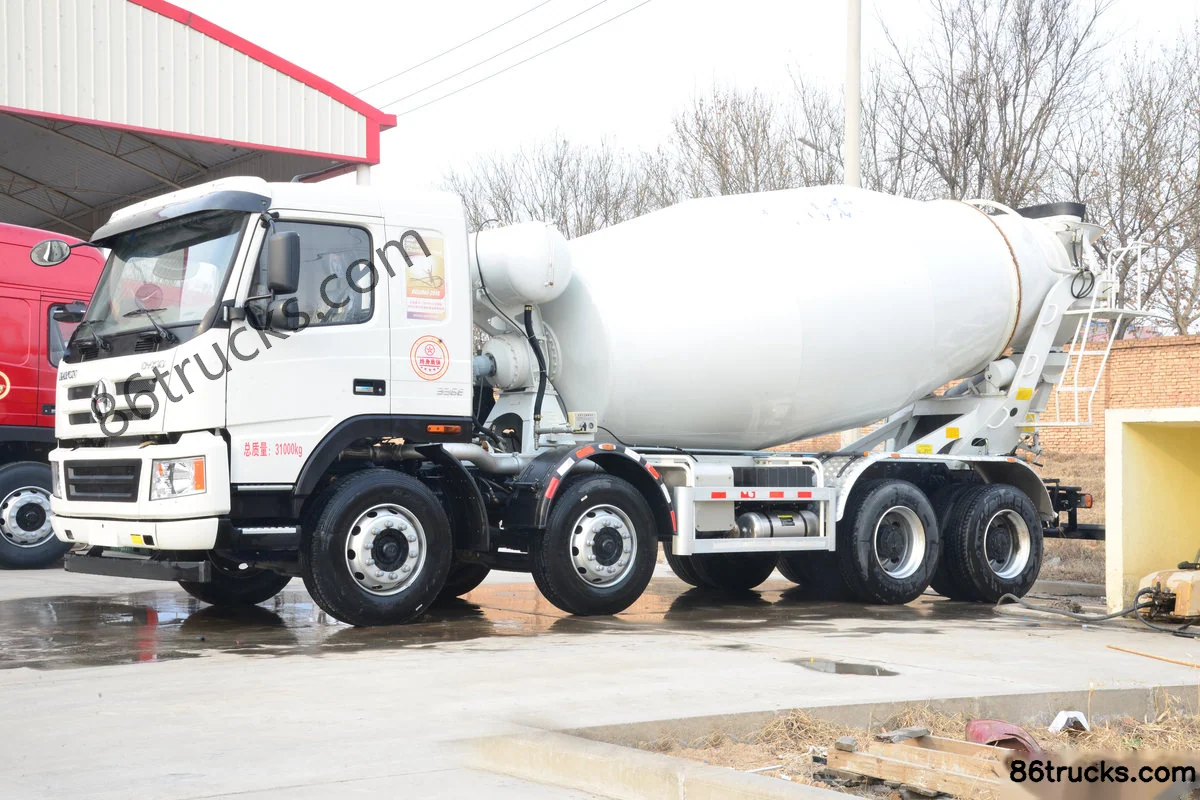

Photos

Exterior2

2 photos

FAQ

What emission standard does Dayun New N8E Heavy Truck 310hp 8X4(12 wheels) 7.3m³ Concrete Mixer Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun New N8E Heavy Truck 310hp 8X4(12 wheels) 7.3m³ Concrete Mixer Truck?

Key specs of Dayun New N8E Heavy Truck 310hp 8X4(12 wheels) 7.3m³ Concrete Mixer Truck: Drive: 8x4; Horsepower: 310 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun New N8E Heavy Truck 310hp 8X4(12 wheels) 7.3m³ Concrete Mixer Truck suited for?

Dayun New N8E Heavy Truck 310hp 8X4(12 wheels) 7.3m³ Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dayun New N8E Heavy Truck 310hp 8X4(12 wheels) 7.3m³ Concrete Mixer Truck differ from other variants in the same series?

Dayun New N8E Heavy Truck 310hp 8X4(12 wheels) 7.3m³ Concrete Mixer Truck belongs to Dayun New N8E quasi-heavy truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun New N8E Heavy Truck 310hp 8X4(12 wheels) 7.3m³ Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun New N8E Heavy Truck 310hp 8X4(12 wheels) 7.3m³ Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
