FAW Linghe 180 hp 6X2(8 wheels) 4.8m Dump Truck

Export reference
From $27,500
MSRP ¥19.8M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 10.905ton
Wheelbase:: 1800+2700mm
Tire Size:: 10.00R20 18PR
Rated payload: 13.9ton
Drive 6X2 (8 wheels)
Horsepower 180
Cargo box type: Dump type

Overview

The FAW Linghe 180 hp 6X2(8 wheels) 4.8m Dump Truck is a Light Truck featuring 13.9t payload, 25t GVW, Dump type cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYC6JA180-50 engine, 180 hp, China V emissions and Fast Gear transmission.

China V 180 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CAL3251C2GF3E5
Drive type: 6X2
Wheelbase: 1800+2700mm
engine: YuchaiYC6JA180-50
transmission: Fast Gear10JS90A
Rear Axle Ratio: 6.833
Cab length: 7.65m
Cab width: 2.55m
Cab height: 3.5m
Front track width: 1825/1825mm
rear track: 1700mm
Curb Weight: 10.905ton
Rated payload: 13.9ton
GVWR: 25ton
Origin: Lingyuan, Liaoning
tonnage class: Light Truck
Approach angle: 22°
departure angle: 20°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6JA180-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 700N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear10JS90A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.8m
Cargo box width: 2.35m
Cargo box height: 1.5m
Chassis Specs
Front axle allowable load: 6750/6750kg
rear axle allowable load: 11500kg
Axle ratio: 6.833
Leaf spring count: 8/8/10+8
Tire

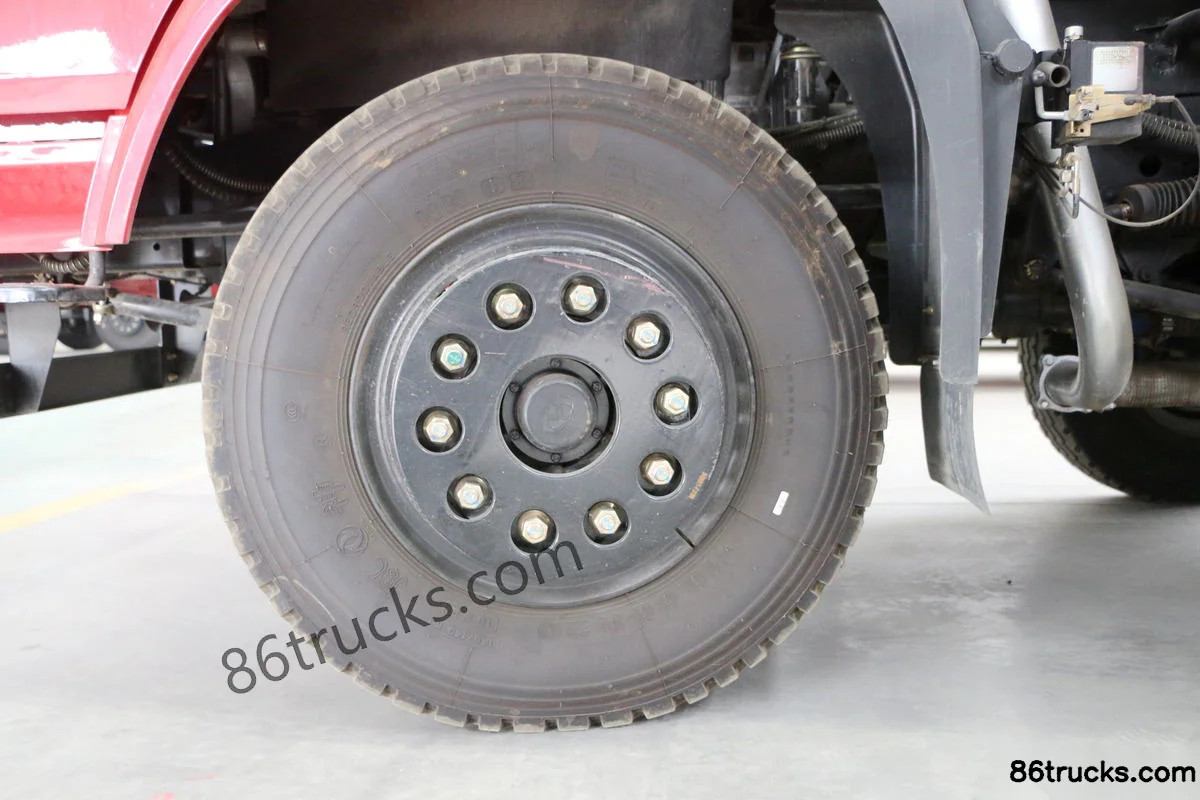

Tire Size: 10.00R20 18PR
Number of tires: 8pcs
Control configuration
ABS:

Photos

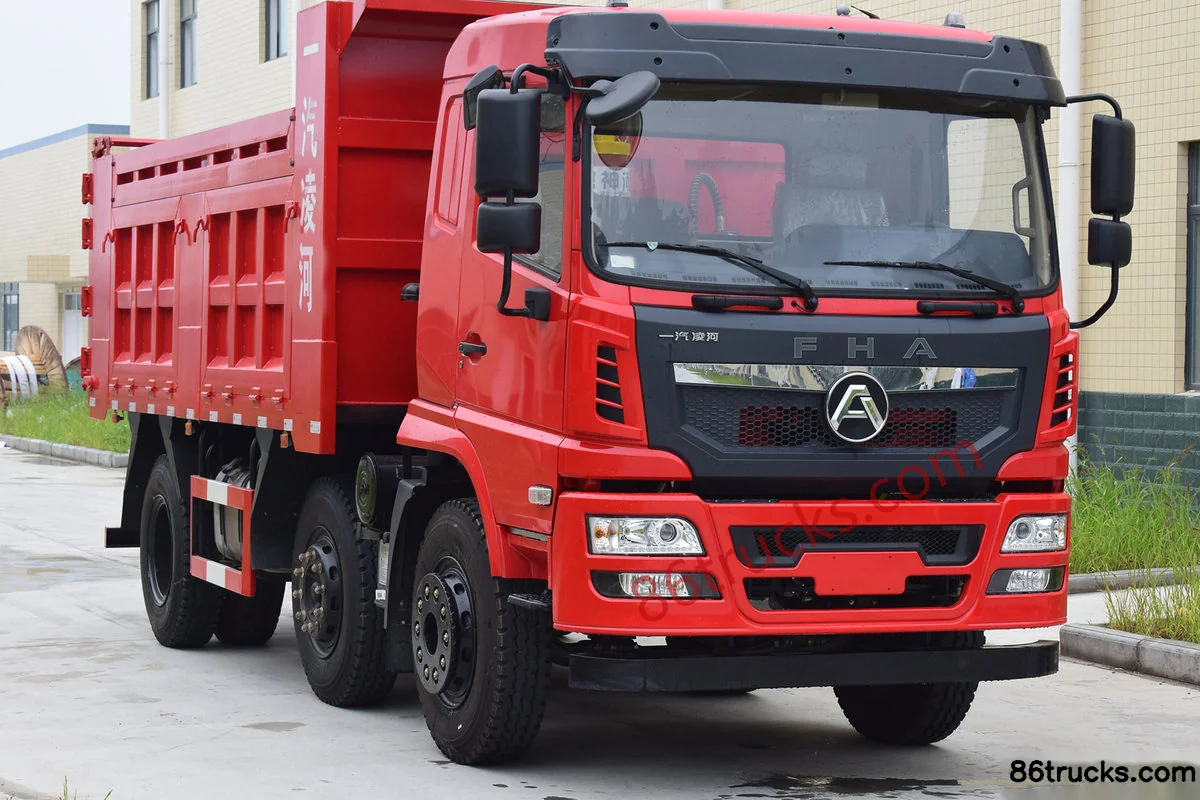

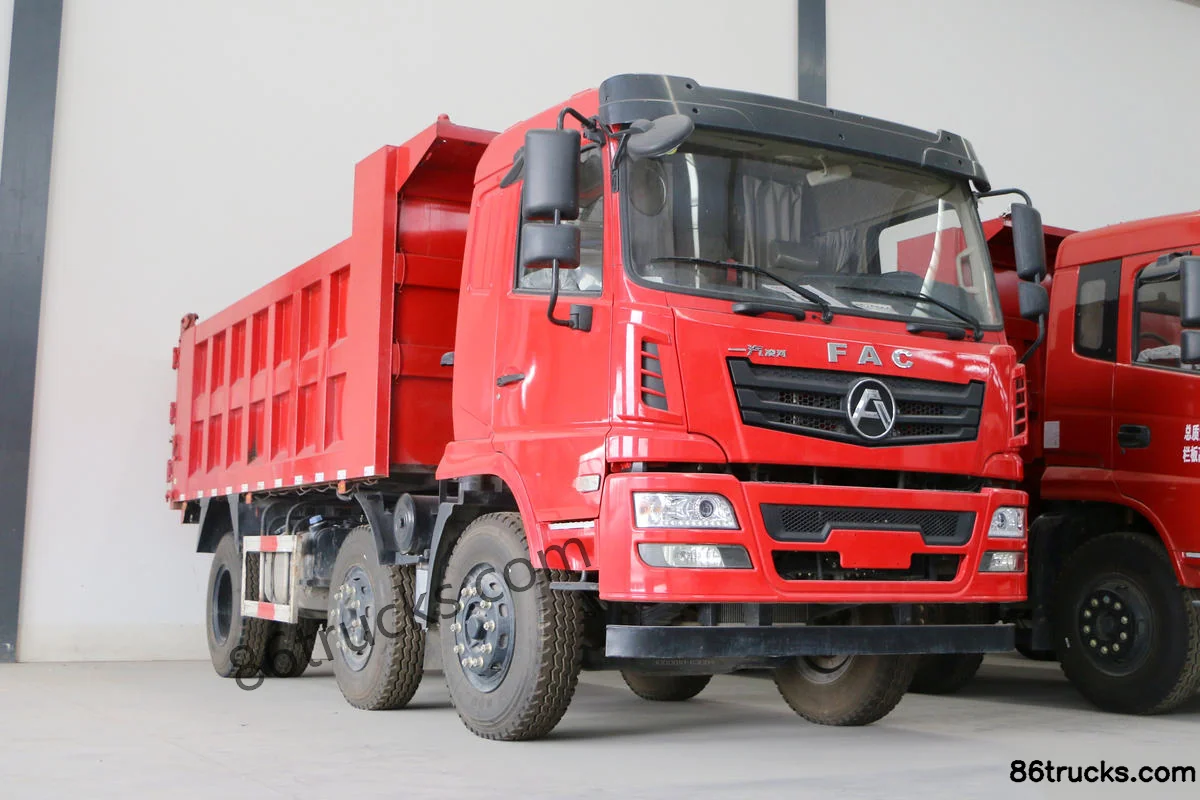

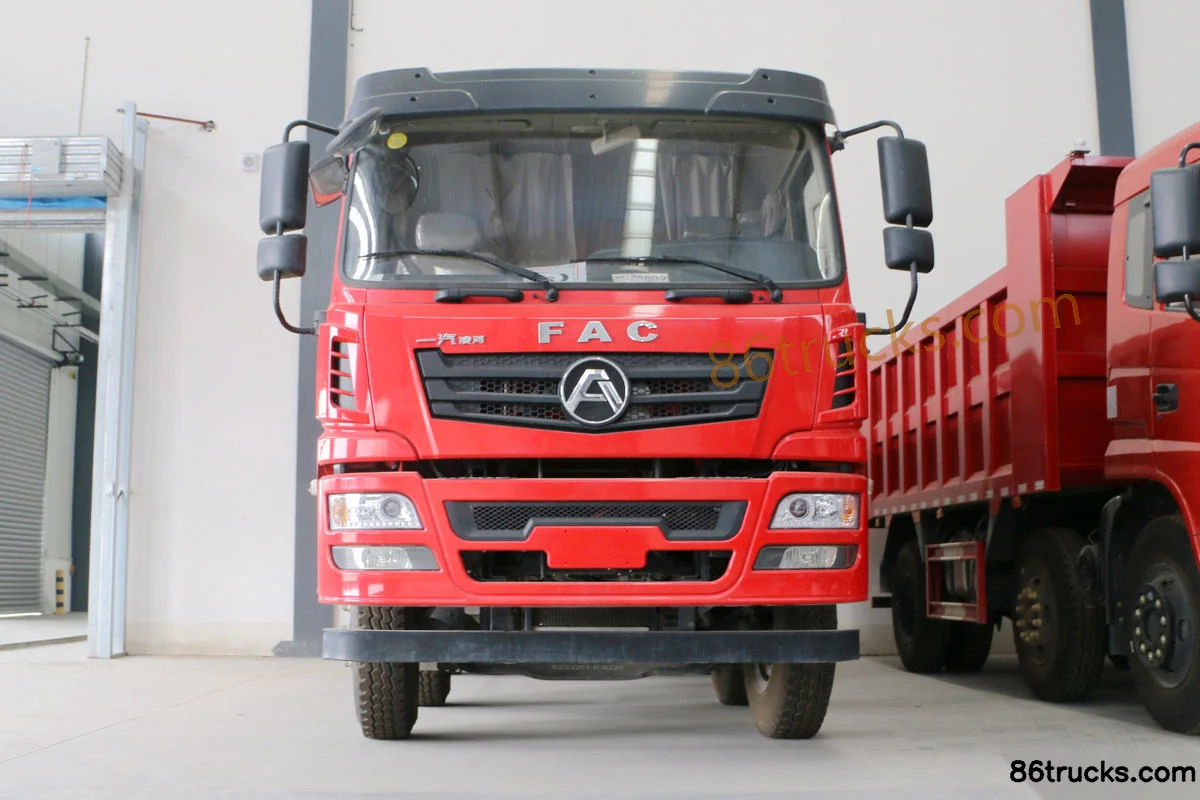

Exterior3

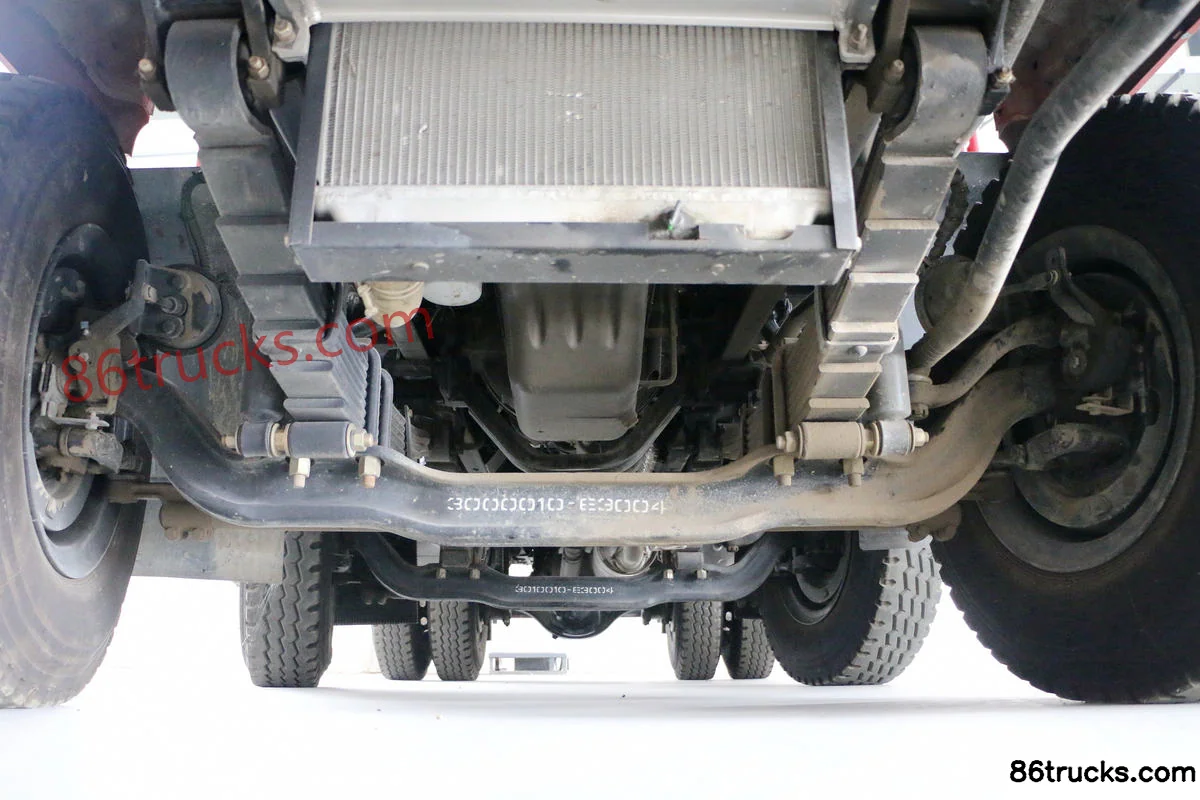

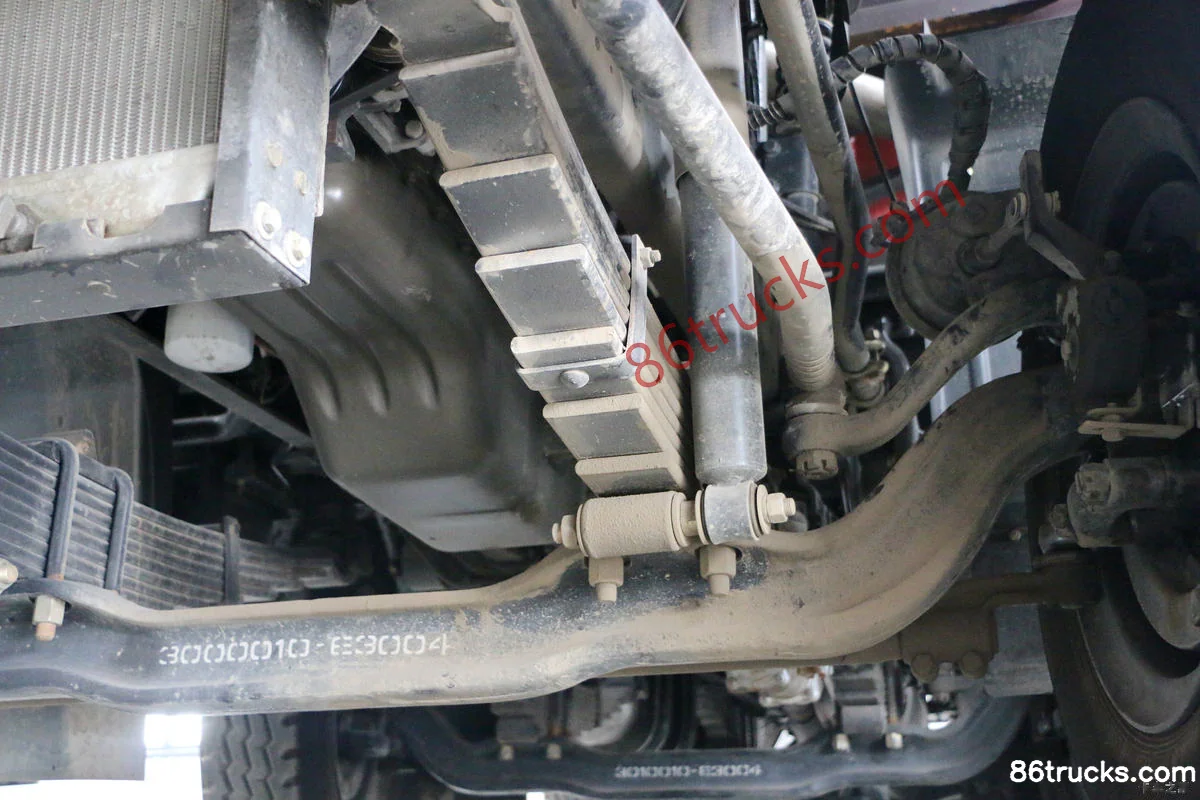

Chassis3

6 photos

FAQ

What is the export price of FAW Linghe 180 hp 6X2(8 wheels) 4.8m Dump Truck, and what does it include?

FAW Linghe 180 hp 6X2(8 wheels) 4.8m Dump Truck export reference is about From $27,500; MSRP is ¥19.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Linghe 180 hp 6X2(8 wheels) 4.8m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Linghe 180 hp 6X2(8 wheels) 4.8m Dump Truck?

Key specs of FAW Linghe 180 hp 6X2(8 wheels) 4.8m Dump Truck: Drive: 6x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Linghe 180 hp 6X2(8 wheels) 4.8m Dump Truck suited for?

FAW Linghe 180 hp 6X2(8 wheels) 4.8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Linghe 180 hp 6X2(8 wheels) 4.8m Dump Truck differ from other variants in the same series?

FAW Linghe 180 hp 6X2(8 wheels) 4.8m Dump Truck belongs to FAW Linghe Zhongchi Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Linghe 180 hp 6X2(8 wheels) 4.8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Linghe 180 hp 6X2(8 wheels) 4.8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
