Sinotruk Hohan J5G 310 hp 6X4(10 wheels) crane truck chassis

Export reference
MSRP N/A
Wheelbase:: 5800+1400mm
Cab dimensions:: 11.69×2.496×3.25m
Type:: Truck with crane
GVWR:: 25ton
Front/rear suspension:: 1.55/2.94m
Engine Brand:: Sinotruk
Drive 6X4 (10 wheels)
Horsepower 310
Emission China V
Fuel Diesel

Overview

The Sinotruk Hohan J5G 310 hp 6X4(10 wheels) crane truck chassis is a truck-mounted crane featuring 25t GVW and 6X4 (10 wheels) drive. On the powertrain side, it comes with a Sinotruk engine, 310 hp, China V emissions and Diesel fuel.

China V 310 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.69×2.496×3.25m
Type: Truck with crane
Drive type: 6X4
Wheelbase: 5800+1400mm
GVWR: 25ton
Front/rear suspension: 1.55/2.94m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.31-50
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 228kW
Max hp: 310Horsepower
Max torque: 1230N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Body Parameters
Body Brand: Sinotruk
Chassis Specs
Chassis Brand: Sinotruk
Chassis Series: Hohan J5G
Chassis Model: ZZ1255N5843E1
Frame Dimensions: 850X300X80X(8+5)mm
rear axle description: 153 rear axle
Axle ratio: 4.875
Leaf spring count: 4/-,4/5,4/12,10/-,10/12
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW13710C2
Tire
Tire Size: 12R22.5
Number of tires: 10pcs

Photos

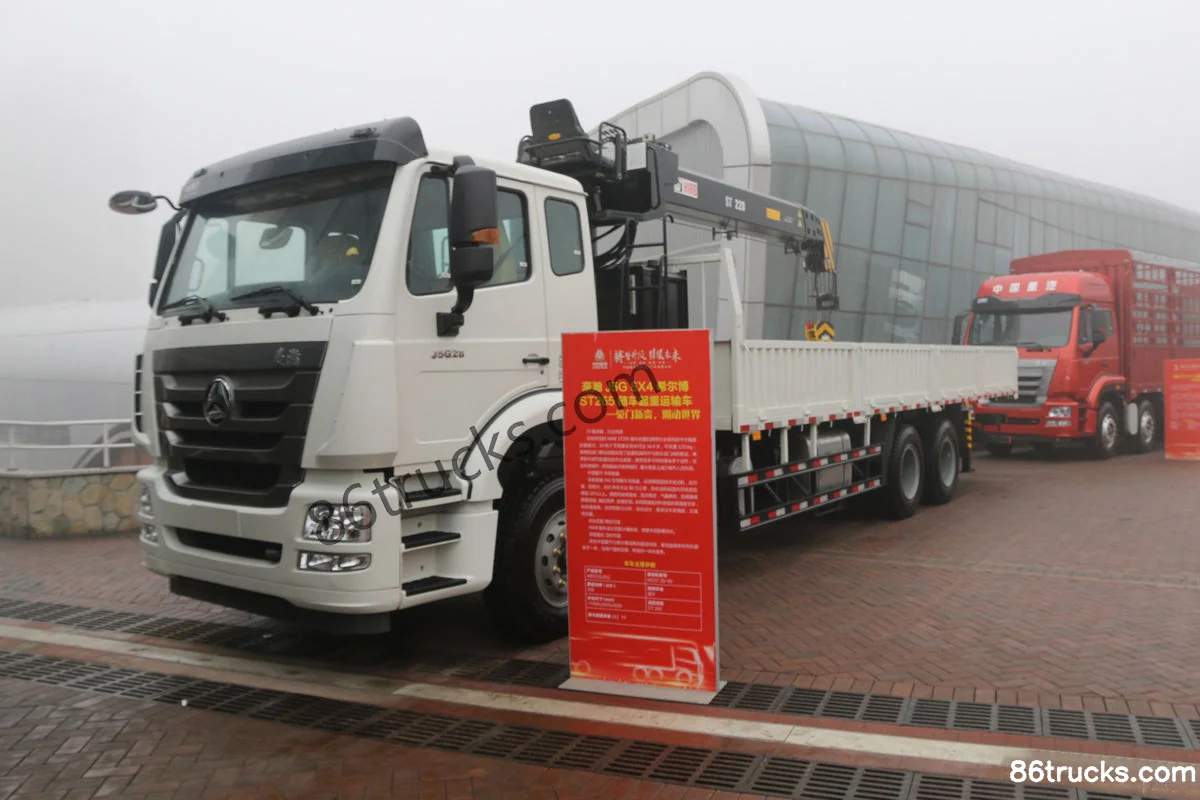

Exterior1

1 photos

FAQ

What emission standard does Sinotruk Hohan J5G 310 hp 6X4(10 wheels) crane truck chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Hohan J5G 310 hp 6X4(10 wheels) crane truck chassis?

Key specs of Sinotruk Hohan J5G 310 hp 6X4(10 wheels) crane truck chassis: Drive: 6x4; Horsepower: 310 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Hohan J5G 310 hp 6X4(10 wheels) crane truck chassis suited for?

Sinotruk Hohan J5G 310 hp 6X4(10 wheels) crane truck chassis is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk Hohan J5G 310 hp 6X4(10 wheels) crane truck chassis differ from other variants in the same series?

Sinotruk Hohan J5G 310 hp 6X4(10 wheels) crane truck chassis belongs to Sinotruk J5G Heavy Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Hohan J5G 310 hp 6X4(10 wheels) crane truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Hohan J5G 310 hp 6X4(10 wheels) crane truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
