JAC Kangling H3 Narrow Body 88hp 4X2(6 wheels) 3.37m Refrigerated Truck

Export reference
From $16,389
MSRP ¥11.8M CNY
Emission: China V
Fuel: Diesel
Curb Weight:: 2.7ton
Wheelbase:: 3308mm
Tire Size:: 6.50R16
Cab dimensions:: 5.55×2.04×2.97m
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 3.37×1.81×1.85m
Horsepower 88

Overview

The JAC Kangling H3 Narrow Body 88hp 4X2(6 wheels) 3.37m Refrigerated Truck is a Refrigerated Truck featuring 3.37×1.81×1.85m cargo body, 1.495t payload, Narrow cab cab and 3308mm wheelbase. On the powertrain side, it comes with 88 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 88 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.55×2.04×2.97m
Truck Type: Refrigerated Truck
Drive type: 4X2
Wheelbase: 3308mm
Vehicle origin: Hefei, Anhui
Front track width: 1395mm
rear track: 1470mm
Curb Weight: 2.7ton
Rated payload: 1.495ton
Max. speed: 90km/h
Front/rear suspension: 1.065/1.635m
Energy Type: Diesel
Engine parameters
Engine Model: Quanchai4A2-88C50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.27L
Emission standard: China V
Max output power: 65kW
Max hp: 88Horsepower
Max torque: 240N·m
Rated speed: 3200rpm
Cargo box parameters
Cargo box dimensions: 3.37×1.81×1.85m
Cargo box width: 1.81m
Cargo box height: 1.85m
Body Parameters
Vehicle certification code: HFC5040XLCP93K1B4V
Body Brand: JAC
Chassis Specs
Chassis Brand: JAC
Chassis Series: Kangling H3 Narrow Body
Chassis Model: HFC5040XLCP93K1B4V
Front axle description: 2T I-beam
Frame Dimensions: 140×55×5mm
rear axle description: 3T
Axle ratio: 4.875
Leaf spring count: 7/5+3
Transmission Parameters
Number of gears: 5Gear
Transmission Model: Lu'an LC5T28B
Cab parameters
Cab: Narrow cab
Tire
Tire Size: 6.50R16
Number of tires: 6pcs

Photos

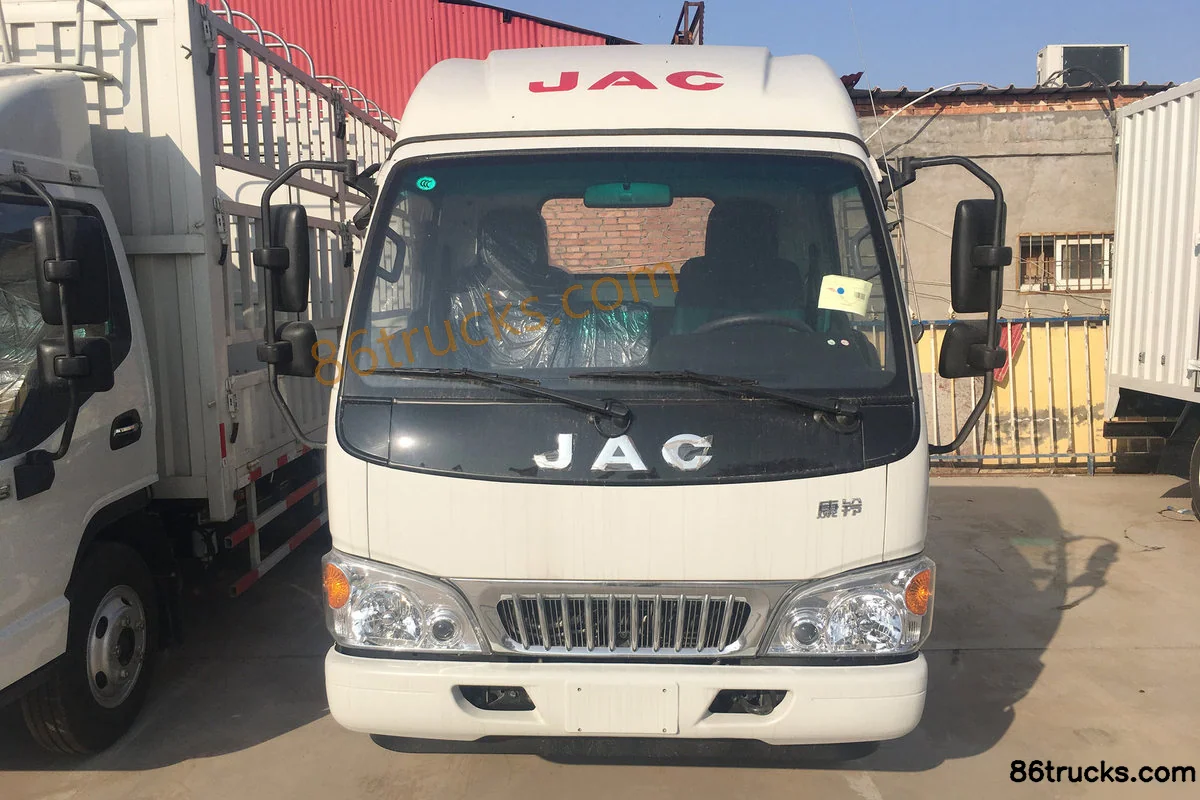

Exterior1

1 photos

FAQ

What is the export price of JAC Kangling H3 Narrow Body 88hp 4X2(6 wheels) 3.37m Refrigerated Truck, and what does it include?

JAC Kangling H3 Narrow Body 88hp 4X2(6 wheels) 3.37m Refrigerated Truck export reference is about From $16,389; MSRP is ¥11.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kangling H3 Narrow Body 88hp 4X2(6 wheels) 3.37m Refrigerated Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling H3 Narrow Body 88hp 4X2(6 wheels) 3.37m Refrigerated Truck?

Key specs of JAC Kangling H3 Narrow Body 88hp 4X2(6 wheels) 3.37m Refrigerated Truck: Drive: 4x2; Horsepower: 88 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling H3 Narrow Body 88hp 4X2(6 wheels) 3.37m Refrigerated Truck suited for?

JAC Kangling H3 Narrow Body 88hp 4X2(6 wheels) 3.37m Refrigerated Truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling H3 Narrow Body 88hp 4X2(6 wheels) 3.37m Refrigerated Truck differ from other variants in the same series?

JAC Kangling H3 Narrow Body 88hp 4X2(6 wheels) 3.37m Refrigerated Truck belongs to JAC H1 light truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling H3 Narrow Body 88hp 4X2(6 wheels) 3.37m Refrigerated Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling H3 Narrow Body 88hp 4X2(6 wheels) 3.37m Refrigerated Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
