Fuhua 16.8-ton Engineering Front Drive Axle

Export reference
MSRP N/A
Application Scope:: Off-road Crane, Port Autonomous Transfer Vehicle
Transmission Ratio:: Wheel-side ratio: 3.6, main reduction ratio: 2.93-6.14
Max output torque:: Parking brake torque: 4470 Nm; service brake torque: 22777 NmN·m

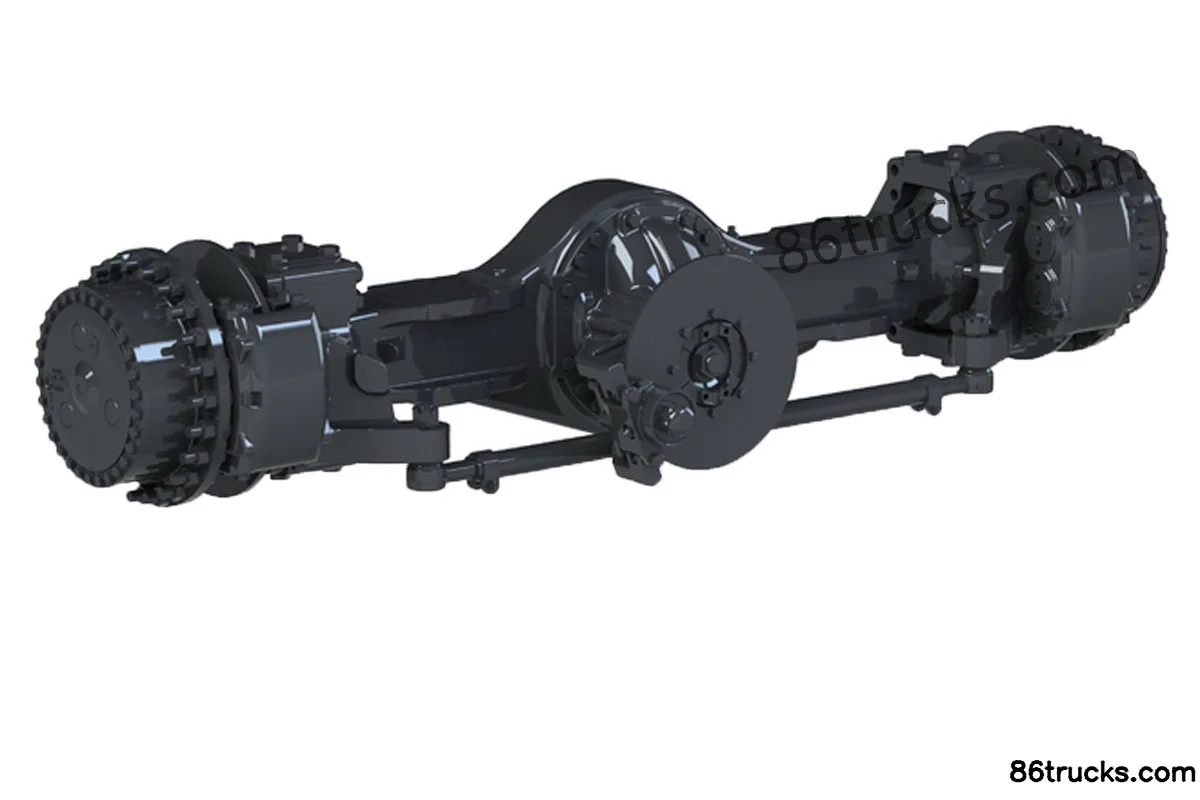

Fuhua 16.8-ton Engineering Front Drive Axle exterior
View more photos (1)
Axle Model: 16.8-ton construction truck front drive axle
Axle Type: Drive axle
Applicable Tire: 17.0×25/20.5×25

Overview

The Fuhua Axle Fuhua 16.8-ton Engineering Front Drive Axle is a parts product with spec 16.8-ton construction truck front drive axle.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Axle Model: 16.8-ton construction truck front drive axle
Axle Type: Drive axle
Applicable Tire: 17.0×25/20.5×25
Application Scope: Off-road Crane, Port Autonomous Transfer Vehicle
Rated axle load: single-axle load: at 40kph, max load 16800; static max load 60000ton
Transmission Ratio: Wheel-side ratio: 3.6, main reduction ratio: 2.93-6.14
Max output torque: Parking brake torque: 4470 Nm; service brake torque: 22777 NmN·m
Remarks: Max steering angle 25°; construction truck front axle

Photos

Exterior1

Fuhua 16.8-ton Engineering Front Drive Axle Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is Fuhua 16.8-ton Engineering Front Drive Axle suited for?

Match Fuhua 16.8-ton Engineering Front Drive Axle to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Fuhua 16.8-ton Engineering Front Drive Axle differ from other variants in the same series?

Fuhua 16.8-ton Engineering Front Drive Axle belongs to Fuhua Axle Drive Axle (axle). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Fuhua 16.8-ton Engineering Front Drive Axle?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Fuhua 16.8-ton Engineering Front Drive Axle?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
