Feidi EW7 Air Brake 4.15m Single Row Electric Stake Light Truck CATL 164.86kWh 4X2(6 wheels)

Export reference
From $50,000
MSRP ¥36M CNY
Rated payload:: 1.1ton
Wheelbase:: 3360mm
Cargo box type:: Stake type
Model code (announced):: FD5045CCYW78BEV-1
Type:: stake truck
Box length class:: 4.2m
Drive 4X2 (6 wheels)
CLTC range: 330km
Motor 1 Brand: Feidi
Curb Weight: 3.2ton

Overview

The Feidi EW7 Air Brake 4.15m Single Row Electric Stake Light Truck CATL 164.86kWh 4X2(6 wheels) is a Light Truck featuring 330km battery/range, Feidi motor, 4X2 (6 wheels) drive and 1.1t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): FD5045CCYW78BEV-1
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.1m
CLTC range: 330km
Curb Weight: 3.2ton
Rated payload: 1.1ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Rizhao, Shandong
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Feidi
Motor 1 Model: TZ375XSSF-SZF614
Motor Type: Permanent magnet synchronous motor
total rated power: 105kW
Peak power: 185kW
Electronic Control
ECU Brand: Inovance
Battery/Charging
Charging method: Fast Charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
fast charge time: 0.5h
Battery capacity: 164.86kWh
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.15m
Cargo box width: 2.1m
Cab parameters
Cab width: 2120mm
seating capacity: 3Personnel
Seat rows: Single Row

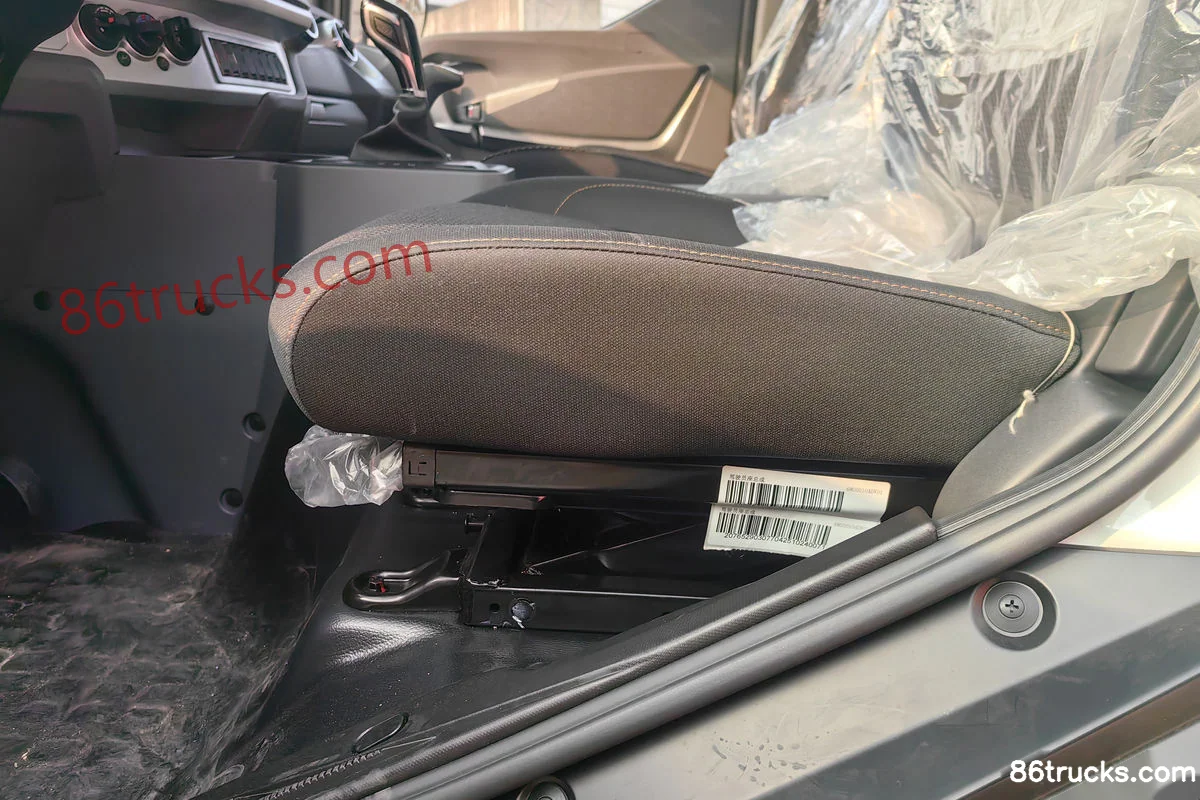

Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 1950kg
rear axle description: 1093A rear axle
rear axle allowable load: 2545kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
Steering Wheel Material: ABS plastic
steering wheel adjustment:
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:

Photos

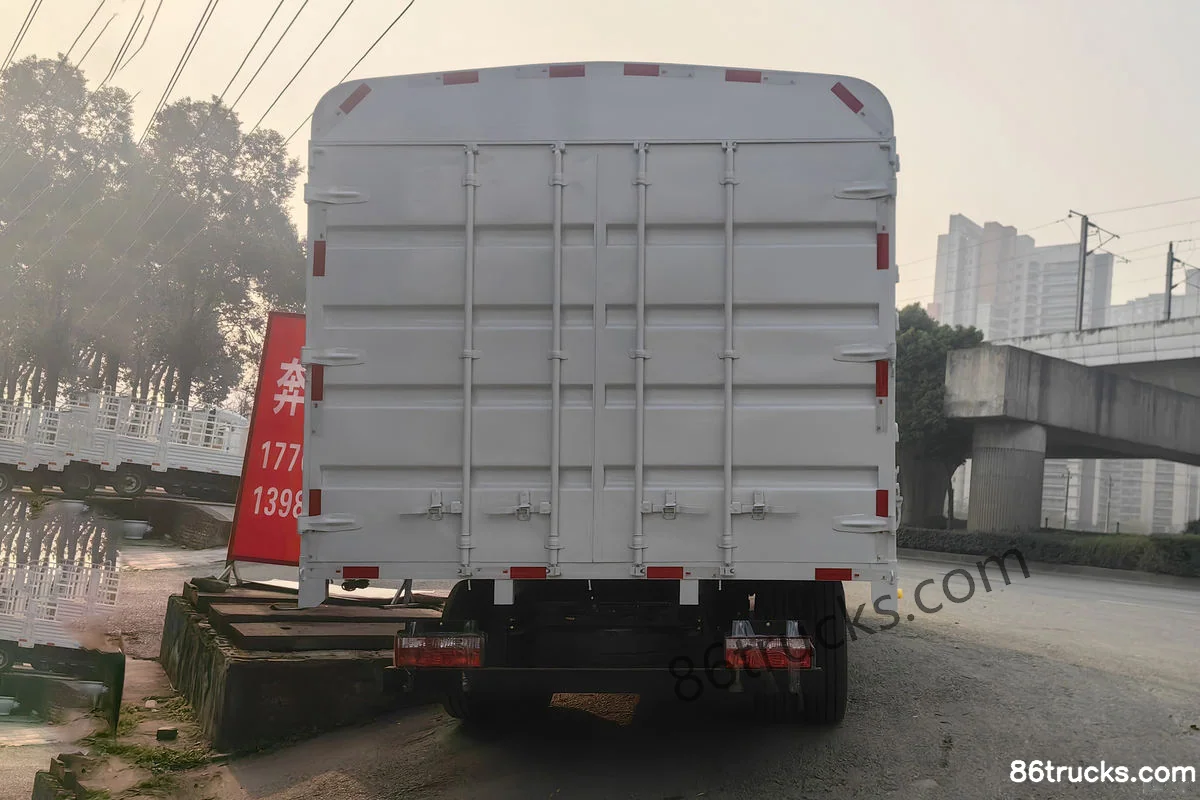

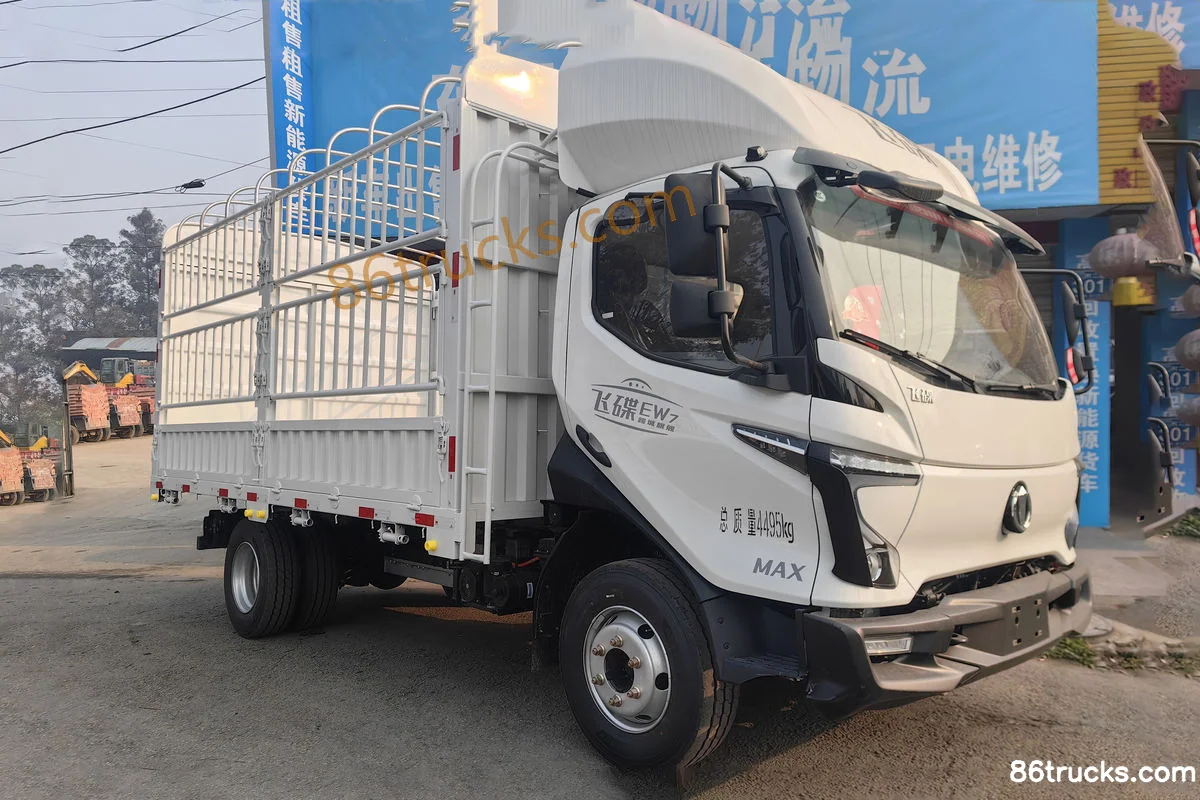

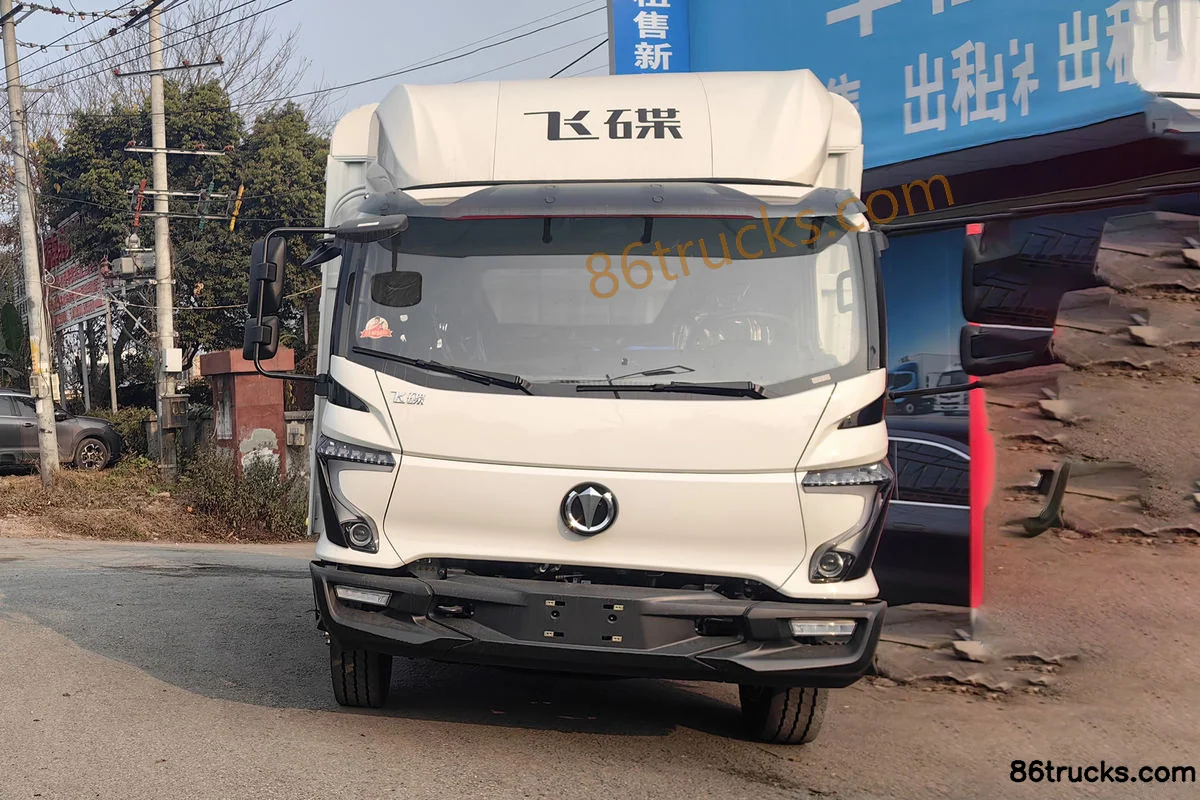

Exterior3

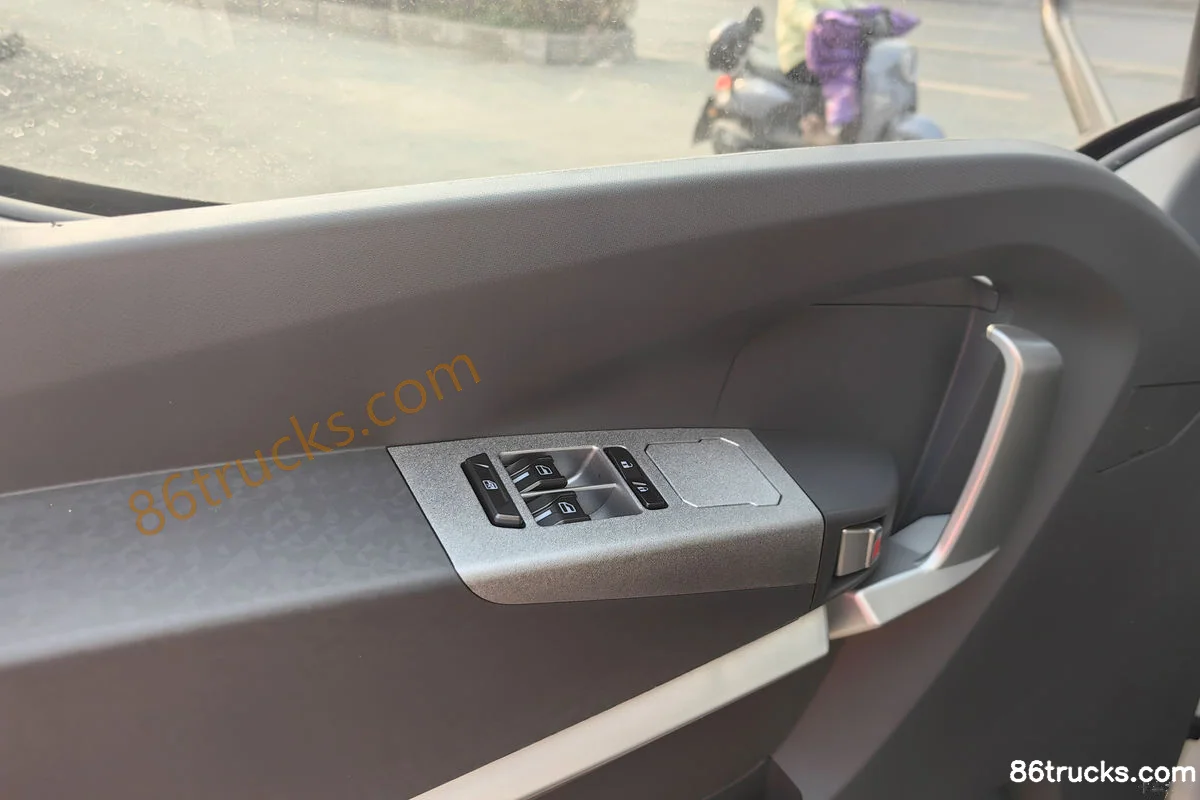

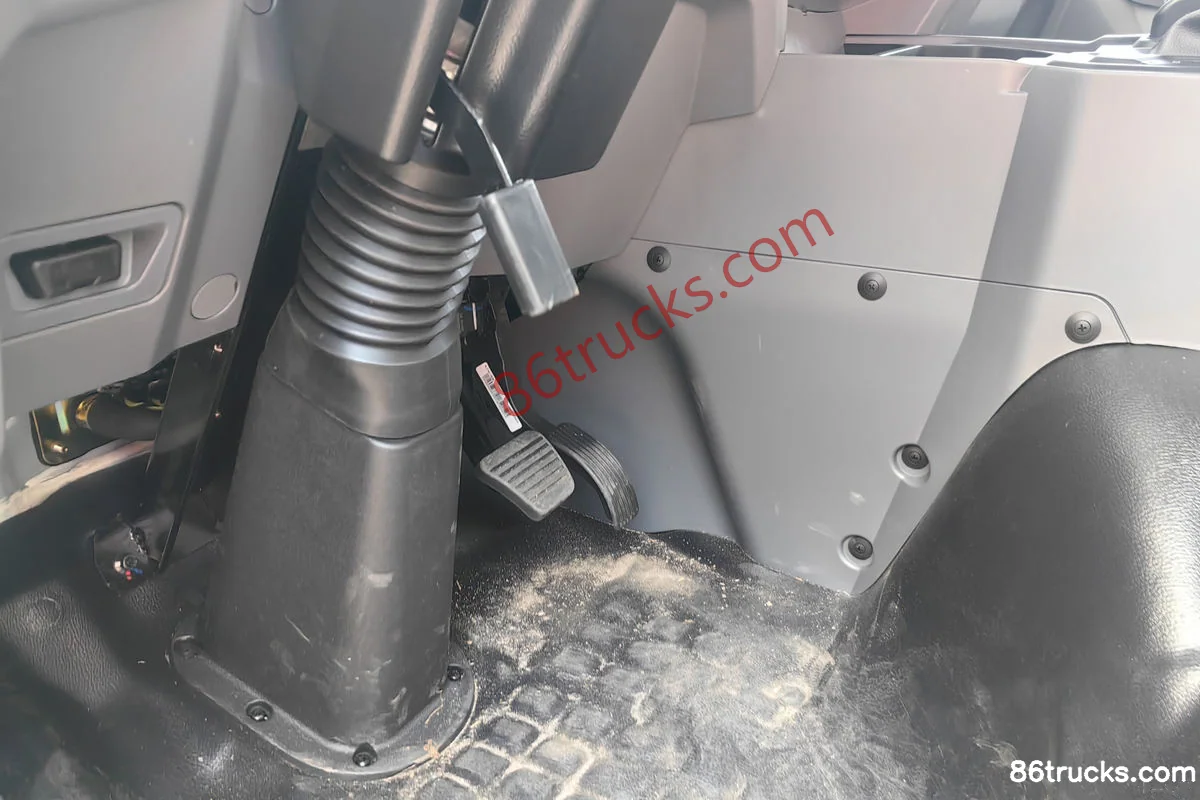

Cab3

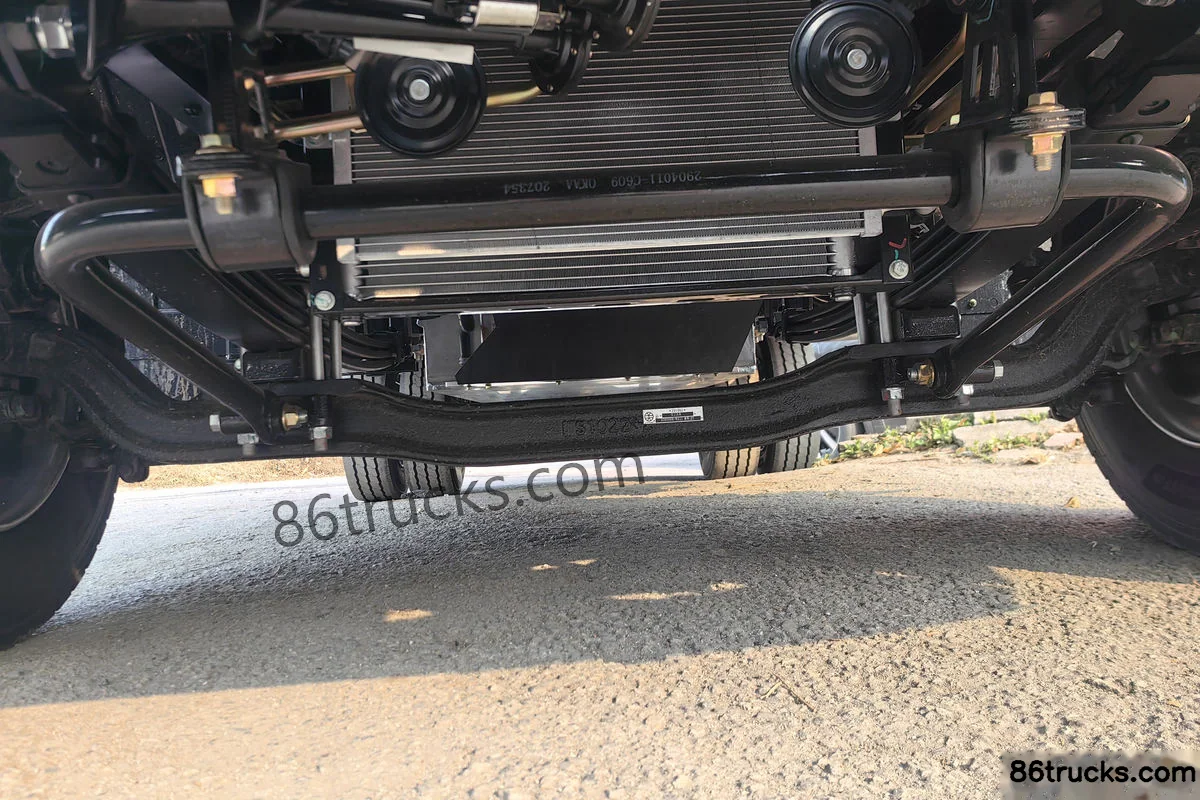

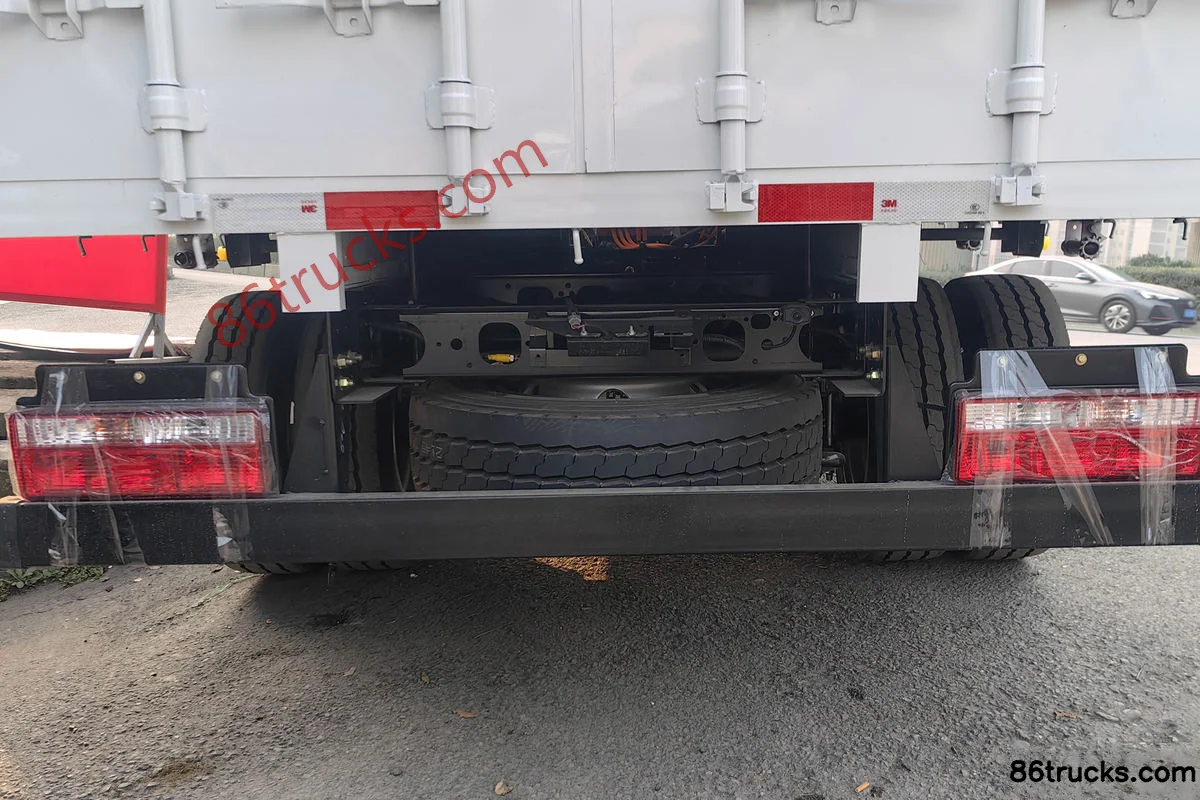

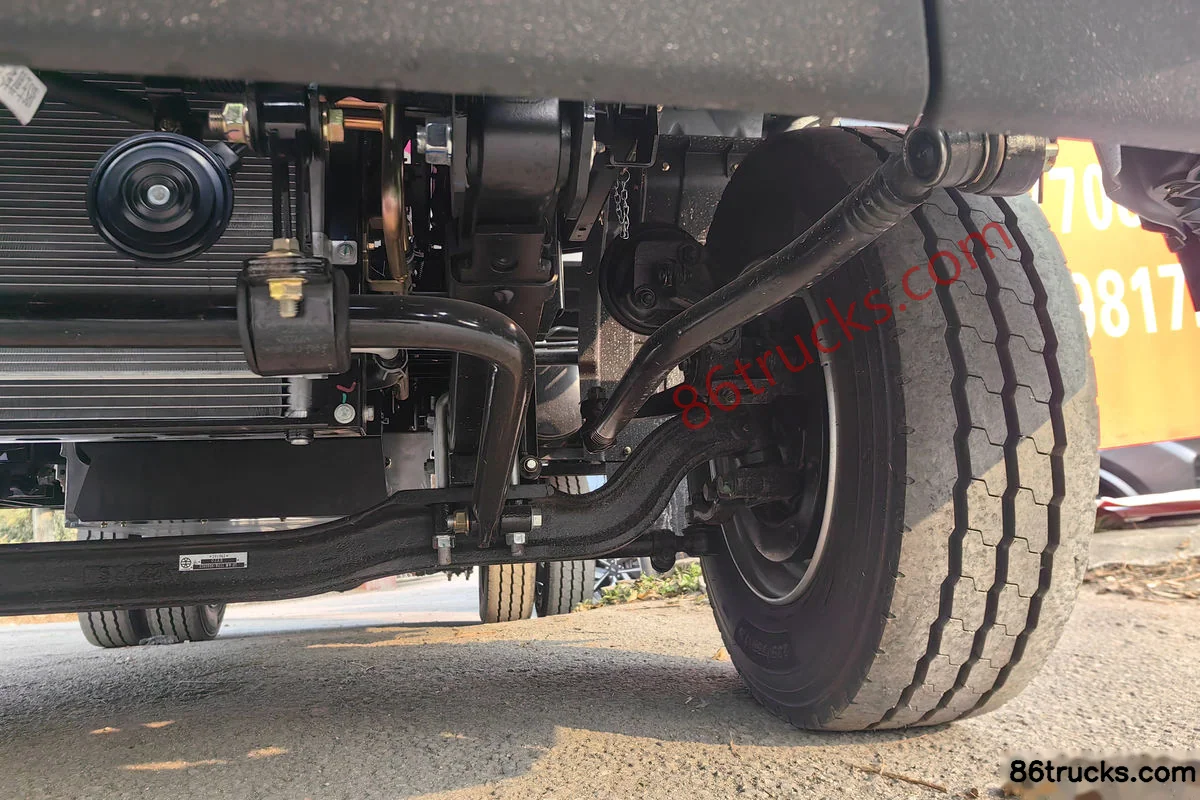

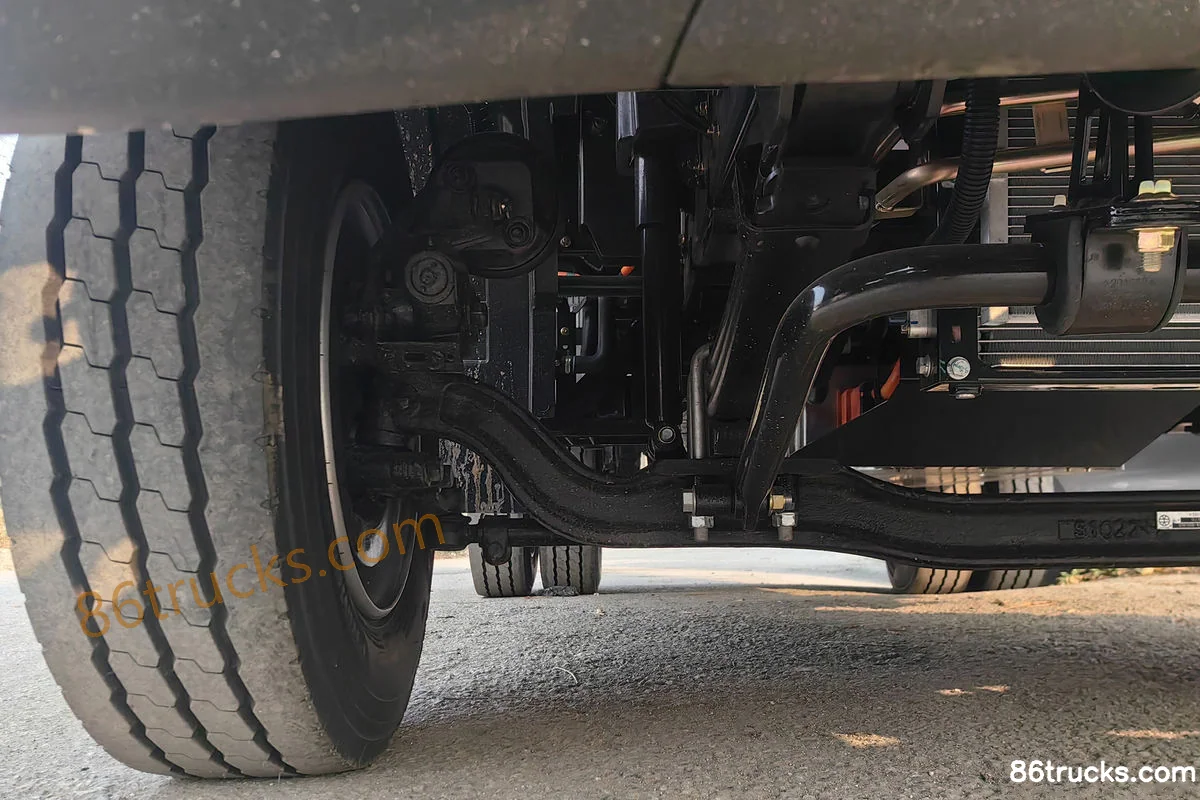

Chassis3

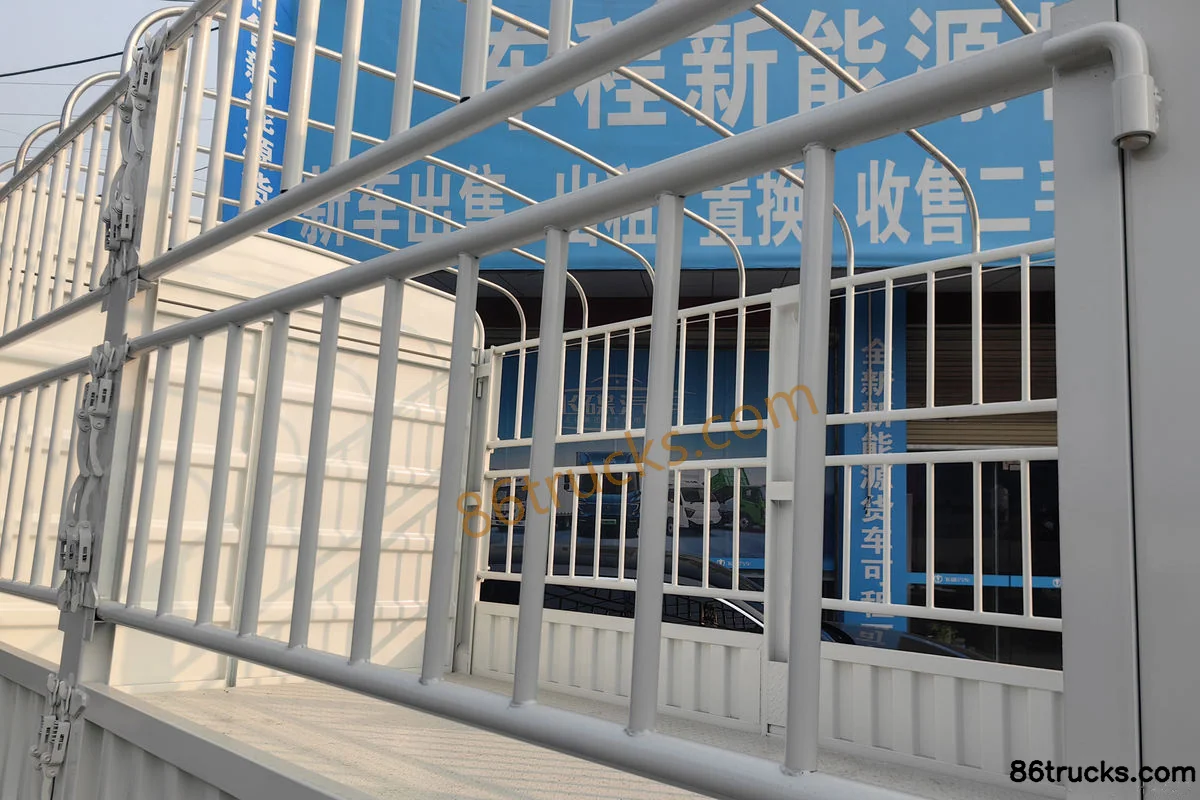

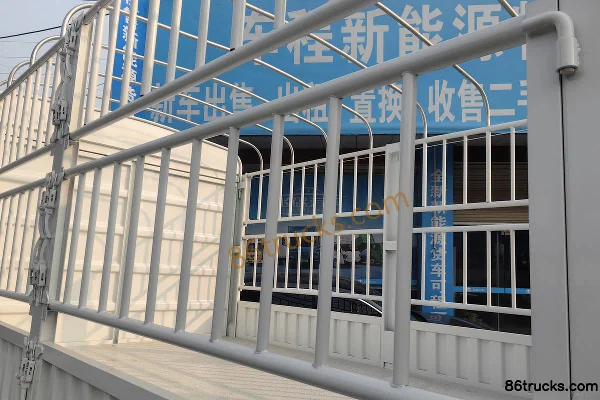

Body3

12 photos

FAQ

What is the export price of Feidi EW7 Air Brake 4.15m Single Row Electric Stake Light Truck CATL 164.86kWh 4X2(6 wheels), and what does it include?

Feidi EW7 Air Brake 4.15m Single Row Electric Stake Light Truck CATL 164.86kWh 4X2(6 wheels) export reference is about From $50,000; MSRP is ¥36M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Feidi EW7 Air Brake 4.15m Single Row Electric Stake Light Truck CATL 164.86kWh 4X2(6 wheels)?

Key specs of Feidi EW7 Air Brake 4.15m Single Row Electric Stake Light Truck CATL 164.86kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi EW7 Air Brake 4.15m Single Row Electric Stake Light Truck CATL 164.86kWh 4X2(6 wheels) suited for?

Feidi EW7 Air Brake 4.15m Single Row Electric Stake Light Truck CATL 164.86kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Feidi EW7 Air Brake 4.15m Single Row Electric Stake Light Truck CATL 164.86kWh 4X2(6 wheels) differ from other variants in the same series?

Feidi EW7 Air Brake 4.15m Single Row Electric Stake Light Truck CATL 164.86kWh 4X2(6 wheels) belongs to FeidiEW7 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi EW7 Air Brake 4.15m Single Row Electric Stake Light Truck CATL 164.86kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi EW7 Air Brake 4.15m Single Row Electric Stake Light Truck CATL 164.86kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
