Dachi DC6J65T (7.67 ratio) 6-speed manual transmission

Export reference
MSRP N/A
Features:: 1. Independently developed and designed. 2. Can be equipped with overdrive, for more load and faster running, fuel-saving. 3. Gears 2-6 have synchronizers, light operation, easy gear selection and shifting. 4. Can be fitted with PTO
Max input torque:: 588N·m
1st gear ratio:: 7.67

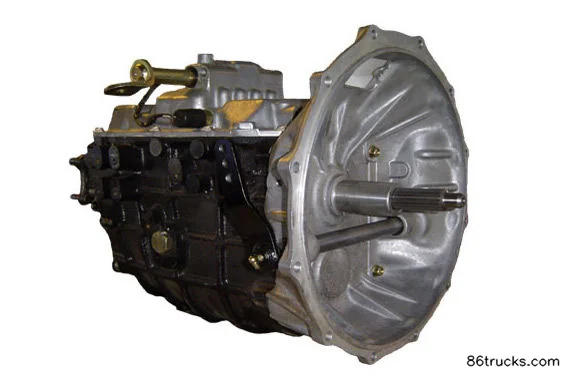

Dachi DC6J65T (7.67 ratio) 6-speed manual transmission exterior
View more photos (1)
Transmission Model: DC6J65TH
Transmission Brand: Dachi
Matching Range: 140-180 hp on-road and construction trucks

Overview

The Dachi DC6J65T (7.67 ratio) 6-speed manual transmission is a parts product with spec DC6J65TH.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: Dachi
Transmission series: DC6J series
Matching Range: 140-180 hp on-road and construction trucks
Features: 1. Independently developed and designed. 2. Can be equipped with overdrive, for more load and faster running, fuel-saving. 3. Gears 2-6 have synchronizers, light operation, easy gear selection and shifting. 4. Can be fitted with PTO
Max input torque: 588N·m
1st gear ratio: 7.67
2nd gear ratio: 4.602
synchronizer: Yes
Main box center distance: 130mm
3rd gear ratio: 2.63
4th gear ratio: 1.647
5th gear ratio: 1.278
Auxiliary box center distance: 145mm
6th gear ratio:
Reverse Gear 1 Ratio: 6.989
Transmission weight: 170kg
Transmission oil capacity: 7.5L
Reverse Gear 2 Ratio: 1.582
Control type: dual-lever, single-lever, direct control and other control methods
Number of gears: 6Gear
shift type: Manual
Transmission Model: DC6J65TH
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:

Photos

Exterior1

Dachi DC6J65T (7.67 ratio) 6-speed manual transmission Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is Dachi DC6J65T (7.67 ratio) 6-speed manual transmission suited for?

Match Dachi DC6J65T (7.67 ratio) 6-speed manual transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Dachi DC6J65T (7.67 ratio) 6-speed manual transmission differ from other variants in the same series?

Dachi DC6J65T (7.67 ratio) 6-speed manual transmission belongs to Dachi DC6J Series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dachi DC6J65T (7.67 ratio) 6-speed manual transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dachi DC6J65T (7.67 ratio) 6-speed manual transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
