Fast Gear ESO-6106 6-speed Transmission

Export reference
MSRP N/A
Features:: Leak-proof housing, high-load tapered roller bearings; die-cast aluminum alloy housing, aluminum alloy shift fork; multi-track control system, low-gear shift design for easy shifting; integrated SAE2/SAE3 clutch housing, left/right PTO interface
Max input torque:: 600N·m
1st gear ratio:: 6.2

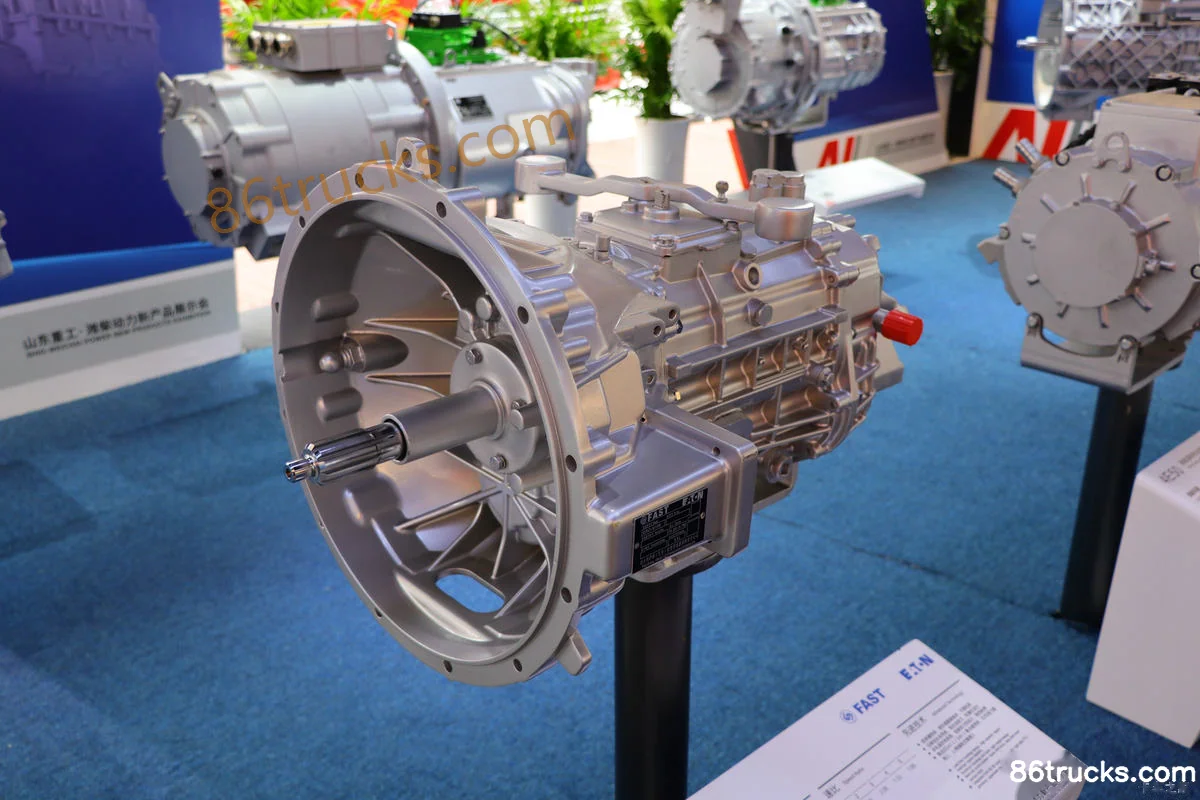

Fast Gear ESO-6106 6-speed Transmission exterior
View more photos (3)
Transmission Model: ESO-6106
Transmission Brand: Fast Gear
Matching Range: high-end light truck, bus

Overview

The Fast Gear ESO-6106 6-speed Transmission is a parts product with spec ESO-6106.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: Fast Gear
Transmission series: ESO-6-speed series
Matching Range: high-end light truck, bus
Features: Leak-proof housing, high-load tapered roller bearings; die-cast aluminum alloy housing, aluminum alloy shift fork; multi-track control system, low-gear shift design for easy shifting; integrated SAE2/SAE3 clutch housing, left/right PTO interface
Max input torque: 600N·m
1st gear ratio: 6.2
2nd gear ratio: 3.39
3rd gear ratio: 2.08
4th gear ratio: 1.33
5th gear ratio:
6th gear ratio: 0.78
Reverse Gear 1 Ratio: 6.69
Transmission weight: 98.5kg
Transmission oil capacity: 5.3L
Number of gears: 6Gear
Transmission Model: ESO-6106
Forward gears: 6Gear
Number of Reverse Gears:

Photos

Exterior3

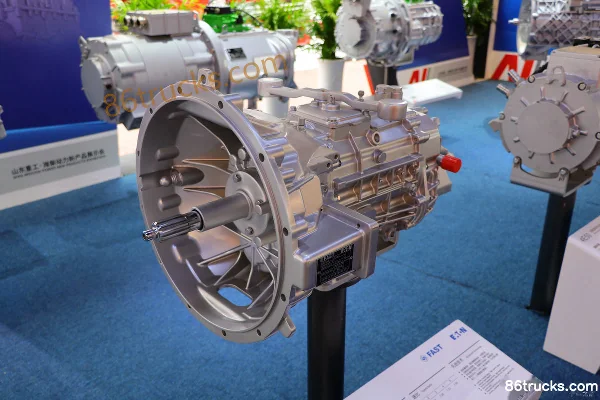

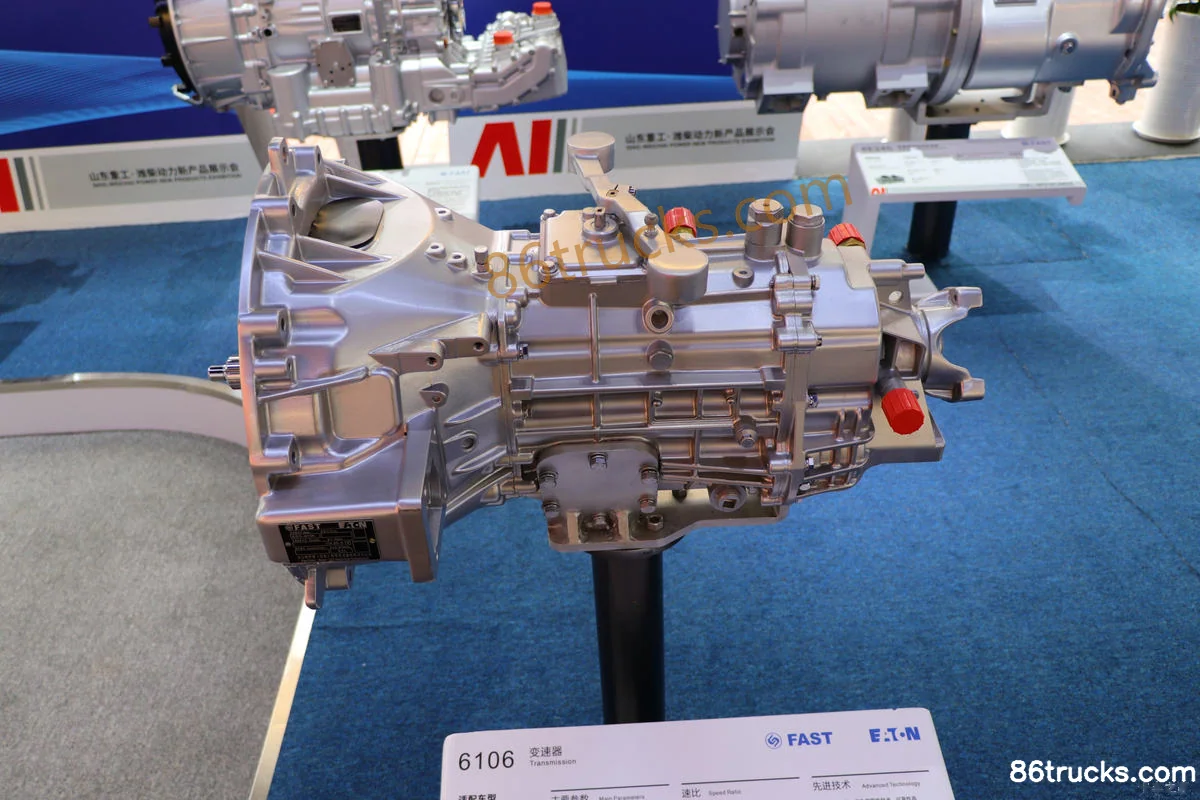

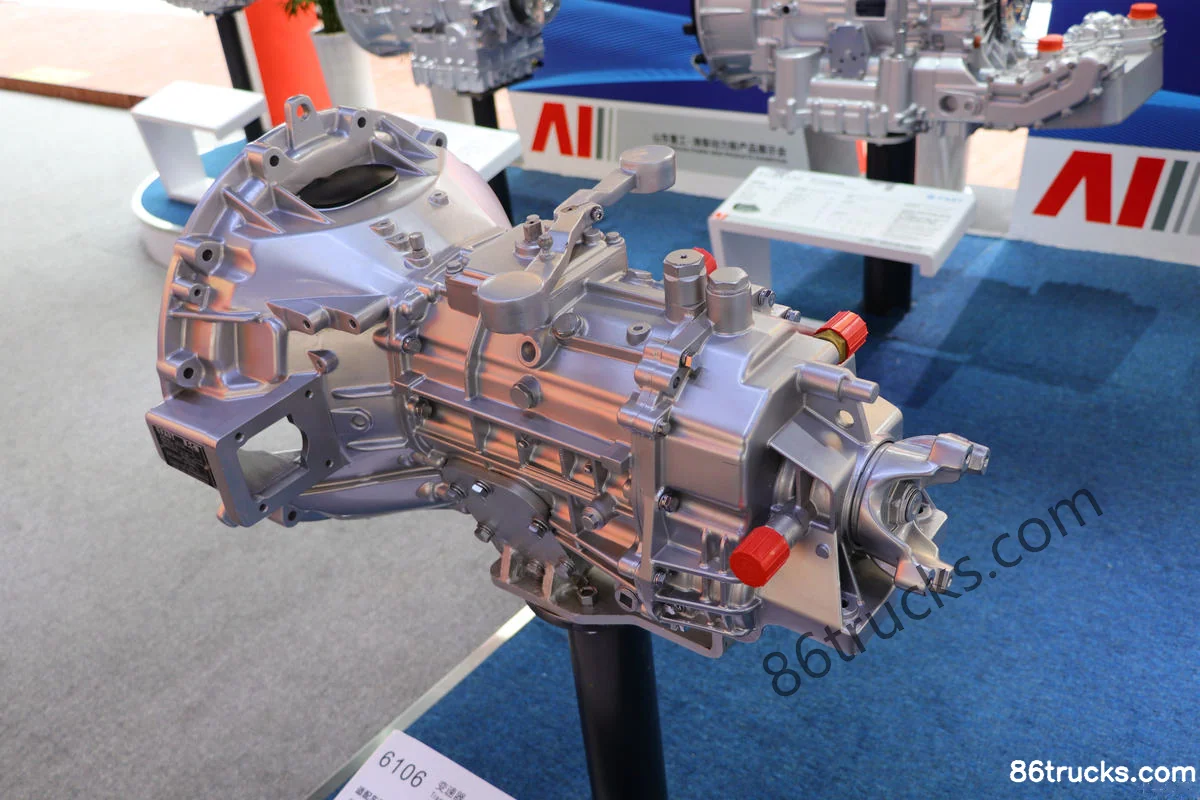

Fast Gear ESO-6106 6-speed Transmission Exterior (1) | 86Trucks Fast Gear ESO-6106 6-speed Transmission Exterior (2) | 86Trucks Fast Gear ESO-6106 6-speed Transmission Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Fast Gear ESO-6106 6-speed Transmission suited for?

Match Fast Gear ESO-6106 6-speed Transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Fast Gear ESO-6106 6-speed Transmission differ from other variants in the same series?

Fast Gear ESO-6106 6-speed Transmission belongs to Fast Gear ESO-6-Speed Series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Fast Gear ESO-6106 6-speed Transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Fast Gear ESO-6106 6-speed Transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
