Shijun Geaolei 340 hp 6X4(10 wheels) Concrete Mixer Truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 13.005ton
Wheelbase:: 3800+1350mm
Tire Size:: 11.00R20
Cab dimensions:: 9.11×2.5×3.8m
Truck Type:: concrete mixer truck
Rated payload: 11.8ton
Drive 6X4 (10 wheels)
Horsepower 340
Emission China III / Euro III

Overview

The Shijun Geaolei 340 hp 6X4(10 wheels) Concrete Mixer Truck is a concrete mixer truck featuring 11.8t payload, 13.005ton GVW, 6X4 (10 wheels) drive and 9.11×2.5×3.8m cab. On the powertrain side, it comes with 340 hp, China III / Euro III emissions and Diesel fuel.

China III / Euro III 340 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.11×2.5×3.8m
Drive type: 6X4
Truck Type: concrete mixer truck
Wheelbase: 3800+1350mm
Vehicle origin: Yunnan
Front/rear track width: Front track: 2030 Rear track 1860mm; Rear track: 1860mm
Curb Weight: 13.005ton
Rated payload: 11.8ton
Max. speed: 80km/h
Front/rear suspension: 1.6/2.36m
Body Parameters
Mixing drum capacity: 5.5m³
Vehicle certification code: LFJ5256GJB
Body Brand: Shijun
Engine parameters
Engine Model: Weichai WP10.340E32
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 250kW
Max hp: 340Horsepower
Rated speed: 2200rpm
Engine Type: Water-cooled, 4-stroke, with exhaust brake, direct injection, turbocharged intercooled
Chassis Specs
Chassis Model: LFJ3256G3
rear axle description: 11T (tandem axle)
Leaf spring count: 9/12
Transmission Parameters
Number of gears: 12Gear
Transmission Model: Fast Gear12JS160
Tire
Tire Size: 11.00R20
Number of tires: 10pcs

Photos

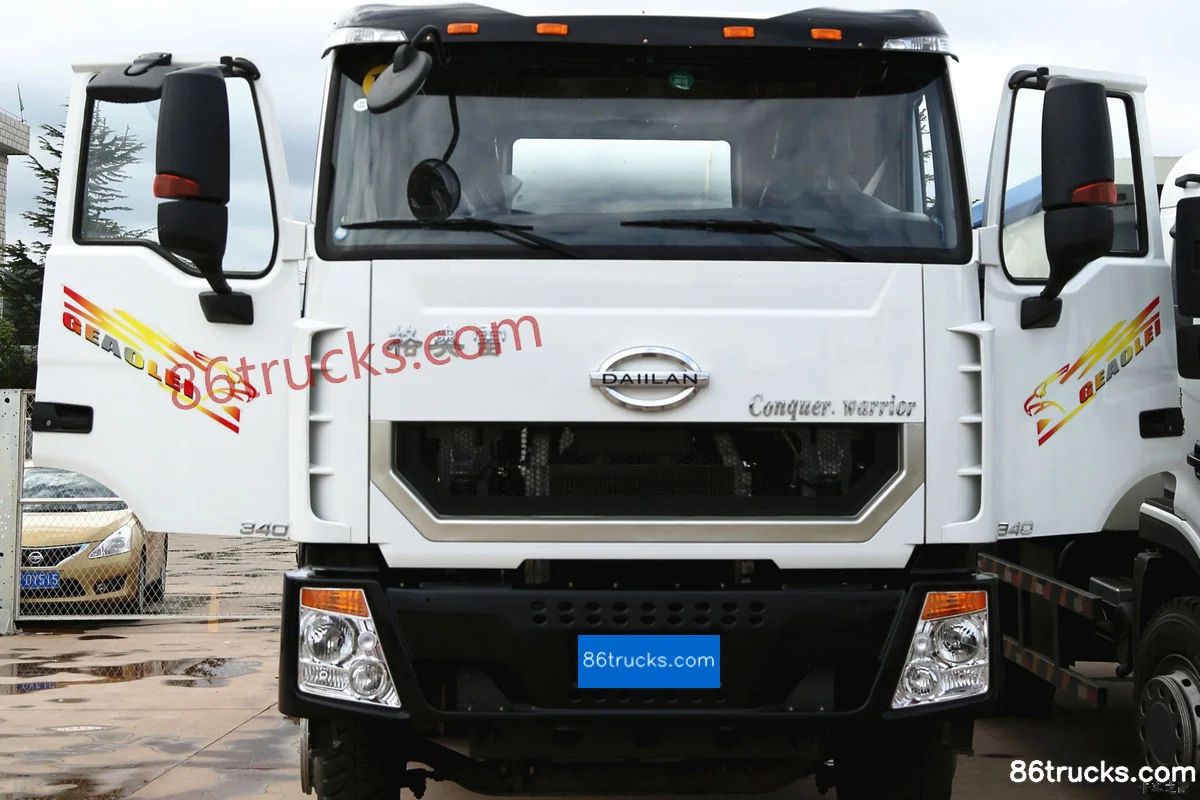

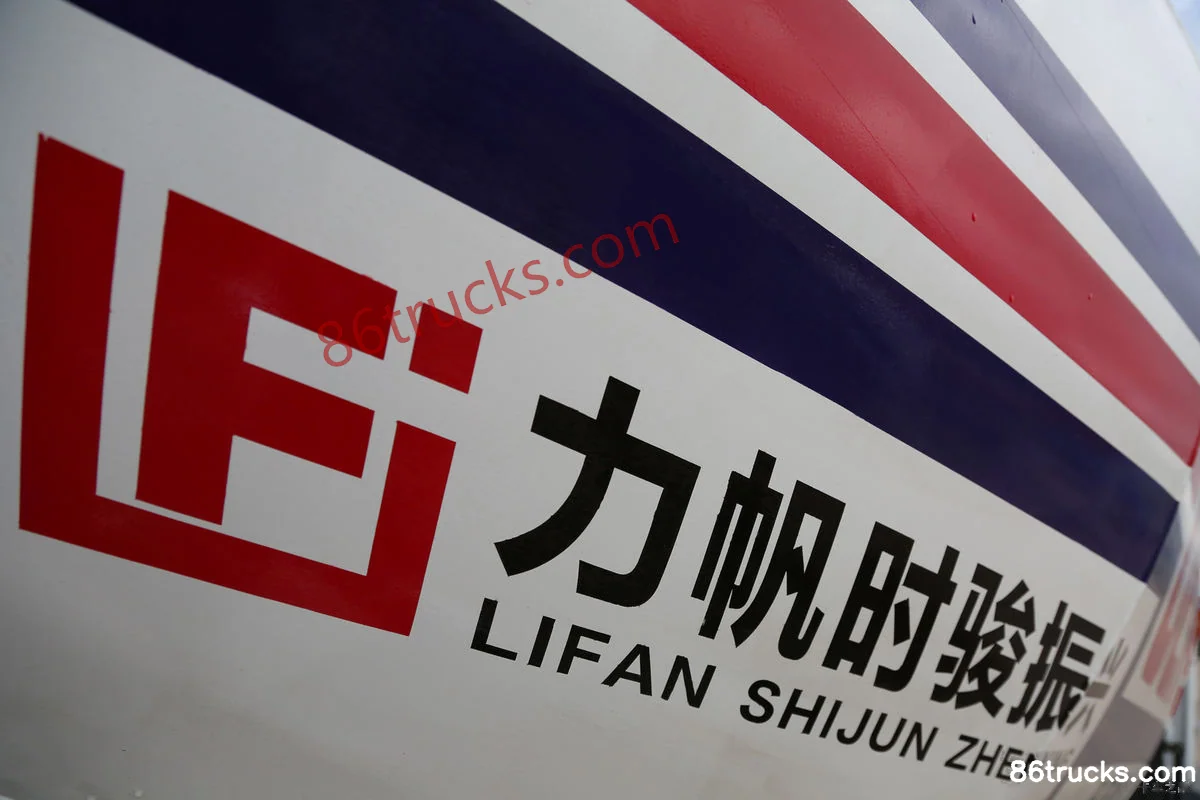

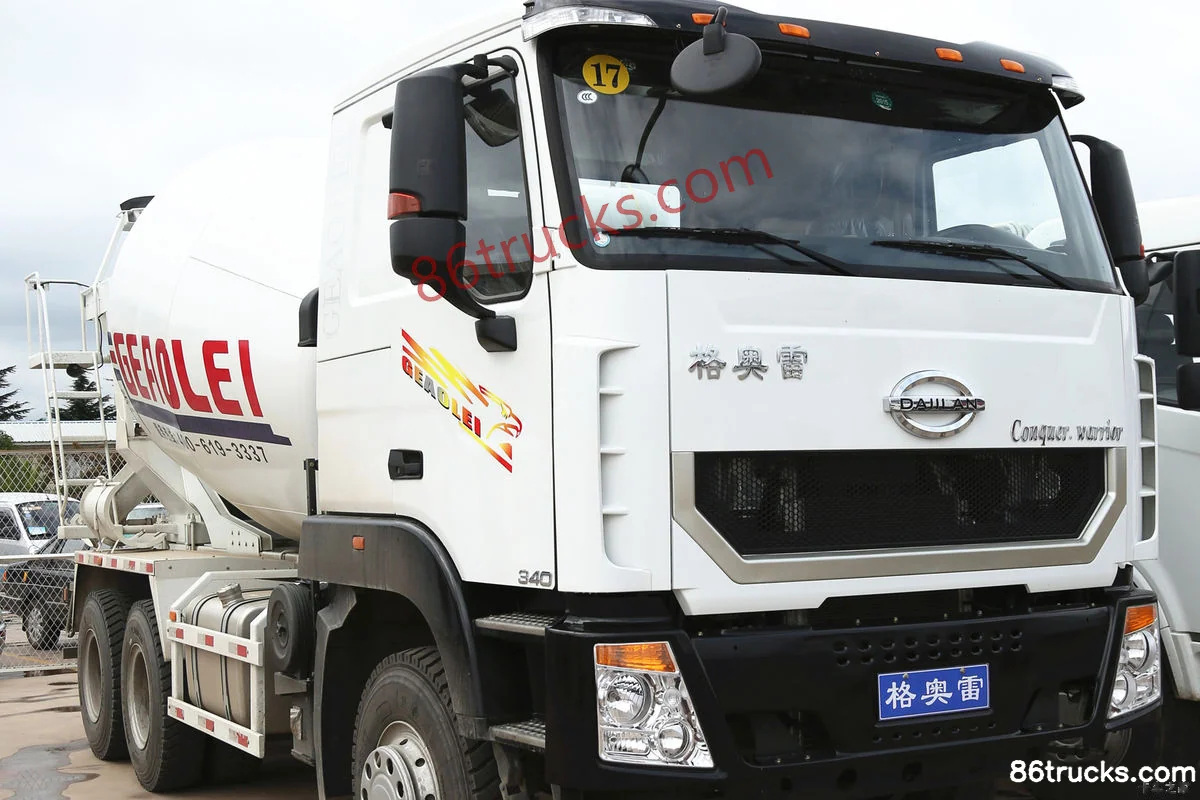

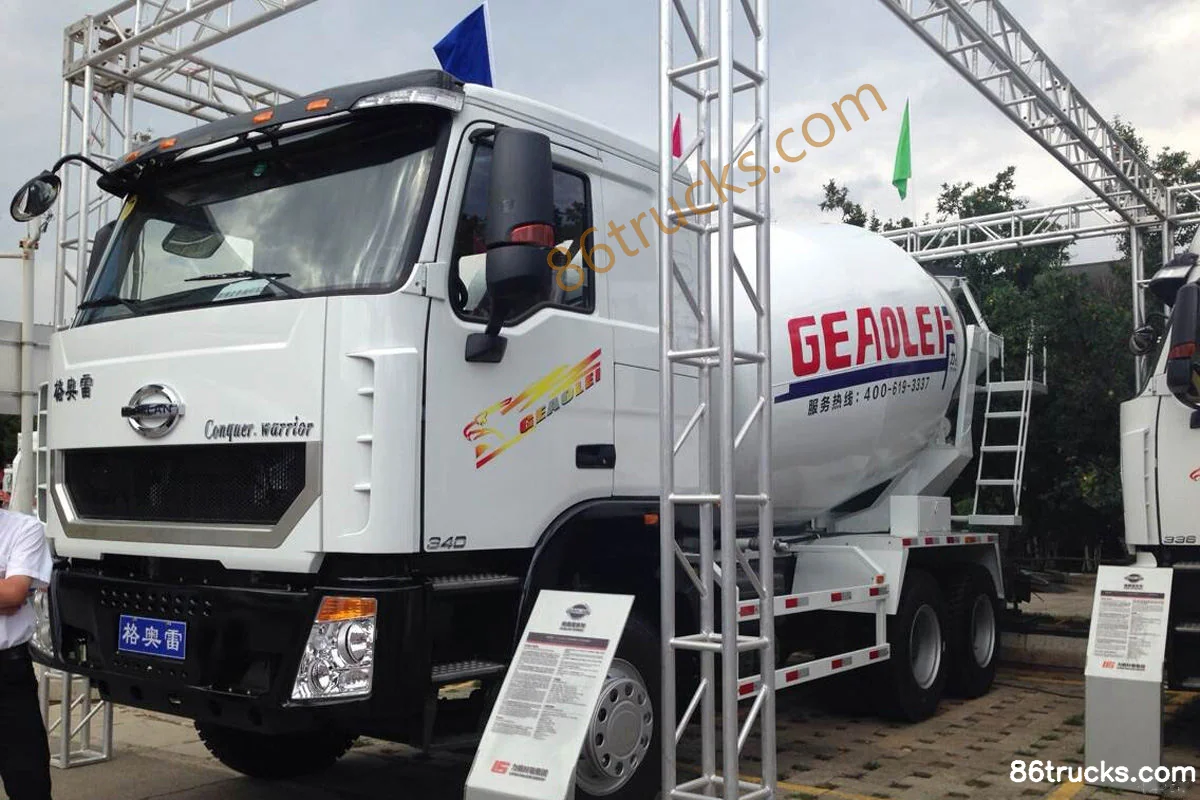

Exterior3

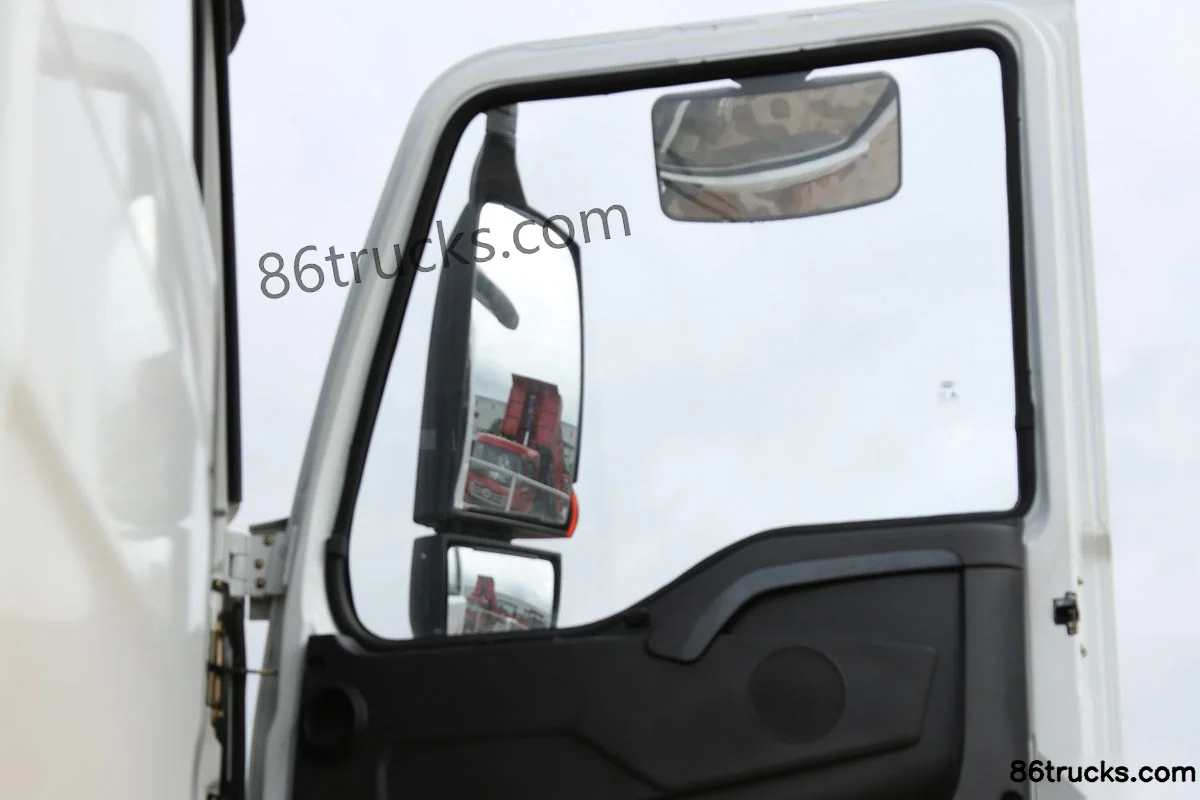

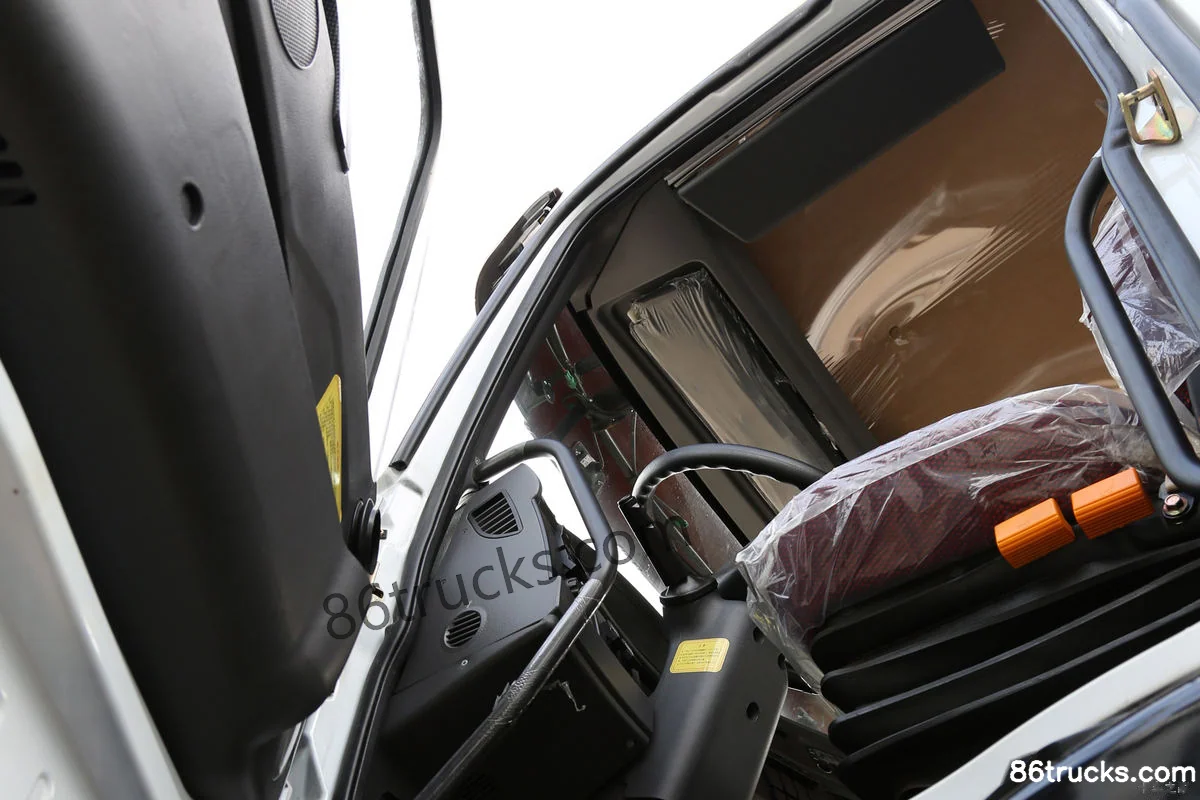

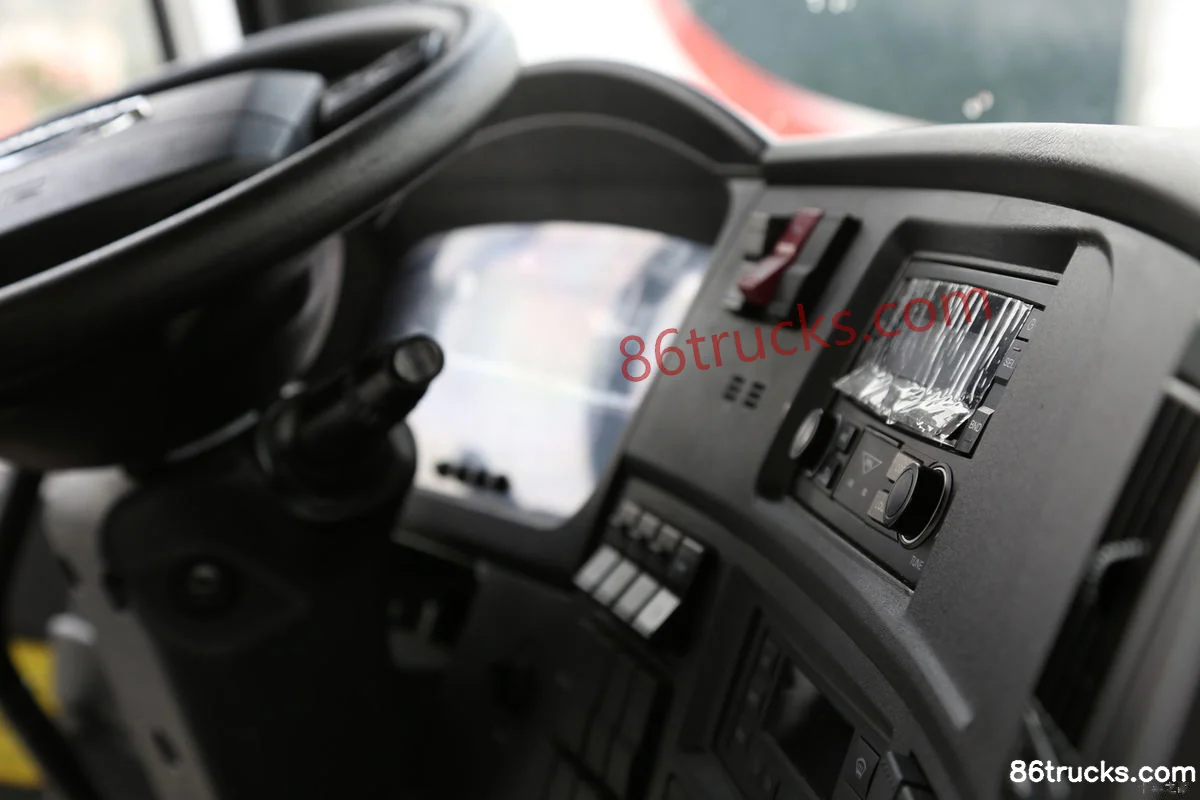

Cab3

Chassis1

7 photos

FAQ

What emission standard does Shijun Geaolei 340 hp 6X4(10 wheels) Concrete Mixer Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Shijun Geaolei 340 hp 6X4(10 wheels) Concrete Mixer Truck?

Key specs of Shijun Geaolei 340 hp 6X4(10 wheels) Concrete Mixer Truck: Drive: 6x4; Horsepower: 340 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Shijun Geaolei 340 hp 6X4(10 wheels) Concrete Mixer Truck suited for?

Shijun Geaolei 340 hp 6X4(10 wheels) Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Shijun Geaolei 340 hp 6X4(10 wheels) Concrete Mixer Truck differ from other variants in the same series?

Shijun Geaolei 340 hp 6X4(10 wheels) Concrete Mixer Truck belongs to Shijun Ge'aolei Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Shijun Geaolei 340 hp 6X4(10 wheels) Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Shijun Geaolei 340 hp 6X4(10 wheels) Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
