Dongfeng DF0402D-285 4.0-ton Drive Rear Axle

Export reference
MSRP N/A
Applicable Tire:: 7.50R15
Front/rear track width:: 1458-1603mm
Transmission Ratio:: 3.07,4.11,4.88,5.29,5.71,6.14
Axle Model: DF0402D-285
Brake size: Hydraulic brake Φ310×90 / hydraulic brake Φ300×75
Axle Type: Drive axle

Overview

The Dongfeng DF0402D-285 4.0-ton Drive Rear Axle is a parts product with spec DF0402D-285 and Hydraulic brake Φ310×90 / hydraulic brake Φ300×75 size.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Axle Model: DF0402D-285
Axle Type: Drive axle
Applicable Tire: 7.50R15
Front/rear track width: 1458-1603mm
Rated axle load: 4000ton
Transmission Ratio: 3.07,4.11,4.88,5.29,5.71,6.14
Brake: Hydraulic brake / air brake
Brake size: Hydraulic brake Φ310×90 / hydraulic brake Φ300×75
curb weight: 233kg
Max output torque: 9000N·m
Rim Used: 5.5F-15inch
Wheel Bolts: Φ203.2-5×M18mm
Remarks: Single drive axle, stamped/welded axle housing

Photos

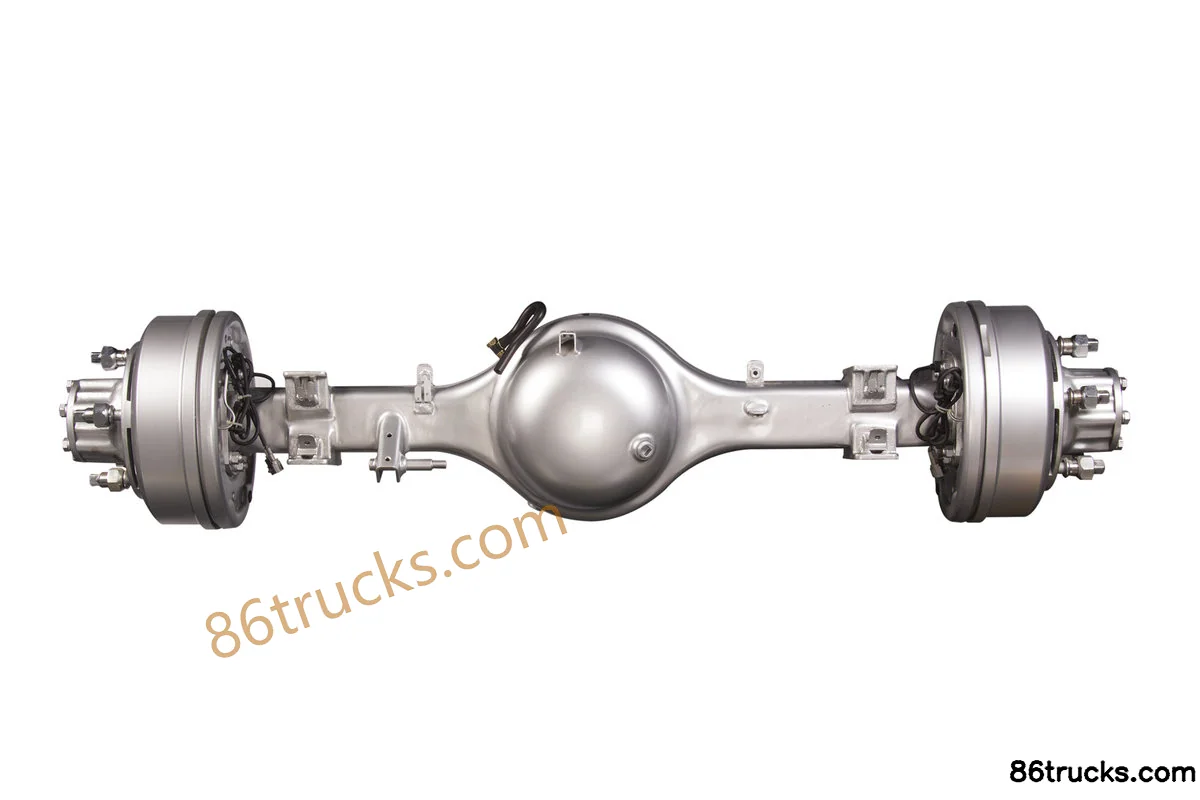

Exterior1

1 photos

FAQ

What transport jobs is Dongfeng DF0402D-285 4.0-ton Drive Rear Axle suited for?

Match Dongfeng DF0402D-285 4.0-ton Drive Rear Axle to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Dongfeng DF0402D-285 4.0-ton Drive Rear Axle differ from other variants in the same series?

Dongfeng DF0402D-285 4.0-ton Drive Rear Axle belongs to Dongfeng drive axle (axle). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng DF0402D-285 4.0-ton Drive Rear Axle?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng DF0402D-285 4.0-ton Drive Rear Axle?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
