Dongfeng T1 110 hp 4X2(6 wheels) 3.5m Dump Truck

Export reference
From $11,889
MSRP ¥8.56M CNY
Emission: China V
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.5ton
Wheelbase:: 2800mm
Tire Size:: 7.00R16LT 8PR,7.50R16LT 6PR
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 110
Cargo box type: Rear-dump body

Overview

The Dongfeng T1 110 hp 4X2(6 wheels) 3.5m Dump Truck is a Light Truck featuring 1.495t payload, 4.125t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCD4N4S-110 engine, 110 hp, China V emissions and WLY transmission.

China V 110 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ3040GLV
Drive type: 4X2
Wheelbase: 2800mm
engine: YuchaiYCD4N4S-110
transmission: WLYWLY10H35
Rear Axle Ratio: 5.14
Cab length: 5.285m
Cab width: 2.2m
Cab height: 2.36m
Front track width: 1520mm
rear track: 1510mm
Curb Weight: 2.5ton
Rated payload: 1.495ton
GVWR: 4.125ton
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 20°
departure angle: 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCD4N4S-110
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.799L
Emission standard: China V
Max output power: 80kW
Max hp: 110Horsepower
Max torque: 310N·m
Max torque speed: 1600-2240rpm
Rated speed: 3200rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: WLYWLY10H35
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 3.5m
Cargo box width: 1.9m
Cargo box height: 0.6m
Cab parameters
Cab: T1 single row 2020 new model
Chassis Specs
Front axle description: 1.8T
Front axle allowable load: 1700kg
Frame Dimensions: 200(5)mm
rear axle description: 3.5T rear axle
rear axle allowable load: 2425kg
Axle ratio: 5.14
Leaf spring count: 2/3+2,6/6+5,8/10+7
Tire
Tire Size: 7.00R16LT 8PR,7.50R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

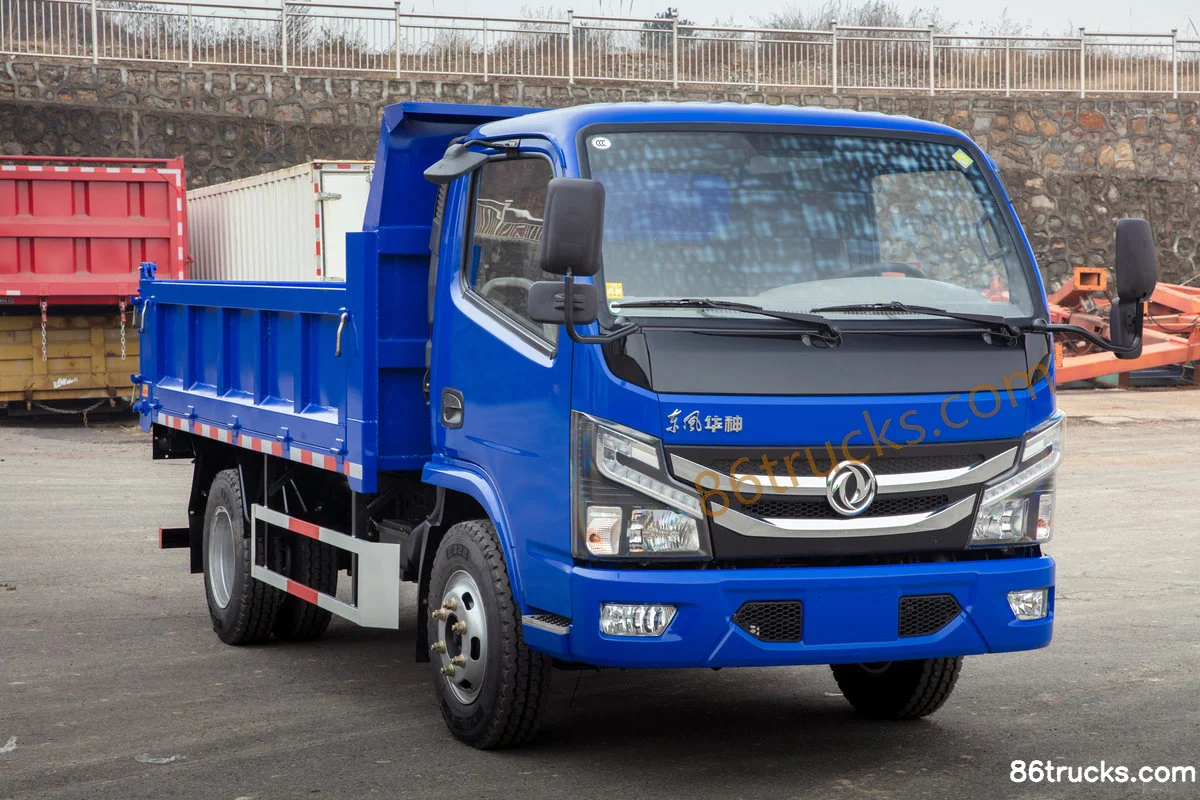

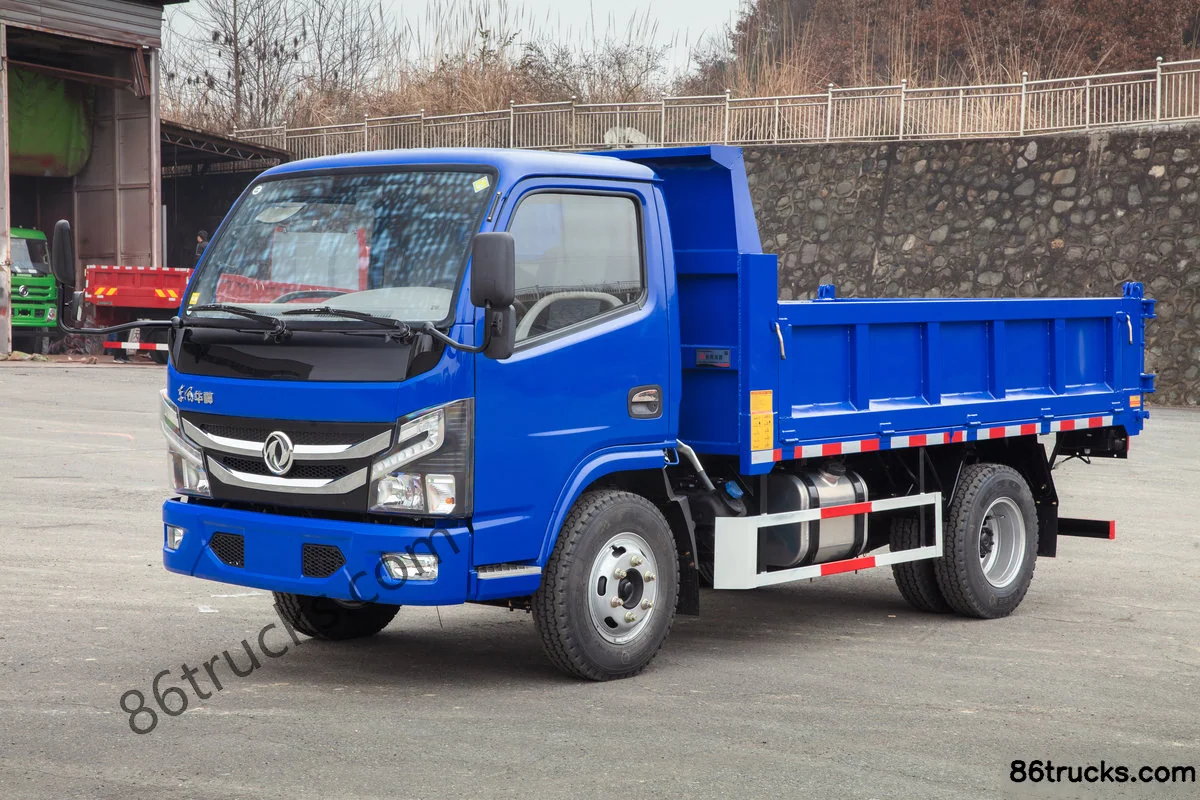

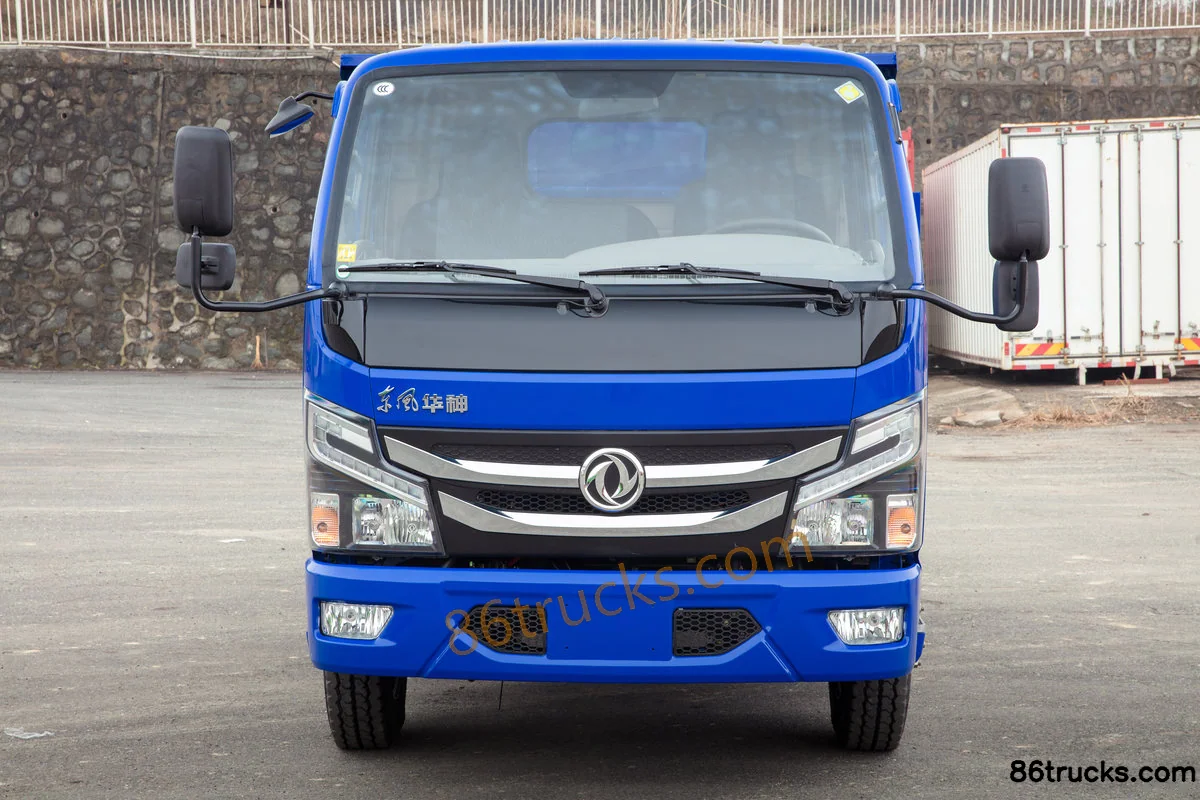

Exterior3

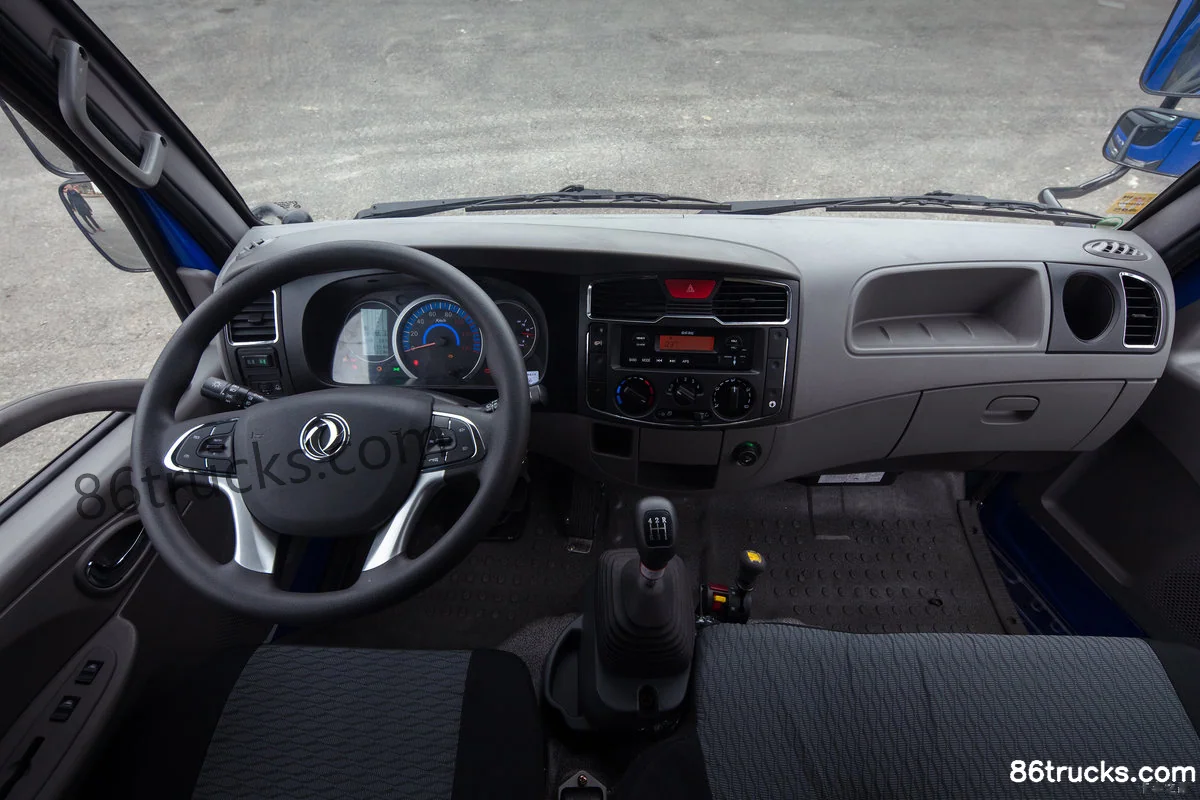

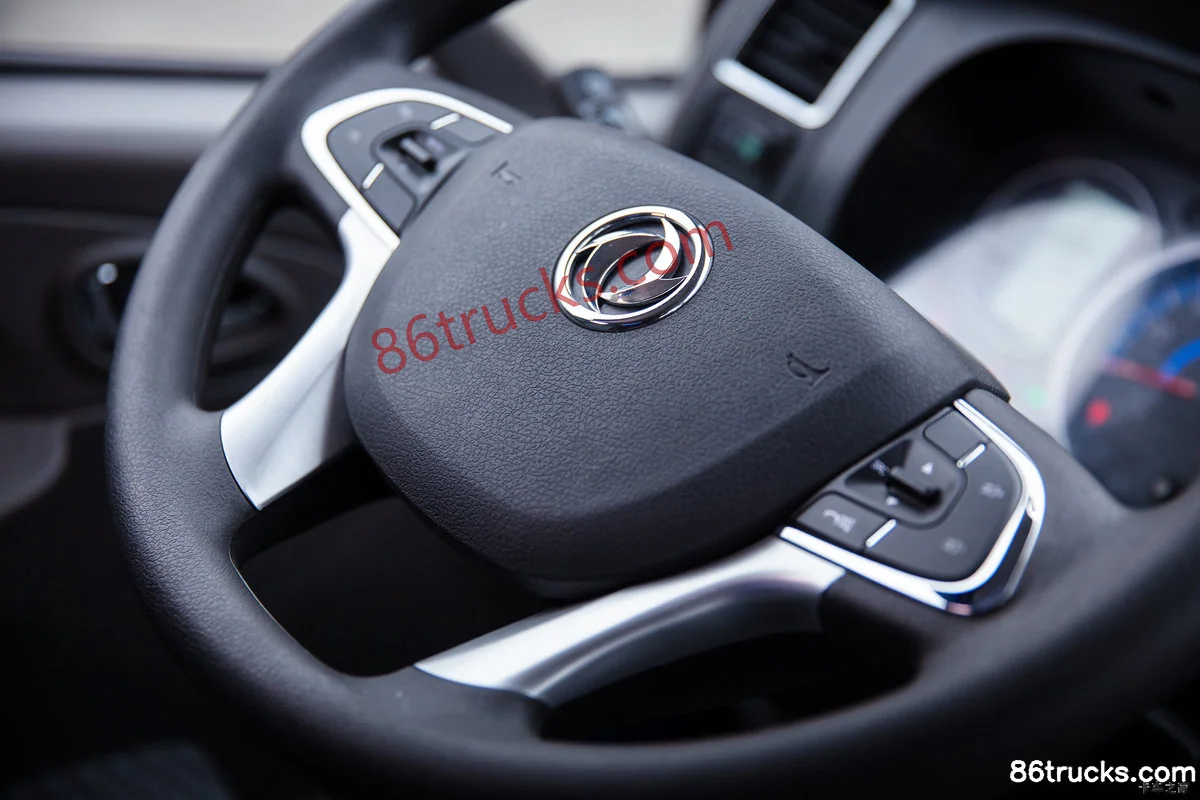

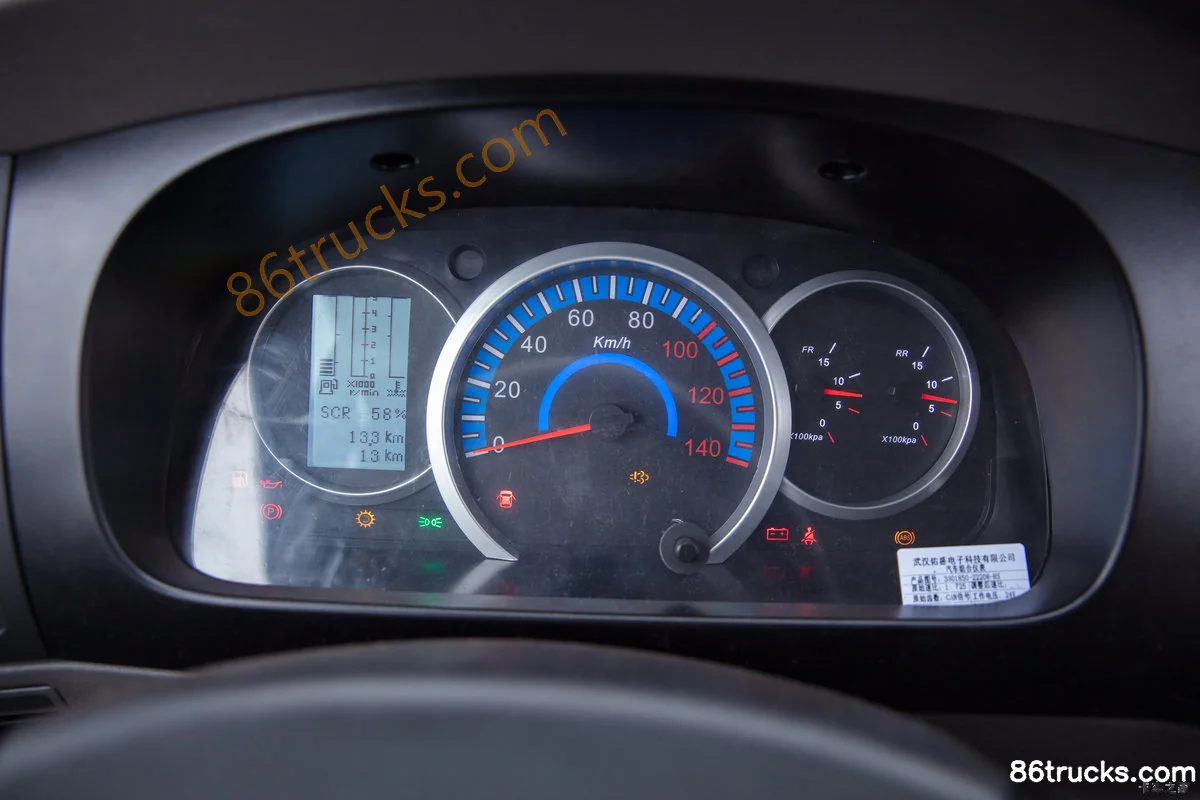

Cab3

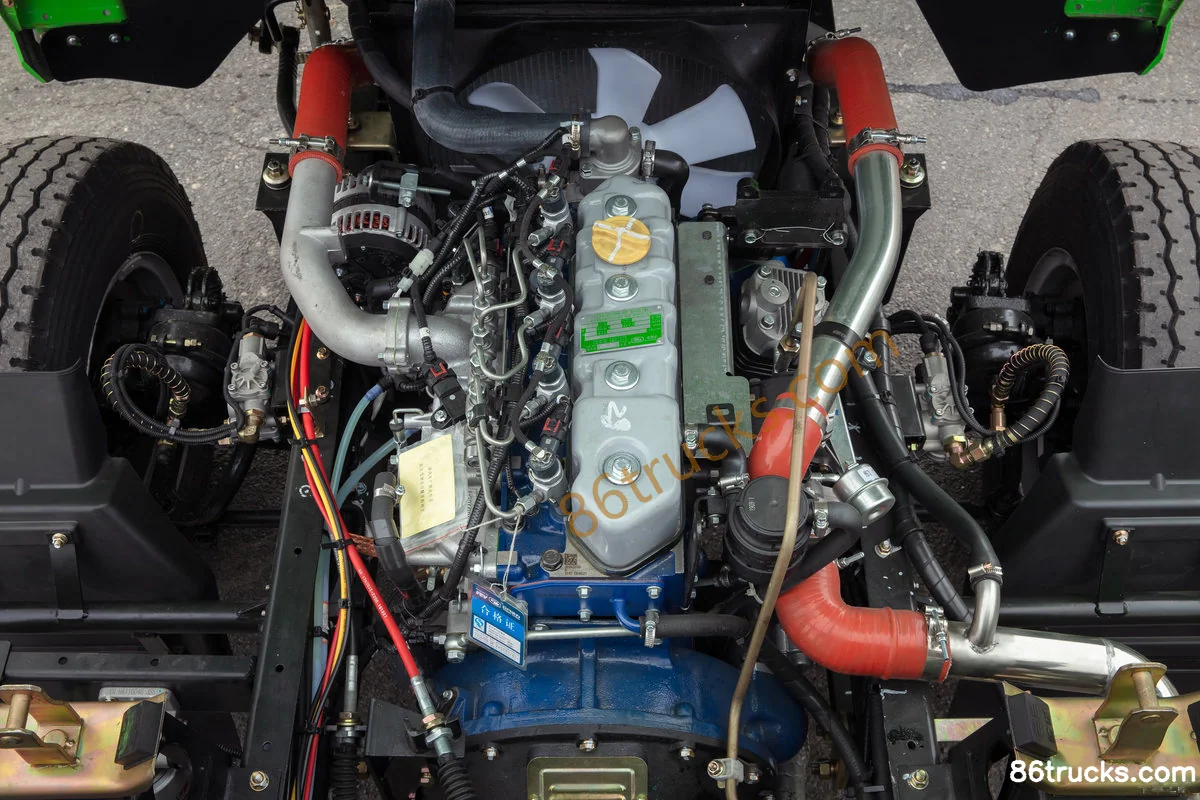

Chassis1

7 photos

FAQ

What is the export price of Dongfeng T1 110 hp 4X2(6 wheels) 3.5m Dump Truck, and what does it include?

Dongfeng T1 110 hp 4X2(6 wheels) 3.5m Dump Truck export reference is about From $11,889; MSRP is ¥8.56M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng T1 110 hp 4X2(6 wheels) 3.5m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng T1 110 hp 4X2(6 wheels) 3.5m Dump Truck?

Key specs of Dongfeng T1 110 hp 4X2(6 wheels) 3.5m Dump Truck: Drive: 4x2; Horsepower: 110 hp; Emission: China V; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng T1 110 hp 4X2(6 wheels) 3.5m Dump Truck suited for?

Dongfeng T1 110 hp 4X2(6 wheels) 3.5m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng T1 110 hp 4X2(6 wheels) 3.5m Dump Truck differ from other variants in the same series?

Dongfeng T1 110 hp 4X2(6 wheels) 3.5m Dump Truck belongs to Dongfeng T15 light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng T1 110 hp 4X2(6 wheels) 3.5m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng T1 110 hp 4X2(6 wheels) 3.5m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
