FAW Jiefang J6L Lightweight Version 320 hp 8X4(12 wheels) Concrete Mixer Truck

Export reference
From $41,333
MSRP ¥29.76M CNY
Fuel: Diesel
Curb Weight:: 14ton
Wheelbase:: 1950+2900+1350mm
Tire Size:: 11.00R20
Cab dimensions:: 10.25×2.55×3.98m
Truck Type:: concrete mixer truck
Rated payload: 16.805ton
Drive 8X4 (12 wheels)
Horsepower 320
Emission China V

Overview

The FAW Jiefang J6L Lightweight Version 320 hp 8X4(12 wheels) Concrete Mixer Truck is a concrete mixer truck featuring 16.805t payload, 14ton GVW, 8X4 (12 wheels) drive and J6L full-floating flat roof small half sleeper cab. On the powertrain side, it comes with 320 hp, China V emissions and Diesel fuel.

China V 320 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.25×2.55×3.98m
Drive type: 8X4
Truck Type: concrete mixer truck
Vehicle origin: Changchun, Qingdao, Chengdu
Front/rear track width: Front: 1987/1987mm; Rear: 1878/1878
Wheelbase: 1950+2900+1350mm
Curb Weight: 14ton
Rated payload: 16.805ton
Max. speed: 89km/h
Front/rear suspension: 1.4/2.65m
Body Parameters
Mixing drum capacity: 7.7m³
Vehicle certification code: CA5310GJBP62K2T4E5Z
Body Brand: FAW Jiefang
Engine parameters
Engine Model: XichaiCA6DL1-32E5
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.7L
Emission standard: China V
Max output power: 238kW
Max hp: 320Horsepower
Rated speed: 2300rpm
Engine Type: BOSCH common rail + SCR, low-mount PTO
Chassis Specs
Chassis Series: FAW JiefangJ6L
Chassis Model: CA5310GJBP62K2T4E5
Front axle description: 1928
Frame Dimensions: 300×80×(8+5)mm
rear axle description: Φ457 stamped-welded axle (auto slack adjuster, domestic ABS)
Axle ratio: 5.286
Leaf spring count: 11/11/10
clutch: Φ430
Transmission Parameters
Number of gears: 10Gear
Transmission Model: FAWCA10TA130M
Cab parameters
Cab: J6L full-floating flat roof small half sleeper
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

Photos

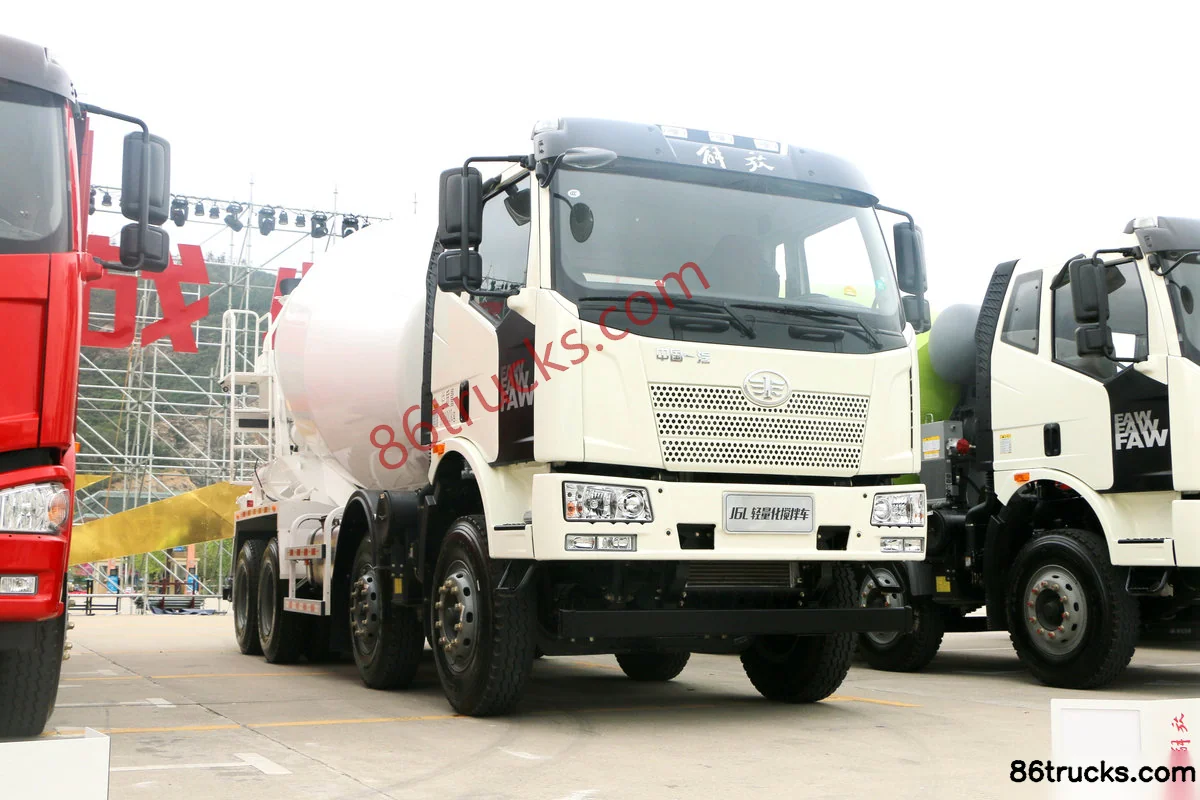

Exterior1

1 photos

FAQ

What is the export price of FAW Jiefang J6L Lightweight Version 320 hp 8X4(12 wheels) Concrete Mixer Truck, and what does it include?

FAW Jiefang J6L Lightweight Version 320 hp 8X4(12 wheels) Concrete Mixer Truck export reference is about From $41,333; MSRP is ¥29.76M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang J6L Lightweight Version 320 hp 8X4(12 wheels) Concrete Mixer Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6L Lightweight Version 320 hp 8X4(12 wheels) Concrete Mixer Truck?

Key specs of FAW Jiefang J6L Lightweight Version 320 hp 8X4(12 wheels) Concrete Mixer Truck: Drive: 8x4; Horsepower: 320 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6L Lightweight Version 320 hp 8X4(12 wheels) Concrete Mixer Truck suited for?

FAW Jiefang J6L Lightweight Version 320 hp 8X4(12 wheels) Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang J6L Lightweight Version 320 hp 8X4(12 wheels) Concrete Mixer Truck differ from other variants in the same series?

FAW Jiefang J6L Lightweight Version 320 hp 8X4(12 wheels) Concrete Mixer Truck belongs to FAW Jiefang J6L Medium Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6L Lightweight Version 320 hp 8X4(12 wheels) Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6L Lightweight Version 320 hp 8X4(12 wheels) Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
