CHUANJIAO 260hp 6X6(10 wheels) 4.5m Dump Truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 11.905ton
Wheelbase:: 3600+1300mm
Tire Size:: 14.00-20 18PR,14.00R20 18PR
Rated payload: 12.9ton
Drive 6X6 (10 wheels)
Horsepower 260
Cargo box type: Dump type

Overview

The CHUANJIAO 260hp 6X6(10 wheels) 4.5m Dump Truck is a Medium-duty truck featuring 12.9t payload, 25t GVW, Dump type cargo body and 6X6 (10 wheels) drive. On the powertrain side, it comes with a YuchaiYC6A260-40 engine, 260 hp, China IV emissions and Fast Gear transmission.

China IV 260 Diesel 6X6

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CJ3250D41E
Drive type: 6X6
Wheelbase: 3600+1300mm
engine: YuchaiYC6A260-40
transmission: Fast Gear8JS118
Cab length: 7.34m
Cab width: 2.49m
Cab height: 3.2m
Front track width: 1920mm
rear track: 1800/1800mm
Curb Weight: 11.905ton
Rated payload: 12.9ton
GVWR: 25ton
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 34°
departure angle: 32°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6A260-40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.255L
Emission standard: China IV
Max output power: 191kW
Max hp: 260Horsepower
Max torque: 1000N·m
Max torque speed: 1400-1600rpm
Rated speed: 2300rpm
Engine Type: BOSCH high-pressure common rail SCR
Transmission Parameters
Transmission Model: Fast Gear8JS118
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.5m
Cargo box width: 2.3m
Cargo box height: 1.2m
fuel tank
Fuel tank capacity: 280L
Chassis Specs
rear axle allowable load: 8350kg
Leaf spring count: 9/10
Tire
Tire Size: 14.00-20 18PR,14.00R20 18PR
Number of tires: 6pcs

Photos

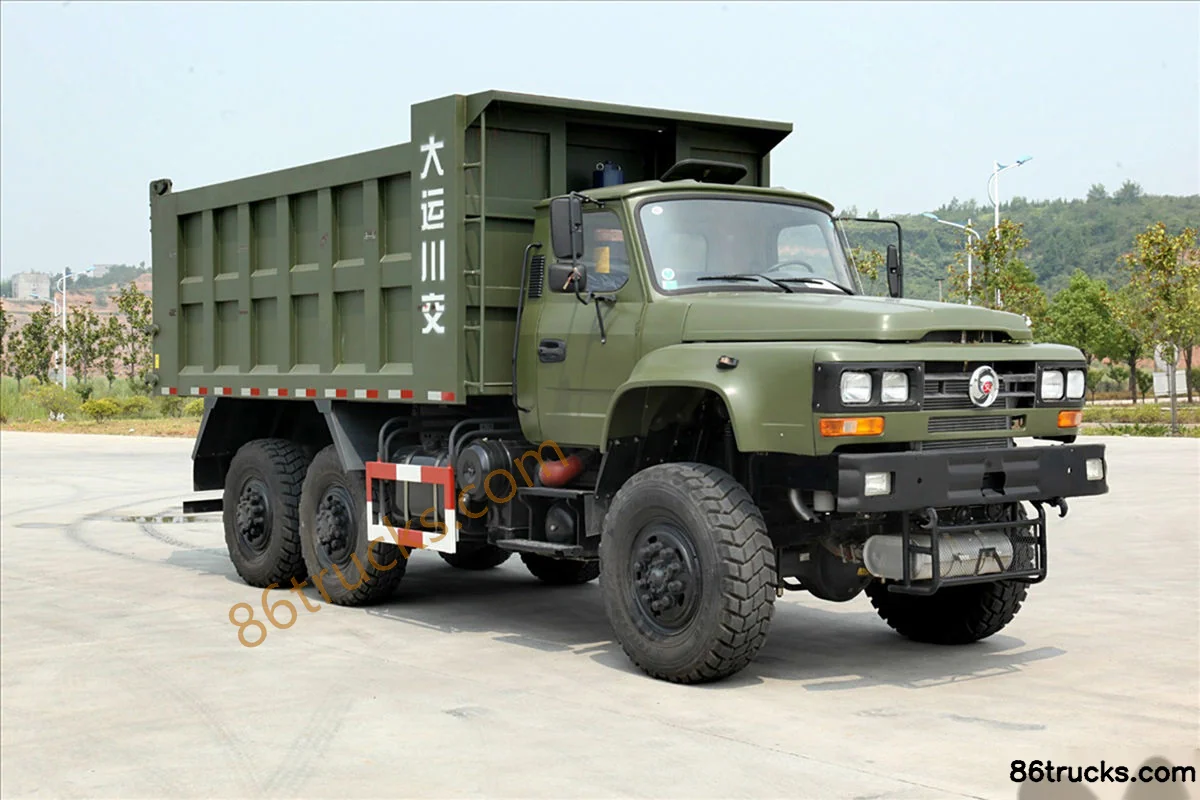

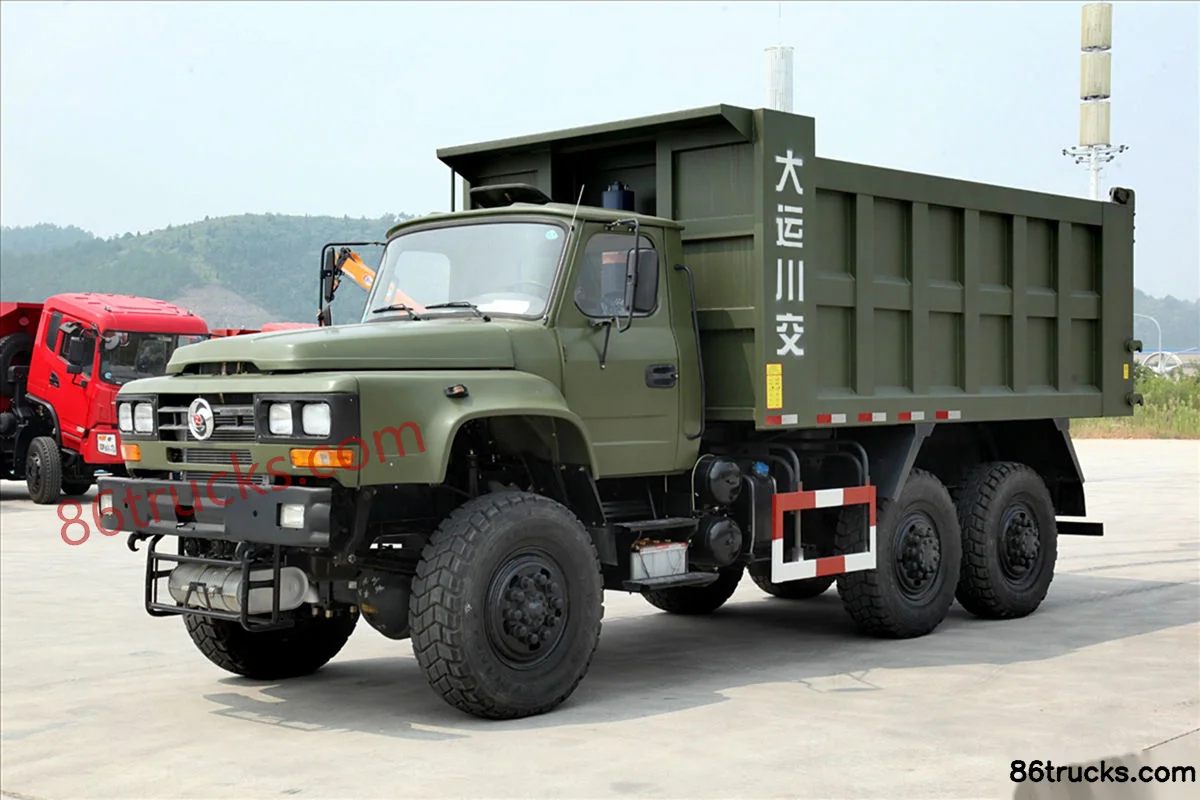

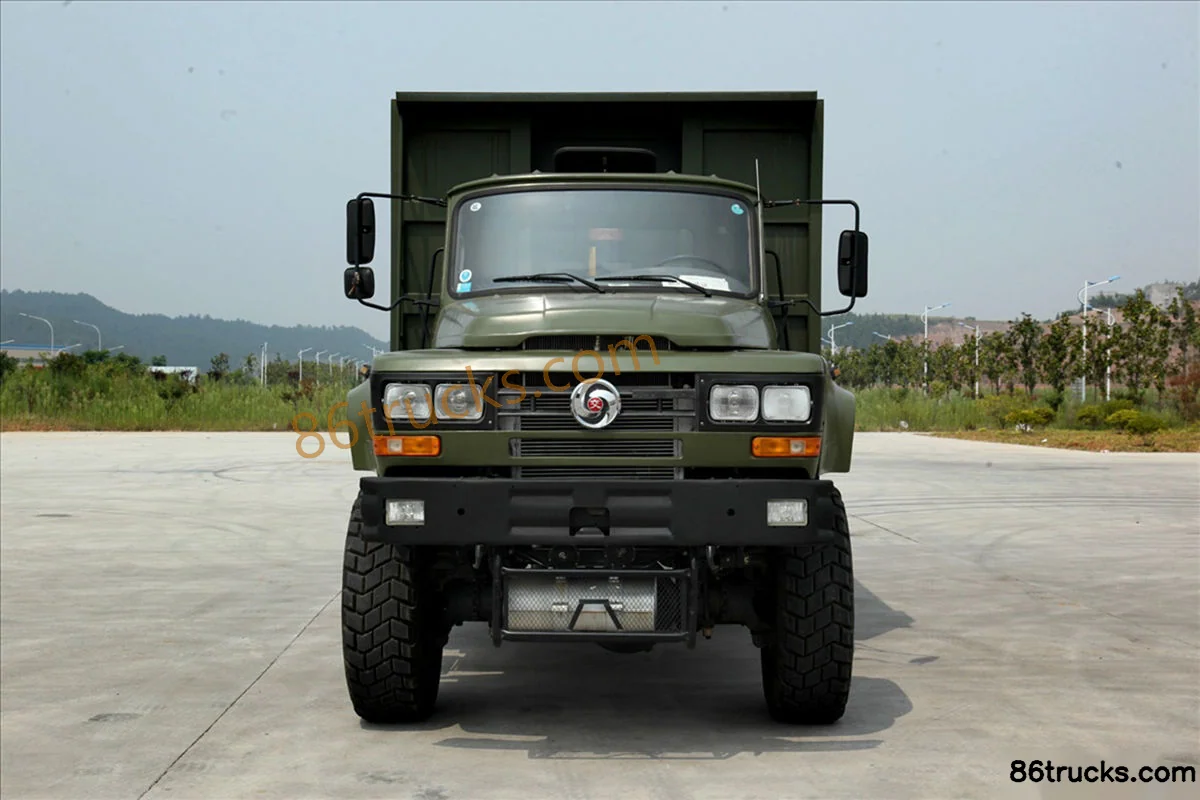

Exterior3

3 photos

FAQ

What emission standard does CHUANJIAO 260hp 6X6(10 wheels) 4.5m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of CHUANJIAO 260hp 6X6(10 wheels) 4.5m Dump Truck?

Key specs of CHUANJIAO 260hp 6X6(10 wheels) 4.5m Dump Truck: Drive: 6x6; Horsepower: 260 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is CHUANJIAO 260hp 6X6(10 wheels) 4.5m Dump Truck suited for?

CHUANJIAO 260hp 6X6(10 wheels) 4.5m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does CHUANJIAO 260hp 6X6(10 wheels) 4.5m Dump Truck differ from other variants in the same series?

CHUANJIAO 260hp 6X6(10 wheels) 4.5m Dump Truck belongs to CHUANJIAO medium truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for CHUANJIAO 260hp 6X6(10 wheels) 4.5m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export CHUANJIAO 260hp 6X6(10 wheels) 4.5m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
