Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 2.94m double-row stake truck

Export reference
From $9,236
MSRP ¥6.65M CNY
Horsepower: 102
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei D19
Transmission: Mengwo
Curb Weight:: 2.42ton
seating capacity: 5Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 2.94m double-row stake truck is a mini truck featuring 2.94m cargo length, Stake type cargo body, 5Personnel volume and 1.495t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei D19 engine, 102 hp, 4X2 (6 wheels) drive and China V emissions.

China V 102 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ5040CCYD6BDBAC
Type: stake truck
Drive type: 4X2
Wheelbase: 3180mm
Box length class: 2.9m
engine: Yunnei PowerD19TCIE1
transmission: Mengwo5T28S2Q05
Cab length: 5.99m
Cab width: 1.84m
Cab height: 2.62m
Front track width: 1495mm
rear track: 1340mm
Curb Weight: 2.42ton
Rated payload: 1.495ton
GVWR: 4.24ton
Max. speed: 95km/h
Origin: Xiangyang, Hubei
tonnage class: mini truck
Approach angle: 19°
departure angle: 14°
market segment: Agricultural product transport, green channel
Remarks: Standard: power steering, power windows, central locking, remote key, daytime running lights, ABS, smart infotainment system, reverse camera, leather seats
Front/rear suspension: 1.2/1.61m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD19TCIE1
Engine info: Yunnei Dewei D19
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 1.91L
Emission standard: China V
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 250N·m
Max torque speed: 1600-2600rpm
Rated speed: 3600rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: Mengwo5T28S2Q05
Transmission Brand: Mengwo
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 2.94m
Cargo box width: 1.86m
*Cargo box interior width: 1.8600000143051
Cab parameters
Cab width: 1750mm
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1696kg
rear axle description: 3T
rear axle allowable load: 2544kg
Leaf spring count: 3/5+3
Tire
Tire Size: 185R15LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

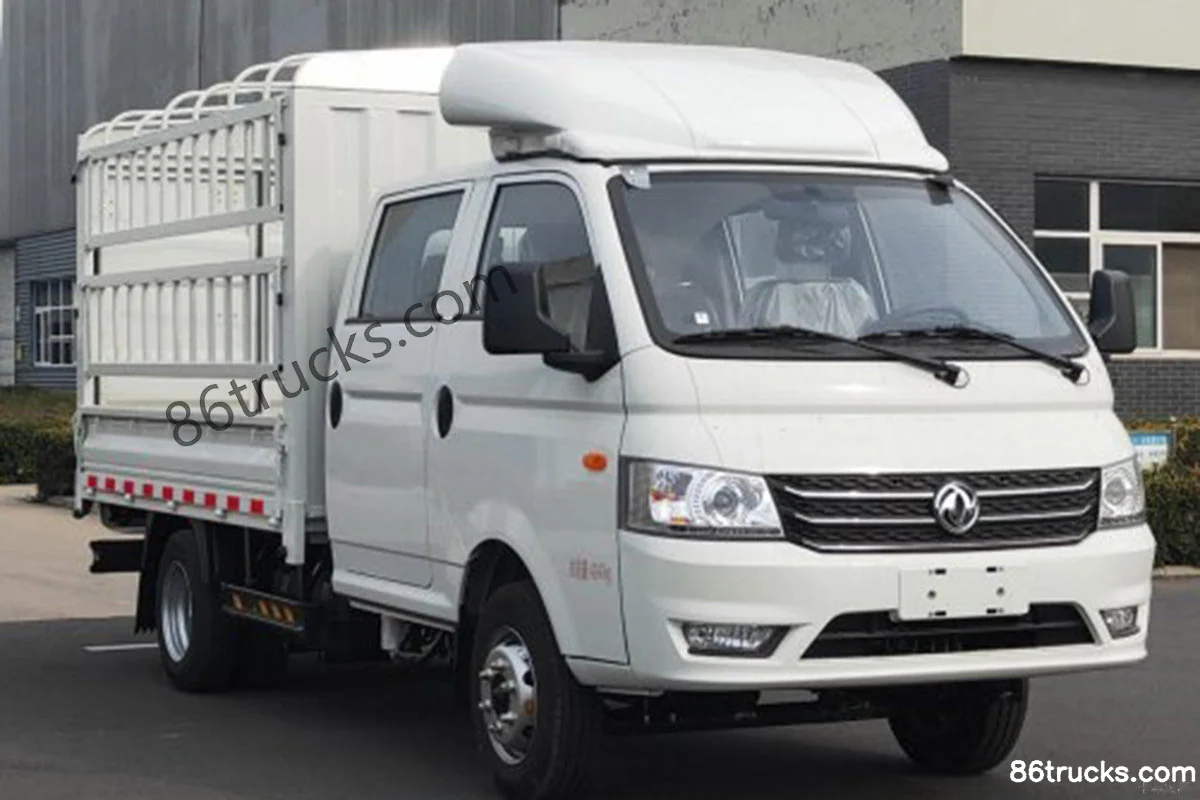

Exterior1

1 photos

FAQ

What is the export price of Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 2.94m double-row stake truck, and what does it include?

Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 2.94m double-row stake truck export reference is about From $9,236; MSRP is ¥6.65M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 2.94m double-row stake truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 2.94m double-row stake truck?

Key specs of Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 2.94m double-row stake truck: Drive: 4x2; Horsepower: 102 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei D19; Transmission: Mengwo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 2.94m double-row stake truck suited for?

Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 2.94m double-row stake truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 2.94m double-row stake truck differ from other variants in the same series?

Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 2.94m double-row stake truck belongs to Dongfeng W17 micro truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 2.94m double-row stake truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Xiaobawang W17 102 hp 4X2(6 wheels) 2.94m double-row stake truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
