Hualing Heavy Truck Lightweight Version Transport Type 350 hp 8X4(12 wheels) 6.7m LNG Dump Truck

Export reference
From $41,667
MSRP ¥30M CNY
Emission: China V
Fuel: LNG (liquefied natural gas)
Transmission: Fast Gear
Curb Weight:: 15.495ton
Wheelbase:: 1850+3000+1350mm
Tire Size:: 11.00R20
Rated payload: 15.375ton
Drive 8X4 (12 wheels)
Horsepower 350
Cargo box type: Dump type

Overview

The Hualing Heavy Truck Lightweight Version Transport Type 350 hp 8X4(12 wheels) 6.7m LNG Dump Truck is a Heavy truck featuring 15.375t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a HanmaCM6T18.350 50 engine, 350 hp, China V emissions and Fast Gear transmission.

China V 350 LNG (liquefied natural gas) 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HN3310NGX38C2M5
Drive type: 8X4
Wheelbase: 1850+3000+1350mm
engine: HanmaCM6T18.350 50
transmission: Fast Gear12JSD160TA
Rear Axle Ratio: 4.875
Cab length: 9.6m
Cab width: 2.495m
Cab height: 3.36m
Front track width: 2065mm
rear track: 1860/1860mm
Curb Weight: 15.495ton
Rated payload: 15.375ton
GVWR: 31ton
Origin: Ma'anshan, Anhui
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 18°
Remarks: Laminated windshield, 140-A double-riding lightweight balance shaft.
Version: LNG Edition
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Hanma
Engine Model: HanmaCM6T18.350 50
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 9.84L
Emission standard: China V
Max output power: 255kW
Max hp: 350Horsepower
Max torque: 1560N·m
Max torque speed: 1100-1450rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder lean burn
Transmission Parameters
Transmission Model: Fast Gear12JSD160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.7m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: Hualing Heavy Truck
fuel tank
Fuel tank capacity: 380L
Chassis Specs
Front axle description: 6T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 290(7+5)mm
rear axle description: HL460
rear axle allowable load: 18000 (tandem axle) kg
Axle ratio: 4.875
Leaf spring count: 9/9/12
Tire
Tire Size: 11.00R20
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Power Windows:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Radio:

Photos

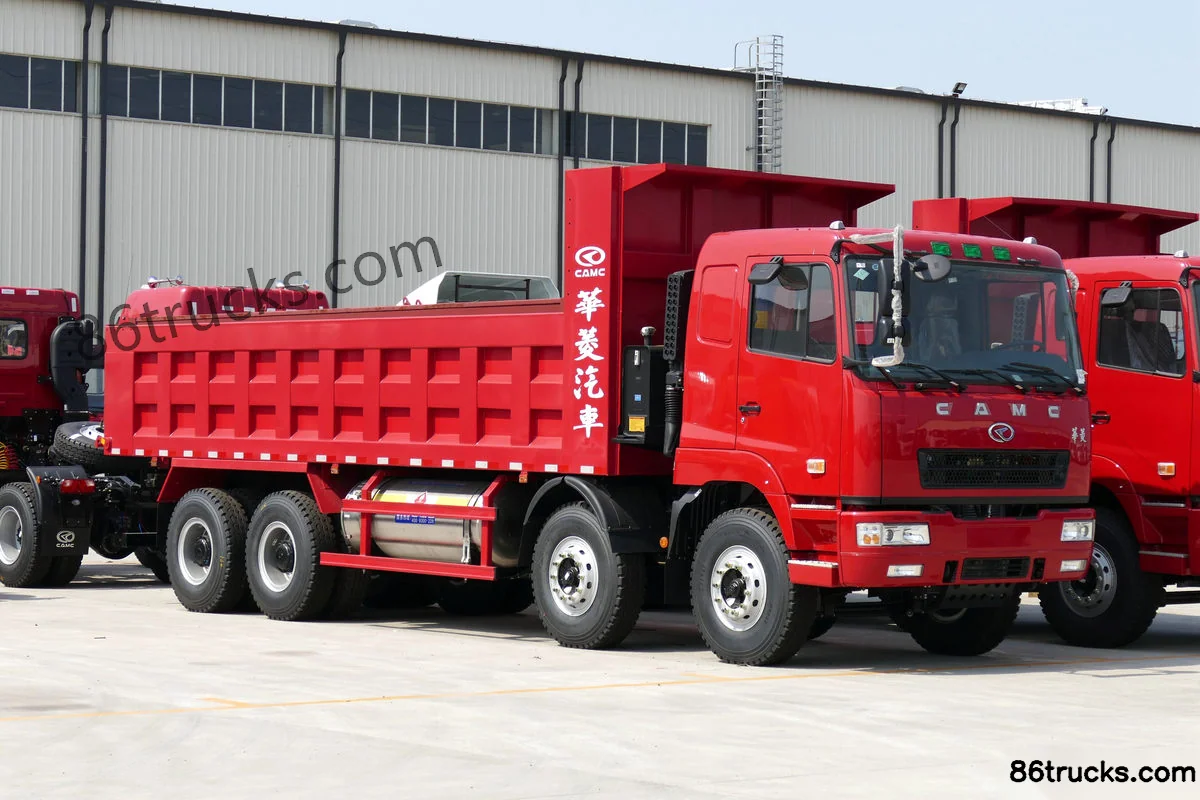

Exterior1

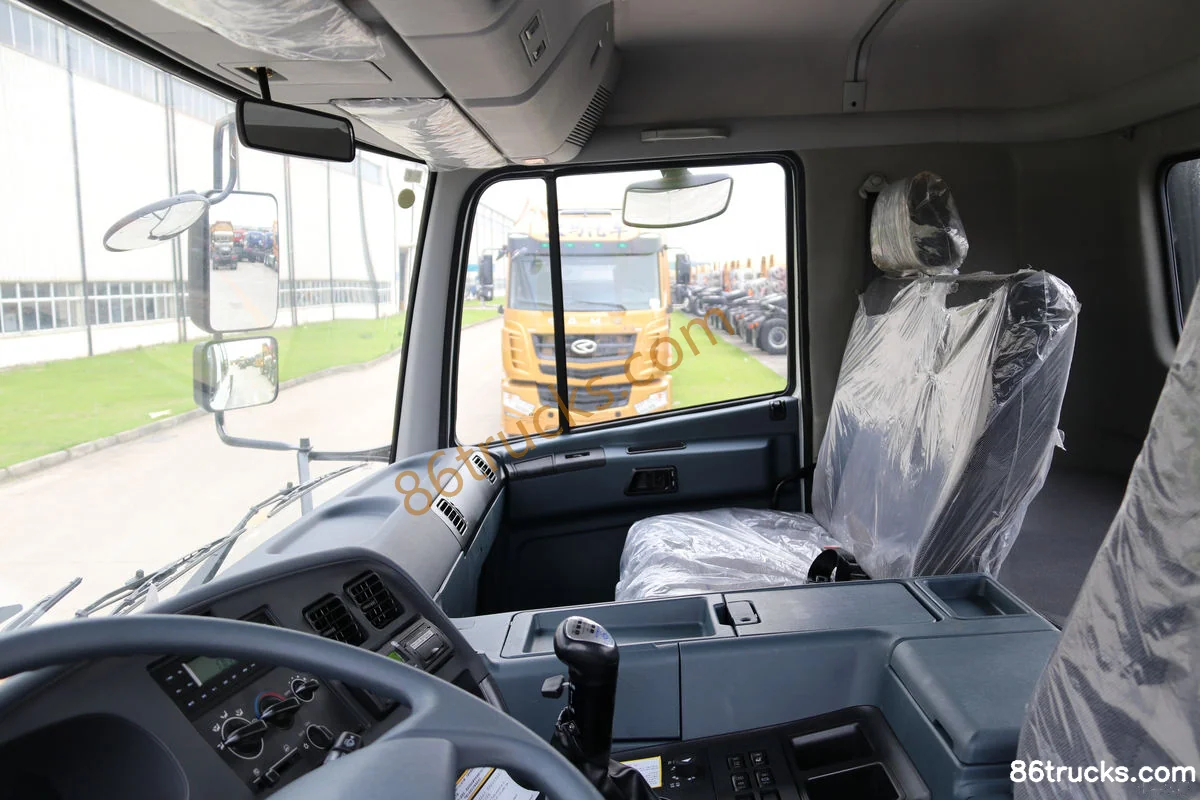

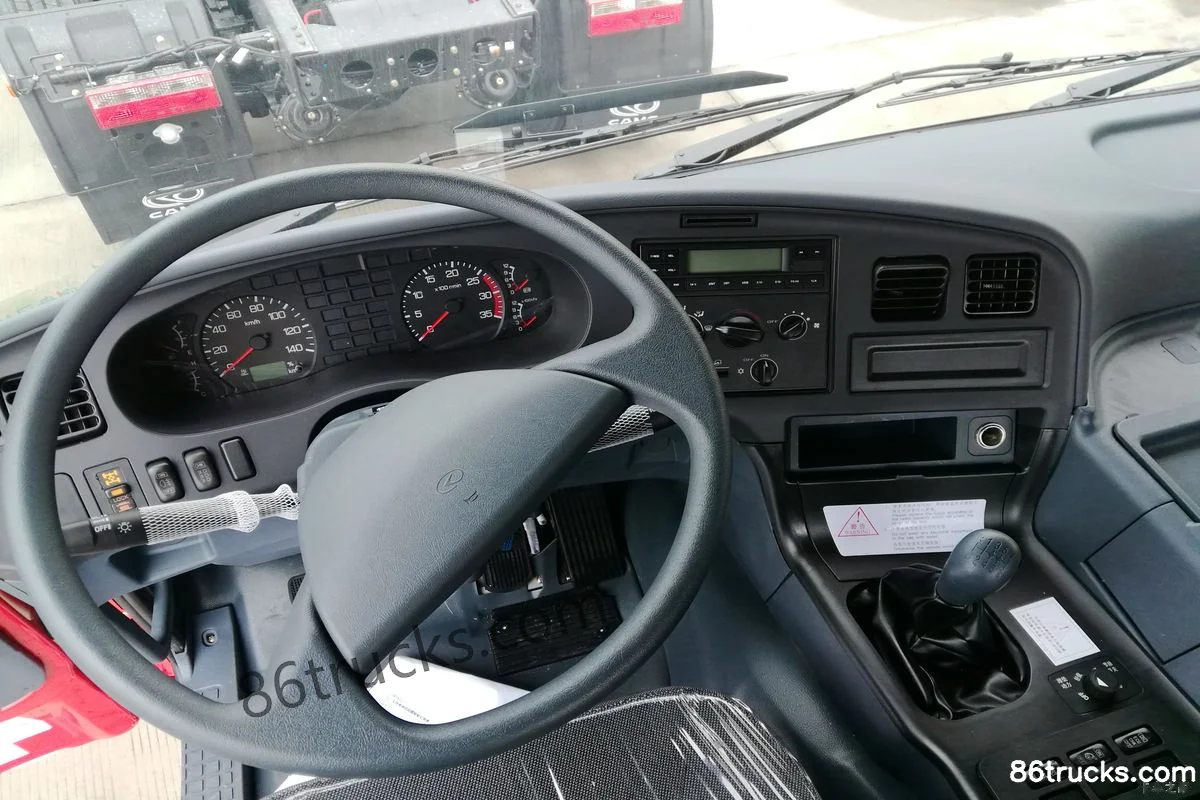

Cab2

Chassis1

4 photos

FAQ

What is the export price of Hualing Heavy Truck Lightweight Version Transport Type 350 hp 8X4(12 wheels) 6.7m LNG Dump Truck, and what does it include?

Hualing Heavy Truck Lightweight Version Transport Type 350 hp 8X4(12 wheels) 6.7m LNG Dump Truck export reference is about From $41,667; MSRP is ¥30M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Hualing Heavy Truck Lightweight Version Transport Type 350 hp 8X4(12 wheels) 6.7m LNG Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hualing Heavy Truck Lightweight Version Transport Type 350 hp 8X4(12 wheels) 6.7m LNG Dump Truck?

Key specs of Hualing Heavy Truck Lightweight Version Transport Type 350 hp 8X4(12 wheels) 6.7m LNG Dump Truck: Drive: 8x4; Horsepower: 350 hp; Emission: China V; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing Heavy Truck Lightweight Version Transport Type 350 hp 8X4(12 wheels) 6.7m LNG Dump Truck suited for?

Hualing Heavy Truck Lightweight Version Transport Type 350 hp 8X4(12 wheels) 6.7m LNG Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hualing Heavy Truck Lightweight Version Transport Type 350 hp 8X4(12 wheels) 6.7m LNG Dump Truck differ from other variants in the same series?

Hualing Heavy Truck Lightweight Version Transport Type 350 hp 8X4(12 wheels) 6.7m LNG Dump Truck belongs to Hualing M5 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing Heavy Truck Lightweight Version Transport Type 350 hp 8X4(12 wheels) 6.7m LNG Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing Heavy Truck Lightweight Version Transport Type 350 hp 8X4(12 wheels) 6.7m LNG Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
