WLYMG516(3.76) 5-speed manual transmission

Export reference
MSRP N/A
Features:: Synchronizer rings use steel-based molybdenum spray technology; all forward gears fully synchronized, 1st & 2nd gears dual-cone.
Max input torque:: 150N·m
1st gear ratio:: 3.76

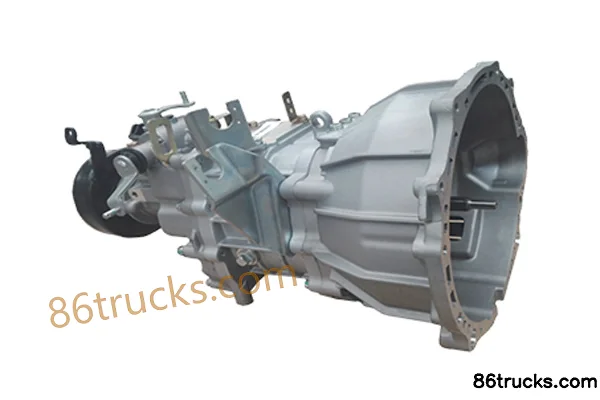

WLYMG516(3.76) 5-speed manual transmission exterior
Transmission Model: MG516
Transmission Brand: WLY
Matching Range: Suitable for light and mini cargo trucks, modified vehicles, etc.

Overview

The WLYMG516(3.76) 5-speed manual transmission is a parts product with spec MG516.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: WLY
Transmission series: MG series
Matching Range: Suitable for light and mini cargo trucks, modified vehicles, etc.
Features: Synchronizer rings use steel-based molybdenum spray technology; all forward gears fully synchronized, 1st & 2nd gears dual-cone.
Max input torque: 150N·m
1st gear ratio: 3.76
Main box center distance: 69.5mm
2nd gear ratio: 2.05
3rd gear ratio: 1.43
4th gear ratio:
5th gear ratio: 0.83
Reverse Gear 1 Ratio: 3.87
Transmission weight: 37kg
Transmission oil capacity: 1.4L
Number of gears: 5Gear
shift type: Manual
Transmission Model: MG516
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:

Photos

0 photos

FAQ

What transport jobs is WLYMG516(3.76) 5-speed manual transmission suited for?

Match WLYMG516(3.76) 5-speed manual transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does WLYMG516(3.76) 5-speed manual transmission differ from other variants in the same series?

WLYMG516(3.76) 5-speed manual transmission belongs to WLY MG series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for WLYMG516(3.76) 5-speed manual transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export WLYMG516(3.76) 5-speed manual transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
