Sinotruk Wangpai W1 90 hp 4X2(6 wheels) 2.6m Dump Mini Truck

Export reference
From $8,722
MSRP ¥6.28M CNY
Emission: China V
Fuel: Diesel
Transmission: Mengwo
Curb Weight:: 1.83ton
Wheelbase:: 3360mm
Tire Size:: 185R14LT 6PR,6.00-15LT 8PR,185R14LT
Rated payload: 0.745ton
Drive 4X2 (6 wheels)
Horsepower 90
Cargo box type: Dump type

Overview

The Sinotruk Wangpai W1 90 hp 4X2(6 wheels) 2.6m Dump Mini Truck is a mini truck featuring 0.745t payload, 2.9t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Huayuan Laidong4K22V engine, 90 hp, China V emissions and Mengwo transmission.

China V 90 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW3030S2M5C
Drive type: 4X2
Wheelbase: 3360mm
engine: Huayuan Laidong4K22V
transmission: MengwoMR85SZ-WP1
Cab length: 5.54m
Cab width: 1.75m
Cab height: 2.2m
Front track width: 1380,1400mm
rear track: 1310,1370mm
Curb Weight: 1.83ton
Rated payload: 0.745ton
GVWR: 2.9ton
Origin: Chengdu, Sichuan
tonnage class: mini truck
Approach angle: 34°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Huayuan Laidong
Engine Model: Huayuan Laidong4K22V
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.156L
Emission standard: China V
Max output power: 66kW
Max hp: 90Horsepower
Max torque: 240N·m
Rated speed: 3200rpm
Engine Type: Turbocharged intercooled, electronic high-pressure common rail
Transmission Parameters
Transmission Model: MengwoMR85SZ-WP1
Transmission Brand: Mengwo
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 2.6m
Cargo box width: 1.65m
Cargo box height: 0.37m
Cab parameters
Cab: Double cab
Chassis Specs
Front axle allowable load: 1120kg
rear axle allowable load: 1780kg
Leaf spring count: 5/5+3,5/8+5,5/5+3,5/8+5,5/7
Tire
Tire Size: 185R14LT 6PR,6.00-15LT 8PR,185R14LT
Number of tires: 6pcs
Control configuration
ABS:

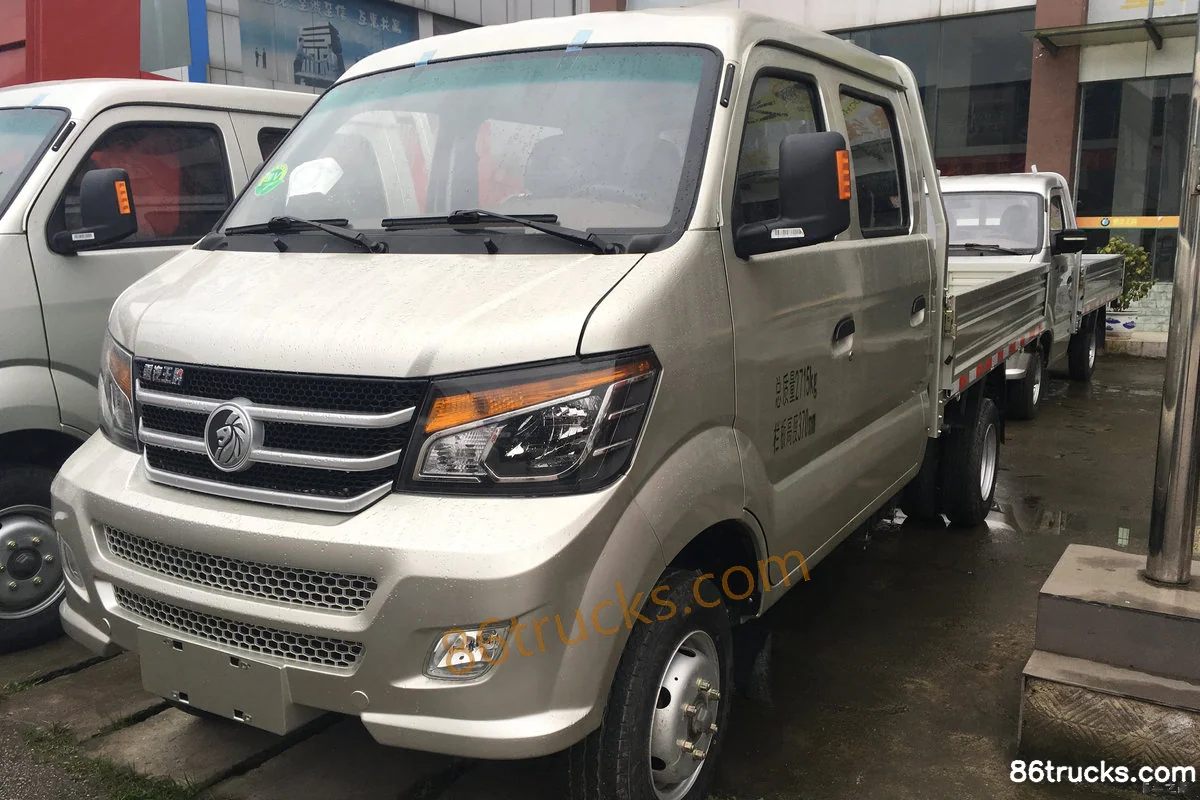

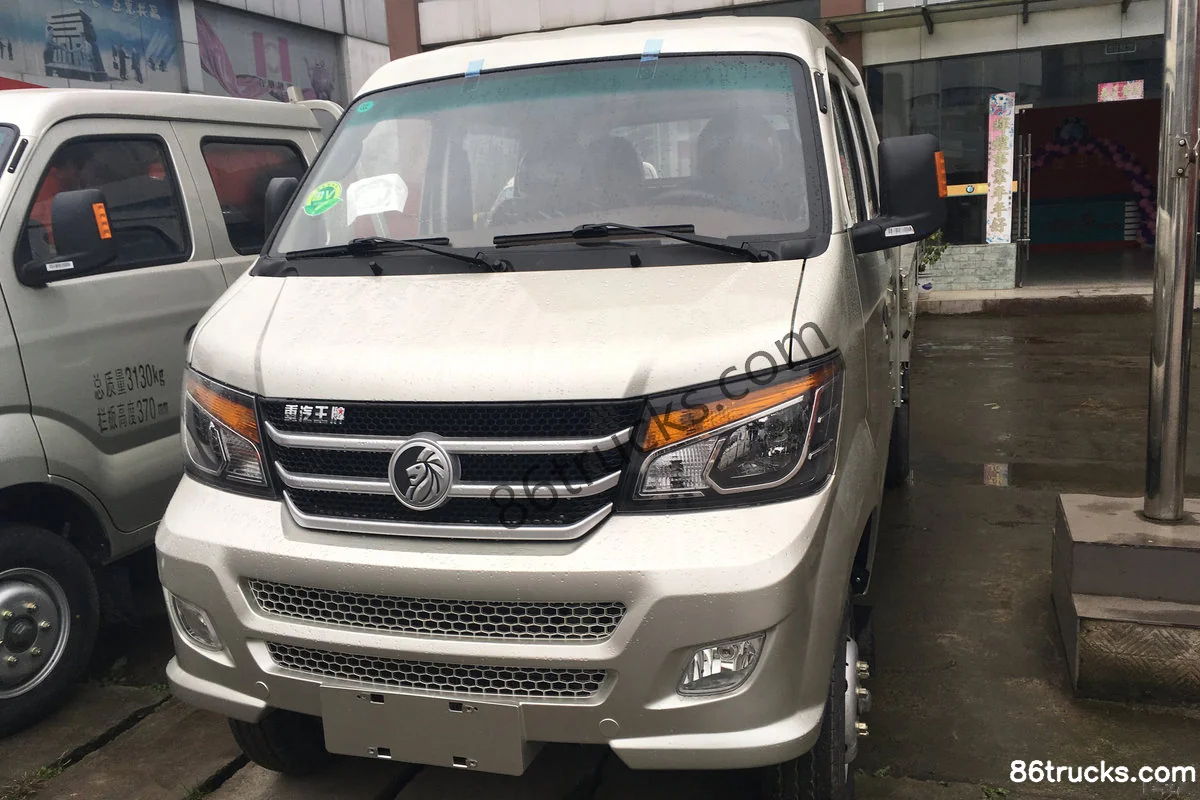

Photos

Exterior2

2 photos

FAQ

What is the export price of Sinotruk Wangpai W1 90 hp 4X2(6 wheels) 2.6m Dump Mini Truck, and what does it include?

Sinotruk Wangpai W1 90 hp 4X2(6 wheels) 2.6m Dump Mini Truck export reference is about From $8,722; MSRP is ¥6.28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Wangpai W1 90 hp 4X2(6 wheels) 2.6m Dump Mini Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Wangpai W1 90 hp 4X2(6 wheels) 2.6m Dump Mini Truck?

Key specs of Sinotruk Wangpai W1 90 hp 4X2(6 wheels) 2.6m Dump Mini Truck: Drive: 4x2; Horsepower: 90 hp; Emission: China V; Fuel: Diesel; Transmission: Mengwo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Wangpai W1 90 hp 4X2(6 wheels) 2.6m Dump Mini Truck suited for?

Sinotruk Wangpai W1 90 hp 4X2(6 wheels) 2.6m Dump Mini Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Wangpai W1 90 hp 4X2(6 wheels) 2.6m Dump Mini Truck differ from other variants in the same series?

Sinotruk Wangpai W1 90 hp 4X2(6 wheels) 2.6m Dump Mini Truck belongs to Sinotruk Wangpai W1 micro truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Wangpai W1 90 hp 4X2(6 wheels) 2.6m Dump Mini Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Wangpai W1 90 hp 4X2(6 wheels) 2.6m Dump Mini Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
