Hongyan HY320 double reduction drive axle

Export reference
MSRP N/A
Front/rear track width:: 1804/1854mm
Brake:: Cam air brake / 24# diaphragm cylinder
Transmission Ratio:: 3.792/4.227/4.677/5.036/5.214/5.755/6.177/6.39/6.856/7.519/8.127
Axle Model: HY320
Brake size: Φ410X220
Axle Type: Drive axle

Overview

The SAIC Hongyan Hongyan HY320 double reduction drive axle is a parts product with spec HY320 and Φ410X220 size.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Axle Model: HY320
Axle Type: Drive axle
Front/rear track width: 1804/1854mm
Rated axle load: 16000ton
Brake: Cam air brake / 24# diaphragm cylinder
Transmission Ratio: 3.792/4.227/4.677/5.036/5.214/5.755/6.177/6.39/6.856/7.519/8.127
curb weight: 1100 (mid-axle); 960 (rear axle)kg
Brake size: Φ410X220
Max output torque: 55000N·m
Wheel Bolts: Φ335mm

Photos

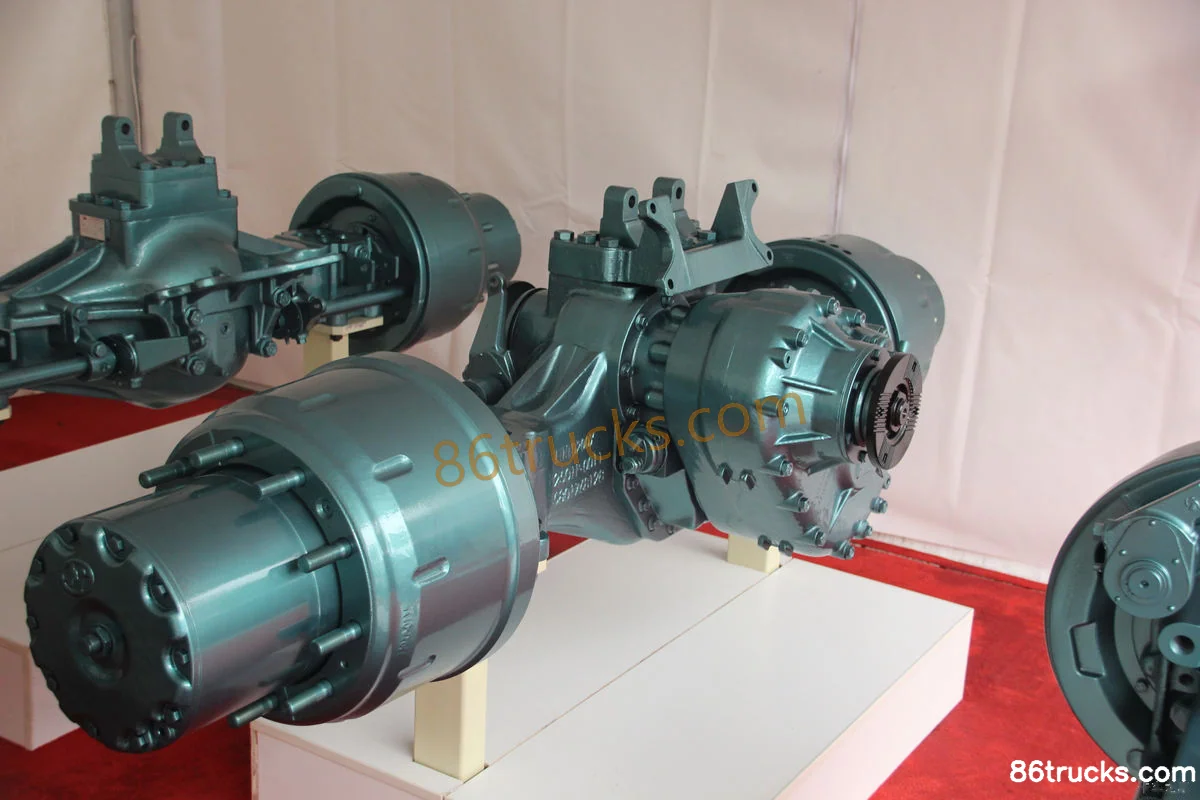

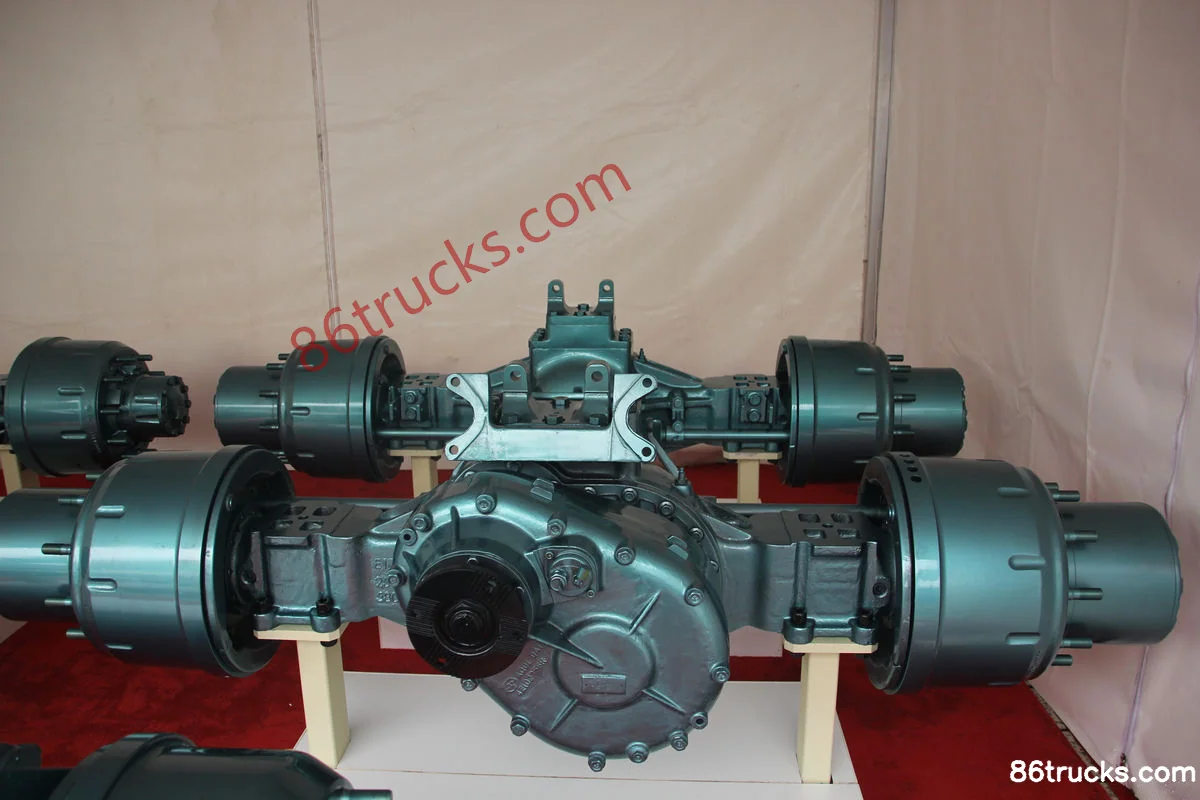

Exterior2

2 photos

FAQ

What transport jobs is Hongyan HY320 double reduction drive axle suited for?

Match Hongyan HY320 double reduction drive axle to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Hongyan HY320 double reduction drive axle differ from other variants in the same series?

Hongyan HY320 double reduction drive axle belongs to SAIC Hongyan Drive Axle (axle). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hongyan HY320 double reduction drive axle?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hongyan HY320 double reduction drive axle?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
