Ankai AK K drive axle
EXW
Export quote
Ankai Drive Axle
Main model photos
4 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Ankai AK K drive axle | — | ||
| Ankai AK 145 drive axle | — | ||
| Ankai AK 153 drive axle | — | ||
| Ankai AK 468 single reduction drive axle | — |

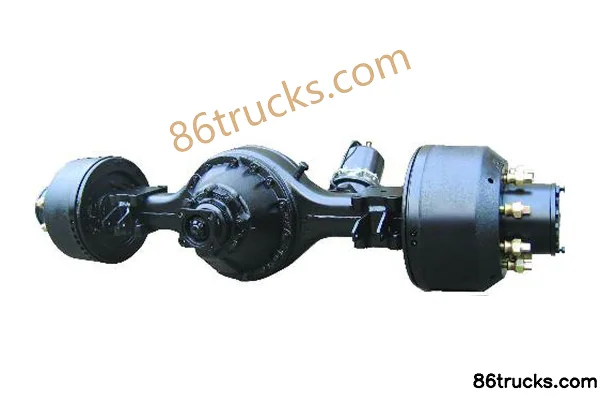

Ankai AK 145 drive axle
EXW
Export quote

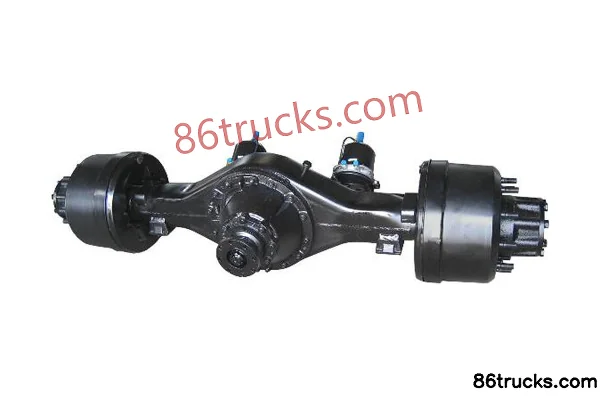

Ankai AK 153 drive axle
EXW
Export quote
Ankai AK 468 single reduction drive axle
EXW
Export quote
Series Specs
Basic Info
Axle Model: K Drive Axle / 145 / 153 / AK468
Axle Type: Drive axle
Application Scope: This axle is specially matched for 8-9m buses, and its wear parts are interchangeable with the market 145 series axles. / Suitable for 10-12m buses / Suitable for high-end buses with large-displacement engines of 12-13.7m
Applicable Tire: 11.00R20，12.00R20 / 8.25R20 / 11.00R20
Front/rear track width: 1760 / 1800-1840 / 1830-1860 / 1847mm
Rated axle load: 11000 / 8000 / 13000ton
Transmission Ratio: 3.54,4.67 / 4.11,4.33,4.5,4.875,6.33 / 4.11,4.875,5.143,5.571,6.166,6.50,6.833 / 4.11,4.875,5.286,5.571
Brake size: Φ410×220 / Φ400×180/Φ400×220
curb weight: 720 / 600 / 385kg
Max output torque: 38000 / 18000 / 30000 / 45000N·m
Rim Used: 8.5-20 / 7.0-20 / 7.5-20inch
Wheel Bolts: Φ335-10×M22×1.5mm
Remarks: Spring seat center distance: 950-1030mm; Braking torque: 2×29000Nm / Spring seat center distance: 950-1030mm / single reduction drive axle; spring seat center distance: 1030mm
FAQ
What kind of truck is Ankai Ankai Drive Axle axle?
Ankai Ankai Drive Axle is an export-oriented axle lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is axle typically used for?
For axle, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Ankai Drive Axle include?
Ankai Drive Axle currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Ankai Drive Axle?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
