Ankai AK 145 drive axle

Export reference
MSRP N/A
Application Scope:: This axle is specially matched for 8-9m buses, and its wear parts are interchangeable with the market 145 series axles.
Applicable Tire:: 8.25R20
Front/rear track width:: 1800-1840mm

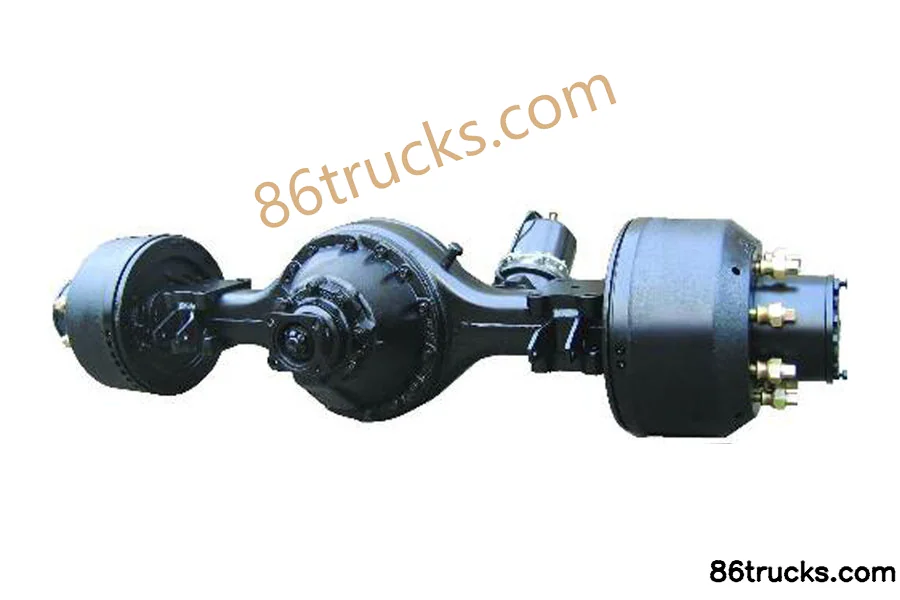

Ankai AK 145 drive axle exterior
View more photos (1)
Axle Model: 145
Brake size: Φ400×180/Φ400×220
Axle Type: Drive axle

Overview

The Ankai AK 145 drive axle is a parts product with spec 145 and Φ400×180/Φ400×220 size.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Axle Model: 145
Axle Type: Drive axle
Application Scope: This axle is specially matched for 8-9m buses, and its wear parts are interchangeable with the market 145 series axles.
Applicable Tire: 8.25R20
Front/rear track width: 1800-1840mm
Rated axle load: 8000ton
Transmission Ratio: 4.11,4.33,4.5,4.875,6.33
curb weight: 600kg
Brake size: Φ400×180/Φ400×220
Max output torque: 18000N·m
Rim Used: 7.0-20inch
Remarks: Spring seat center distance: 950-1030mm

Photos

Exterior1

Ankai AK 145 drive axle Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is Ankai AK 145 drive axle suited for?

Match Ankai AK 145 drive axle to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Ankai AK 145 drive axle differ from other variants in the same series?

Ankai AK 145 drive axle belongs to Ankai Drive Axle (axle). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Ankai AK 145 drive axle?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Ankai AK 145 drive axle?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
