Kama Junyu 115 hp 4X2(6 wheels) 4.8m Dump Truck

Export reference
From $13,611
MSRP ¥9.8M CNY
Emission: China IV
Fuel: Diesel
Transmission: WLY
Curb Weight:: 3.33ton
Wheelbase:: 3815mm
Tire Size:: 8.25R16LT8PR
Rated payload: 1.97ton
Drive 4X2 (6 wheels)
Horsepower 115
Cargo box type: Dump type

Overview

The Kama Junyu 115 hp 4X2(6 wheels) 4.8m Dump Truck is a Light Truck featuring 1.97t payload, 5.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN38CRD2 engine, 115 hp, China IV emissions and WLY transmission.

China IV 115 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC3051ZLB38P4
Drive type: 4X2
Wheelbase: 3815mm
engine: Yunnei PowerYN38CRD2
transmission: WLYWLY5-speed
Cab length: 6.995m
Cab width: 2.28m
Cab height: 2.48m
Front track width: 1760mm
rear track: 1650mm
Curb Weight: 3.33ton
Rated payload: 1.97ton
GVWR: 5.495ton
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 25°
departure angle: 14°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN38CRD2
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.76L
Emission standard: China IV
Max output power: 85kW
Max hp: 115Horsepower
Max torque: 325N·m
Max torque speed: 1600-2400rpm
Rated speed: 3000rpm
Engine Type: Electronic control, water-cooled EGR technology, electronic high-pressure common rail fuel injection technology, aftertreatment DOC+POC
Transmission Parameters
Transmission Model: WLYWLY5-speed
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.85m
Cargo box width: 2.1m
Cargo box height: 0.6m
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 90L
Chassis Specs
Front axle allowable load: 2100kg
rear axle allowable load: 3395kg
Leaf spring count: 9/11+8
Tire
Tire Size: 8.25R16LT8PR
Number of tires: 6pcs
Control configuration
ABS:

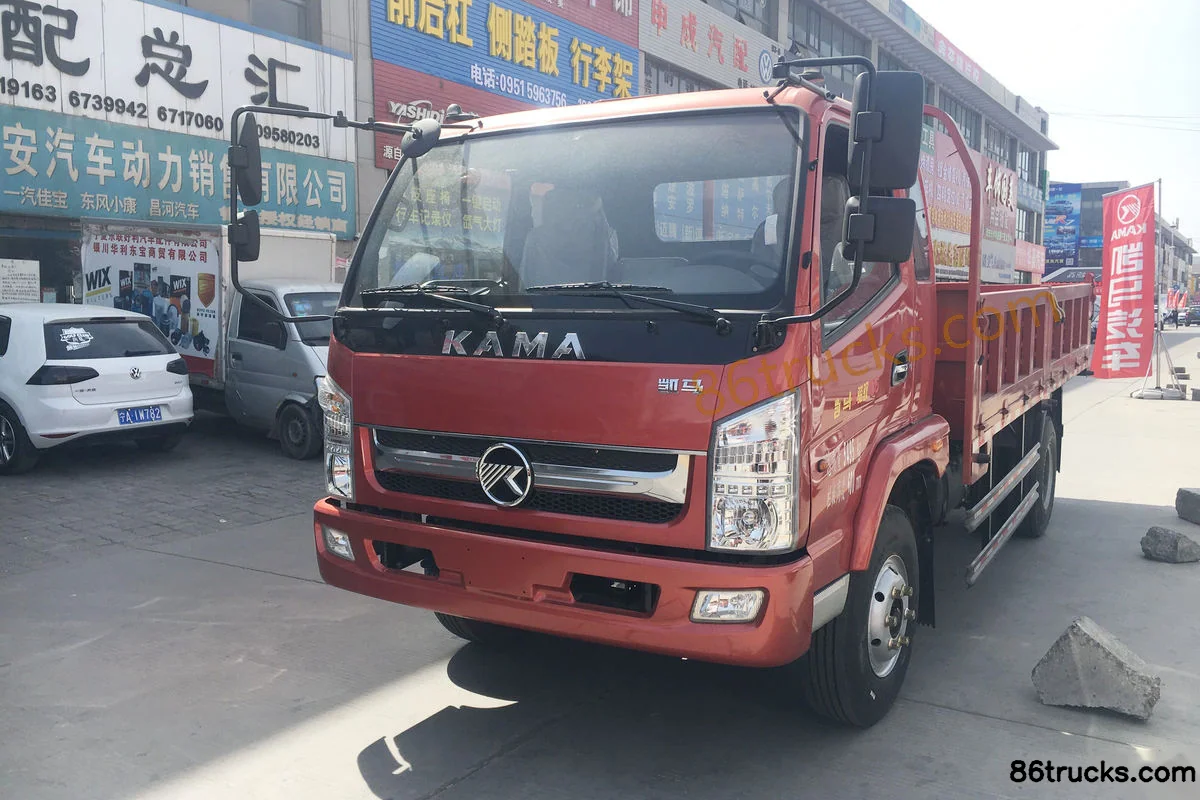

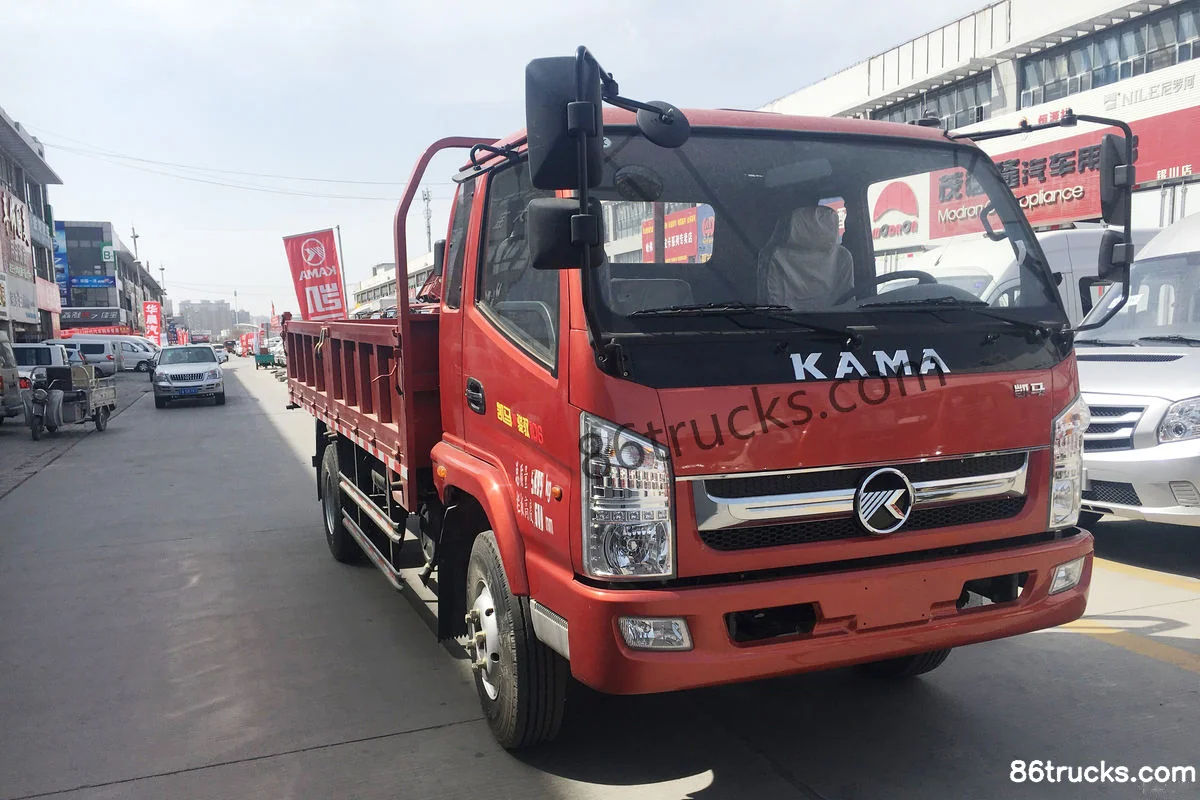

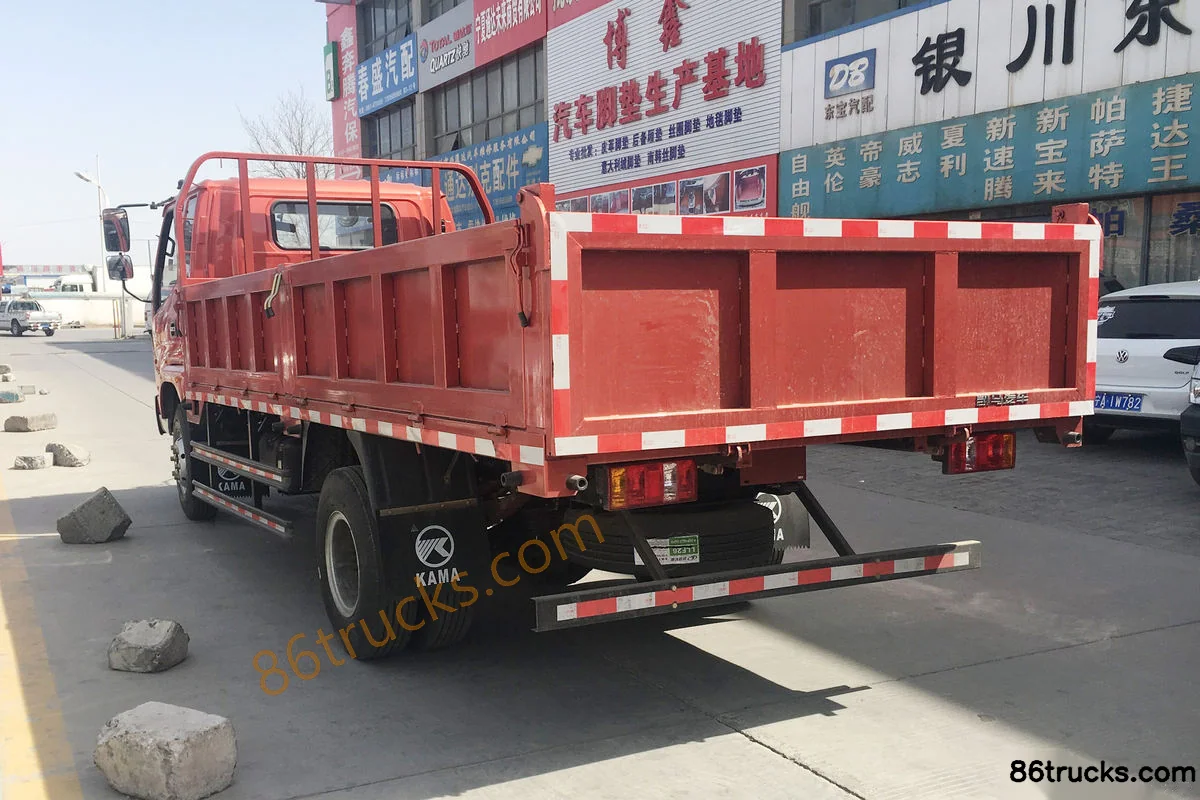

Photos

Exterior3

3 photos

FAQ

What is the export price of Kama Junyu 115 hp 4X2(6 wheels) 4.8m Dump Truck, and what does it include?

Kama Junyu 115 hp 4X2(6 wheels) 4.8m Dump Truck export reference is about From $13,611; MSRP is ¥9.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Kama Junyu 115 hp 4X2(6 wheels) 4.8m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Junyu 115 hp 4X2(6 wheels) 4.8m Dump Truck?

Key specs of Kama Junyu 115 hp 4X2(6 wheels) 4.8m Dump Truck: Drive: 4x2; Horsepower: 115 hp; Emission: China IV; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Junyu 115 hp 4X2(6 wheels) 4.8m Dump Truck suited for?

Kama Junyu 115 hp 4X2(6 wheels) 4.8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Kama Junyu 115 hp 4X2(6 wheels) 4.8m Dump Truck differ from other variants in the same series?

Kama Junyu 115 hp 4X2(6 wheels) 4.8m Dump Truck belongs to Kama Junyu Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Junyu 115 hp 4X2(6 wheels) 4.8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Junyu 115 hp 4X2(6 wheels) 4.8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
