Sinotruk HOWO Heavy Truck 336hp 6X4(10 wheels) 6m Dump Truck (ZZ3257M4147C/T1WA)

Export reference
From $43,028
MSRP ¥30.98M CNY
Emission: China III / Euro III
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 12.27ton
Wheelbase:: 4125+1350mm
Tire Size:: 11.00-20,11.00R20,12.00-20,12.00R20
Rated payload: 12.6ton
Drive 6X4 (10 wheels)
Horsepower 336
Cargo box type: Rear-dump body

Overview

The Sinotruk HOWO Heavy Truck 336hp 6X4(10 wheels) 6m Dump Truck (ZZ3257M4147C/T1WA) is a Heavy truck featuring 12.6t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a SinotrukWD615.95E engine, 336 hp, China III / Euro III emissions and Sinotruk transmission.

China III / Euro III 336 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3257M4147C1
Drive type: 6X4
Wheelbase: 4125+1350mm
engine: SinotrukWD615.95E
transmission: SinotrukHW15710
Rear Axle Ratio: 5.73
Cab length: 8.845m
Cab width: 2.496m
Cab height: 3.17m
Front track width: 2022mm
rear track: 1830/1830mm
Curb Weight: 12.27ton
Rated payload: 12.6ton
GVWR: 25ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 19°
departure angle: 23°
Remarks: Curb weight is given without and with top cover. This model can be equipped with an eco-friendly covered cargo box; top cover weight is 200 kg. Vehicle length and box length correspond one-to-one. When this model is equipped with the 10/- leaf spring of the second-class chassis, the corresponding wheelbase is 4125+1400 mm and rear overhang is 1820 mm. When the cargo box is tilted forward, overall height is 3450 mm. For the 5800 mm cargo box, rear overhang is 1710 mm.
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukWD615.95E
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1350N·m
Max torque speed: 1100-1600rpm
Rated speed: 2200rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, electronic fuel injection pump, EGR
Transmission Parameters
Transmission Model: SinotrukHW15710
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 6m
Cargo box width: 2.3m
Cargo box height: 1.09m
fuel tank
Fuel tank capacity: 220L
Chassis Specs
rear axle description: AC16
rear axle allowable load: 18000kg
Axle ratio: 5.73
Leaf spring count: 10/12,4/-,10/-
Tire
Tire Size: 11.00-20,11.00R20,12.00-20,12.00R20
Number of tires: 10pcs

Photos

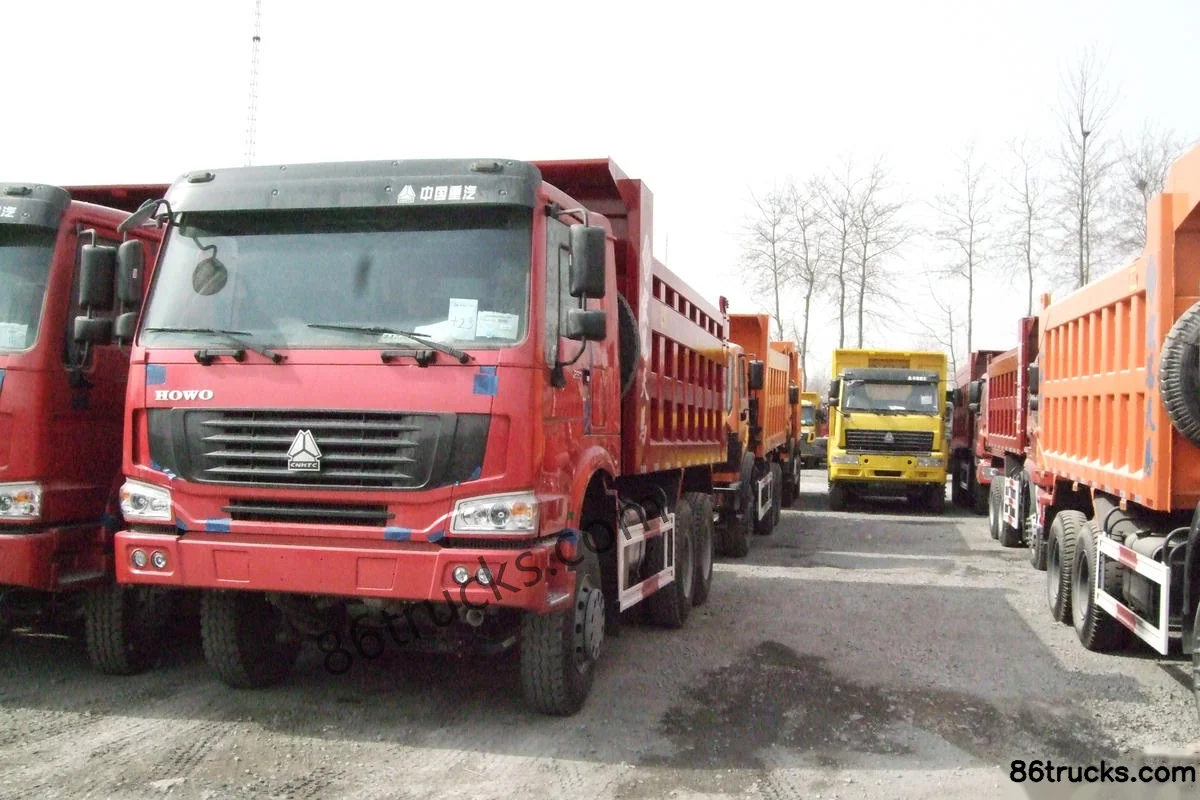

Exterior1

1 photos

FAQ

What is the export price of Sinotruk HOWO Heavy Truck 336hp 6X4(10 wheels) 6m Dump Truck (ZZ3257M4147C/T1WA), and what does it include?

Sinotruk HOWO Heavy Truck 336hp 6X4(10 wheels) 6m Dump Truck (ZZ3257M4147C/T1WA) export reference is about From $43,028; MSRP is ¥30.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO Heavy Truck 336hp 6X4(10 wheels) 6m Dump Truck (ZZ3257M4147C/T1WA) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Heavy Truck 336hp 6X4(10 wheels) 6m Dump Truck (ZZ3257M4147C/T1WA)?

Key specs of Sinotruk HOWO Heavy Truck 336hp 6X4(10 wheels) 6m Dump Truck (ZZ3257M4147C/T1WA): Drive: 6x4; Horsepower: 336 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Heavy Truck 336hp 6X4(10 wheels) 6m Dump Truck (ZZ3257M4147C/T1WA) suited for?

Sinotruk HOWO Heavy Truck 336hp 6X4(10 wheels) 6m Dump Truck (ZZ3257M4147C/T1WA) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO Heavy Truck 336hp 6X4(10 wheels) 6m Dump Truck (ZZ3257M4147C/T1WA) differ from other variants in the same series?

Sinotruk HOWO Heavy Truck 336hp 6X4(10 wheels) 6m Dump Truck (ZZ3257M4147C/T1WA) belongs to Sinotruk HOWO-7 heavy-duty truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Heavy Truck 336hp 6X4(10 wheels) 6m Dump Truck (ZZ3257M4147C/T1WA)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Heavy Truck 336hp 6X4(10 wheels) 6m Dump Truck (ZZ3257M4147C/T1WA)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
