SHACMAN Delong L5000 8X4(12 wheels) Pure Electric Concrete Mixer Truck (Ruijiang Brand) 281.91kWh

Export reference
From $65,764
MSRP ¥47.35M CNY
Tire Size:: 11R22.5 18PR
Cab dimensions:: 10.15×2.55×3.85m
Truck Type:: electric concrete mixer truck
Vehicle origin:: Wuhu, Anhui
Front/rear track width:: Front track: 1935/1935mm; Rear track: 1860/1860mm
Max. speed:: 89km/h
Rated payload: 17.57ton
Drive 8X4 (12 wheels)
Curb Weight: 13.3ton
Wheelbase: 1800+3000+1400mm

Overview

The SHACMAN Delong L5000 8X4(12 wheels) Pure Electric Concrete Mixer Truck (Ruijiang Brand) 281.91kWh is a concrete mixer truck featuring 17.57t payload, 13.3ton GVW, 8X4 (12 wheels) drive and L5000 elite cab cab.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.15×2.55×3.85m
Drive type: 8X4
Truck Type: electric concrete mixer truck
Vehicle origin: Wuhu, Anhui
Wheelbase: 1800+3000+1400mm
Front/rear track width: Front track: 1935/1935mm; Rear track: 1860/1860mm
Curb Weight: 13.3ton
Rated payload: 17.57ton
Max. speed: 89km/h
Front/rear suspension: 1.34/2.61m
electric motor
Motor 1 Brand: Zhide
Motor 1 Model: TZ400XS033
Motor Type: Permanent magnet synchronous motor
total rated power: 270kW
Peak power: 410kW
total peak torque: 2400N·m
total rated torque: 1400N·m
Body Parameters
Mixing drum capacity: 8m³
Vehicle certification code: WL5315GJBSXAEBEV
Body Brand: Ruijiang
Chassis Specs
Chassis Series: L5000
Chassis Model: SX1317LF6EV1
Frame Dimensions: 850×270(8+4)mm
rear axle description: 11T 390 single reduction drive axle
Axle ratio: 5.286
Leaf spring count: 3/3/5,3/3/-
Cab parameters
Cab: L5000 elite cab
Tire
Tire Size: 11R22.5 18PR
Number of tires: 12pcs

Photos

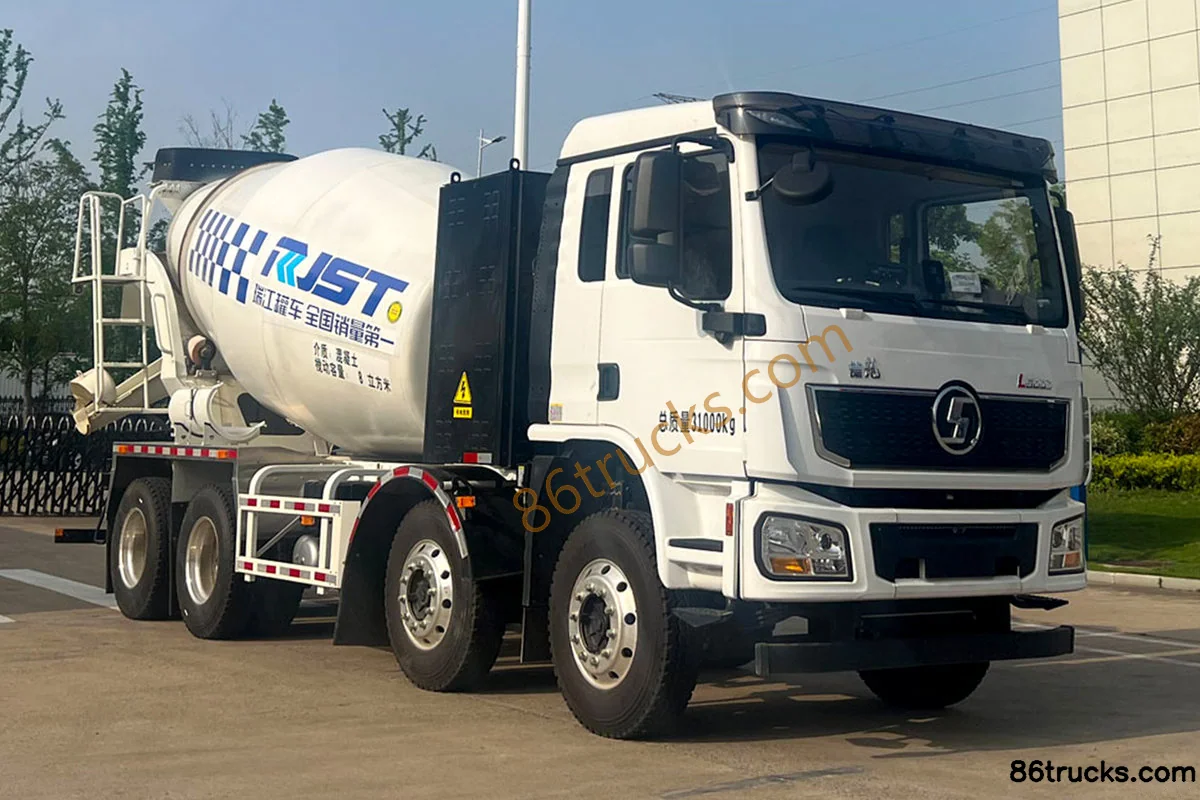

Exterior1

1 photos

FAQ

What is the export price of SHACMAN Delong L5000 8X4(12 wheels) Pure Electric Concrete Mixer Truck (Ruijiang Brand) 281.91kWh, and what does it include?

SHACMAN Delong L5000 8X4(12 wheels) Pure Electric Concrete Mixer Truck (Ruijiang Brand) 281.91kWh export reference is about From $65,764; MSRP is ¥47.35M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of SHACMAN Delong L5000 8X4(12 wheels) Pure Electric Concrete Mixer Truck (Ruijiang Brand) 281.91kWh?

Key specs of SHACMAN Delong L5000 8X4(12 wheels) Pure Electric Concrete Mixer Truck (Ruijiang Brand) 281.91kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong L5000 8X4(12 wheels) Pure Electric Concrete Mixer Truck (Ruijiang Brand) 281.91kWh suited for?

SHACMAN Delong L5000 8X4(12 wheels) Pure Electric Concrete Mixer Truck (Ruijiang Brand) 281.91kWh is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong L5000 8X4(12 wheels) Pure Electric Concrete Mixer Truck (Ruijiang Brand) 281.91kWh differ from other variants in the same series?

SHACMAN Delong L5000 8X4(12 wheels) Pure Electric Concrete Mixer Truck (Ruijiang Brand) 281.91kWh belongs to SHACMAN Delong L5000 (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong L5000 8X4(12 wheels) Pure Electric Concrete Mixer Truck (Ruijiang Brand) 281.91kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong L5000 8X4(12 wheels) Pure Electric Concrete Mixer Truck (Ruijiang Brand) 281.91kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
