ZOOMLION ZT105 480 hp 6X4(10 wheels) Mining Dump Truck

Export reference
MSRP N/A
Drive: 6X4 (10 wheels)
Cab dimensions:: 9.2×4.24×4.27m
Model:: ZT105
Min turning radius:: 13m
Max climbing ability:: 31%
Min ground clearance:: 410cm
Curb Weight: 31.5ton
Horsepower 480
Max output power: 353kW
Emission China III / Euro III

Overview

The ZOOMLION ZT105 480 hp 6X4(10 wheels) Mining Dump Truck is a off-highway mining dump truck featuring 31.5ton GVW, 480 hp, 353kW power and 6X4 (10 wheels) drive. On the powertrain side, it comes with China III / Euro III emissions.

China III / Euro III 480 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.2×4.24×4.27m
Model: ZT105
Drive type: 6X4
Min turning radius: 13m
Max climbing ability: 31%
Curb Weight: 31.5ton
Min ground clearance: 410cm
Rated payload: 65ton
Max. speed: 51km/h
Body Parameters
Truck Brand: ZOOMLION
Chassis Specs
Front/rear axle load: 32/35×2ton
Engine parameters
Engine Model: YuchaiYC6K480-GT30
Displacement: 12.155L
Emission standard: China III / Euro III
Max output power: 353kW
Max hp: 480Horsepower
Max torque speed: 2200rpm
Cargo box parameters
Cargo box dimensions: 6× 3.5×1.7m
Transmission Parameters
Number of gears: 8Gear
Transmission Model: FAST 8D5240A
Tire

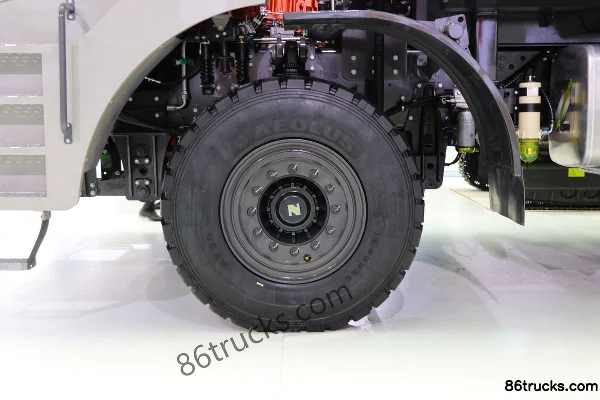

Tire Size: 14.00R25
Number of tires: 10pcs

Photos

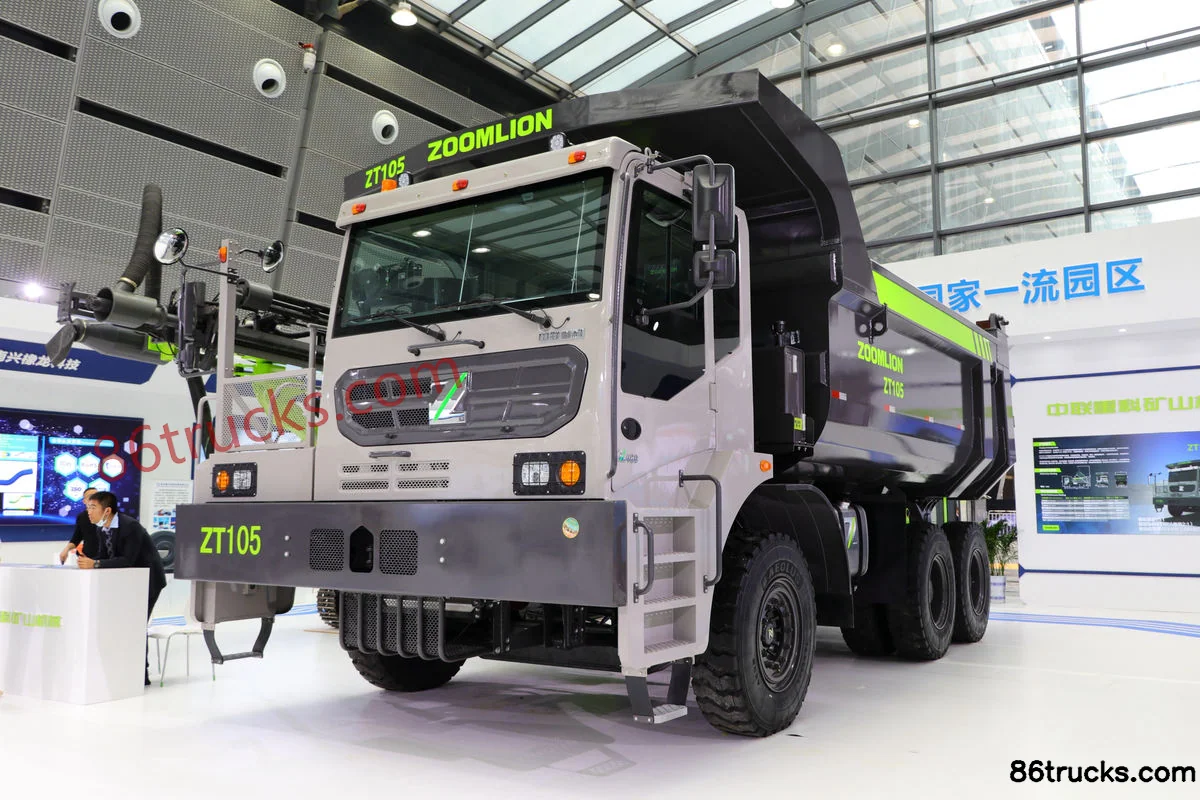

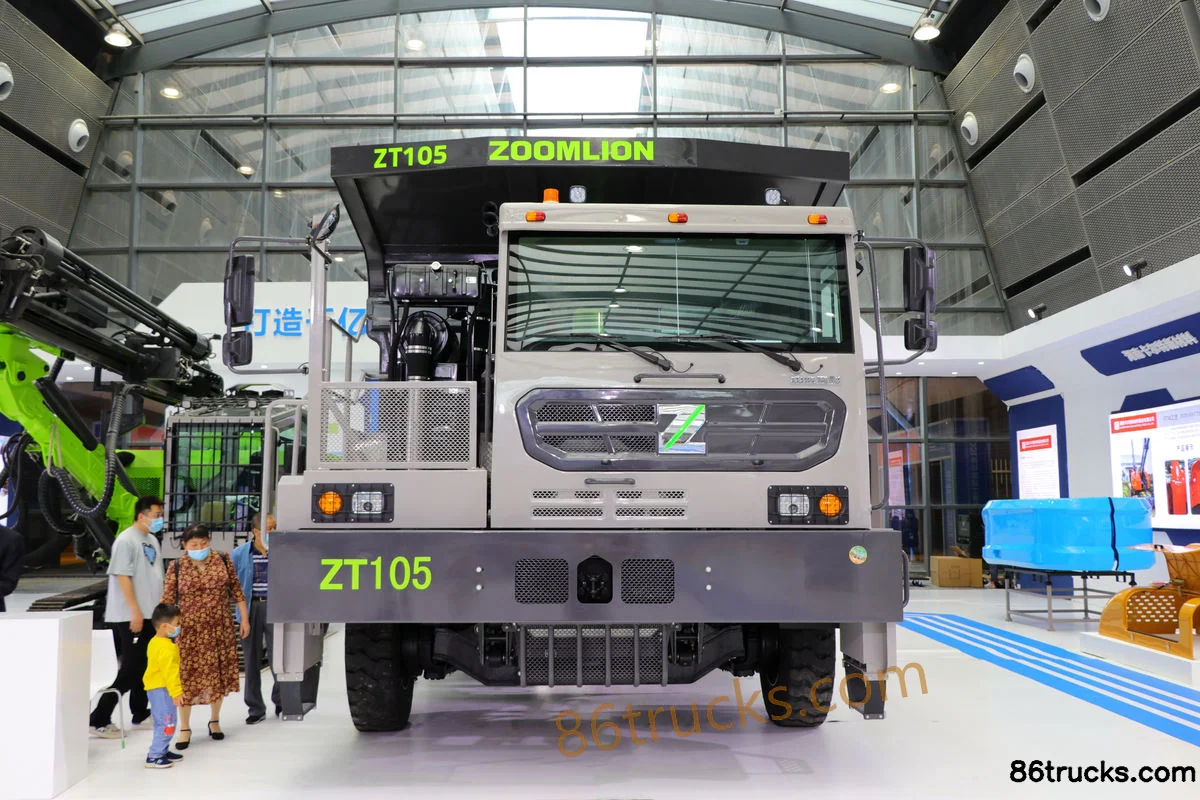

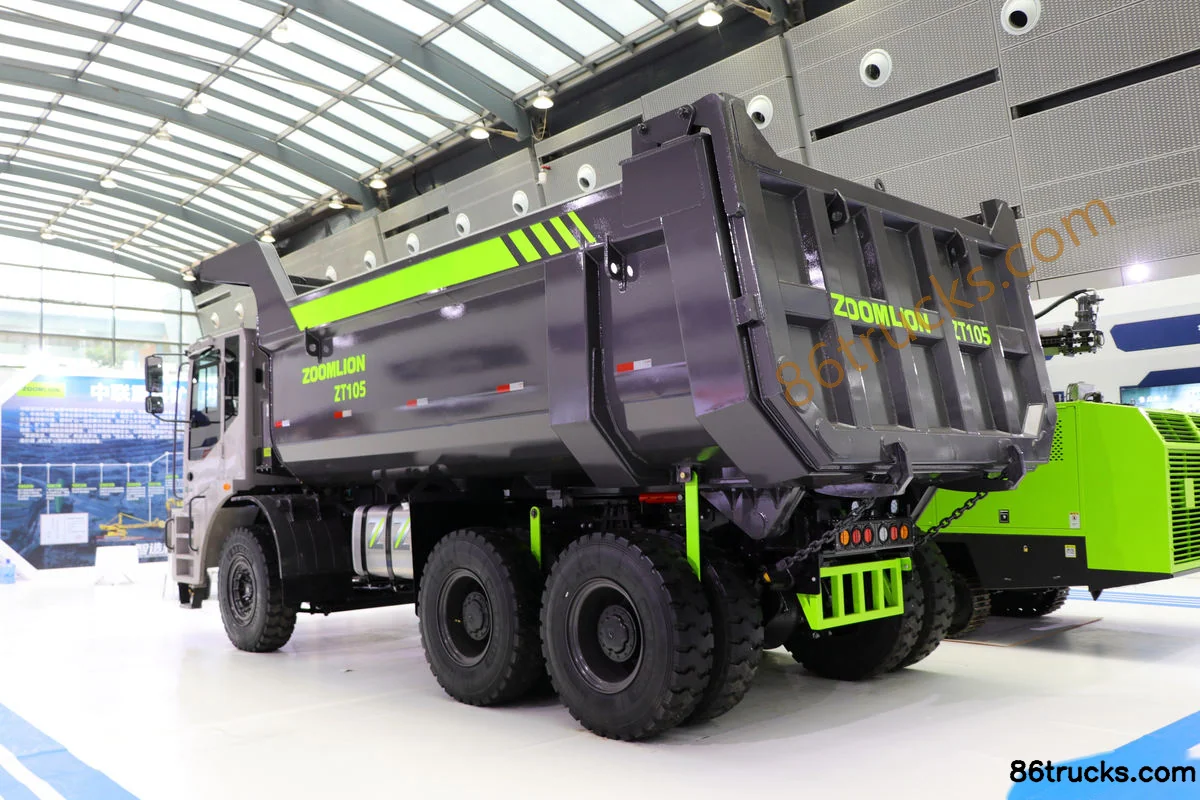

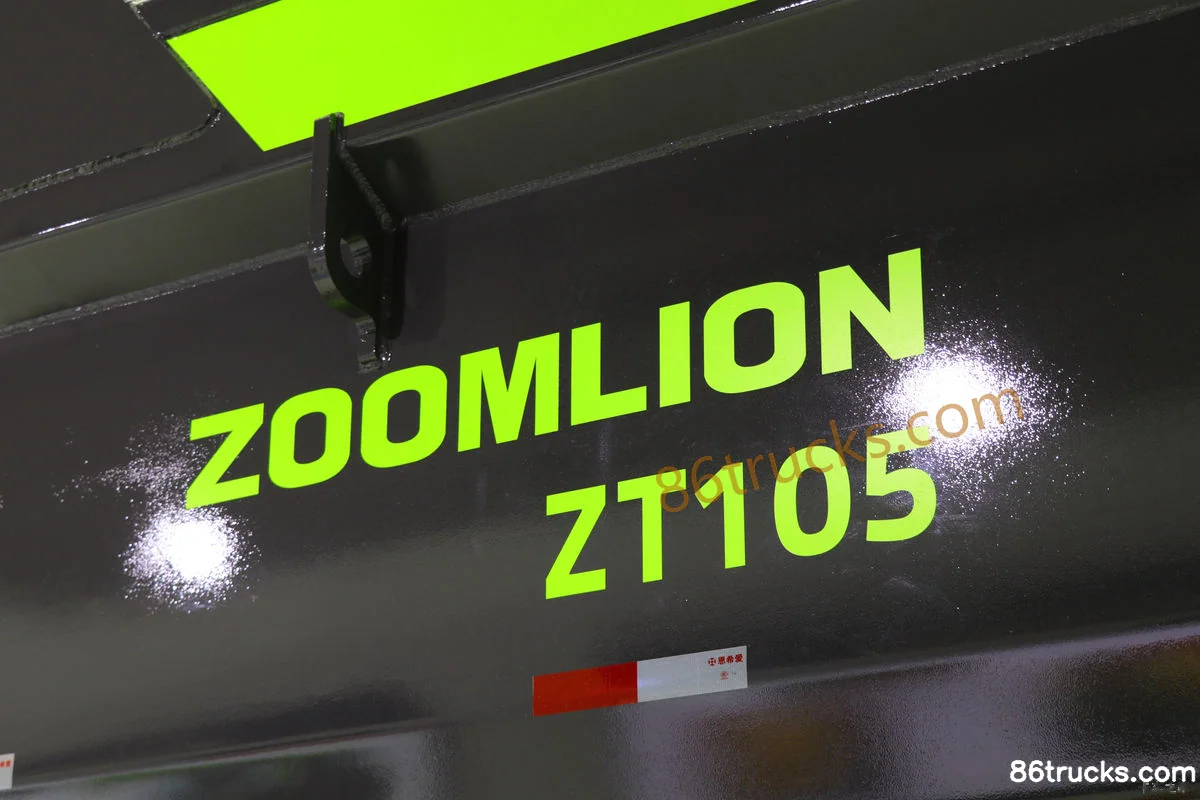

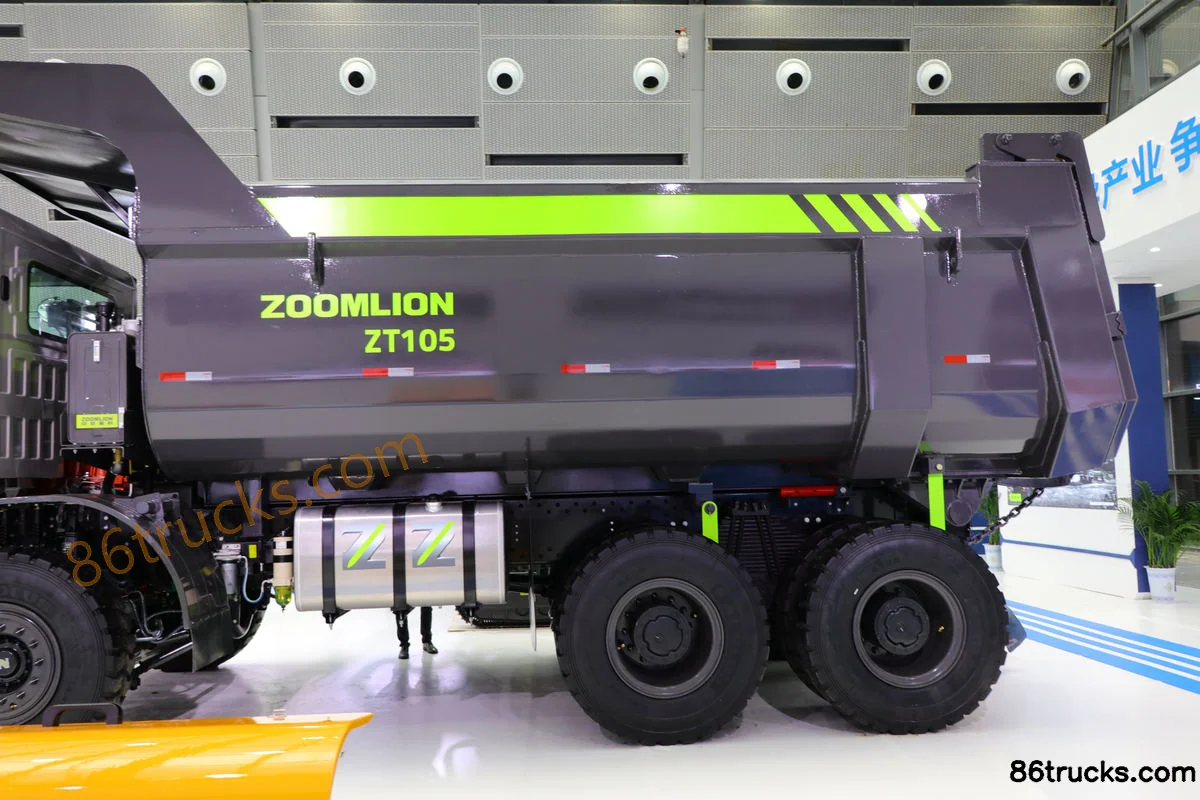

Exterior3

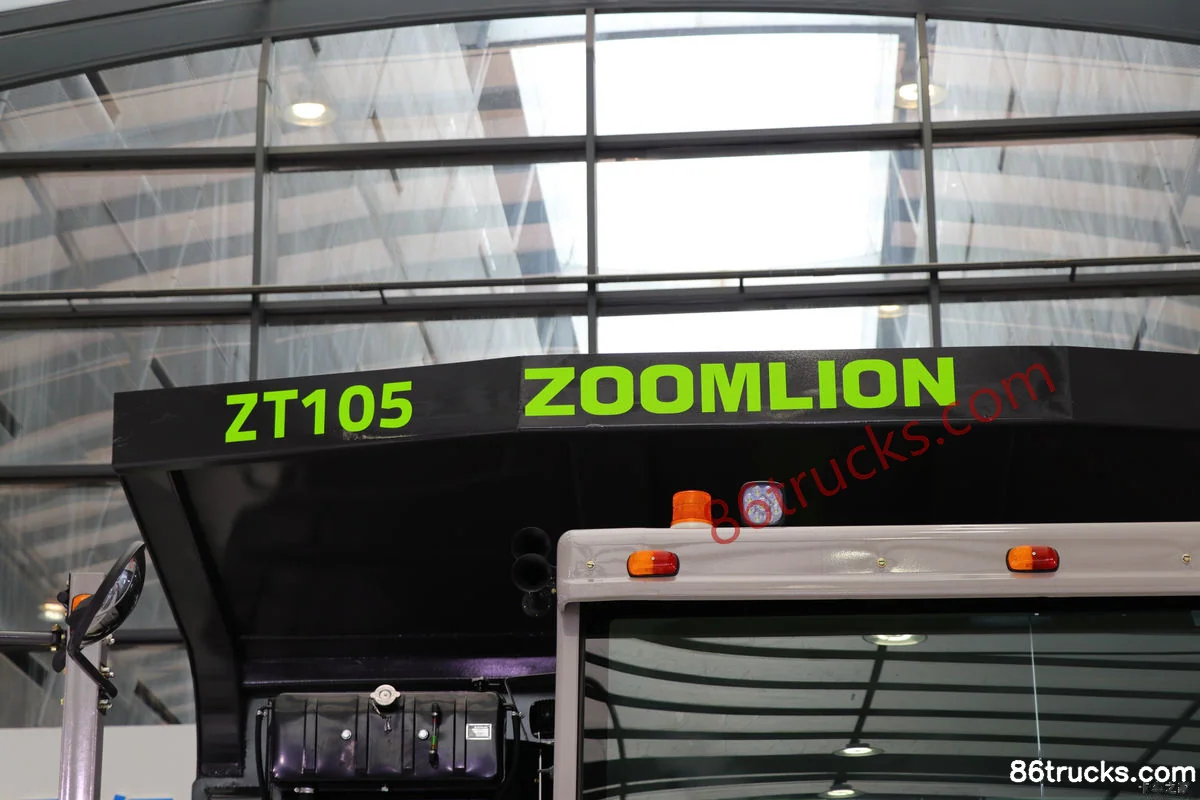

Cab3

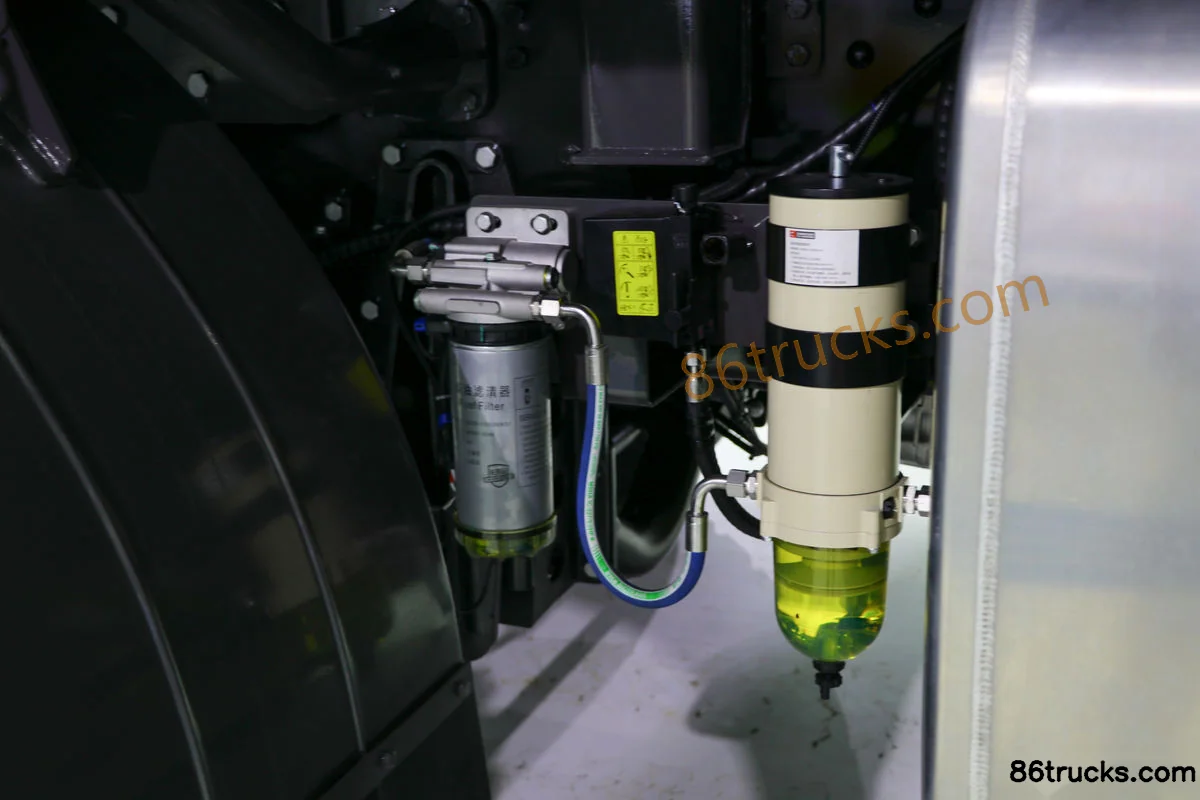

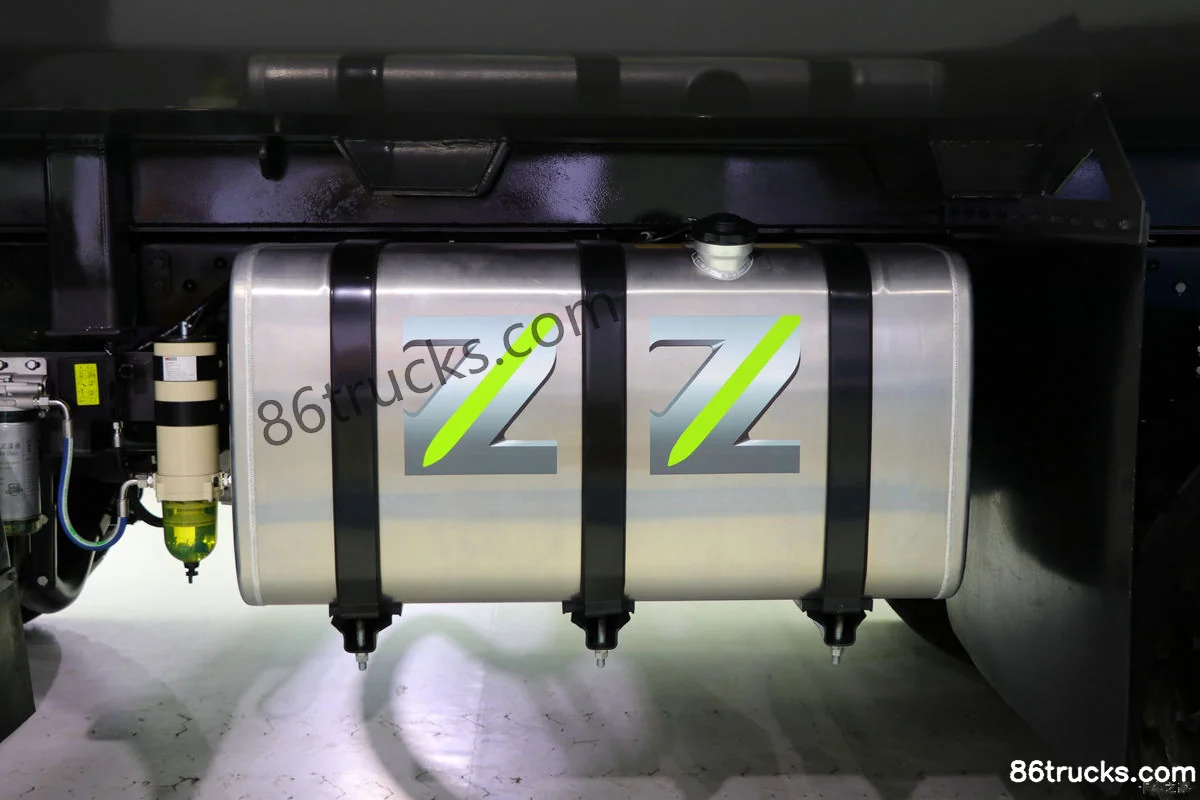

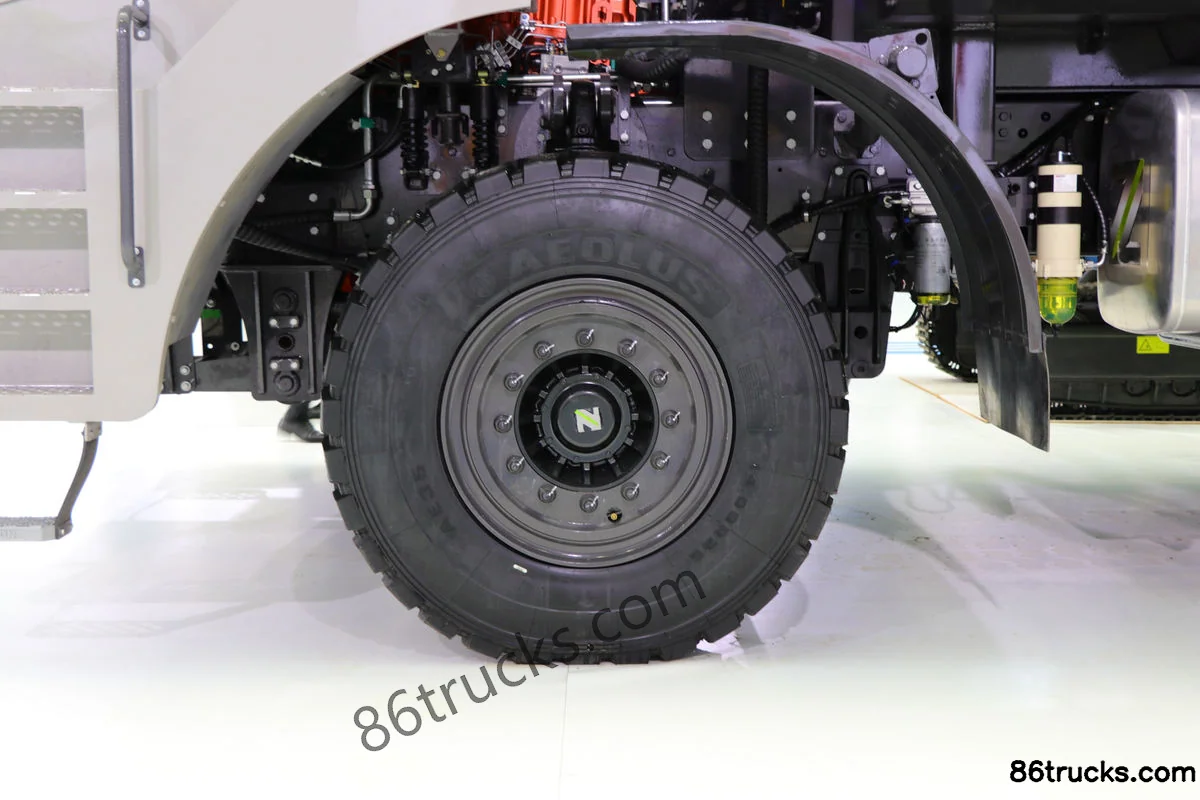

Chassis3

9 photos

FAQ

What emission standard does ZOOMLION ZT105 480 hp 6X4(10 wheels) Mining Dump Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of ZOOMLION ZT105 480 hp 6X4(10 wheels) Mining Dump Truck?

Key specs of ZOOMLION ZT105 480 hp 6X4(10 wheels) Mining Dump Truck: Drive: 6x4; Horsepower: 480 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is ZOOMLION ZT105 480 hp 6X4(10 wheels) Mining Dump Truck suited for?

ZOOMLION ZT105 480 hp 6X4(10 wheels) Mining Dump Truck is a off-highway mining dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does ZOOMLION ZT105 480 hp 6X4(10 wheels) Mining Dump Truck differ from other variants in the same series?

ZOOMLION ZT105 480 hp 6X4(10 wheels) Mining Dump Truck belongs to ZOOMLION ZT off-highway dump truck (off-highway mining dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for ZOOMLION ZT105 480 hp 6X4(10 wheels) Mining Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export ZOOMLION ZT105 480 hp 6X4(10 wheels) Mining Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
