XCMG XE150D crawler excavator

Export reference
MSRP N/A
Model:: XE150D
Engine Model:: crawler excavator
Tonnage:: 15ton
Bucket capacity:: 0.71cubic meter
boom length:: 4600mm
Arm Length:: 2520mm
Operating weight: 14.6ton
Bucket type: backhoe
Fuel Tank Capacity: 260L
Product power: Conventional Power

Overview

The XCMG XE150D crawler excavator is a excavator featuring 14.6ton GVW, backhoe bucket capacity, 260L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model: XE150D
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 15ton
Operating weight: 14.6ton
Bucket capacity: 0.71cubic meter
boom length: 4600mm
Arm Length: 2520mm
Machine dimensions: 7.795×2.59×2.9mm
Track shoe width: 600mm
Track gauge: 1990mm
Counterweight ground clearance: 948mm
Rear Overhang Radius: 2325mm
Min ground clearance: 477cm
hydraulic system
Max flow of main pump: 2×123.5L/min
travel hydraulic circuit: 34.4Mpa
Swing Hydraulic Circuit: 25Mpa
performance specs
Travel speed: 5.3/3.2km/h
Bucket digging force: 106.9kN
Max tractive force: 134kN
Arm Digging Force: 73.4kN
Oil capacity
Fuel Tank Capacity: 260L
hydraulic oil tank: 105L
Engine Oil Capacity: 11L
Operating Range
Max digging radius: 8304mm
Max digging depth: 5535mm
Max digging height: 8649mm
Max unloading height: 6185mm
Max vertical digging depth: 4697mm
Engine parameters
Engine Model: QSF3.8
Max output power: 93kW

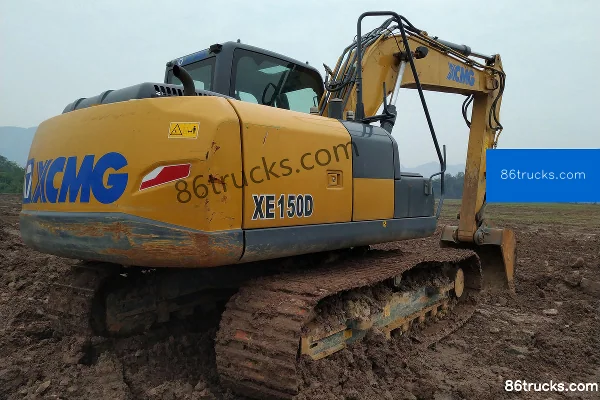

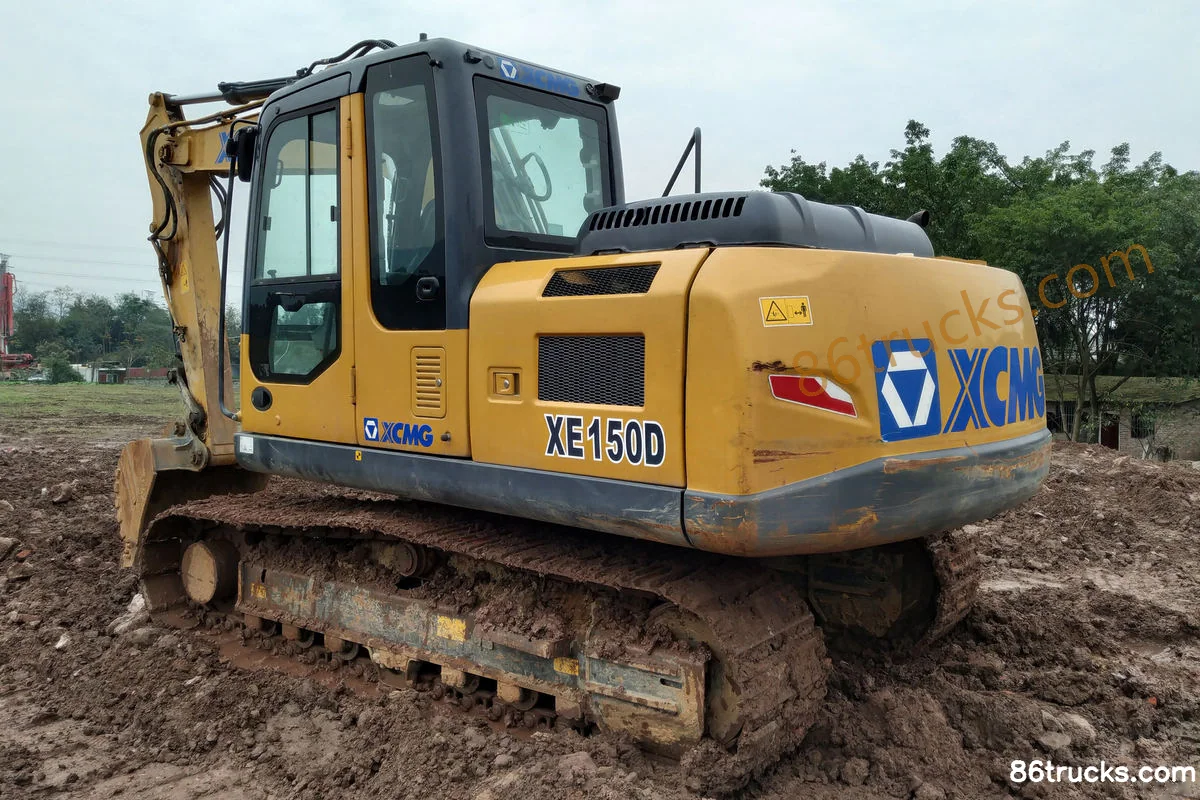

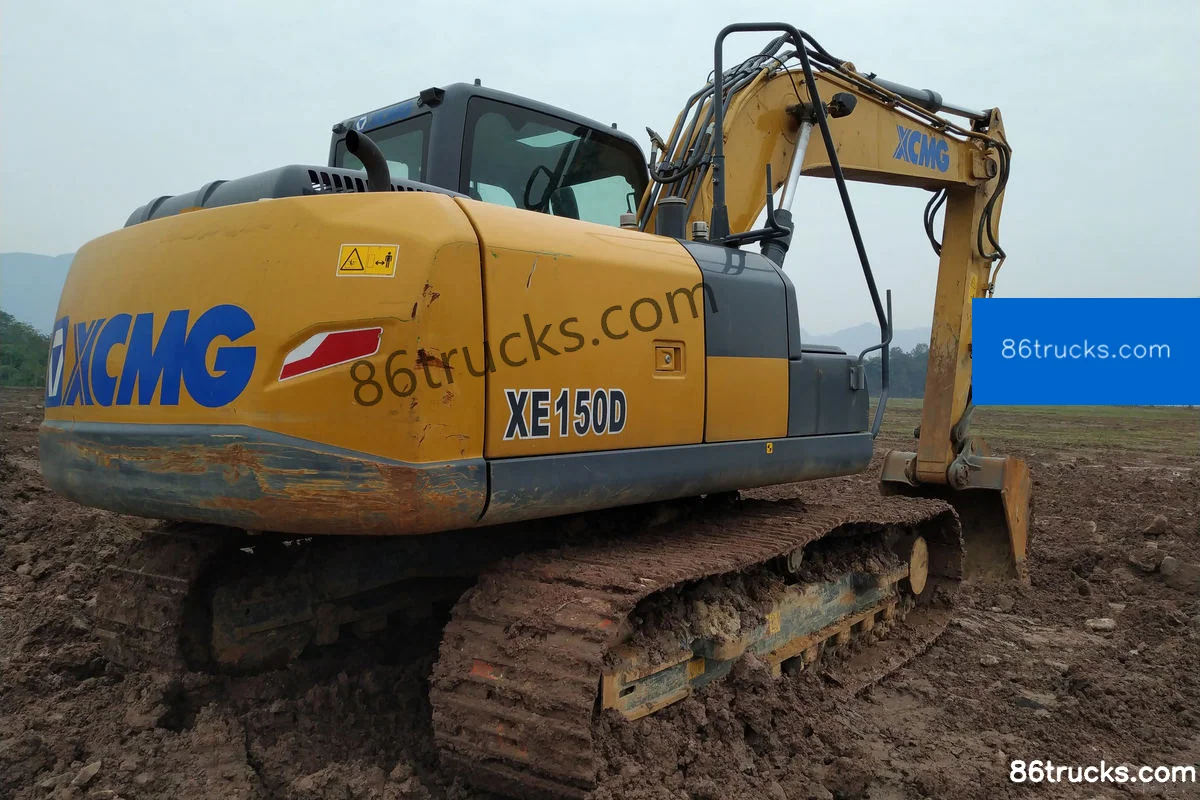

Photos

Exterior3

3 photos

FAQ

What transport jobs is XCMG XE150D crawler excavator suited for?

XCMG XE150D crawler excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does XCMG XE150D crawler excavator differ from other variants in the same series?

XCMG XE150D crawler excavator belongs to XCMG Crawler Excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for XCMG XE150D crawler excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export XCMG XE150D crawler excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
