Aerospace Wanshan WS Series 160 hp 4X2(6 wheels) Concrete Mixer Truck (Mengsheng Brand)

Export reference
From $24,028
MSRP ¥17.3M CNY
Fuel: Diesel
Curb Weight:: 8.7ton
Wheelbase:: 3600mm
Tire Size:: 10.00R20 (steel-belted tire)
Cab dimensions:: 7.37×2.5×3.72m
Truck Type:: concrete mixer truck
Rated payload: 9.17ton
Drive 4X2 (6 wheels)
Horsepower 160
Emission China V

Overview

The Aerospace Wanshan WS Series 160 hp 4X2(6 wheels) Concrete Mixer Truck (Mengsheng Brand) is a concrete mixer truck featuring 9.17t payload, 8.7ton GVW, 4X2 (6 wheels) drive and 143V air-suspended cab cab. On the powertrain side, it comes with 160 hp, China V emissions and Diesel fuel.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.37×2.5×3.72m
Truck Type: concrete mixer truck
Drive type: 4X2
Vehicle origin: Shiyan, Hubei
Front/rear track width: Front: 1815mm; Rear: 1860
Wheelbase: 3600mm
Curb Weight: 8.7ton
Rated payload: 9.17ton
Max. speed: 90km/h
Front/rear suspension: 1.435/2.335m
Body Parameters
Mixing drum capacity: 4m³
Vehicle certification code: MSH5180GJBGA
Body Brand: 盟盛
Others: with ABS, 7258 new regulations. Body: 7.5-8 m³ WISCO Q345 tank, Keyi/Rongjiao reducer, Sali/Interpump pump motor, 280L pneumatic water tank with high-pressure flushing device.
Engine parameters
Engine Model: YuchaiYC4E160-56
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Rated speed: 2600rpm
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85E-C
Chassis Specs
Chassis Model: WS1181GJA
Front axle description: 5T
rear axle description: 11.5T (153 reinforced)
Leaf spring count: 9/10+8,10/10+8
Cab parameters
Cab: 143V air-suspended cab
Tire
Tire Size: 10.00R20 (steel-belted tire)
Number of tires: 6pcs

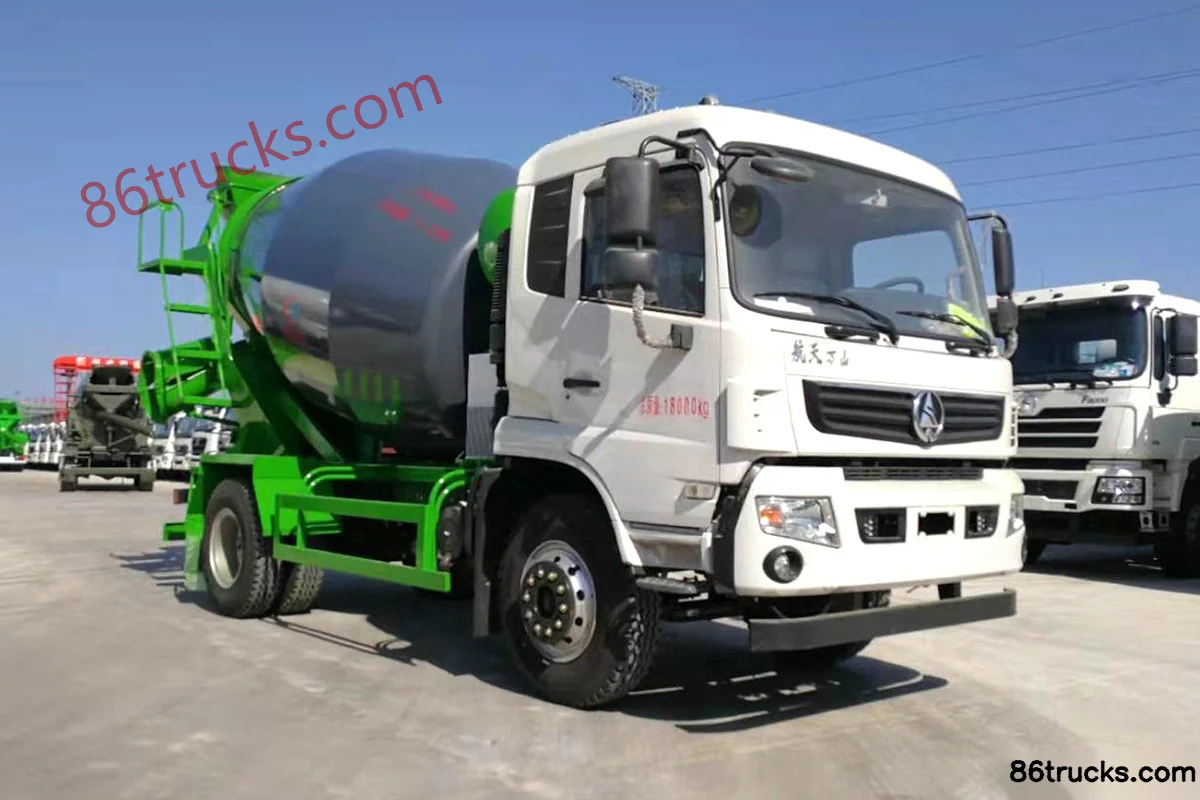

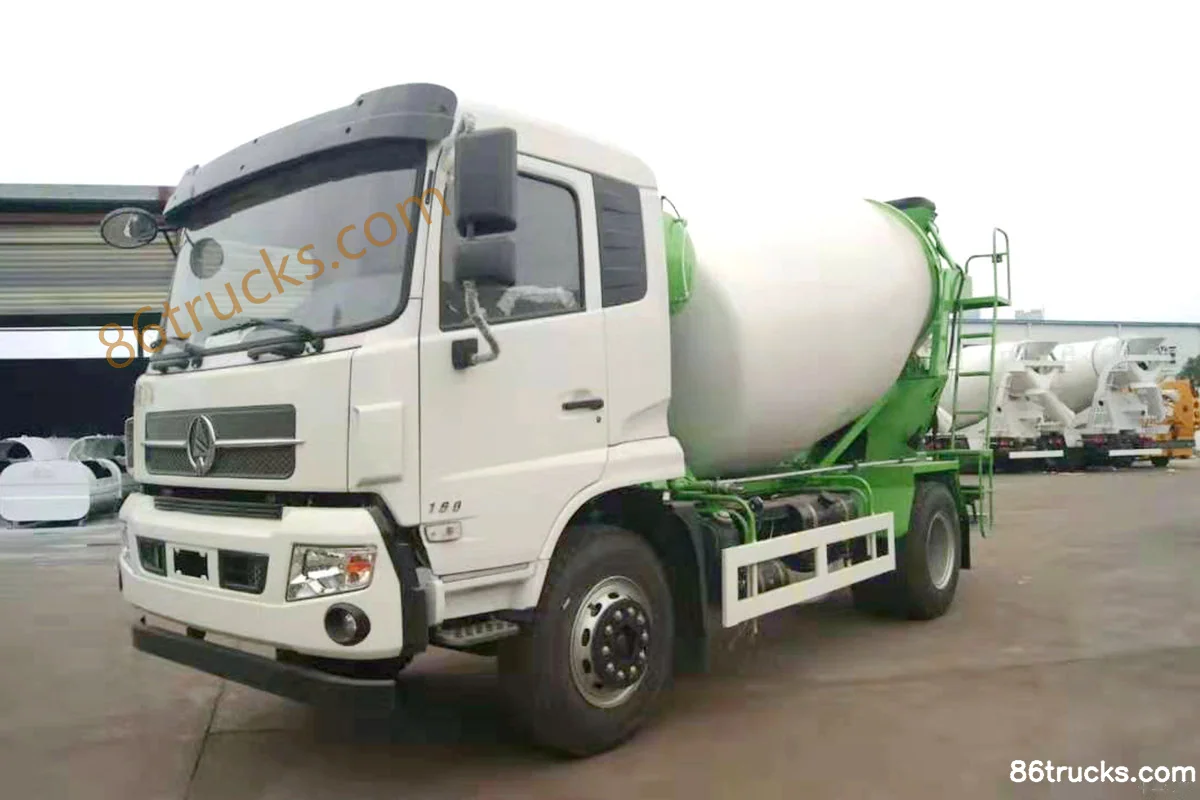

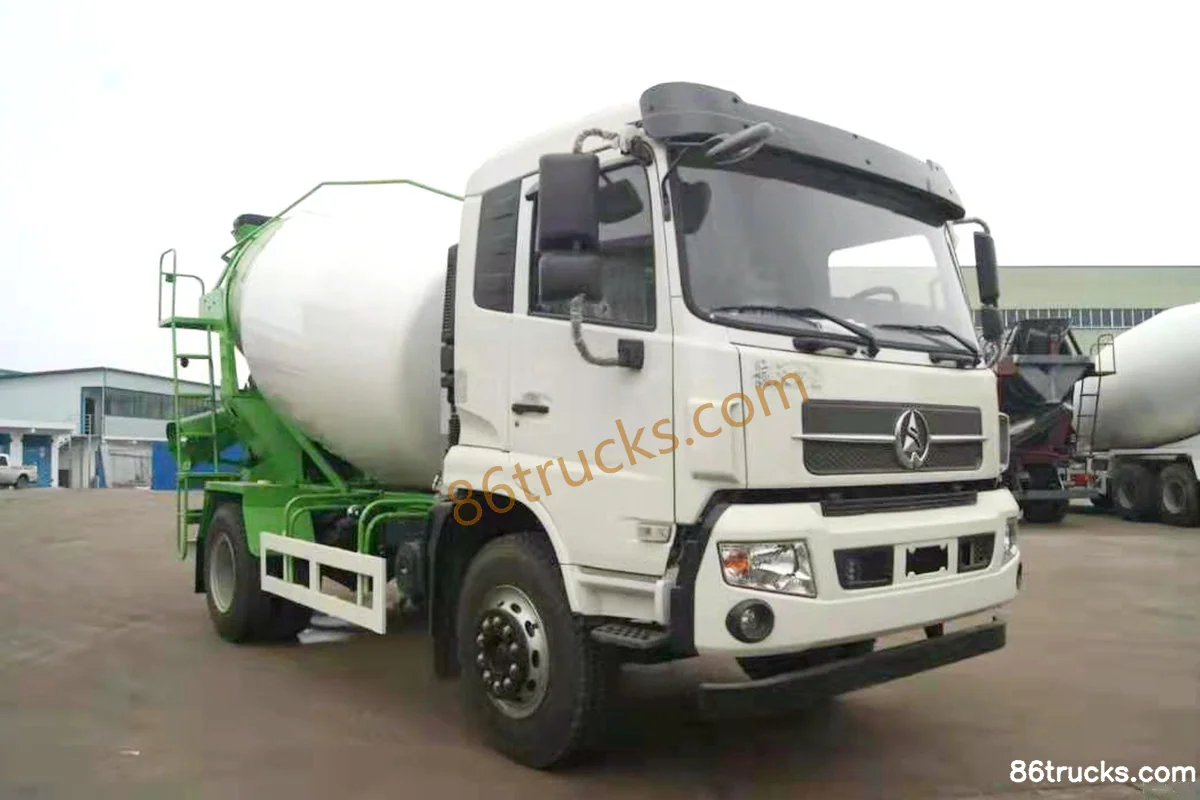

Photos

Exterior3

3 photos

FAQ

What is the export price of Aerospace Wanshan WS Series 160 hp 4X2(6 wheels) Concrete Mixer Truck (Mengsheng Brand), and what does it include?

Aerospace Wanshan WS Series 160 hp 4X2(6 wheels) Concrete Mixer Truck (Mengsheng Brand) export reference is about From $24,028; MSRP is ¥17.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Aerospace Wanshan WS Series 160 hp 4X2(6 wheels) Concrete Mixer Truck (Mengsheng Brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Aerospace Wanshan WS Series 160 hp 4X2(6 wheels) Concrete Mixer Truck (Mengsheng Brand)?

Key specs of Aerospace Wanshan WS Series 160 hp 4X2(6 wheels) Concrete Mixer Truck (Mengsheng Brand): Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Aerospace Wanshan WS Series 160 hp 4X2(6 wheels) Concrete Mixer Truck (Mengsheng Brand) suited for?

Aerospace Wanshan WS Series 160 hp 4X2(6 wheels) Concrete Mixer Truck (Mengsheng Brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Aerospace Wanshan WS Series 160 hp 4X2(6 wheels) Concrete Mixer Truck (Mengsheng Brand) differ from other variants in the same series?

Aerospace Wanshan WS Series 160 hp 4X2(6 wheels) Concrete Mixer Truck (Mengsheng Brand) belongs to Aerospace Wanshan WS series heavy truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Aerospace Wanshan WS Series 160 hp 4X2(6 wheels) Concrete Mixer Truck (Mengsheng Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Aerospace Wanshan WS Series 160 hp 4X2(6 wheels) Concrete Mixer Truck (Mengsheng Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
