FAW Jiefang J6P 8X4(12 wheels) 6.76m³ Electric Concrete Mixer Truck (Ruijiang Brand)

Export reference
MSRP N/A
Wheelbase:: 1950+3400+1350mm
Tire Size:: 11.00R20 18PR
Cab dimensions:: 10.8×2.55×3.99m
Truck Type:: electric concrete mixer transport truck
Vehicle origin:: Wuhu, Anhui
Front/rear track width:: Front: 2020/2020; Rear: 1878/1878mm
Rated payload: 14.77ton
Drive 8X4 (12 wheels)
Fuel Electric
Curb Weight: 16.1ton

Overview

The CIMC Ruijiang FAW Jiefang J6P 8X4(12 wheels) 6.76m³ Electric Concrete Mixer Truck (Ruijiang Brand) is a concrete mixer truck featuring 14.77t payload, 16.1ton GVW, 8X4 (12 wheels) drive and 10.8×2.55×3.99m cab. On the powertrain side, it comes with Electric fuel.

Electric 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.8×2.55×3.99m
Drive type: 8X4
Truck Type: electric concrete mixer transport truck
Vehicle origin: Wuhu, Anhui
Front/rear track width: Front: 2020/2020; Rear: 1878/1878mm
Wheelbase: 1950+3400+1350mm
Curb Weight: 16.1ton
Rated payload: 14.77ton
Max. speed: 89km/h
Front/rear suspension: 1.5/2.6m
electric motor
Motor 1 Brand: CRRC Times
Motor 1 Model: TZ400XS035
Motor Type: Permanent magnet synchronous motor
total rated power: 250kW
Peak power: 360kW
Body Parameters
Mixing drum capacity: 6.76m³
Vehicle certification code: WL5310GJBCAAZBEV
Body Brand: Ruijiang
Engine parameters
fuel type: Electric
Chassis Specs
Chassis Series: FAW JiefangJ6P
Chassis Model: CA5310GJBP66L4T4BEVA3
Front axle description: 2020 front axle
Frame Dimensions: 300×80×(8+5)mm
Axle ratio: 4.875
Leaf spring count: 9/9/10
Transmission Parameters
Number of gears: 12Gear
Transmission Model: FAW JiefangCA12TAX230E
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs

Photos

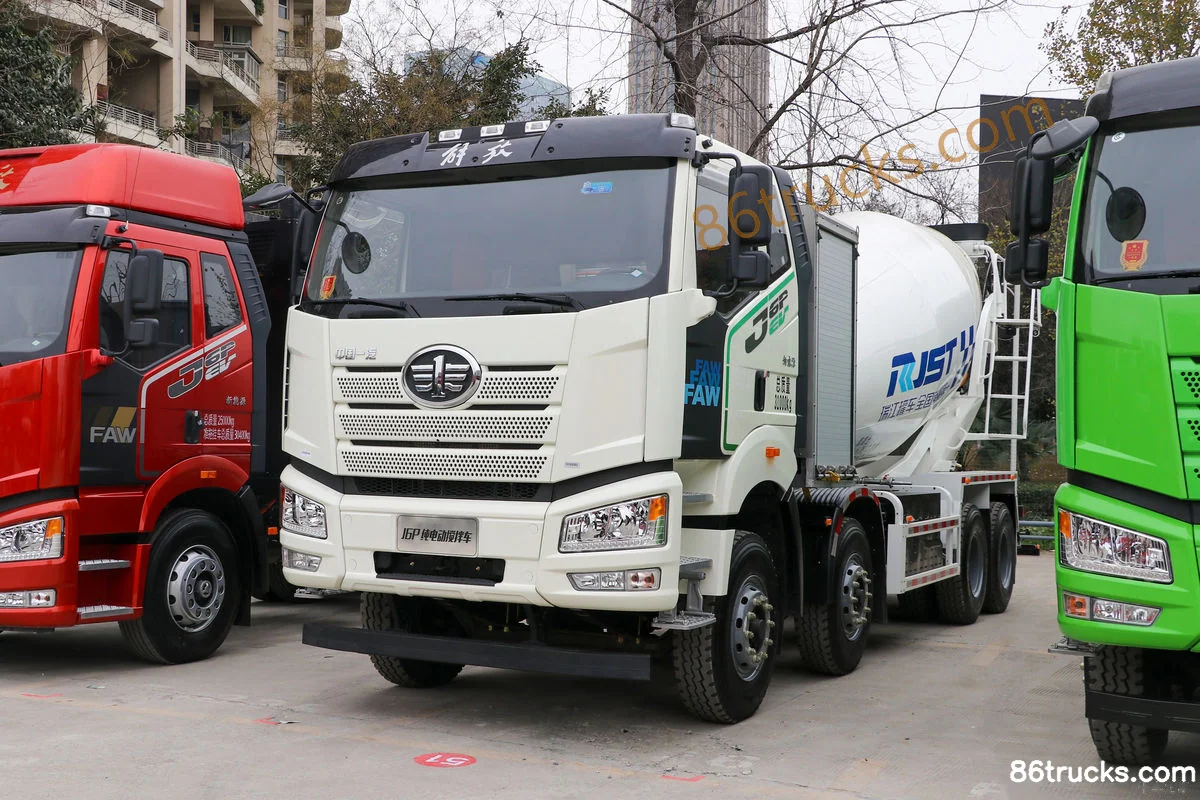

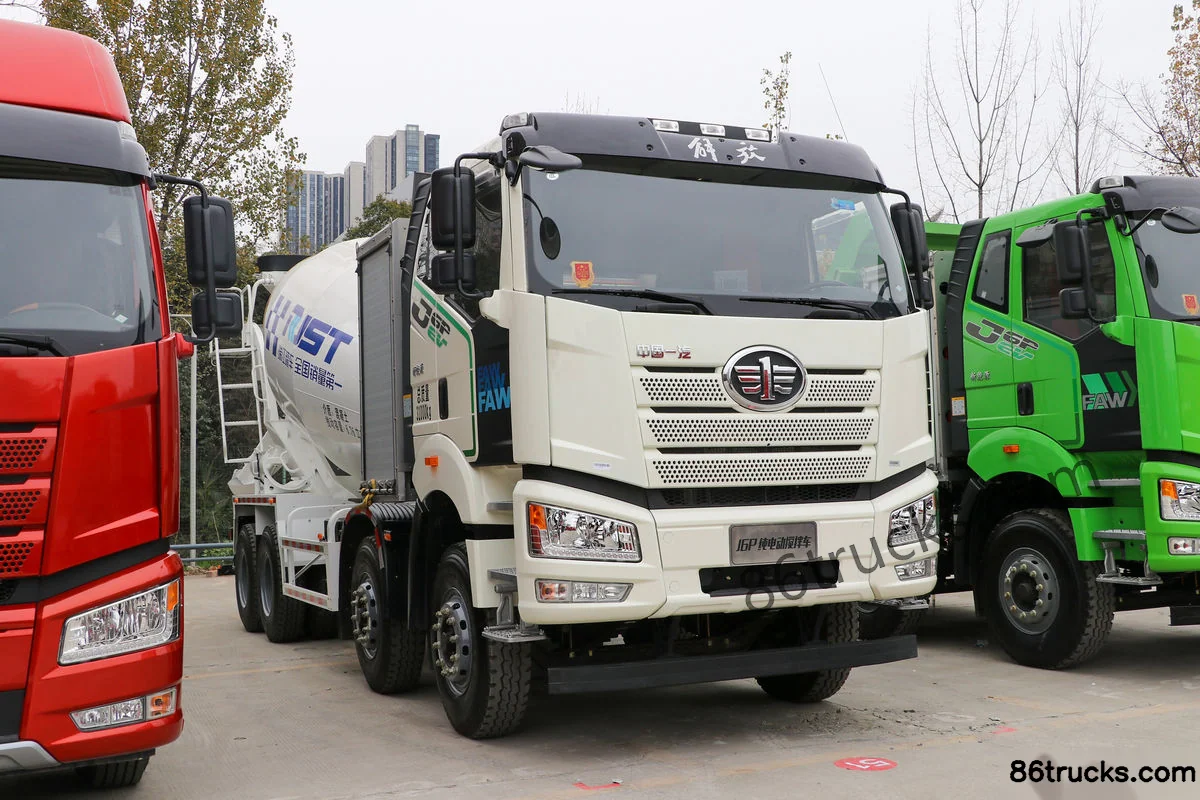

Exterior3

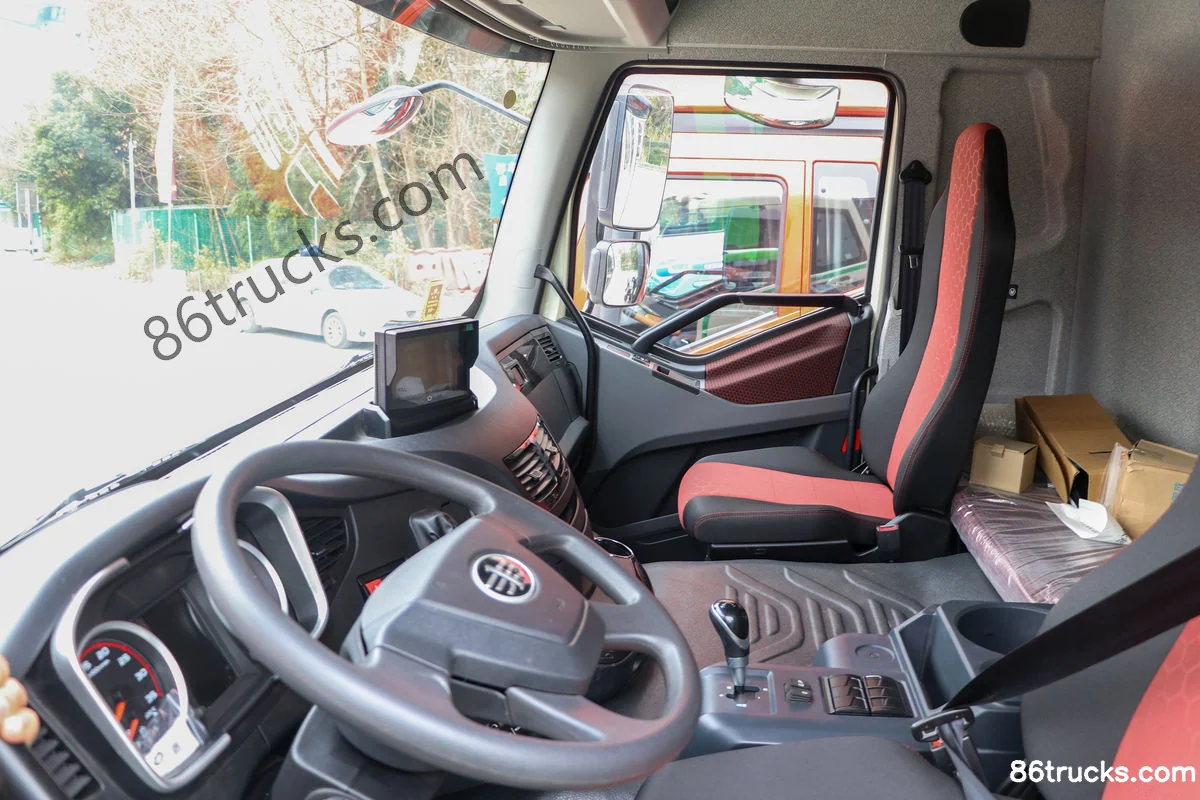

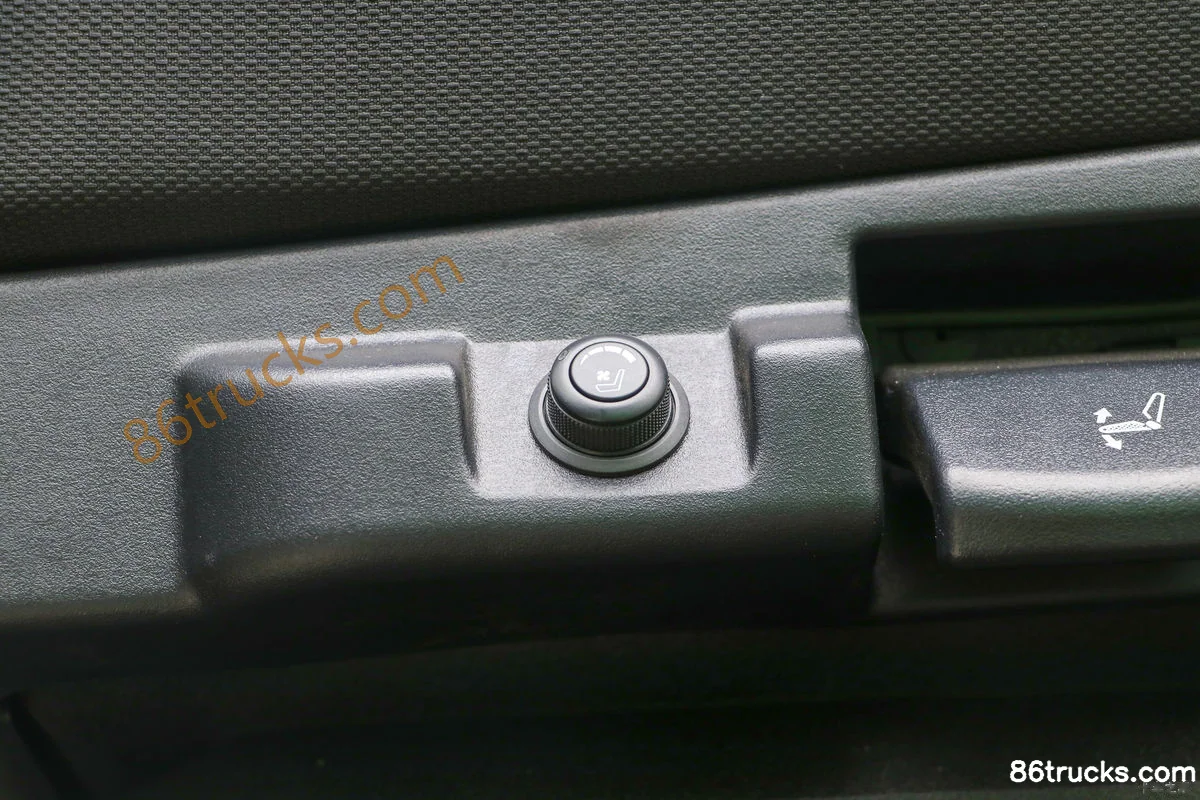

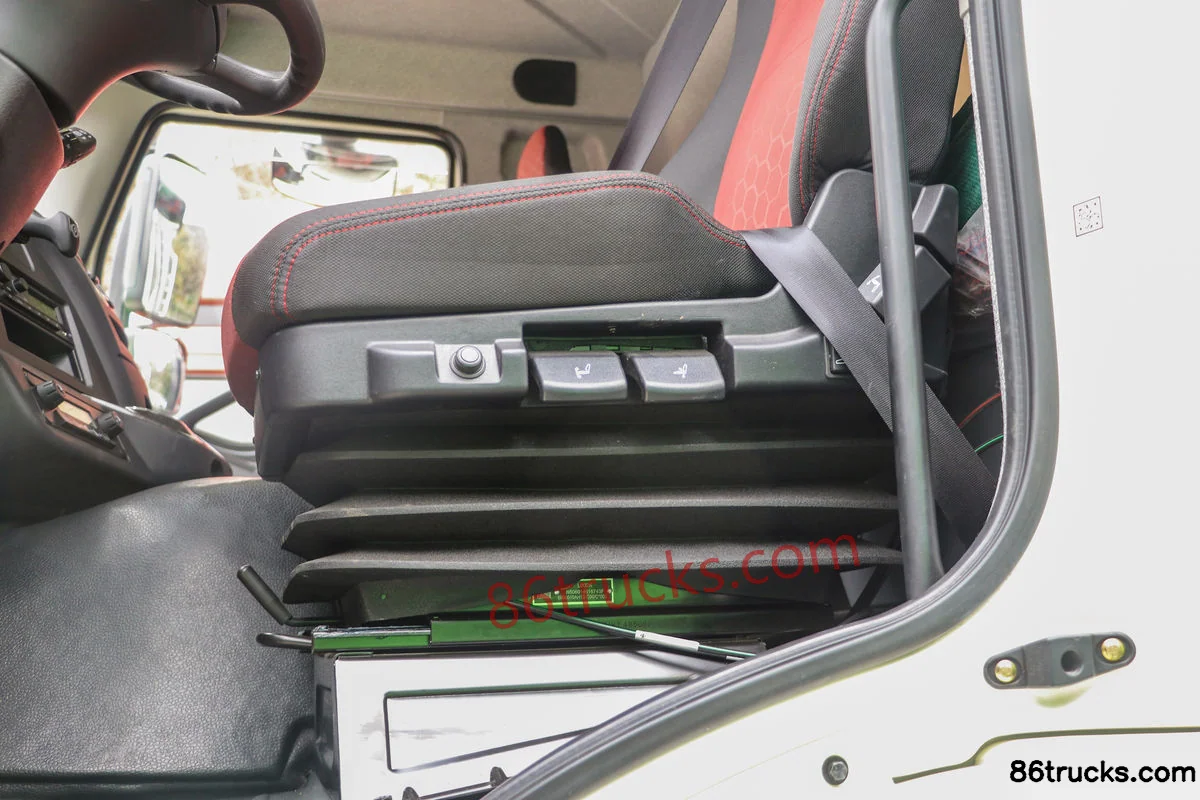

Cab3

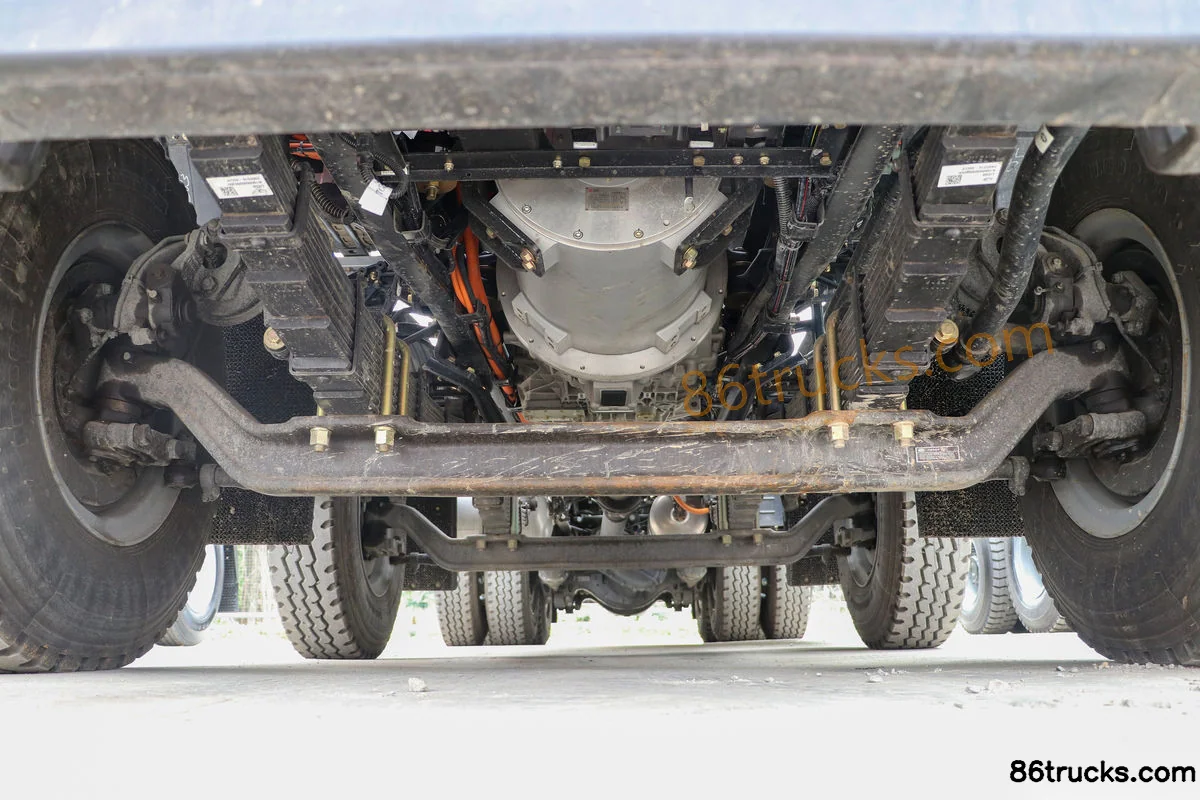

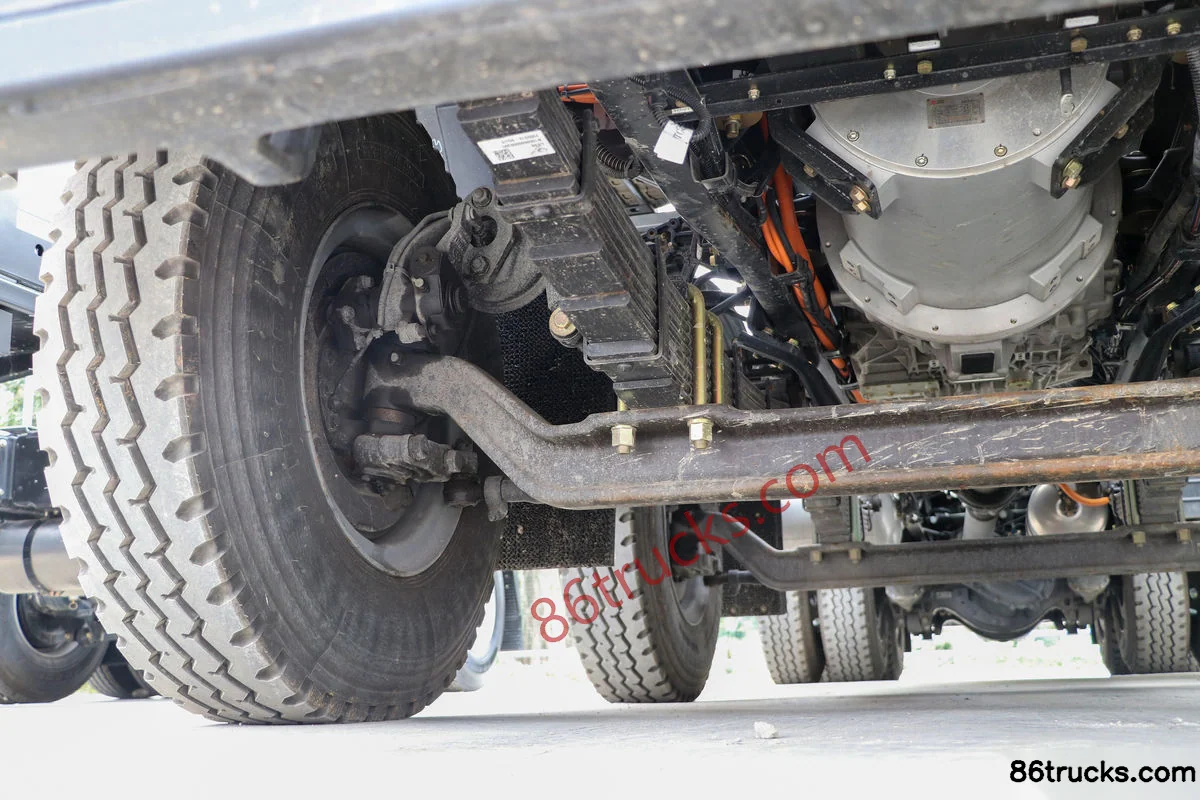

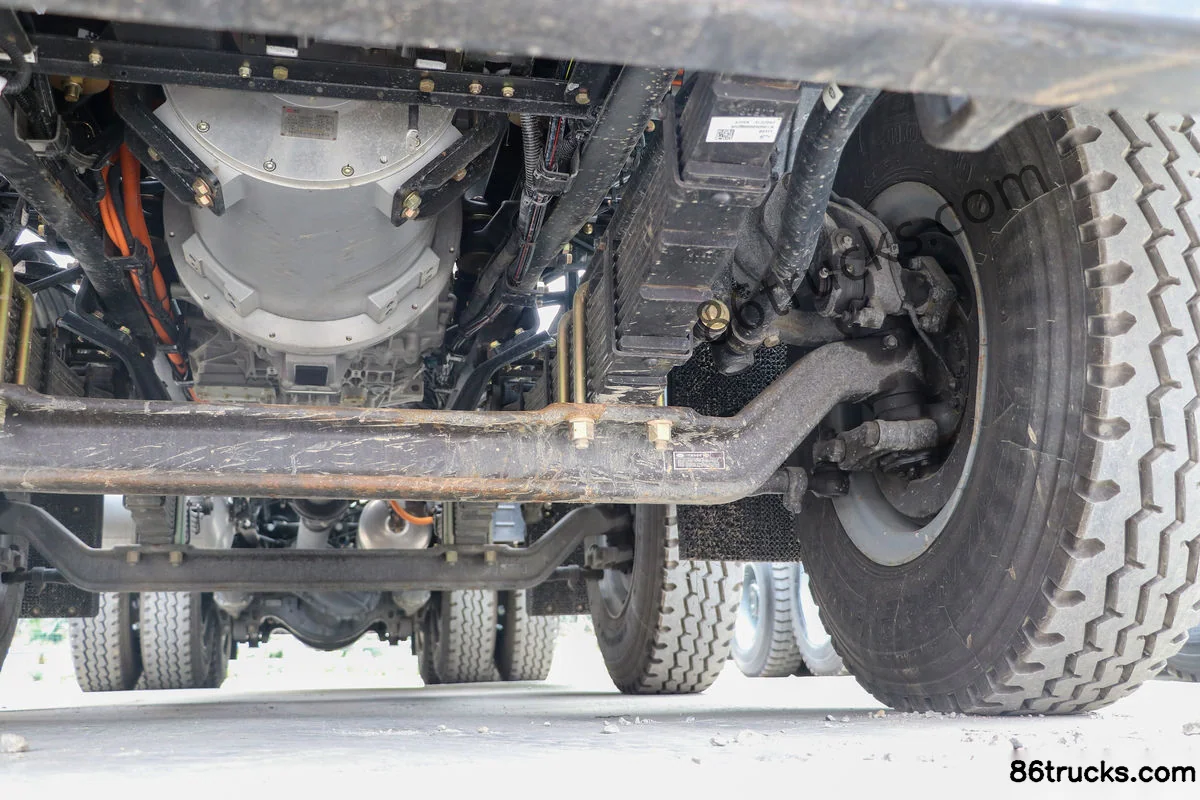

Chassis3

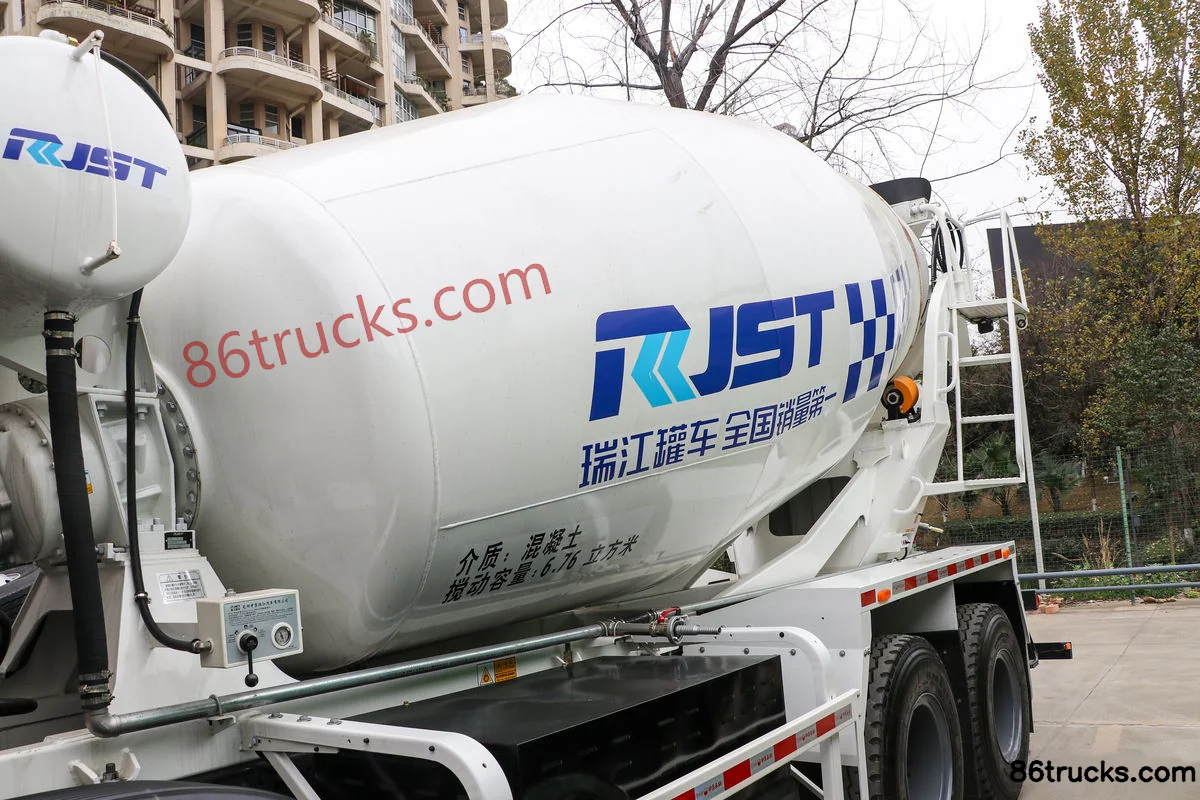

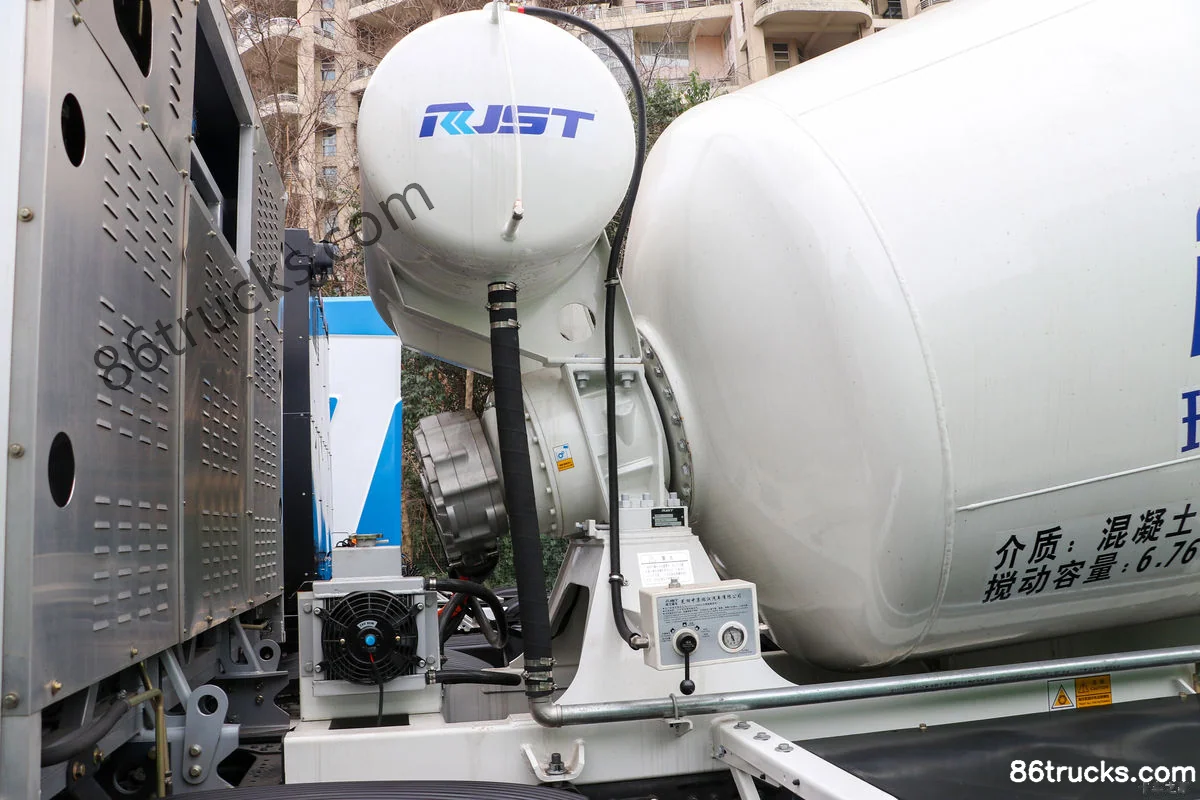

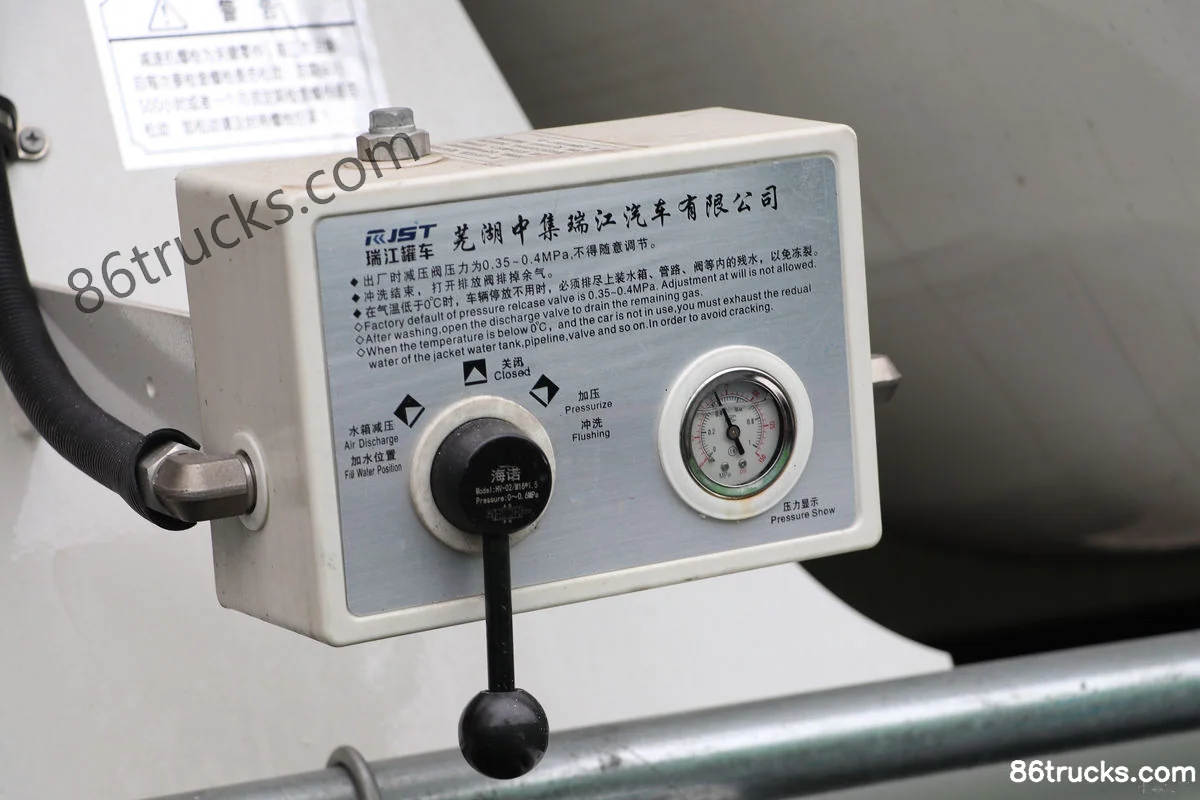

Body3

12 photos

FAQ

What are the key specs of FAW Jiefang J6P 8X4(12 wheels) 6.76m³ Electric Concrete Mixer Truck (Ruijiang Brand)?

Key specs of FAW Jiefang J6P 8X4(12 wheels) 6.76m³ Electric Concrete Mixer Truck (Ruijiang Brand): Drive: 8x4; Fuel: Electric. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6P 8X4(12 wheels) 6.76m³ Electric Concrete Mixer Truck (Ruijiang Brand) suited for?

FAW Jiefang J6P 8X4(12 wheels) 6.76m³ Electric Concrete Mixer Truck (Ruijiang Brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang J6P 8X4(12 wheels) 6.76m³ Electric Concrete Mixer Truck (Ruijiang Brand) differ from other variants in the same series?

FAW Jiefang J6P 8X4(12 wheels) 6.76m³ Electric Concrete Mixer Truck (Ruijiang Brand) belongs to CIMC Ruijiang FAW Jiefang chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6P 8X4(12 wheels) 6.76m³ Electric Concrete Mixer Truck (Ruijiang Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6P 8X4(12 wheels) 6.76m³ Electric Concrete Mixer Truck (Ruijiang Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
