FAW Jiefang Hanwei (J5M) 280 hp 8X4(12 wheels) Chemical Liquid Transport Truck (Chusheng Brand)

Export reference
MSRP N/A
Emission: China III / Euro III
Wheelbase:: 1900+4500+1350mm
Cab dimensions:: 11.95×2.49×3.35m
Truck Type:: chemical liquid transport truck
Vehicle origin:: Suizhou, Hubei
Front/rear track width:: Front track: 1928/1928mm; Rear track: 1847/1847mm
Tank Size: 9.1×2.45×1.65m
Rated payload: 17ton
Drive 8X4 (12 wheels)
Horsepower 280

Overview

The FAW Jiefang Hanwei (J5M) 280 hp 8X4(12 wheels) Chemical Liquid Transport Truck (Chusheng Brand) is a liquid transport truck featuring 9.1×2.45×1.65m tank capacity, 17t payload, 27m³ volume and 31t GVW. On the powertrain side, it comes with 280 hp, 8X4 (12 wheels) drive and China III / Euro III emissions.

China III / Euro III 280 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.95×2.49×3.35m
Drive type: 8X4
Truck Type: chemical liquid transport truck
Vehicle origin: Suizhou, Hubei
Wheelbase: 1900+4500+1350mm
Front/rear track width: Front track: 1928/1928mm; Rear track: 1847/1847mm
Rated payload: 17ton
GVWR: 31ton
Max. speed: 85km/h
Front/rear suspension: 1.375/2.825m
Energy Type: Diesel
Body Parameters
Tank Size: 9.1×2.45×1.65m
Tank Volume: 27m3
Transport medium: n-hexane
Medium Density: 0.66ton/cubic meter
Vehicle certification code: CSC5313GHYC
Body Brand: Chusheng Brand
Others: Available with 30/35/40 m³ tank
Chassis Specs
Front/rear axle description: Rear Axle 45T
Chassis Brand: FAW Jiefang Qingdao
Chassis Series: J5M Hanwei
Chassis Model: CA1313P7K1L11T4E
Leaf spring count: 12/12/10
Engine parameters
Engine Model: Dachai BF6M1013-28E3
Number of cylinders: 6cylinder
Displacement: 7.146L
Emission standard: China III / Euro III
Max output power: 216kW
Max hp: 280Horsepower
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear 9-speed gearbox
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

Photos

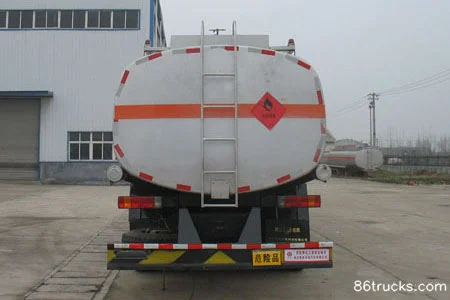

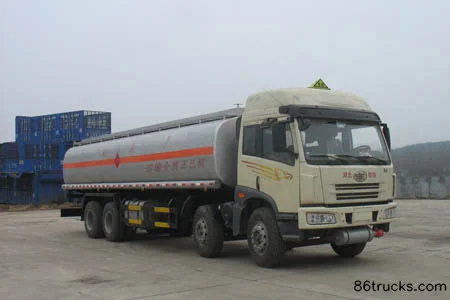

Exterior2

2 photos

FAQ

What emission standard does FAW Jiefang Hanwei (J5M) 280 hp 8X4(12 wheels) Chemical Liquid Transport Truck (Chusheng Brand) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Hanwei (J5M) 280 hp 8X4(12 wheels) Chemical Liquid Transport Truck (Chusheng Brand)?

Key specs of FAW Jiefang Hanwei (J5M) 280 hp 8X4(12 wheels) Chemical Liquid Transport Truck (Chusheng Brand): Drive: 8x4; Horsepower: 280 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hanwei (J5M) 280 hp 8X4(12 wheels) Chemical Liquid Transport Truck (Chusheng Brand) suited for?

FAW Jiefang Hanwei (J5M) 280 hp 8X4(12 wheels) Chemical Liquid Transport Truck (Chusheng Brand) is a liquid transport truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does FAW Jiefang Hanwei (J5M) 280 hp 8X4(12 wheels) Chemical Liquid Transport Truck (Chusheng Brand) differ from other variants in the same series?

FAW Jiefang Hanwei (J5M) 280 hp 8X4(12 wheels) Chemical Liquid Transport Truck (Chusheng Brand) belongs to Chusheng FAW Jiefang Qingdao chassis (liquid transport truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hanwei (J5M) 280 hp 8X4(12 wheels) Chemical Liquid Transport Truck (Chusheng Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hanwei (J5M) 280 hp 8X4(12 wheels) Chemical Liquid Transport Truck (Chusheng Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
