FAW Jiefang Qingdao Han V 260hp 8X2(10 wheels) liquid supply truck (Chusheng brand)
EXW
From $35,444
Export quote
Chusheng FAW Jiefang Qingdao chassis liquid
Main model photos
21 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Qingdao Han V 260hp 8X2(10 wheels) liquid supply truck (Chusheng brand) | 8x2 / 260hp / China V | From $35,444 | |
| FAW Jiefang Qingdao HanV 290hp 8X4(12 wheels) liquid supply truck (Chusheng brand)(flat top) | 8x4 / 290hp / China V | From $35,833 | |
| FAW Jiefang Qingdao Han V 290 hp 8X4(12 wheels) liquid supply truck (Chusheng brand) | 8x4 / 290hp / China V | From $35,833 |
FAW Jiefang Qingdao HanV 290hp 8X4(12 wheels) liquid supply truck (Chusheng brand)(flat top)
EXW
From $35,833
Export quote

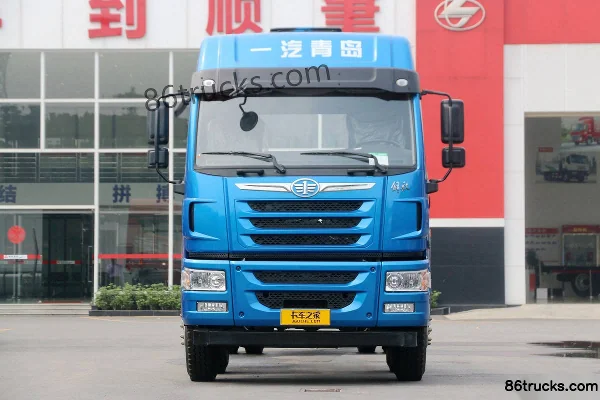

FAW Jiefang Qingdao Han V 290 hp 8X4(12 wheels) liquid supply truck (Chusheng brand)
EXW
From $35,833
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Hanwei (J5M) 180 hp 4X2(6 wheels) Chemical Liquid Transport Truck (Chusheng Brand) | 4x2 / 180hp / China III / Euro III | ||
| FAW Jiefang Hanwei (J5M) 220 hp 6X2(8 wheels) Chemical Liquid Transport Truck (Chusheng Brand) | 6x2 / 220hp / China III / Euro III | ||
| FAW Jiefang Hanwei (J5M) 280 hp 8X4(12 wheels) Chemical Liquid Transport Truck (Chusheng Brand) | 8x4 / 280hp / China III / Euro III |
FAW Jiefang Hanwei (J5M) 180 hp 4X2(6 wheels) Chemical Liquid Transport Truck (Chusheng Brand)
EXW
Export quote
FAW Jiefang Hanwei (J5M) 220 hp 6X2(8 wheels) Chemical Liquid Transport Truck (Chusheng Brand)
EXW
Export quote
FAW Jiefang Hanwei (J5M) 280 hp 8X4(12 wheels) Chemical Liquid Transport Truck (Chusheng Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 11.2×2.49×3.4 / 7.8×2.49×2.9 / 10.95×2.49×3.35 / 11.95×2.49×3.35m
Drive type: 8X2 / 8X4 / 4X2 / 6X2
Truck Type: Liquid Tanker Truck / chemical liquid transport truck
Vehicle origin: Suizhou, Hubei
Wheelbase: 1900+4160+1350 / 4500,4700 / 2660+4715 / 1900+4500+1350mm
Front/rear track width: Front: 1964/1964mm; Rear: 1960/18477 / Front: 1964/1964mm; Rear: 1847/1847 / Front track 1914, rear track 1860 / Front track: 1964/1964 mm; Rear track: 1830 mm / Front track: 1928/1928mm; Rear track: 1847/1847mm
Rated payload: 18.07 / 17.065 / 8 / 14 / 17ton
GVWR: 31 / 16 / 25ton
Max. speed: 89 / 90 / 85km/h
Front/rear suspension: 1.375/2.415 / 1.375/1.925 / 1575/2000 / 1.375/2.825m
Energy Type: Diesel
Body Parameters
Tank Size: 8.5×2.46×1.76 / 5.1×2.3×1.56 / 8.05×2.45×1.68 / 9.1×2.45×1.65m
Tank Volume: 27.8 / 28 / 12.7 / 22.27 / 27m3
Transport medium: hexane / n-hexane
Medium Density: 660 / 0.66ton/cubic meter
Vehicle certification code: CSC5310TGYCAV / CSC5315TGYCAV / CSC5160GHYC / CSC5251GHYC / CSC5313GHYC
Body Brand: Chusheng Brand
Others: HanV flat floor flat roof cab full float / HanV flat floor high roof cab full floating sunroof / Available with 12/15/18 m³ tank body / Available with 20/25/30 m³ tank body / Available with 30/35/40 m³ tank
Chassis Specs
Front/rear axle description: 457 stamped-welded axle / 435 rear axle / Rear Axle 45T
Chassis Brand: FAW Jiefang Qingdao
Chassis Series: HanV / J5M Hanwei
Chassis Model: CA1311P1K2L6T10BE5A80 / CA1310P1K2L6T4BE5A80 / CA1163P7K2L2E / CA5253GJYP7K2L11T3E / CA1313P7K1L11T4E
Leaf spring count: 12/12/6+-/10+9 / 12/12/10 / 10/12+8 / 4/4/4+4
Engine parameters
Engine Model: XichaiCA6DL1-26E5 / XichaiCA6DL1-29E5 / Xichai CA6DE3-18E3F / Xichai CA6DF3-22E3F / Dachai BF6M1013-28E3
Number of cylinders: 6cylinder
Displacement: 7.7 / 6.618 / 7.12 / 7.146L
Emission standard: China V / China III / Euro III
Max output power: 195 / 216 / 136 / 162kW
Max hp: 260 / 290 / 180 / 220 / 280Horsepower
Transmission Parameters
Number of gears: 9 / 6Gear
Transmission Model: Fast Gear9JS119 / 6-speed gearbox / Fast Gear 9-speed gearbox
Tire
Tire Size: 295/80R22.5 / 11.00R20 / 10.00-20
Number of tires: 10 / 12 / 6 / 8pcs
FAQ
What kind of truck is Chusheng Chusheng FAW Jiefang Qingdao chassis liquid transport truck?
Chusheng Chusheng FAW Jiefang Qingdao chassis is an export-oriented liquid transport truck lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Chusheng FAW Jiefang Qingdao chassis liquid?
Chusheng FAW Jiefang Qingdao chassis liquid export reference is about $35,444 – $35,833. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Chusheng FAW Jiefang Qingdao chassis liquid cover?
Chusheng FAW Jiefang Qingdao chassis liquid mainly covers: Drive: 4x2 / 6x2 / 8x2 / 8x4; Horsepower: 180 hp / 220 hp / 260 hp / 280 hp / 290 hp; Emission: China III / Euro III / China V. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chusheng FAW Jiefang Qingdao chassis liquid?
For Chusheng FAW Jiefang Qingdao chassis liquid: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is liquid transport truck typically used for?
liquid transport truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Chusheng FAW Jiefang Qingdao chassis liquid include?
Chusheng FAW Jiefang Qingdao chassis liquid currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chusheng FAW Jiefang Qingdao chassis liquid?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
