Sinotruk HOWO Heavy Truck 380 hp 8X4(12 wheels) 5.5m³ Concrete Mixer Truck Chassis

Export reference
MSRP N/A
Curb Weight:: 11.25ton
Wheelbase:: 1800+3600+1350mm
Tire Size:: 12.00R20 16PR,12.00-20 16PR
Cab dimensions:: 10.175×2.496×3.125m
Truck Type:: concrete mixer truck
Vehicle origin:: Tangshan, Hebei
Drive 8X4 (12 wheels)
Horsepower 380
Emission China V
Fuel Diesel

Overview

The Sinotruk HOWO Heavy Truck 380 hp 8X4(12 wheels) 5.5m³ Concrete Mixer Truck Chassis is a concrete mixer truck featuring 11.25ton GVW, 8X4 (12 wheels) drive and 10.175×2.496×3.125m cab. On the powertrain side, it comes with 380 hp, China V emissions and Diesel fuel.

China V 380 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.175×2.496×3.125m
Truck Type: concrete mixer truck
Drive type: 8X4
Vehicle origin: Tangshan, Hebei
Wheelbase: 1800+3600+1350mm
Front/rear track width: Front track: 2041/2041mm; Rear track: 1830/1830mm
Curb Weight: 11.25ton
Max. speed: 80km/h
Front/rear suspension: 1.5/1.7m
Body Parameters
Mixing drum capacity: 5.5m³
Body Brand: Sinotruk HOWO
Engine parameters
Engine Model: SinotrukD10.38-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China V
Max output power: 276kW
Max hp: 380Horsepower
Rated speed: 2000rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Chassis Specs
Chassis Series: HOWOHOWO-7
Chassis Model: ZZ1317N3667E1
Axle ratio: 4.8
Leaf spring count: 11/11/12
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Sinotruk 10-speed
Tire
Tire Size: 12.00R20 16PR,12.00-20 16PR
Number of tires: 12pcs

Photos

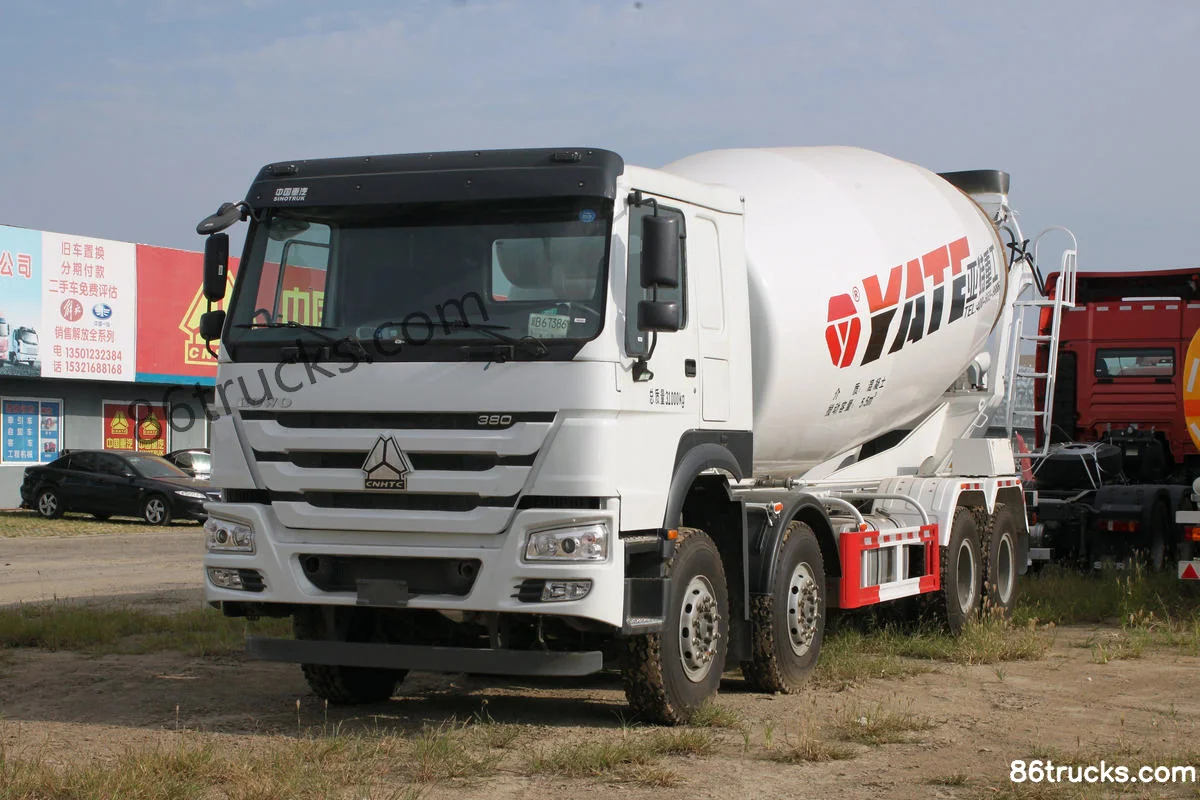

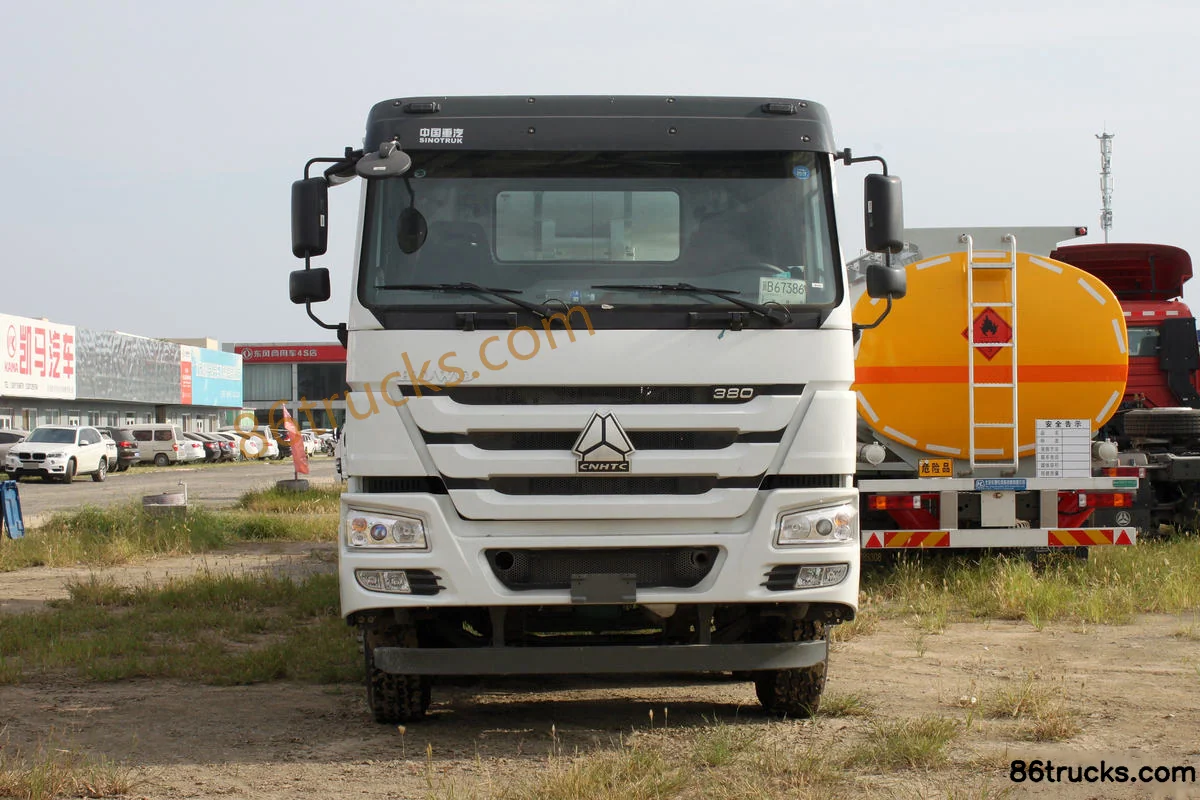

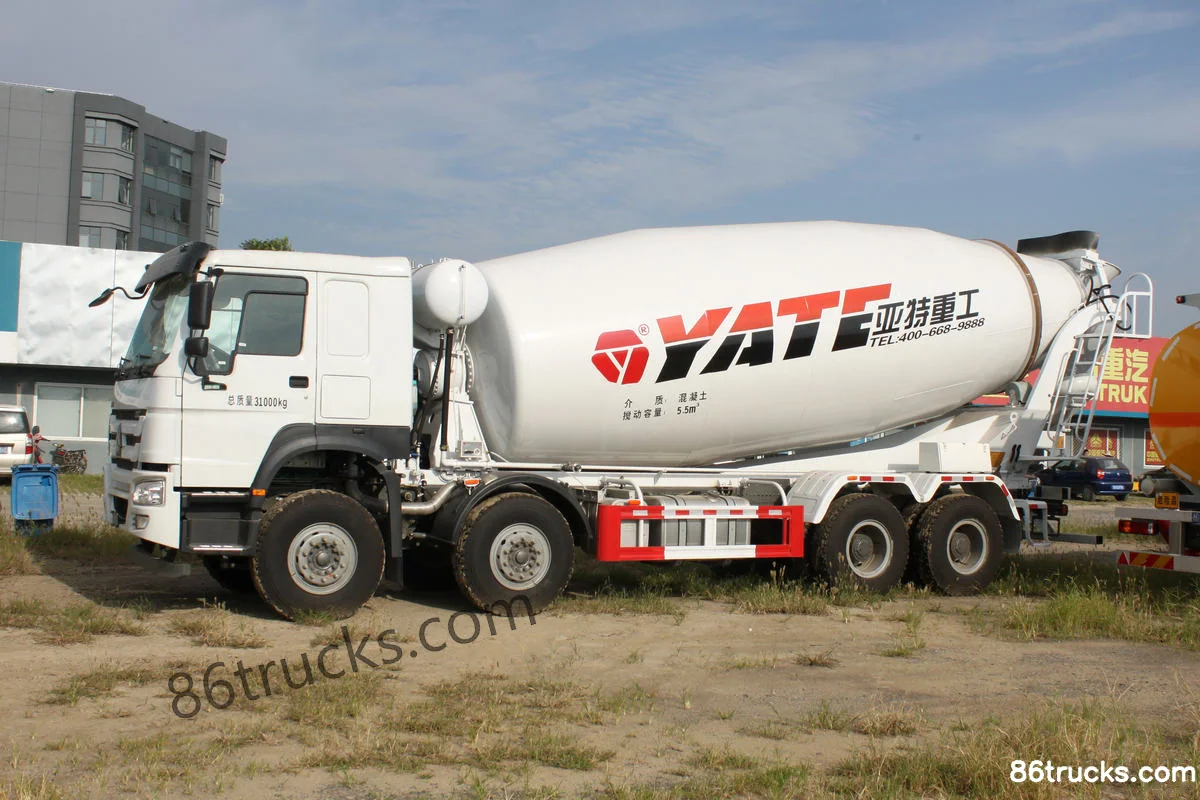

Exterior3

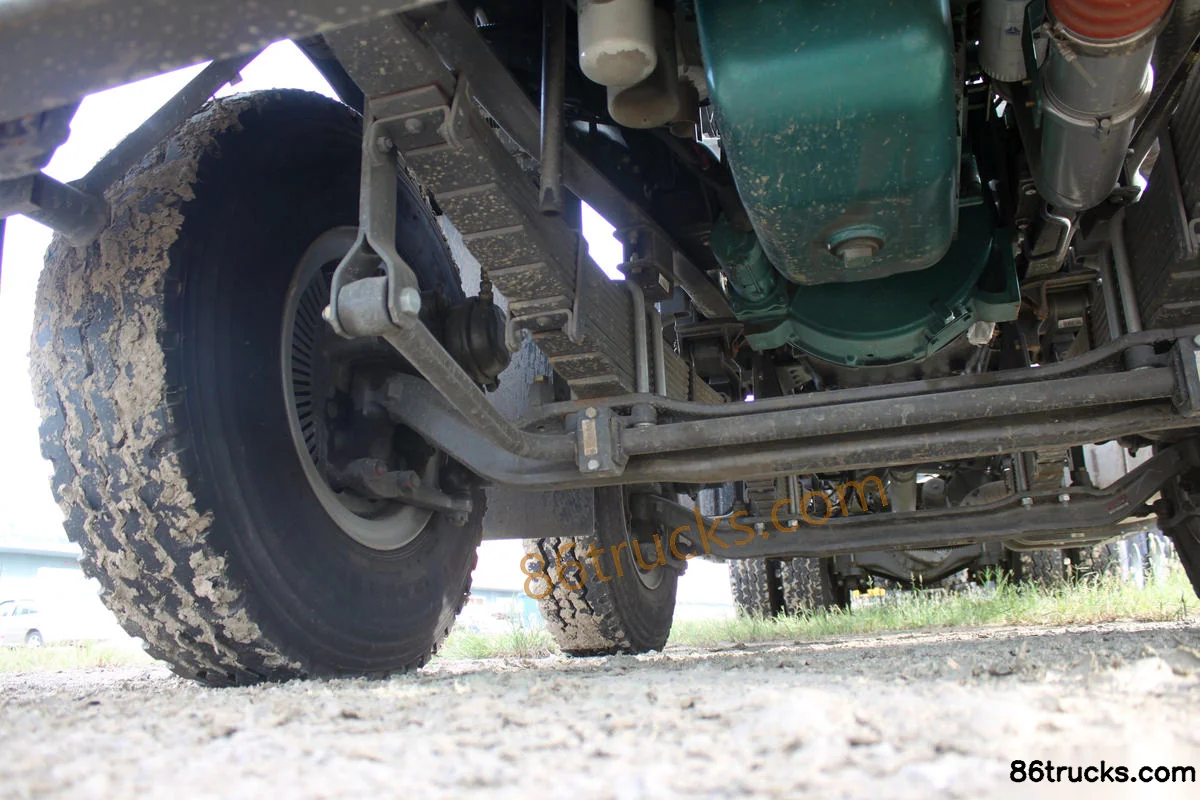

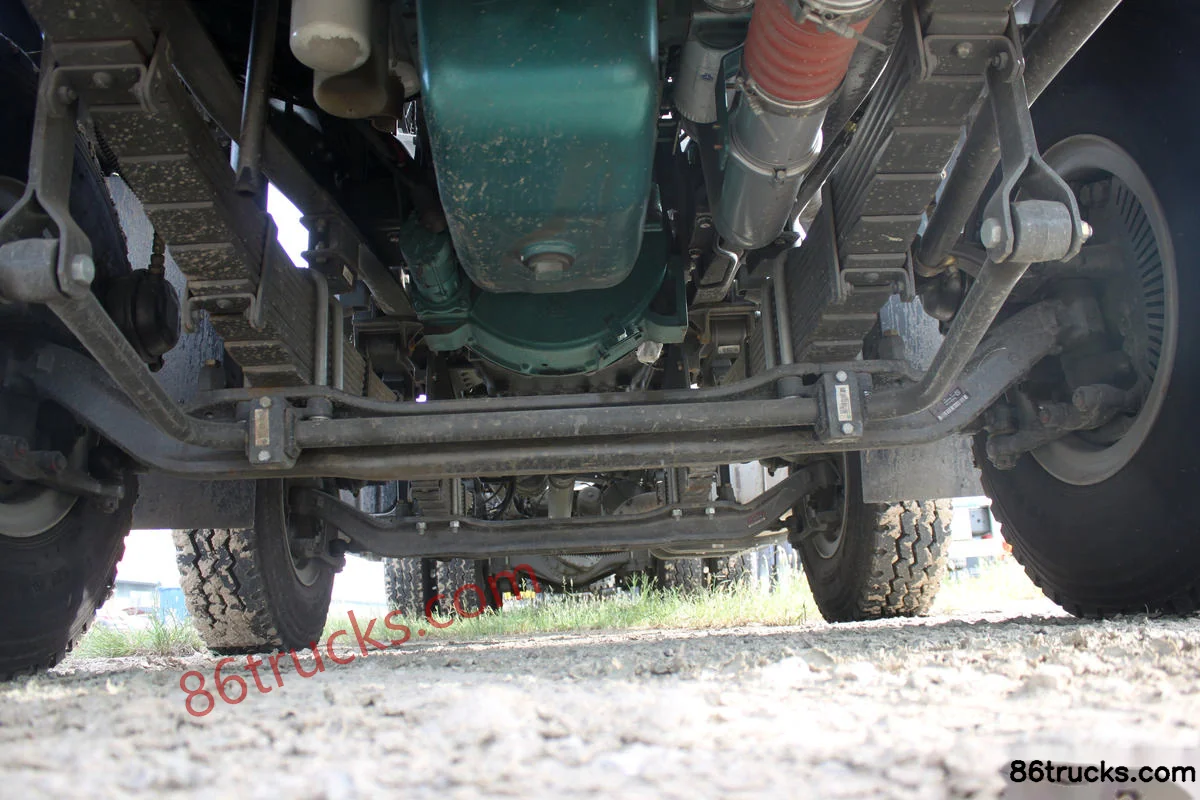

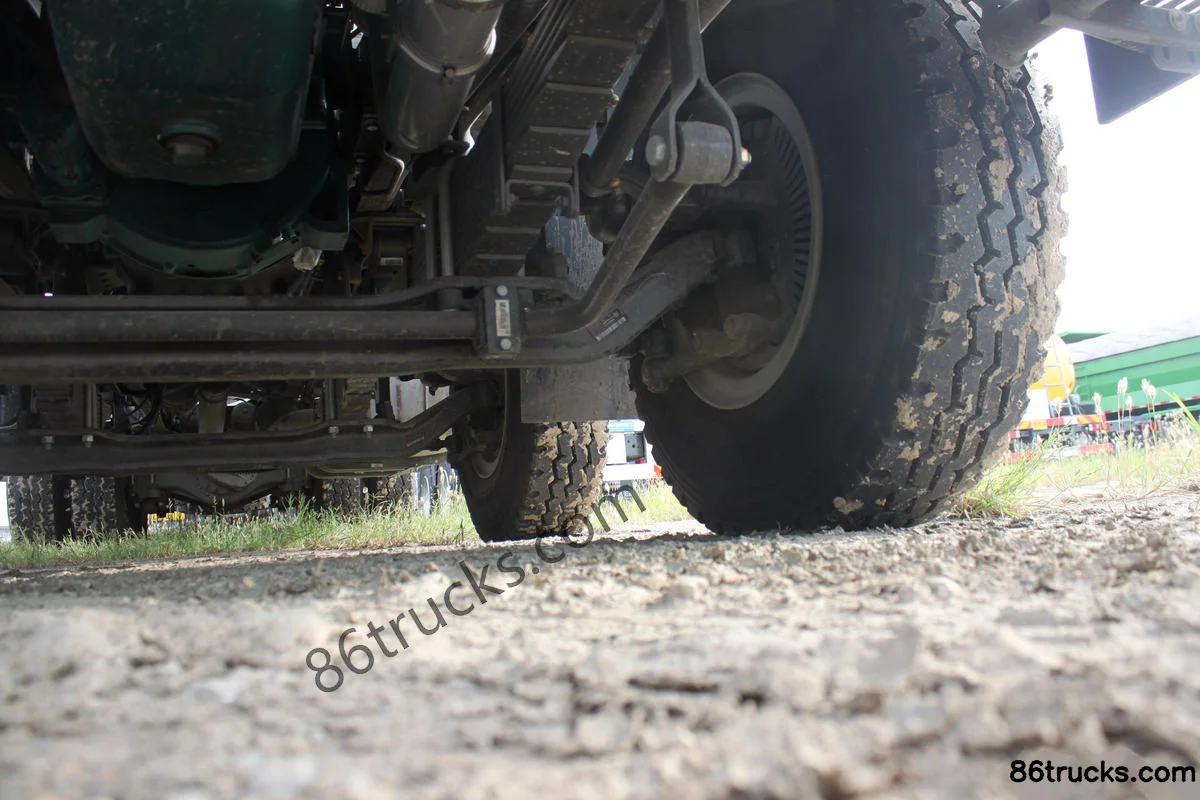

Chassis3

6 photos

FAQ

What emission standard does Sinotruk HOWO Heavy Truck 380 hp 8X4(12 wheels) 5.5m³ Concrete Mixer Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Heavy Truck 380 hp 8X4(12 wheels) 5.5m³ Concrete Mixer Truck Chassis?

Key specs of Sinotruk HOWO Heavy Truck 380 hp 8X4(12 wheels) 5.5m³ Concrete Mixer Truck Chassis: Drive: 8x4; Horsepower: 380 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Heavy Truck 380 hp 8X4(12 wheels) 5.5m³ Concrete Mixer Truck Chassis suited for?

Sinotruk HOWO Heavy Truck 380 hp 8X4(12 wheels) 5.5m³ Concrete Mixer Truck Chassis is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO Heavy Truck 380 hp 8X4(12 wheels) 5.5m³ Concrete Mixer Truck Chassis differ from other variants in the same series?

Sinotruk HOWO Heavy Truck 380 hp 8X4(12 wheels) 5.5m³ Concrete Mixer Truck Chassis belongs to Sinotruk HOWO-7 heavy-duty truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Heavy Truck 380 hp 8X4(12 wheels) 5.5m³ Concrete Mixer Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Heavy Truck 380 hp 8X4(12 wheels) 5.5m³ Concrete Mixer Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
