SHACMAN Delong New M3000 Composite Edition 340 hp 8X4(12 wheels) 7.95 m³ Concrete Mixer Truck (Lingyu Brand)

Export reference
From $55,278
MSRP ¥39.8M CNY
Fuel: Diesel
Curb Weight:: 13.5ton
Wheelbase:: 1800+3000+1400mm
Tire Size:: 295/80R22.5,11.00R20,12.00R20 18PR
Cab dimensions:: 10.39×2.52×3.995m
Truck Type:: concrete mixer truck
Rated payload: 17.37ton
Drive 8X4 (12 wheels)
Horsepower 340
Emission China V

Overview

The CIMC Lingyu SHACMAN Delong New M3000 Composite Edition 340 hp 8X4(12 wheels) 7.95 m³ Concrete Mixer Truck (Lingyu Brand) is a concrete mixer truck featuring 17.37t payload, 13.5ton GVW, 8X4 (12 wheels) drive and New M3000 cab. On the powertrain side, it comes with 340 hp, China V emissions and Diesel fuel.

China V 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.39×2.52×3.995m
Truck Type: concrete mixer truck
Drive type: 8X4
Vehicle origin: Luoyang, Henan
Wheelbase: 1800+3000+1400mm
Curb Weight: 13.5ton
Rated payload: 17.37ton
Max. speed: 80km/h
Front/rear suspension: 1.525/2.665m
Body Parameters
Mixing drum capacity: 7.95m³
Vehicle certification code: CLY5314GJB30E53
Body Brand: Lingyu
Engine parameters
Engine Model: WeichaiWP7.340E53
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.47L
Emission standard: China V
Max output power: 250kW
Max hp: 340Horsepower
Rated speed: 2100rpm
Engine Type: Electronic high-pressure common rail + SCR
Chassis Specs
Chassis Series: Delong New M3000
Chassis Model: SX5310GJBMB6
rear axle description: 13T STR double reduction axle
Axle ratio: 5.73
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear10JSD120T
Cab parameters
Cab: New M3000
Tire
Tire Size: 295/80R22.5,11.00R20,12.00R20 18PR
Number of tires: 12pcs

Photos

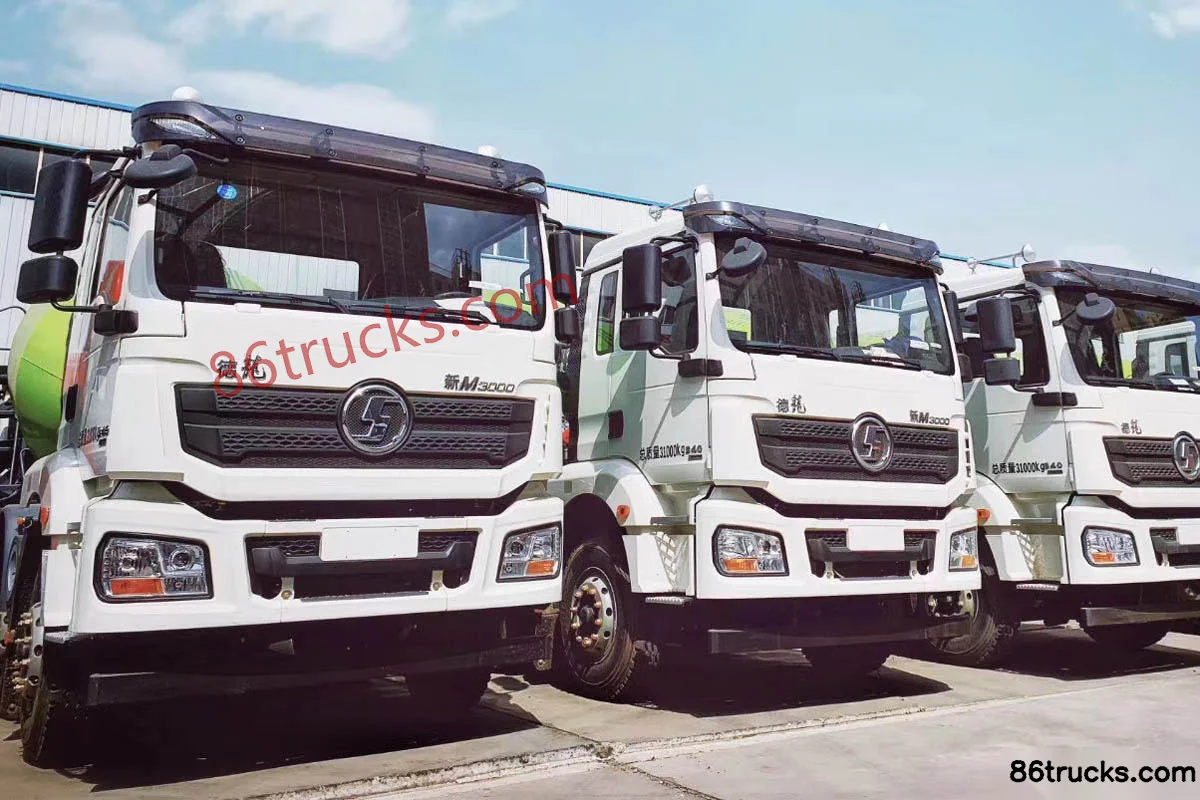

Exterior1

1 photos

FAQ

What is the export price of SHACMAN Delong New M3000 Composite Edition 340 hp 8X4(12 wheels) 7.95 m³ Concrete Mixer Truck (Lingyu Brand), and what does it include?

SHACMAN Delong New M3000 Composite Edition 340 hp 8X4(12 wheels) 7.95 m³ Concrete Mixer Truck (Lingyu Brand) export reference is about From $55,278; MSRP is ¥39.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Delong New M3000 Composite Edition 340 hp 8X4(12 wheels) 7.95 m³ Concrete Mixer Truck (Lingyu Brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong New M3000 Composite Edition 340 hp 8X4(12 wheels) 7.95 m³ Concrete Mixer Truck (Lingyu Brand)?

Key specs of SHACMAN Delong New M3000 Composite Edition 340 hp 8X4(12 wheels) 7.95 m³ Concrete Mixer Truck (Lingyu Brand): Drive: 8x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong New M3000 Composite Edition 340 hp 8X4(12 wheels) 7.95 m³ Concrete Mixer Truck (Lingyu Brand) suited for?

SHACMAN Delong New M3000 Composite Edition 340 hp 8X4(12 wheels) 7.95 m³ Concrete Mixer Truck (Lingyu Brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong New M3000 Composite Edition 340 hp 8X4(12 wheels) 7.95 m³ Concrete Mixer Truck (Lingyu Brand) differ from other variants in the same series?

SHACMAN Delong New M3000 Composite Edition 340 hp 8X4(12 wheels) 7.95 m³ Concrete Mixer Truck (Lingyu Brand) belongs to CIMC Lingyu SHACMAN Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong New M3000 Composite Edition 340 hp 8X4(12 wheels) 7.95 m³ Concrete Mixer Truck (Lingyu Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong New M3000 Composite Edition 340 hp 8X4(12 wheels) 7.95 m³ Concrete Mixer Truck (Lingyu Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
