JAC Junling T7 200 hp 4X2(6 wheels) 4.15m half-cab dump truck

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.15ton
Wheelbase:: 3400mm
Tire Size:: 10.00R20 18PR
Rated payload: 10.655ton
Drive 4X2 (6 wheels)
Horsepower 200
Cargo box type: Rear-dump body

Overview

The JAC Junling T7 200 hp 4X2(6 wheels) 4.15m half-cab dump truck is a Medium-duty truck featuring 10.655t payload, 18t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Anhui CumminsB4.5NS6B200E engine, 200 hp, China VI emissions and Fast Gear transmission.

China VI 200 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3180P41K1C7S-1
Drive type: 4X2
Wheelbase: 3400mm
engine: Anhui CumminsB4.5NS6B200E
transmission: Fast Gear8JS85TE
Rear Axle Ratio: 6.33
Cab length: 6.34m
Cab width: 2.32m
Cab height: 2.62m
Front track width: 1905mm
rear track: 1780mm
Curb Weight: 7.15ton
Rated payload: 10.655ton
GVWR: 18ton
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 17°
departure angle: 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Anhui Cummins
Engine Model: Anhui CumminsB4.5NS6B200E
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.5L
Emission standard: China VI
Max output power: 147kW
Max hp: 200Horsepower
Rated speed: 2300rpm
Engine Type: DOC+DPF+SCR+ASC
Transmission Parameters
Transmission Model: Fast Gear8JS85TE
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 4.15m
Cargo box width: 2.3m
Cargo box height: 0.8m
Body Parameters
Lifting type: 160 construction top
Cab parameters
seating capacity: 3Personnel
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 200L
Chassis Specs
Front axle description: 3.7T
Front axle allowable load: 6500kg
rear axle description: 10T
rear axle allowable load: 11500kg
Axle ratio: 6.33
Leaf spring count: 8/11+8
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
lighting configuration
daytime running lights:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

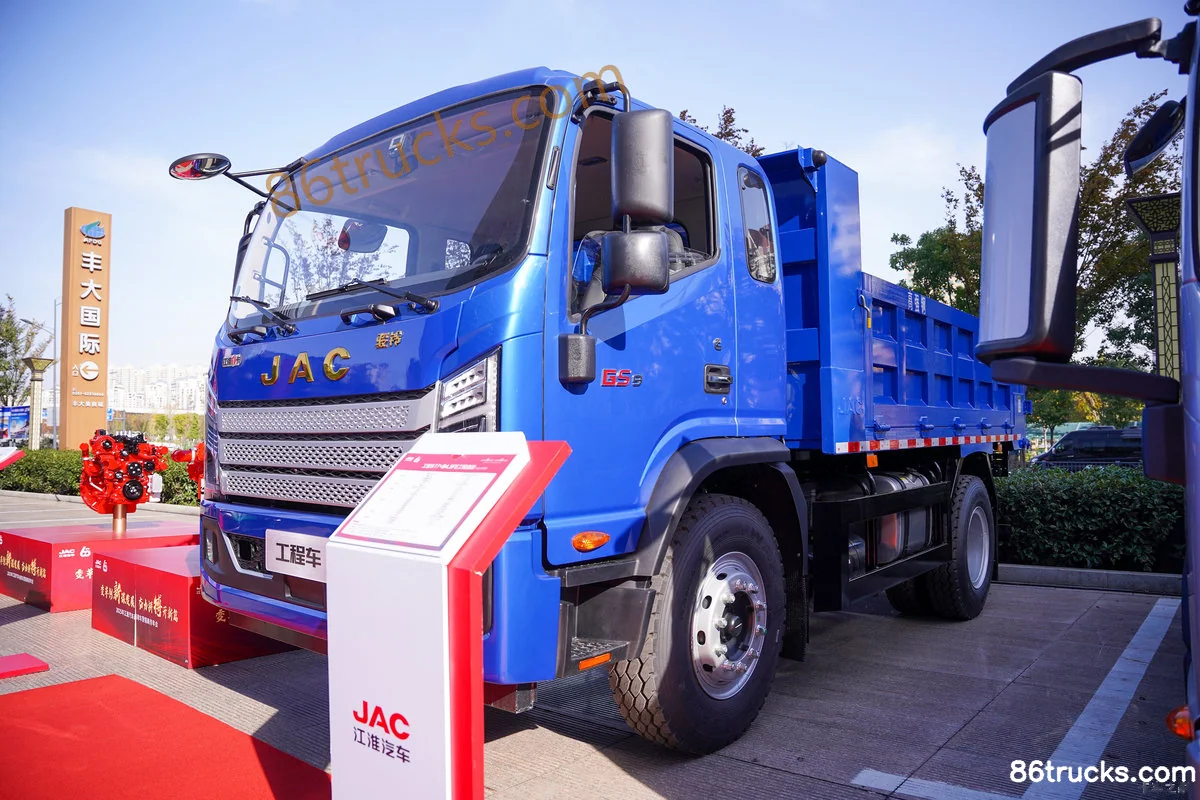

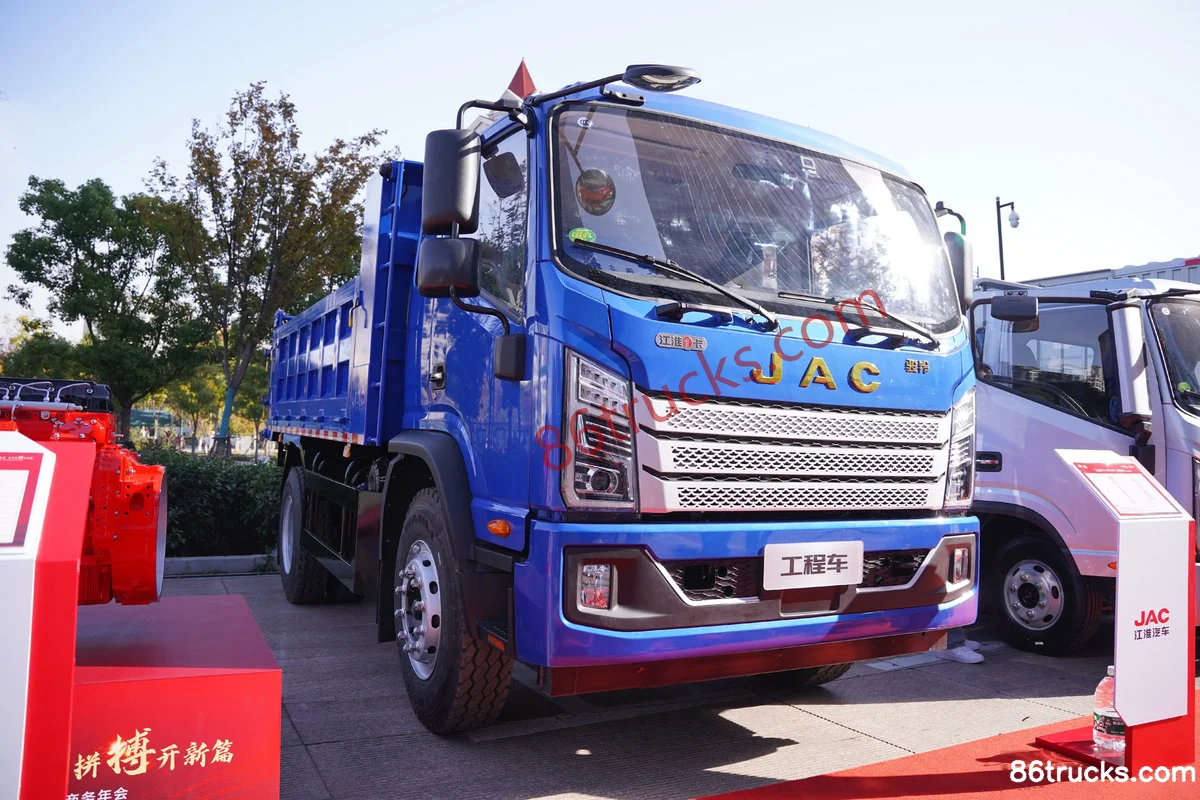

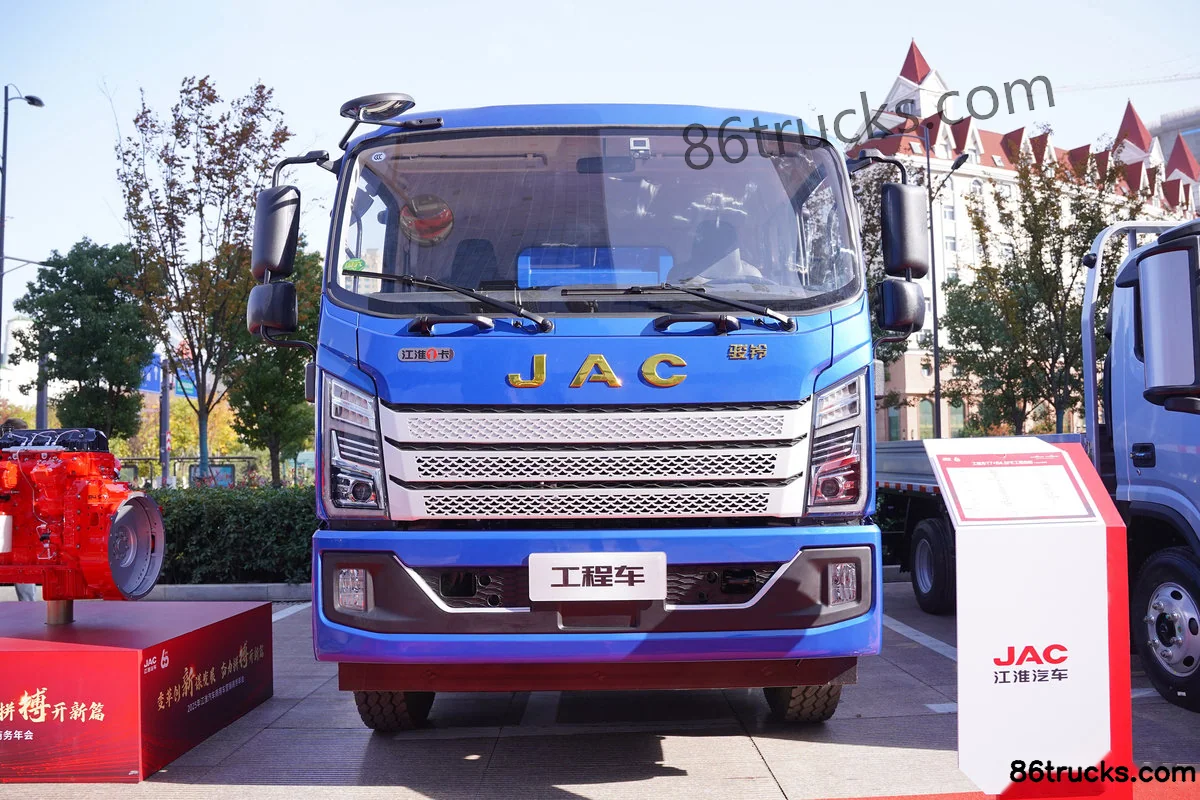

Exterior3

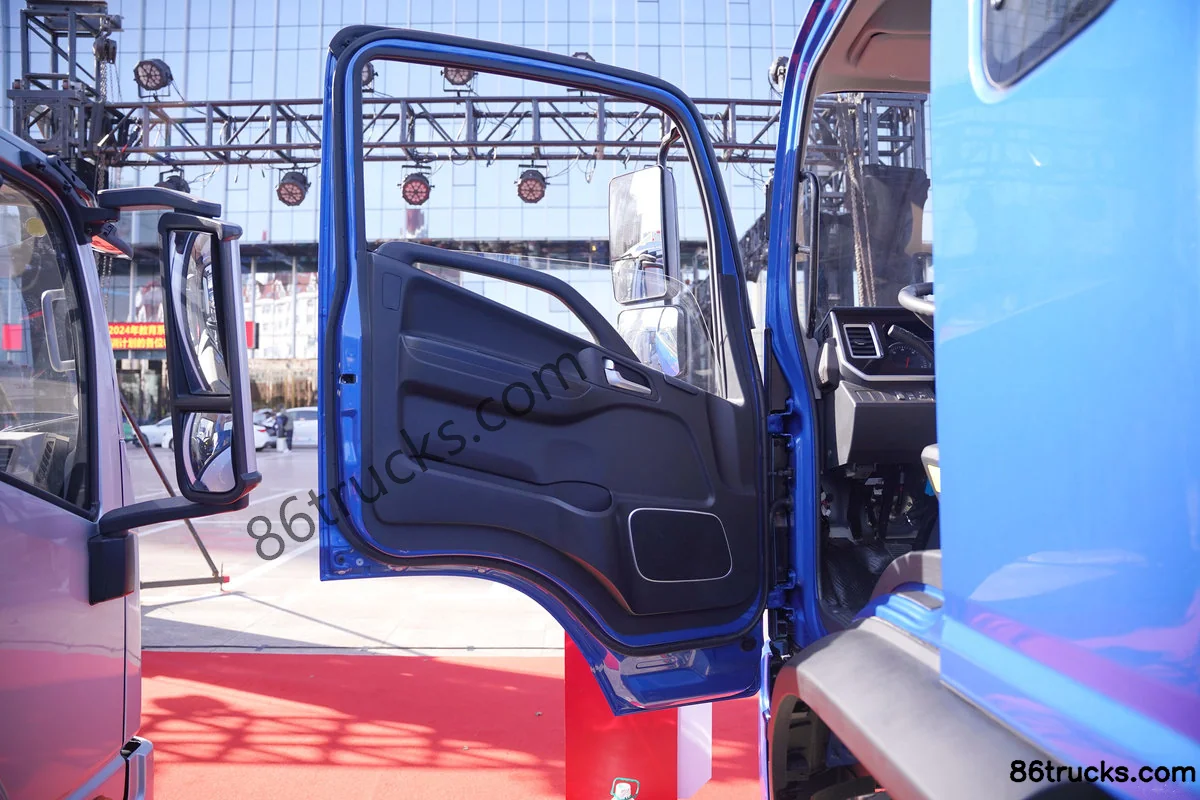

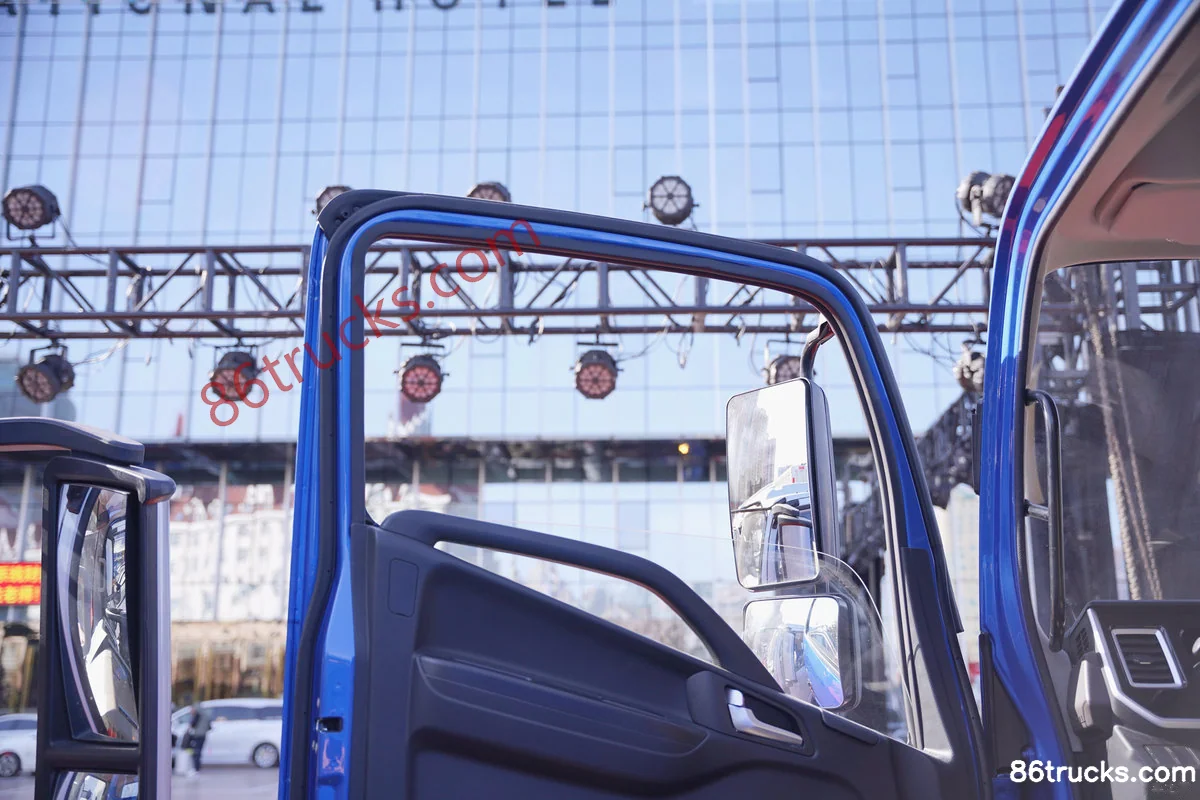

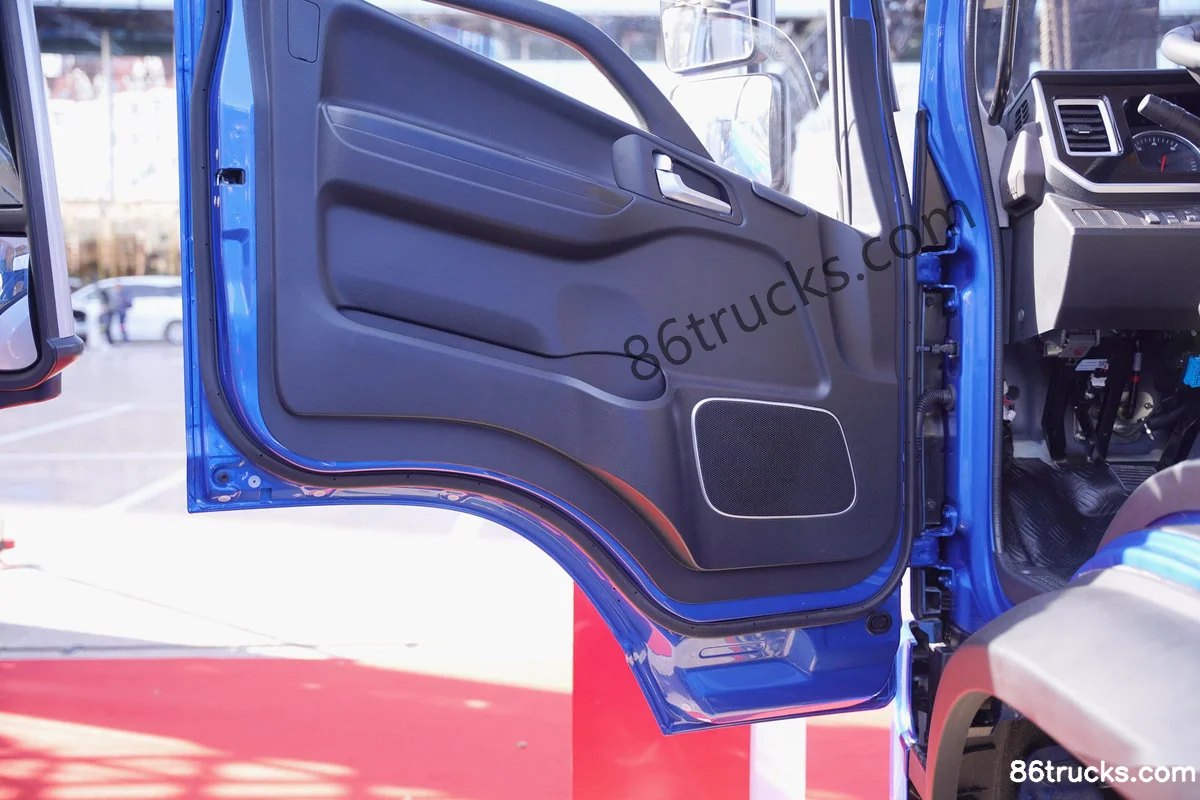

Cab3

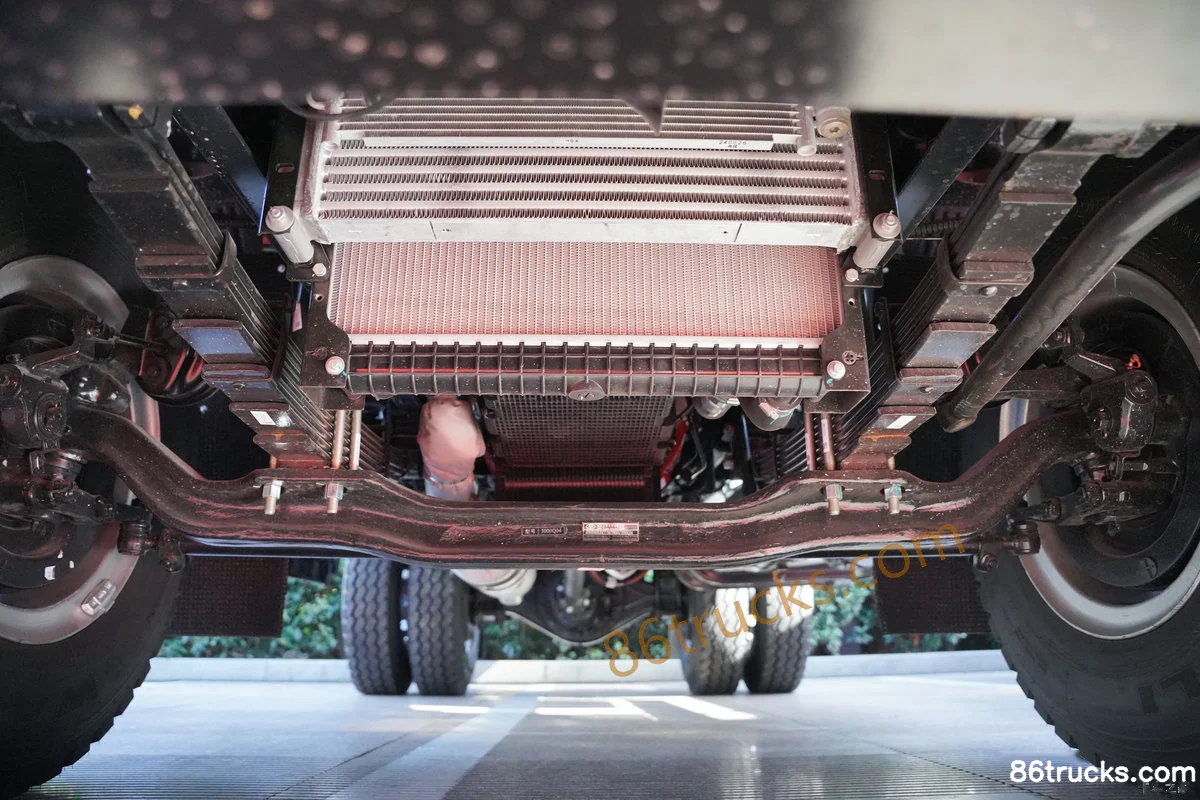

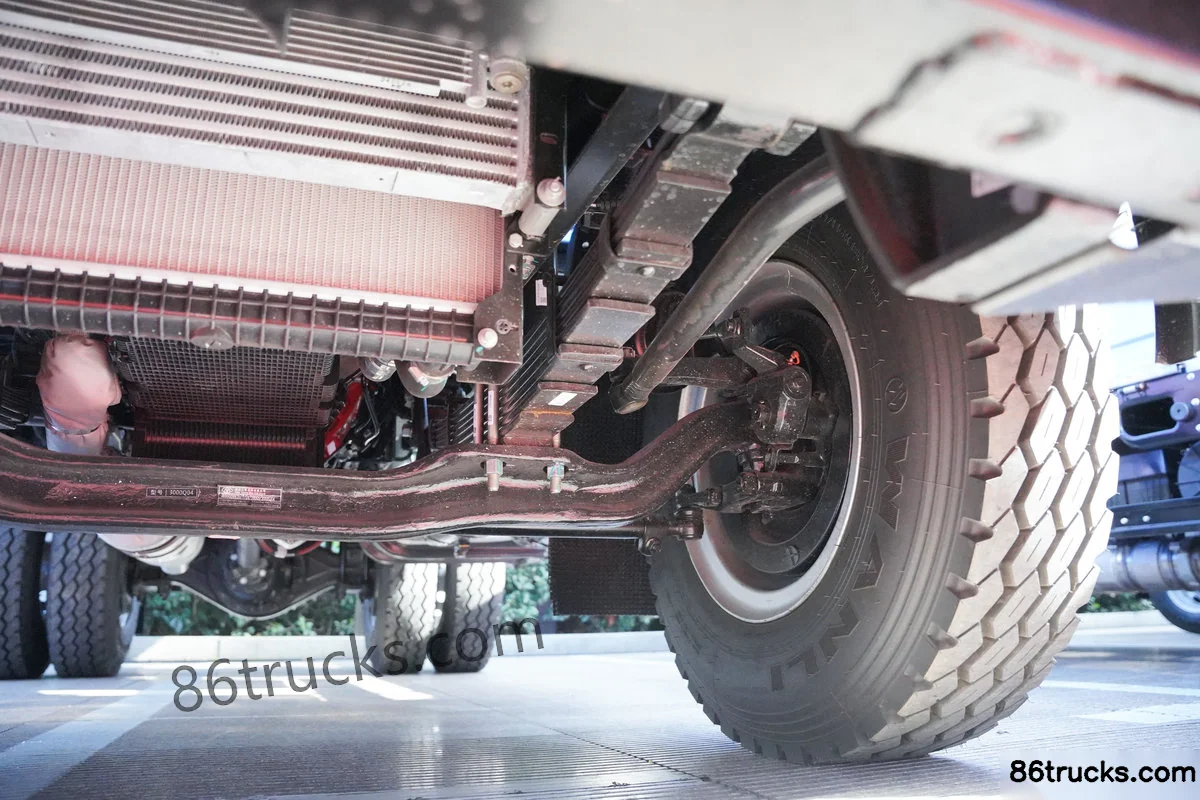

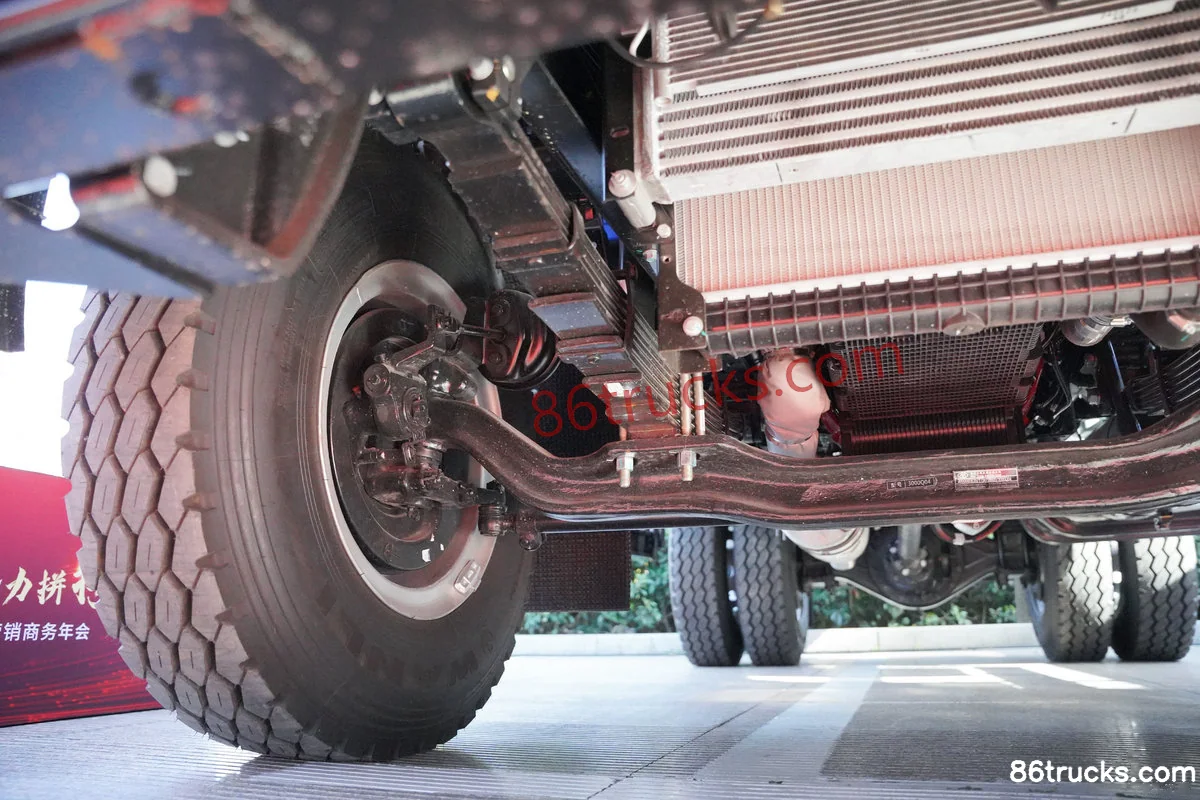

Chassis3

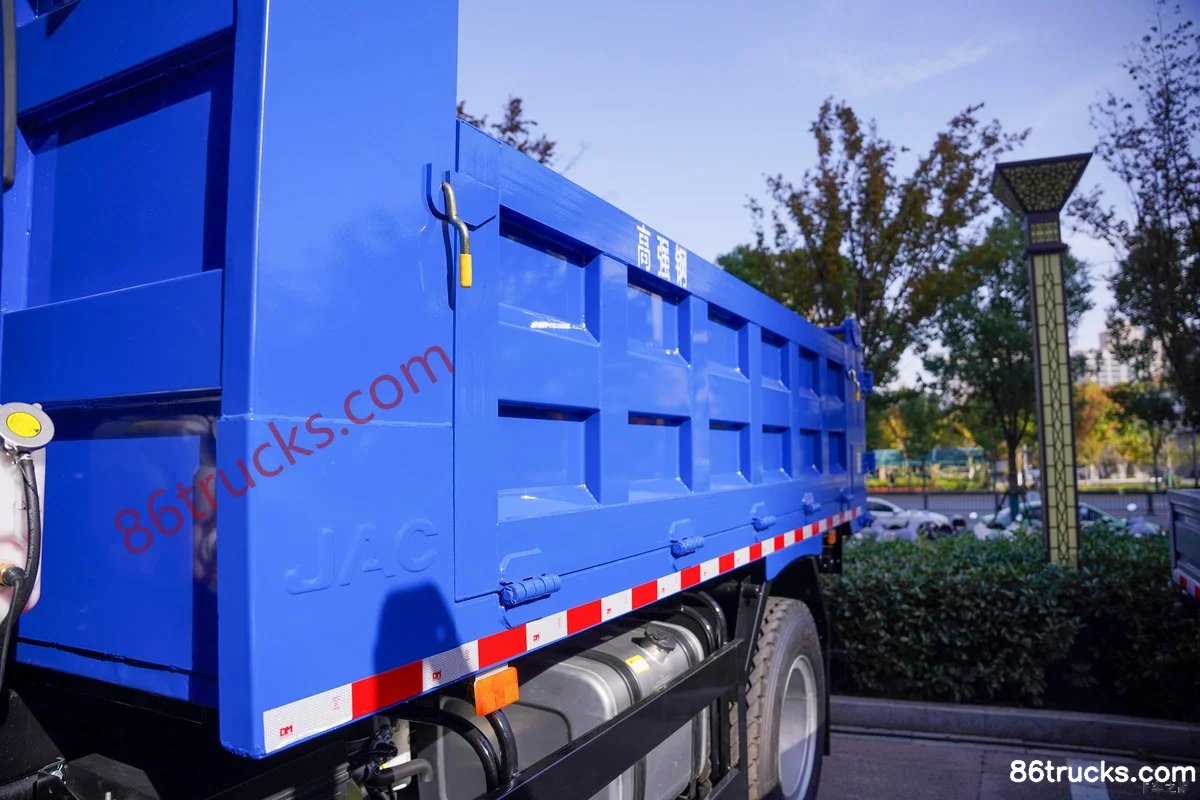

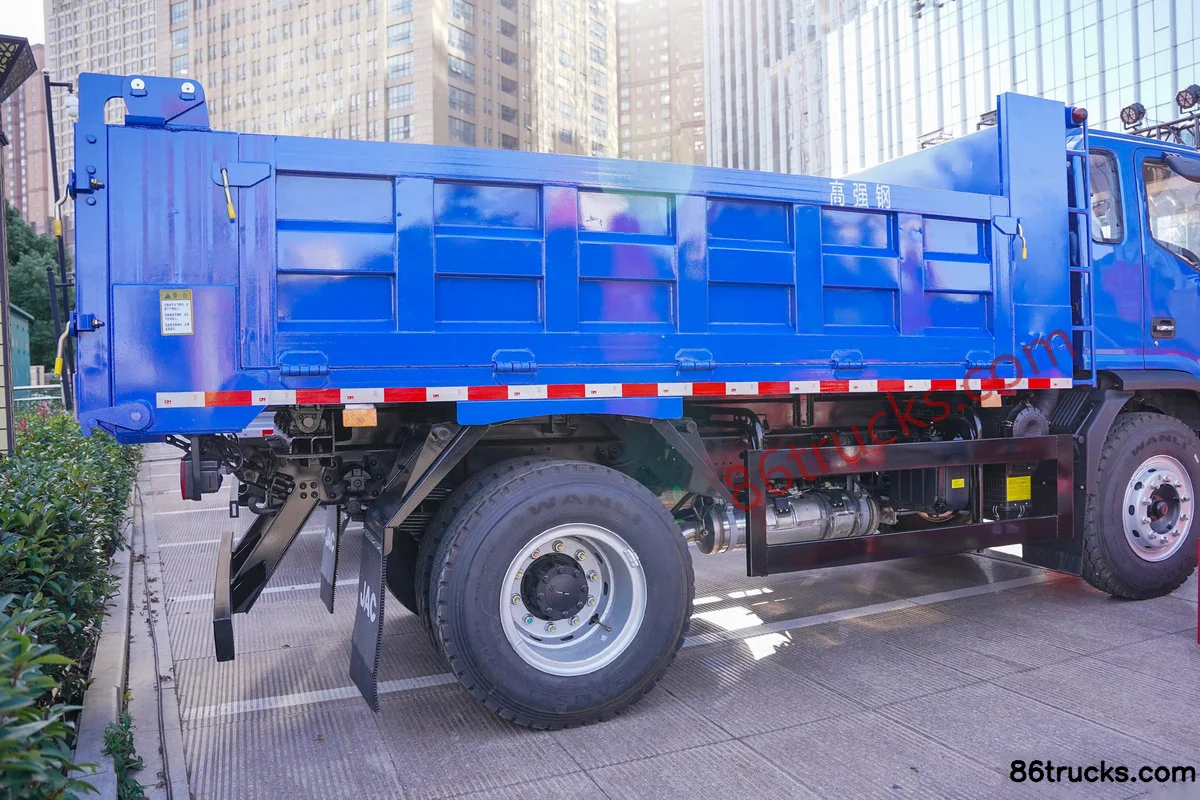

Body2

11 photos

FAQ

What emission standard does JAC Junling T7 200 hp 4X2(6 wheels) 4.15m half-cab dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling T7 200 hp 4X2(6 wheels) 4.15m half-cab dump truck?

Key specs of JAC Junling T7 200 hp 4X2(6 wheels) 4.15m half-cab dump truck: Drive: 4x2; Horsepower: 200 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling T7 200 hp 4X2(6 wheels) 4.15m half-cab dump truck suited for?

JAC Junling T7 200 hp 4X2(6 wheels) 4.15m half-cab dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Junling T7 200 hp 4X2(6 wheels) 4.15m half-cab dump truck differ from other variants in the same series?

JAC Junling T7 200 hp 4X2(6 wheels) 4.15m half-cab dump truck belongs to JACT7 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling T7 200 hp 4X2(6 wheels) 4.15m half-cab dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling T7 200 hp 4X2(6 wheels) 4.15m half-cab dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
