JMC New Shunda 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 2.19m Double Row Dump Truck

Export reference
From $17,194
MSRP ¥12.38M CNY
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.58ton
Wheelbase:: 2800mm
Tire Size:: 7.00R16LT 14PR
Rated payload: 1.59ton
Drive 4X2 (6 wheels)
Horsepower 136
Cargo box type: Dump type

Overview

The JMC New Shunda 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 2.19m Double Row Dump Truck is a Light Truck featuring 1.59t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a JMCNB25D6H engine, 136 hp, China VI emissions and WLY transmission.

China VI 136 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX3041TSCM6
Drive type: 4X2
Wheelbase: 2800mm
engine: JMCNB25D6H
transmission: WLY5GS36
Cab length: 4.99m
Cab width: 1.895m
Cab height: 2.09m
Front track width: 1480mm
rear track: 1520mm
Curb Weight: 2.58ton
Rated payload: 1.59ton
GVWR: 4.495ton
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 18°
departure angle: 21°
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: NB25D6H
fuel type: Diesel
Displacement: 2.498L
Emission standard: China VI
Max output power: 100kW
Max hp: 136Horsepower
Transmission Parameters
Transmission Model: WLY5GS36
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 2.19m
Cargo box width: 1.8m
Cargo box height: 0.6m
Cab parameters
seating capacity: 5Personnel
Chassis Specs
Front axle allowable load: 1895kg
rear axle allowable load: 2600kg
Leaf spring count: 6/6+6
Tire
Tire Size: 7.00R16LT 14PR
Number of tires: 4pcs
Control configuration
ABS:
interior configuration

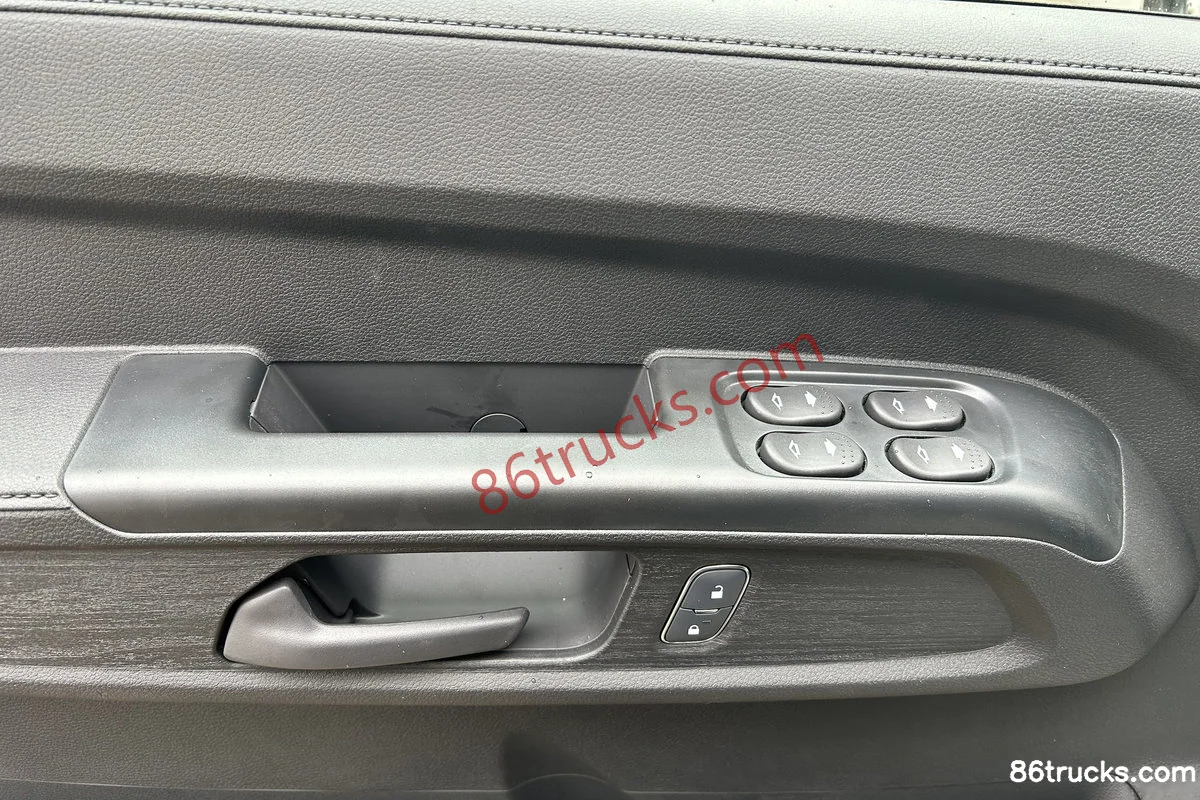

Power Windows:
Remote key:
Electronic Central Lock:

Photos

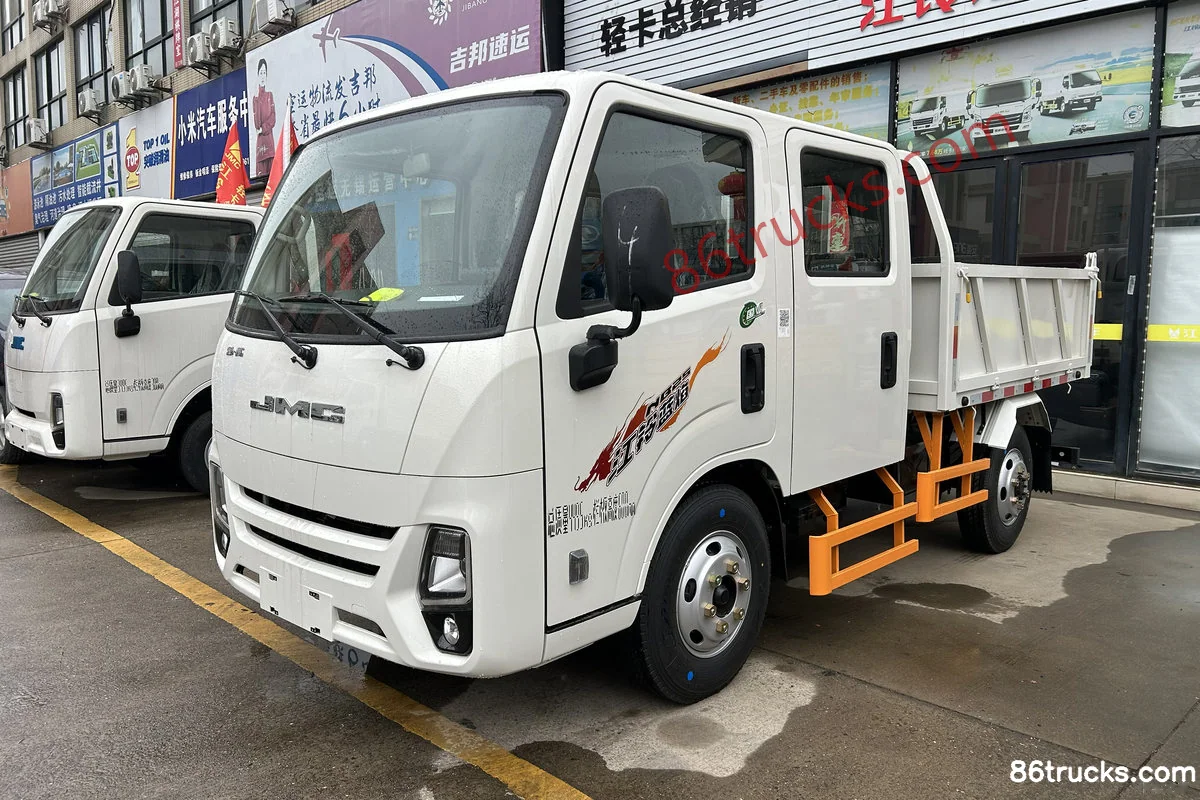

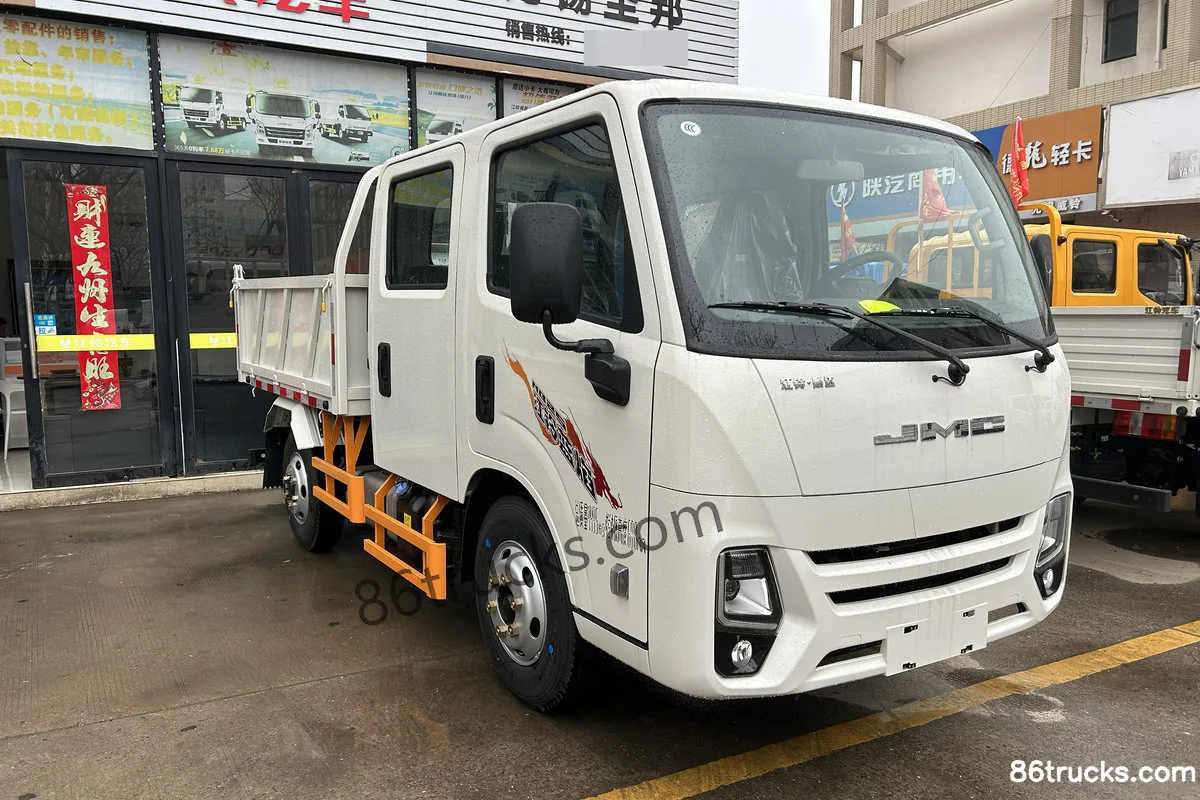

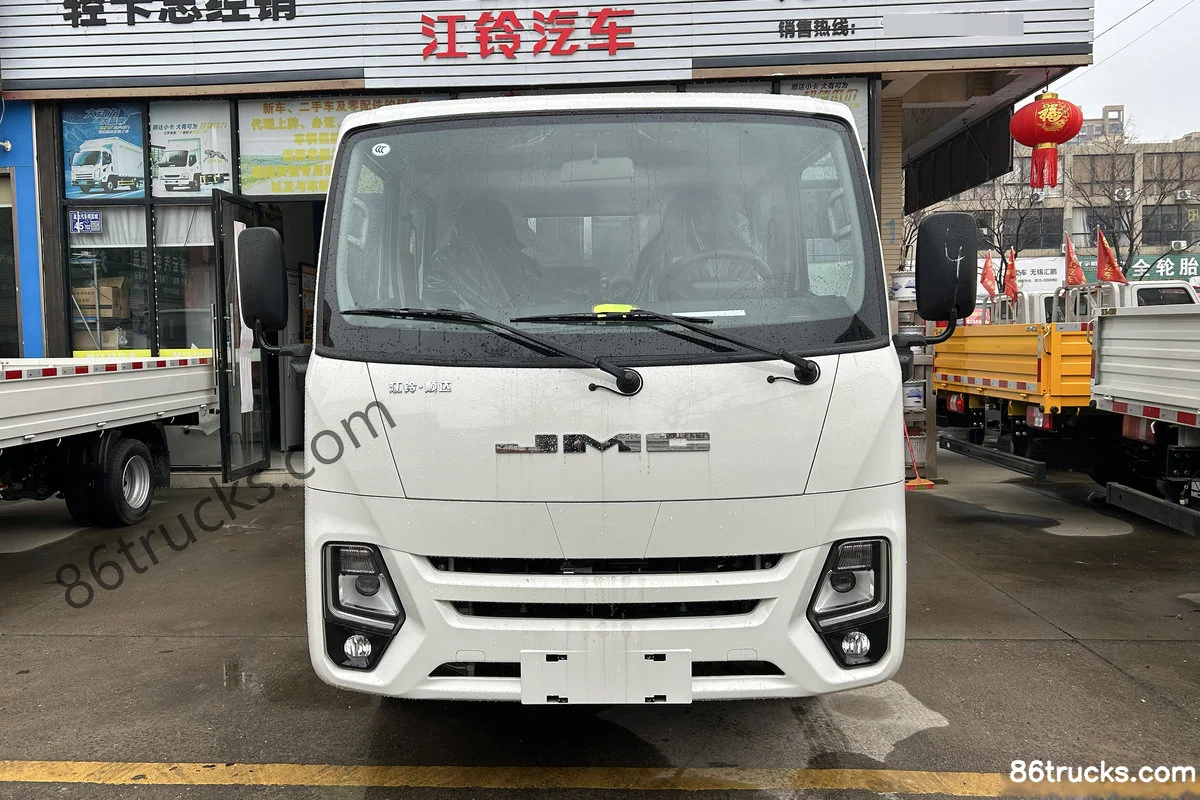

Exterior3

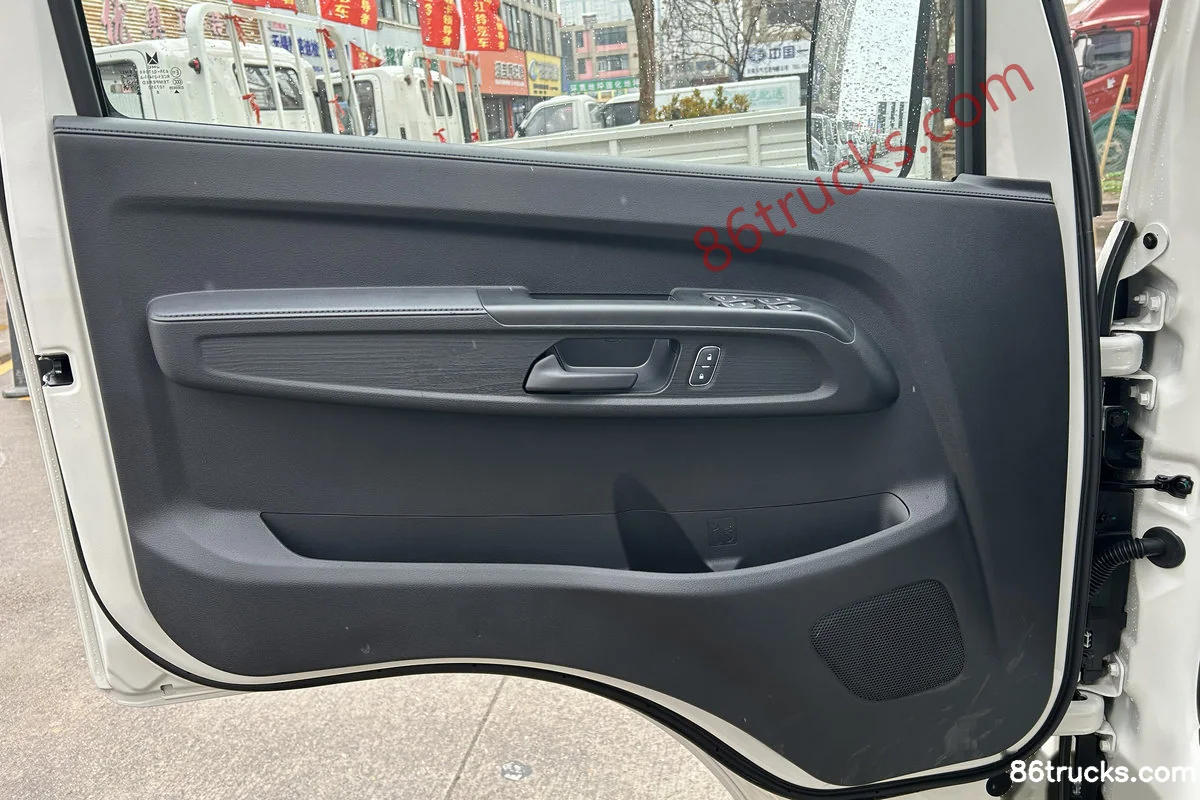

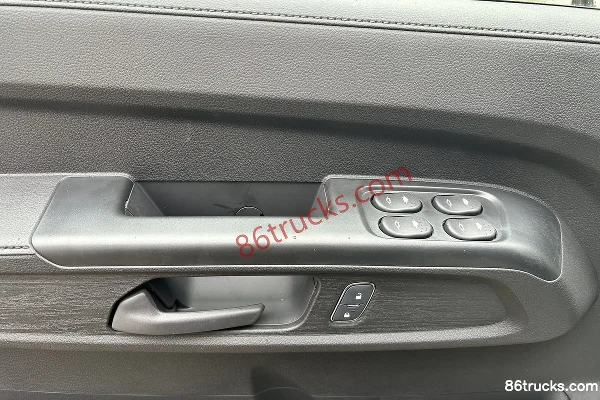

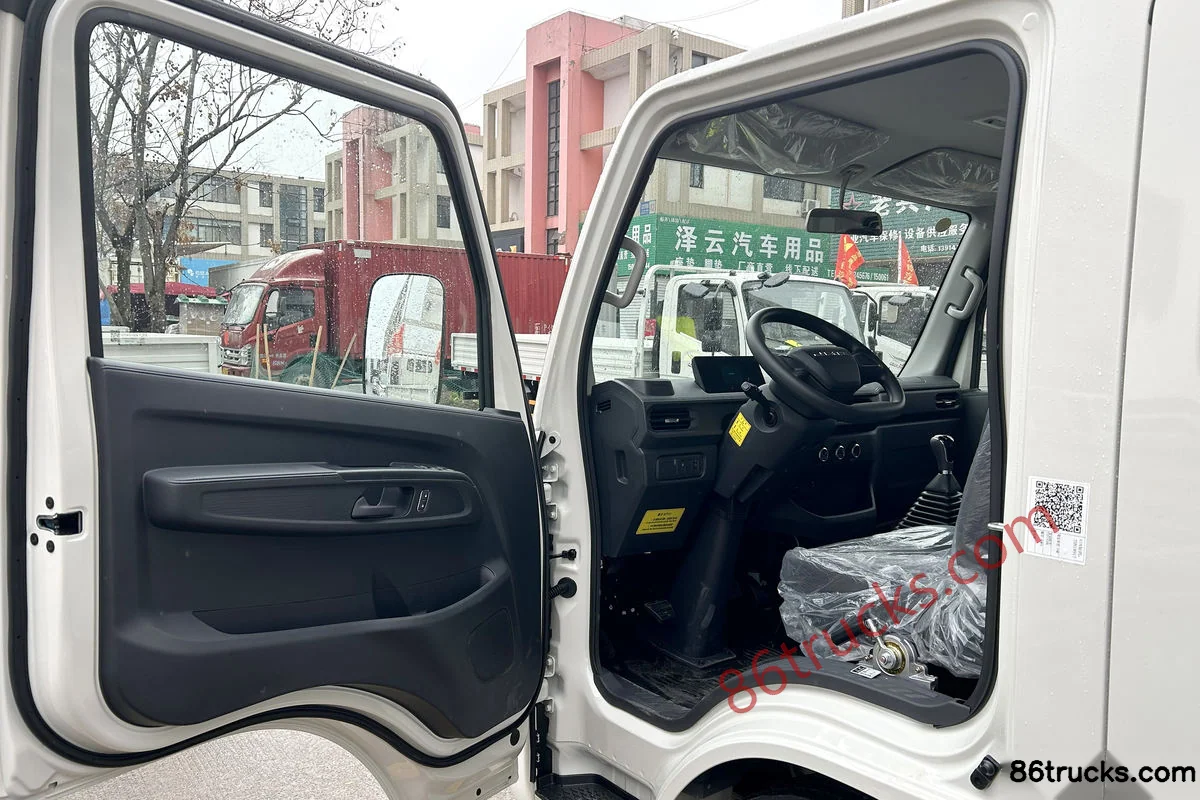

Cab3

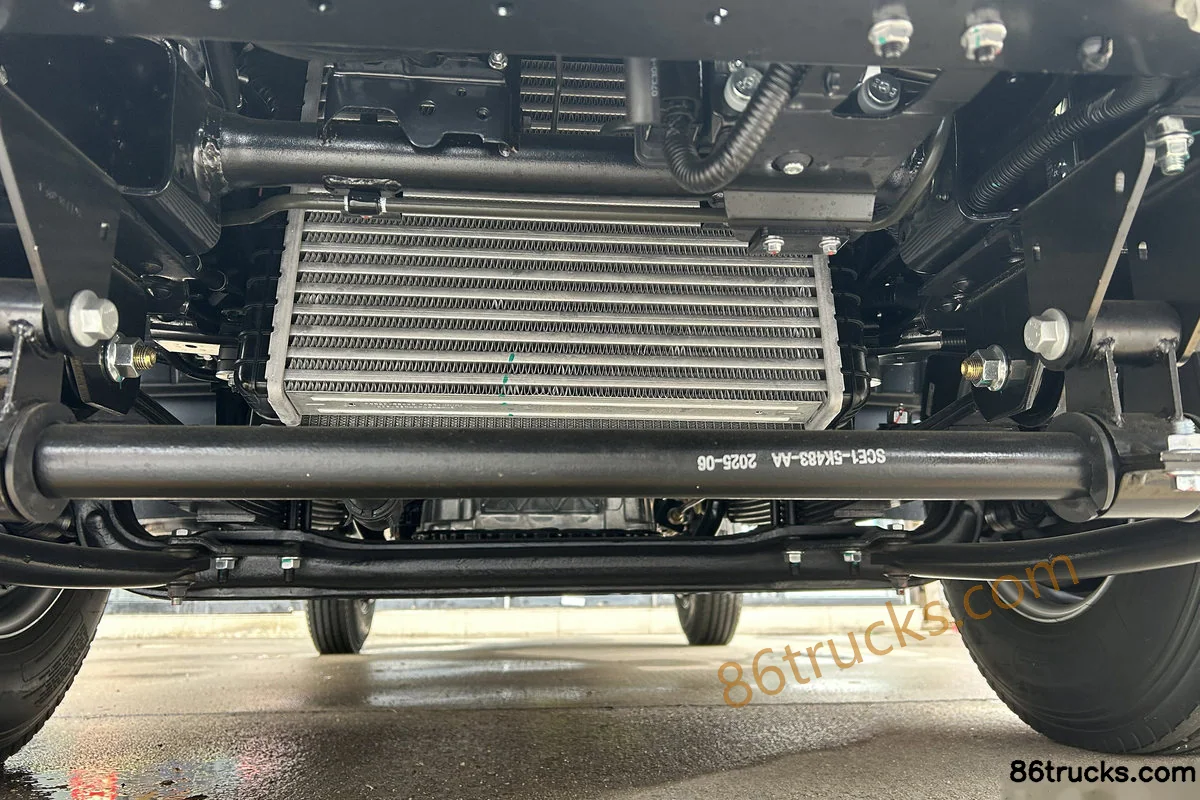

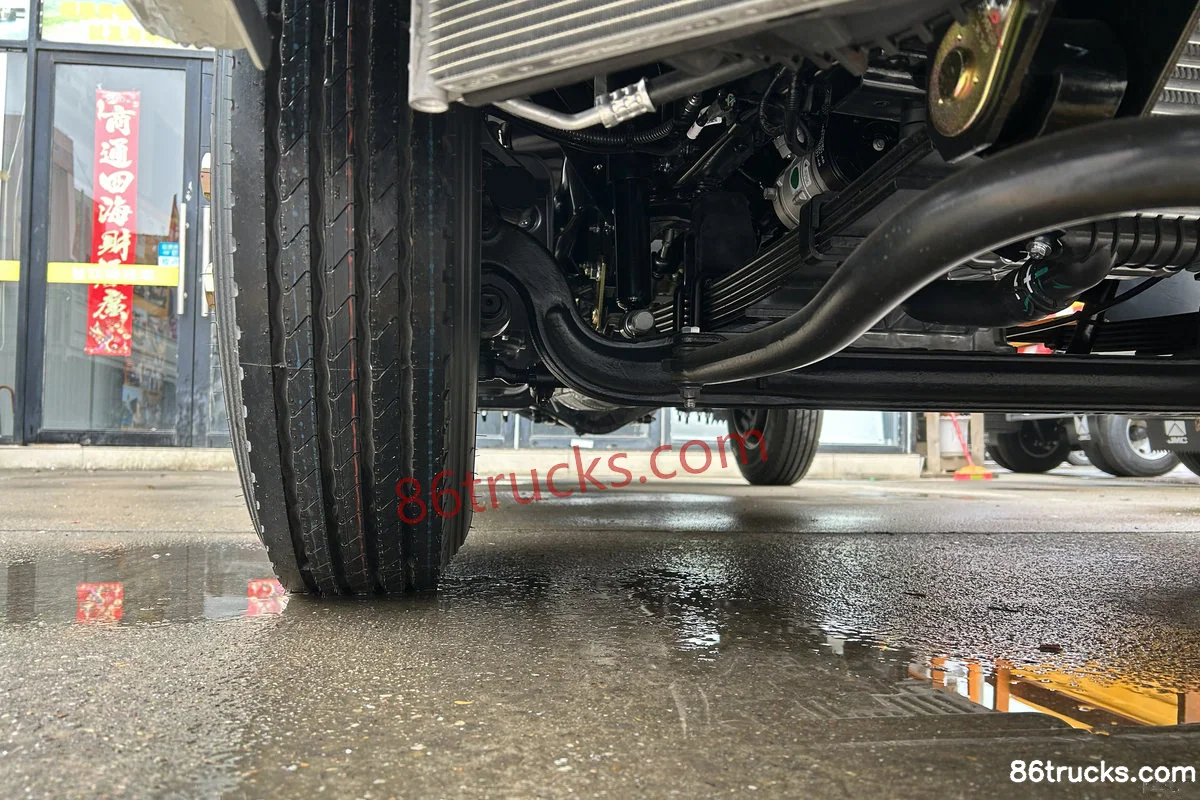

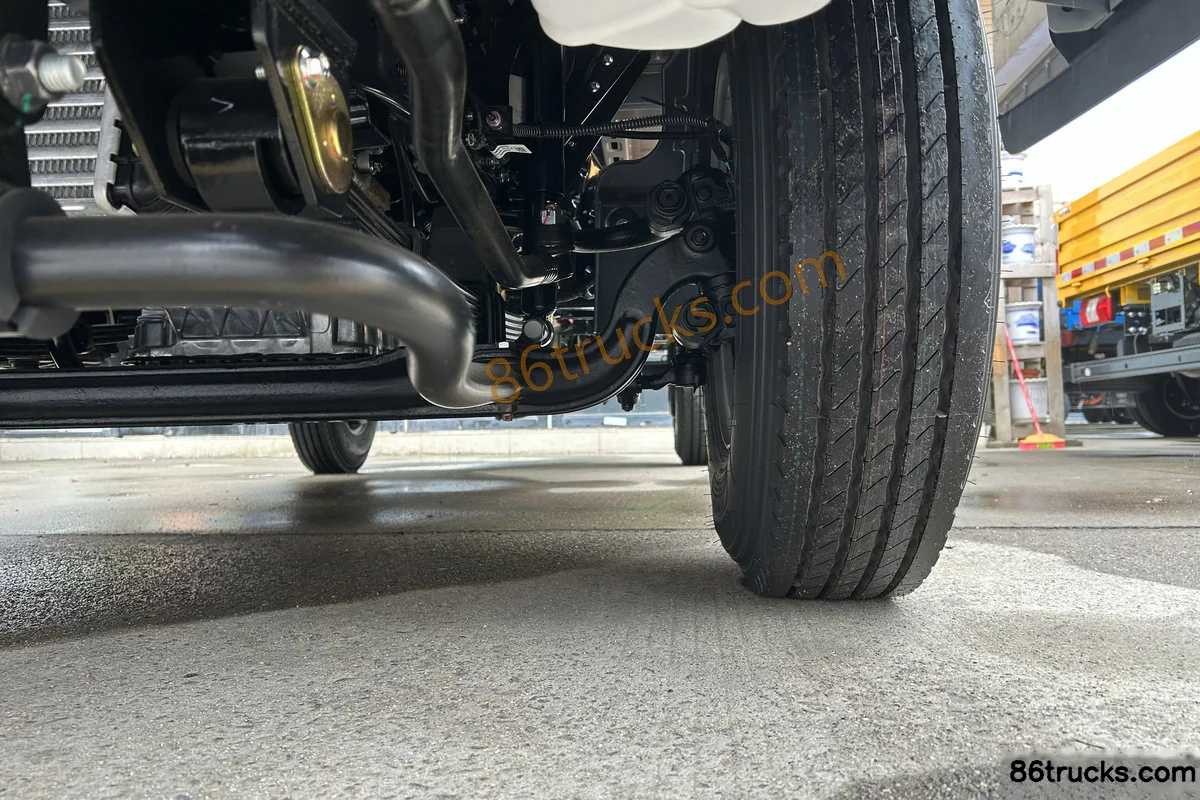

Chassis3

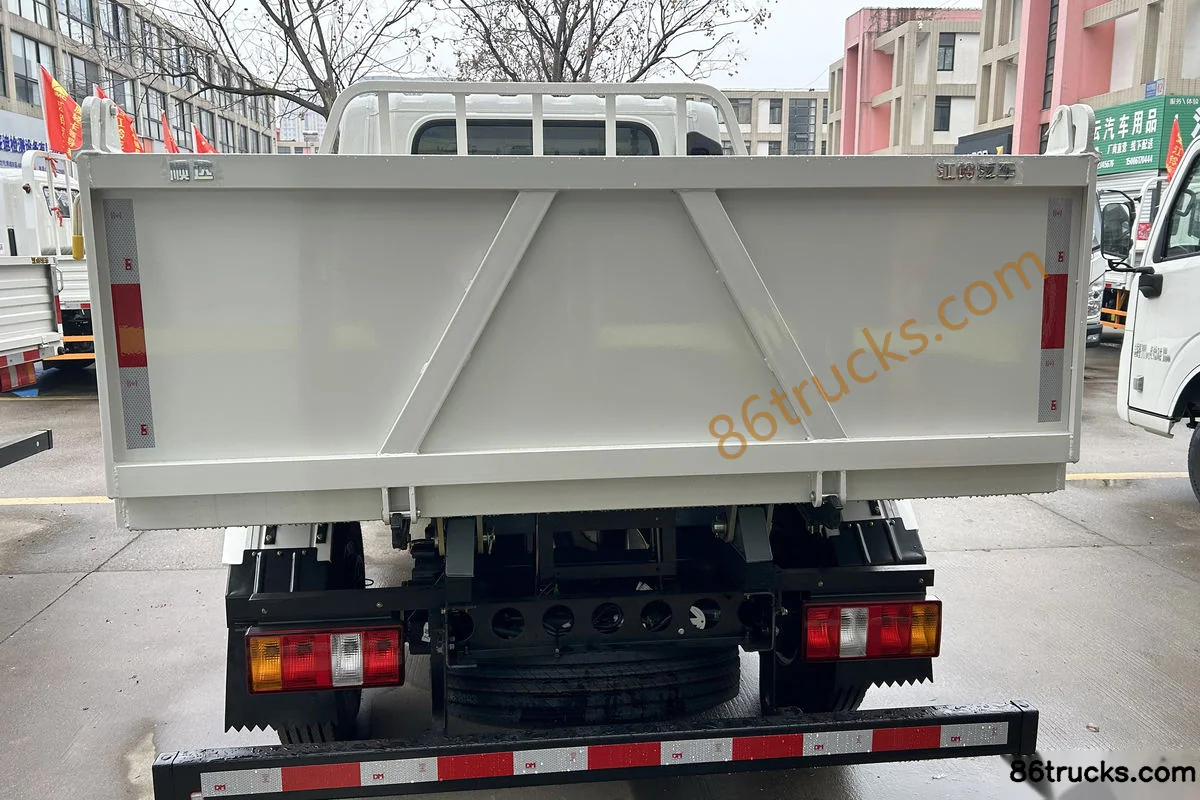

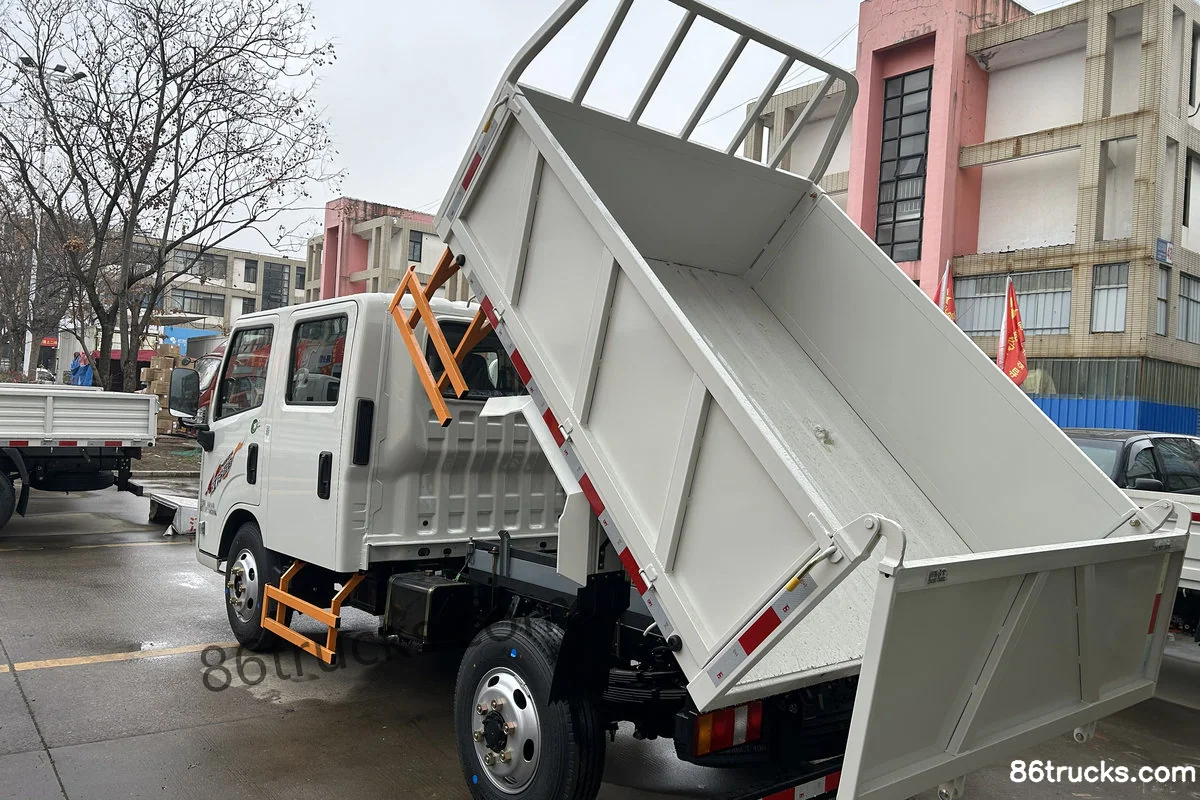

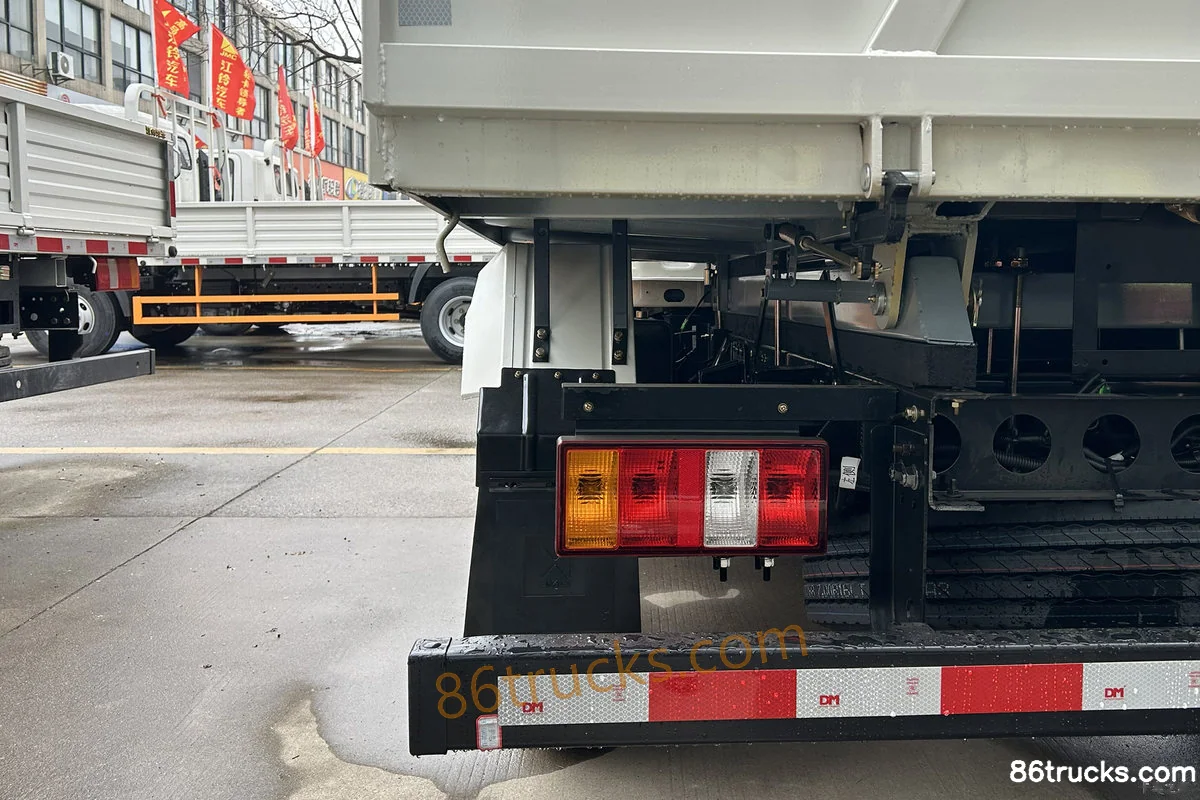

Body3

12 photos

FAQ

What is the export price of JMC New Shunda 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 2.19m Double Row Dump Truck, and what does it include?

JMC New Shunda 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 2.19m Double Row Dump Truck export reference is about From $17,194; MSRP is ¥12.38M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC New Shunda 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 2.19m Double Row Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC New Shunda 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 2.19m Double Row Dump Truck?

Key specs of JMC New Shunda 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 2.19m Double Row Dump Truck: Drive: 4x2; Horsepower: 136 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC New Shunda 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 2.19m Double Row Dump Truck suited for?

JMC New Shunda 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 2.19m Double Row Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JMC New Shunda 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 2.19m Double Row Dump Truck differ from other variants in the same series?

JMC New Shunda 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 2.19m Double Row Dump Truck belongs to JMC All-New Shunda Mini Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC New Shunda 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 2.19m Double Row Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC New Shunda 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 2.19m Double Row Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
