Sinotruk HOWO N5G medium truck 240hp 4X2(6 wheels) refrigerated truck (Hongchang Tianma)

Export reference
MSRP N/A
Wheelbase:: 5100mm
Tire Size:: 275/80R22.5
Cab dimensions:: 9×2.55×3.98m
Vehicle origin:: Sanhe, Hebei
Front track width:: 2022mm
rear track:: 1860mm
Drive 4X2 (6 wheels)
Horsepower 240
Emission China V
Fuel Diesel

Overview

The Sinotruk HOWO N5G medium truck 240hp 4X2(6 wheels) refrigerated truck (Hongchang Tianma) is a Refrigerated Truck featuring 9×2.55×3.98m cab and 5100mm wheelbase. On the powertrain side, it comes with 240 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 240 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9×2.55×3.98m
Drive type: 4X2
Wheelbase: 5100mm
Vehicle origin: Sanhe, Hebei
Front track width: 2022mm
rear track: 1860mm
Max. speed: 89km/h
Front/rear suspension: 1.55/2.25m
Energy Type: Diesel
Engine parameters
Engine Model: SinotrukMC07.24-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 176kW
Max hp: 240Horsepower
Max torque: 925N·m
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Body Parameters
Body Brand: Hongchang Tianma brand
Chassis Specs
Chassis Brand: Sinotruk HOWO
Chassis Series: N5G
Chassis Model: ZZ1185K5113E1
Front axle description: 1094 self-adjusting arm
rear axle description: MCJ11BG self-adjusting arm
Axle ratio: 4.11
Leaf spring count: 3/-
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS95TE-C
Tire
Tire Size: 275/80R22.5
Number of tires: 6pcs

Photos

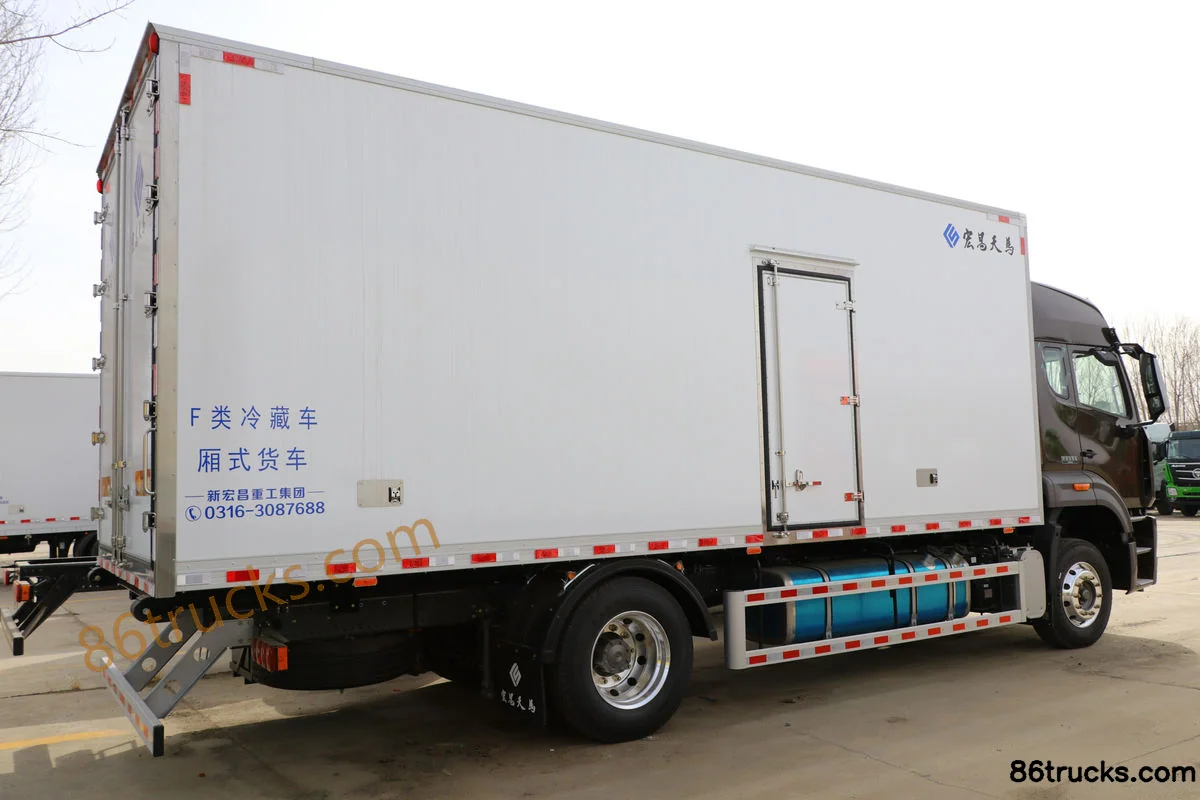

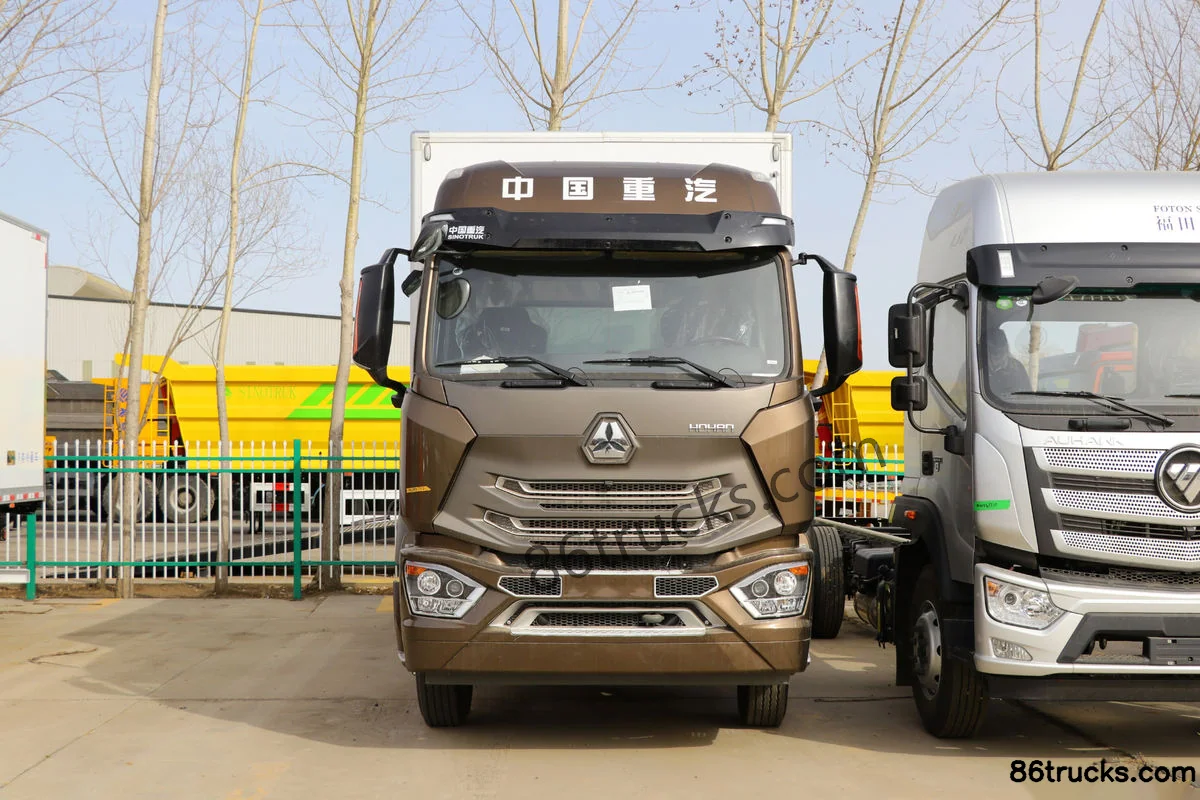

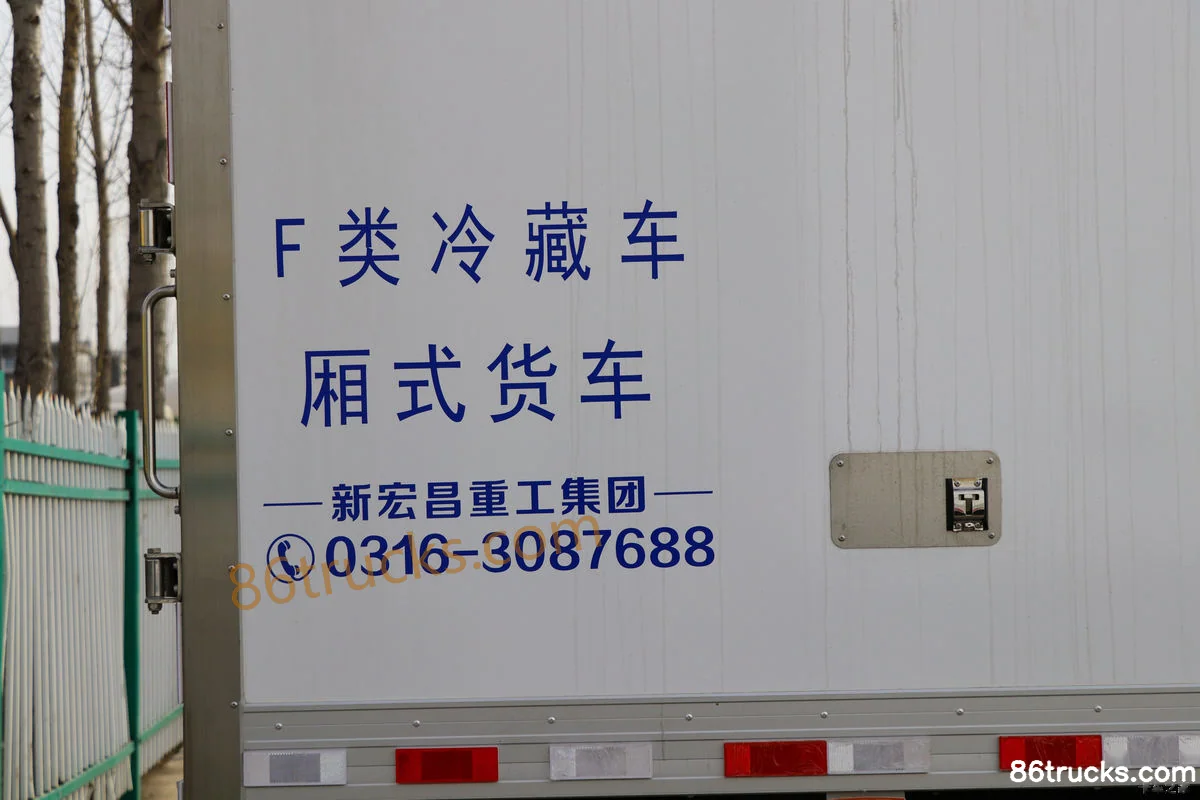

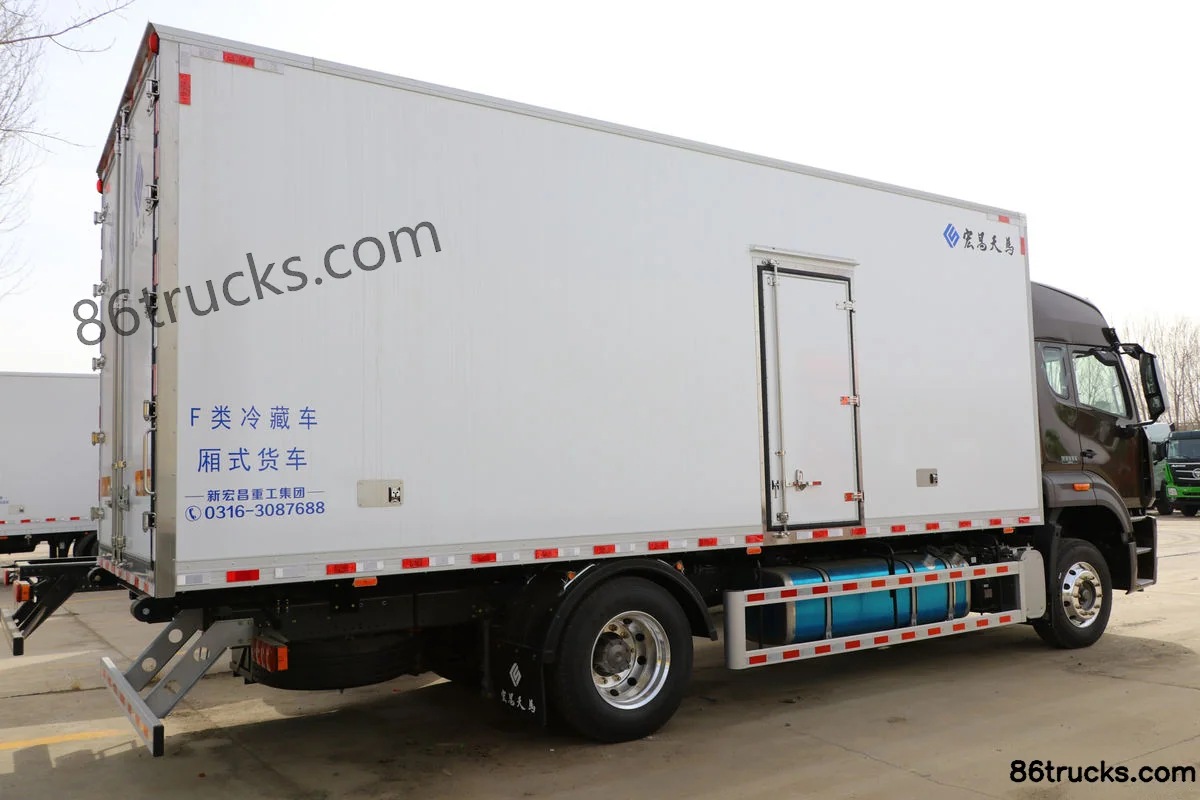

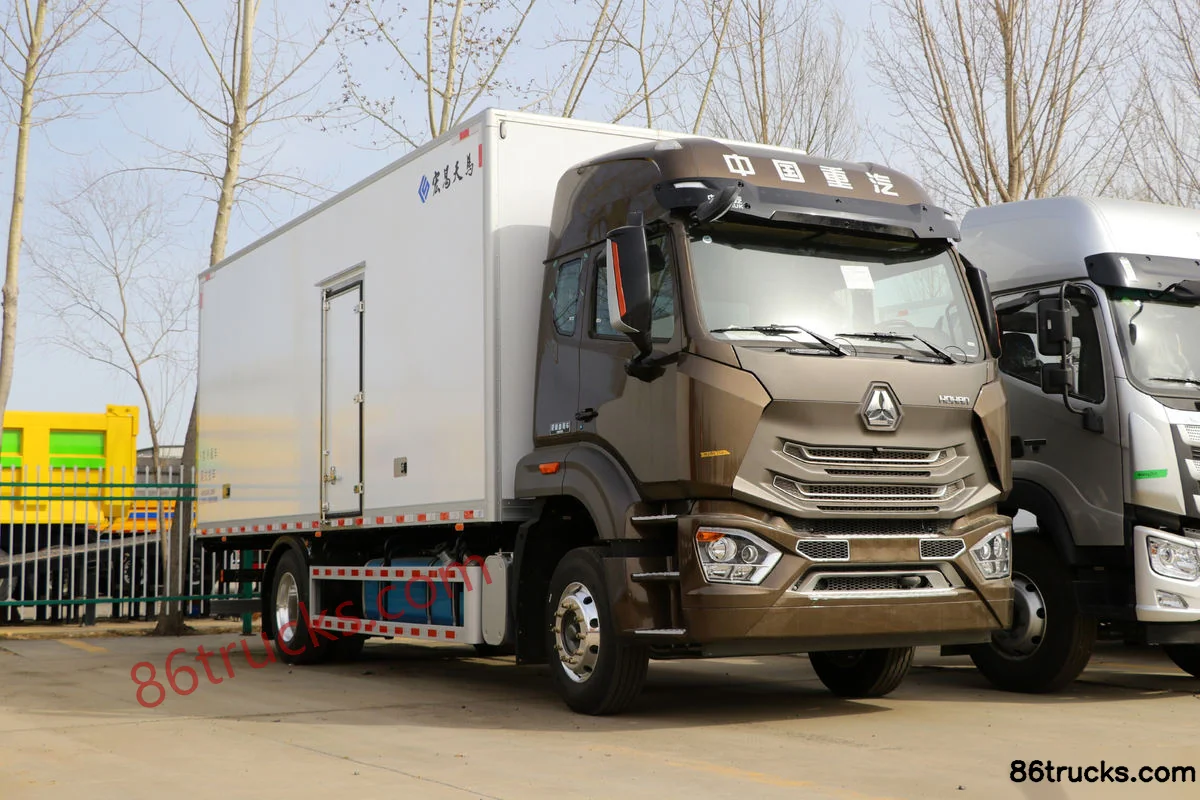

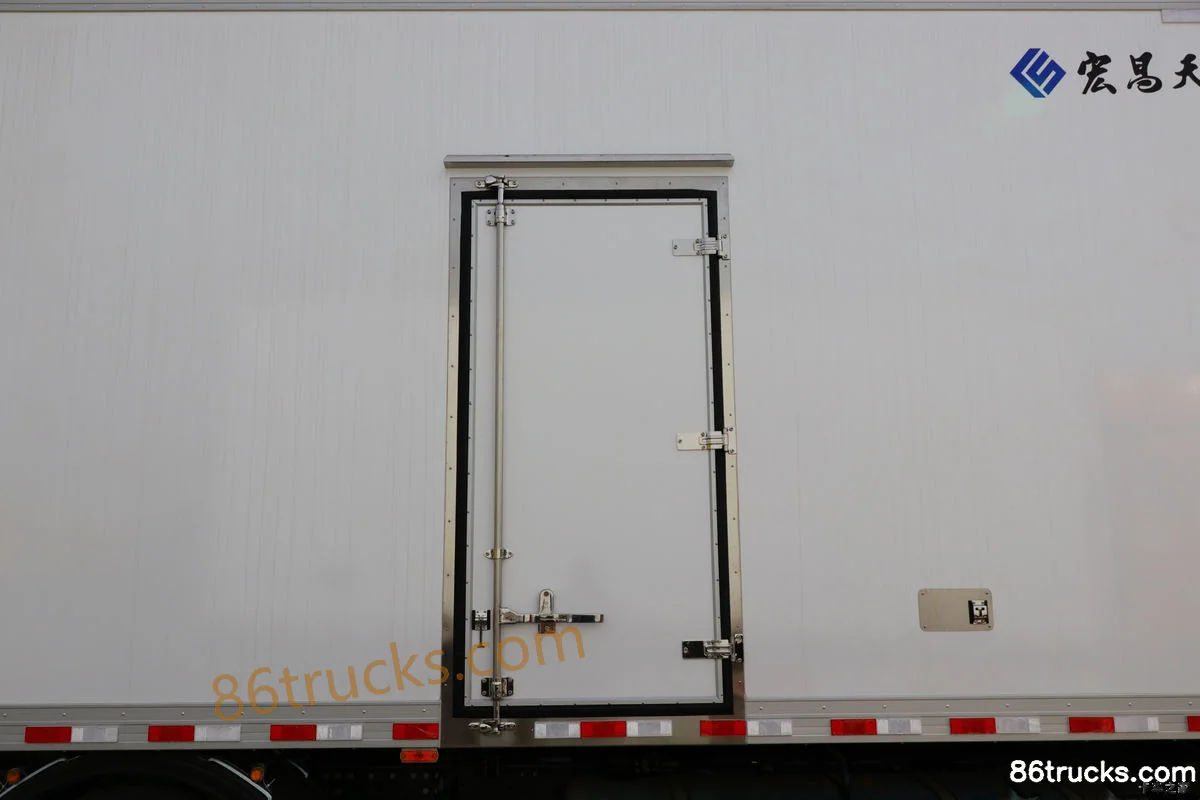

Exterior3

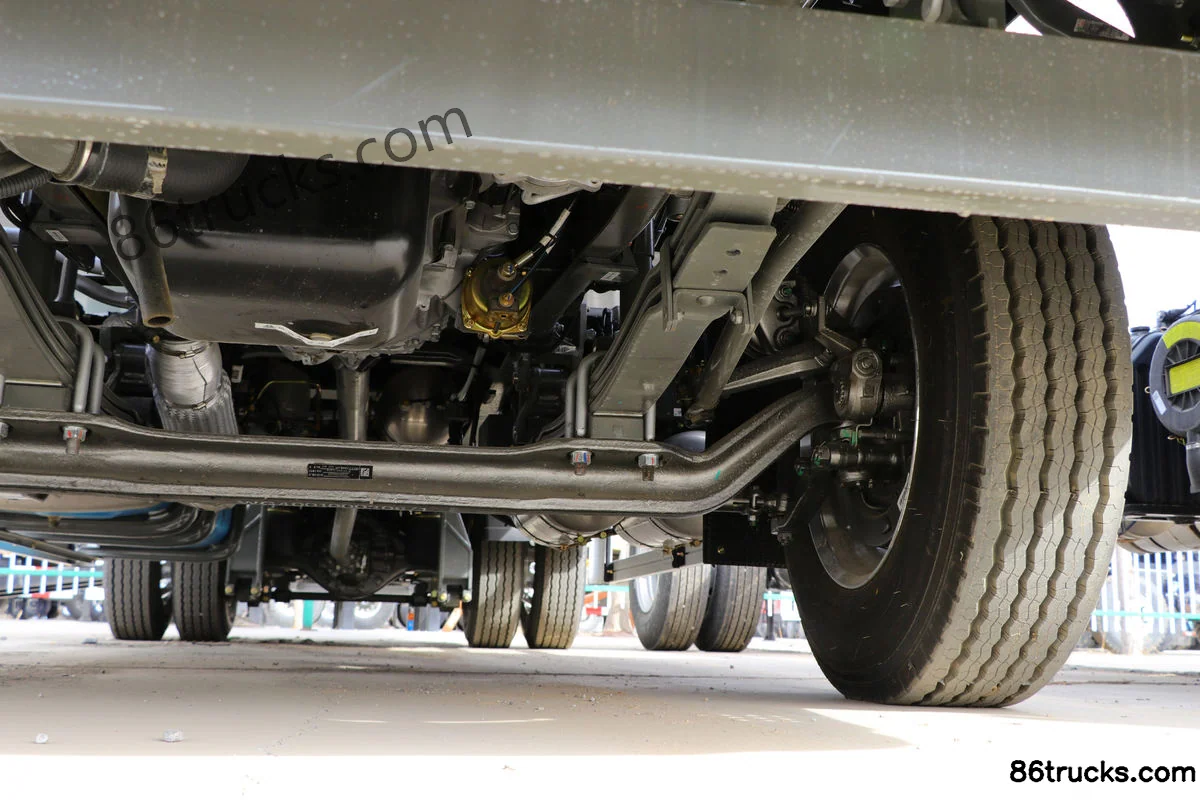

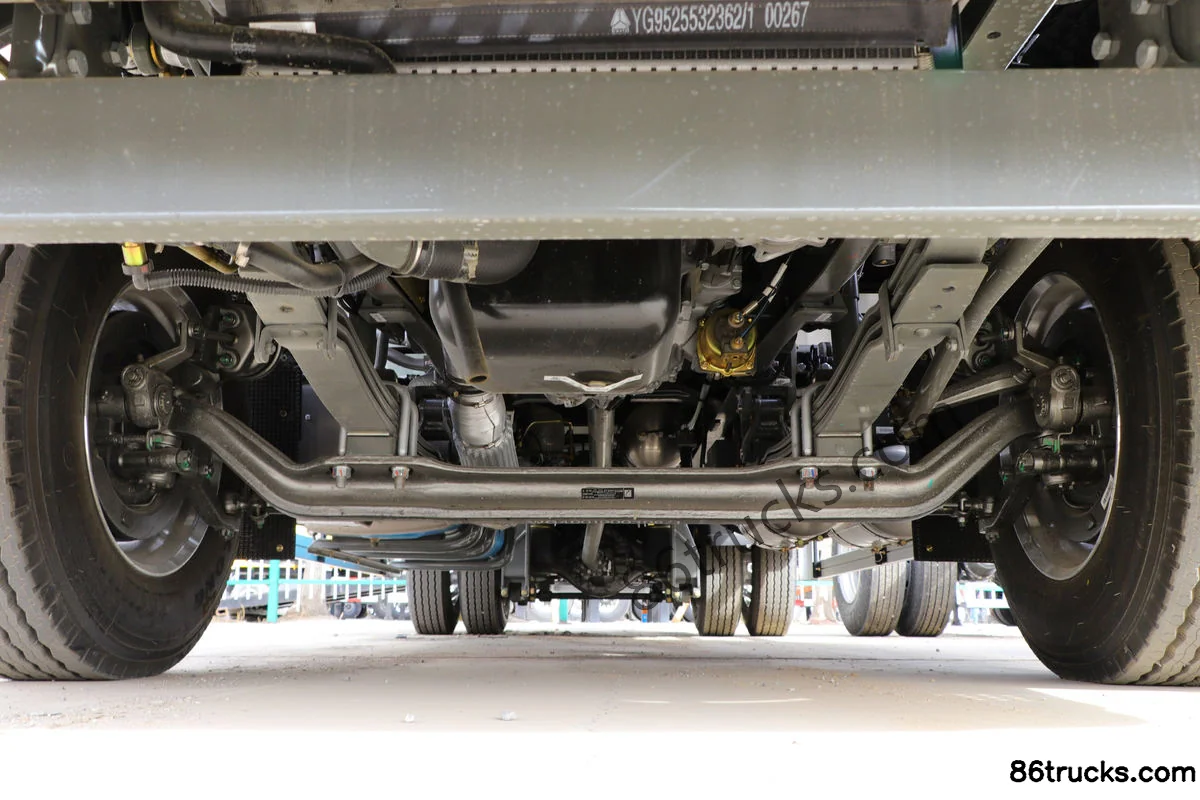

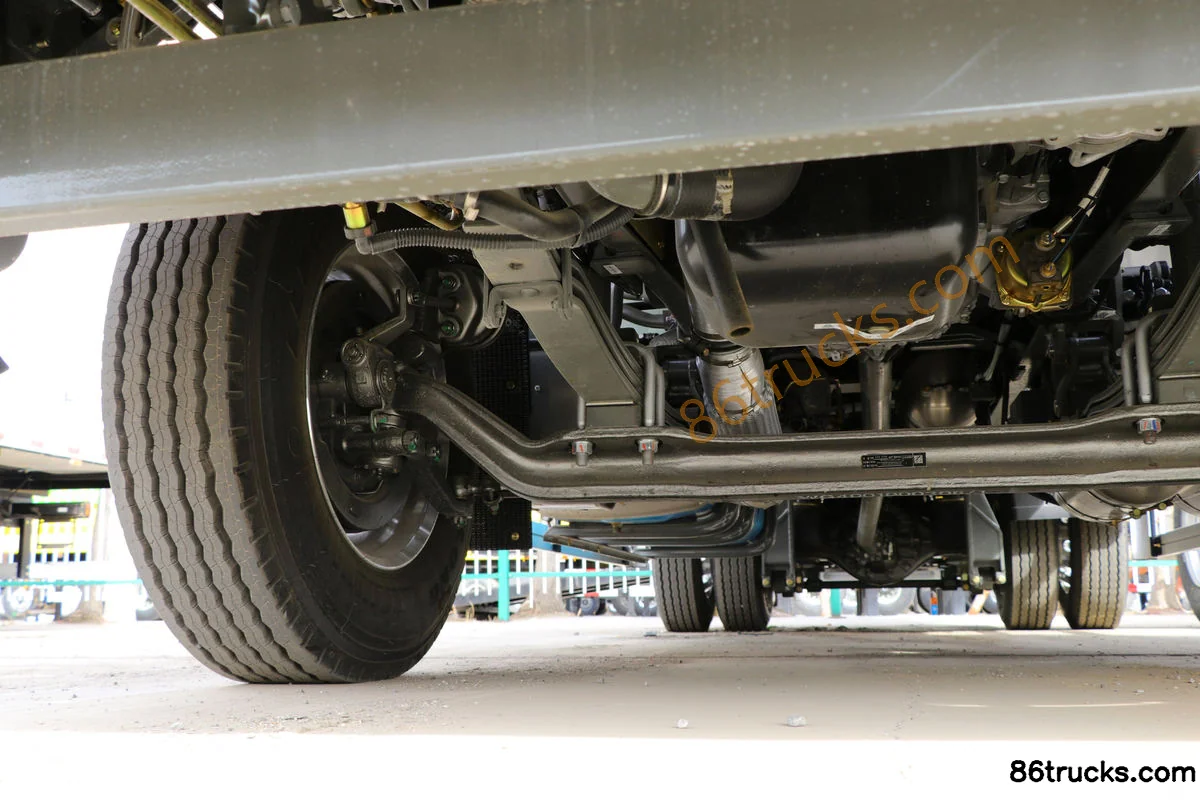

Chassis3

Chassis3

9 photos

FAQ

What emission standard does Sinotruk HOWO N5G medium truck 240hp 4X2(6 wheels) refrigerated truck (Hongchang Tianma) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO N5G medium truck 240hp 4X2(6 wheels) refrigerated truck (Hongchang Tianma)?

Key specs of Sinotruk HOWO N5G medium truck 240hp 4X2(6 wheels) refrigerated truck (Hongchang Tianma): Drive: 4x2; Horsepower: 240 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO N5G medium truck 240hp 4X2(6 wheels) refrigerated truck (Hongchang Tianma) suited for?

Sinotruk HOWO N5G medium truck 240hp 4X2(6 wheels) refrigerated truck (Hongchang Tianma) is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO N5G medium truck 240hp 4X2(6 wheels) refrigerated truck (Hongchang Tianma) differ from other variants in the same series?

Sinotruk HOWO N5G medium truck 240hp 4X2(6 wheels) refrigerated truck (Hongchang Tianma) belongs to Hongchang Tianma Sinotruk HOWO Chassis (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO N5G medium truck 240hp 4X2(6 wheels) refrigerated truck (Hongchang Tianma)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO N5G medium truck 240hp 4X2(6 wheels) refrigerated truck (Hongchang Tianma)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
