SHACMAN Delong M3000S 8X4(12 wheels) 6.5m Electric Dump Truck 422kWh

Export reference
MSRP N/A
Rated payload:: 10.045ton
Wheelbase:: 1800+3975+1400mm
Cargo box type:: Dump type
Model code (announced):: SX3317MF406BEV
Cab length:: 10.4m
GVWR:: 31ton
Drive 8X4 (12 wheels)
CLTC range: 210km
Motor 1 Brand: Zhonglian Nengchuang
Curb Weight: 20.825ton

Overview

The SHACMAN Delong M3000S 8X4(12 wheels) 6.5m Electric Dump Truck 422kWh is a Heavy truck featuring 210km battery/range, Zhonglian Nengchuang motor, 8X4 (12 wheels) drive and 10.045t payload.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3317MF406BEV
Drive type: 8X4
Wheelbase: 1800+3975+1400mm
Cab length: 10.4m
Cab width: 2.55m
Cab height: 3.5m
CLTC range: 210km
Curb Weight: 20.825ton
Rated payload: 10.045ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Zhonglian Nengchuang
Motor 1 Model: TZ420XSC1TB1
Motor Type: Permanent magnet synchronous motor
Peak power: 360kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 422kWh
Transmission Parameters
Number of gears: 6Gear
Transmission Model: Fast Gear 6-speed
Cargo box parameters
Cargo box type: Dump type
Cargo box length: 6.5m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: 13T MAN dual-reduction
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

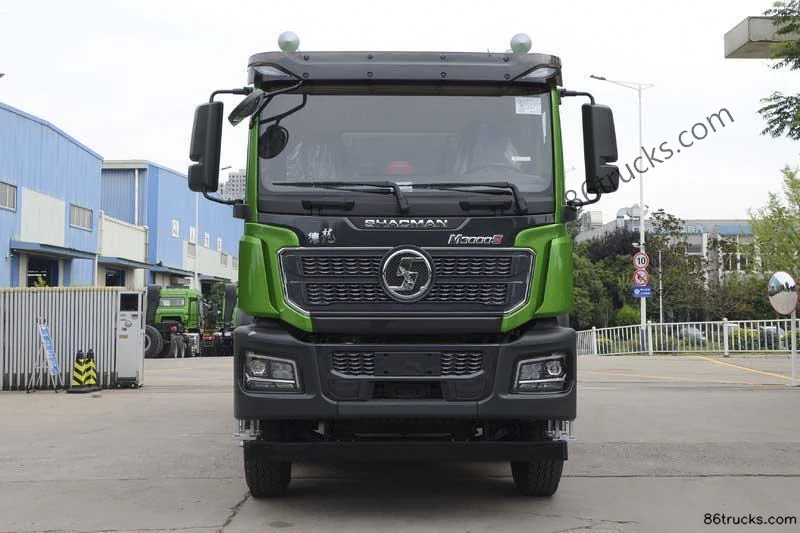

Exterior1
