Dongfeng Changxing D3 270hp 6X4(10 wheels) 8.5m Truck-Mounted Crane (Chengliwei Brand)

Export reference
From $55,000
MSRP ¥39.6M CNY
Fuel: Diesel
Wheelbase:: 4350+1350mm
Cab dimensions:: 12×2.55×3.76m
Type:: Truck with crane
GVWR:: 24.49ton
Remarks:: Shimei 12-ton 4-section, boom length 14.5m, height 16.5m, crane optional XCMG, SANY, Hongchang Tianma, Chengli Headquarters
Drive 6X4 (10 wheels)
Horsepower 270
Rated mass: 7.16ton
Emission China VI

Overview

The Dongfeng Changxing D3 270hp 6X4(10 wheels) 8.5m Truck-Mounted Crane (Chengliwei Brand) is a truck-mounted crane featuring 24.49t GVW and 6X4 (10 wheels) drive. On the powertrain side, it comes with a Yuchai engine, 270 hp, China VI emissions and Diesel fuel.

China VI 270 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 12×2.55×3.76m
Type: Truck with crane
Drive type: 6X4
Wheelbase: 4350+1350mm
Rated mass: 7.16ton
GVWR: 24.49ton
Remarks: Shimei 12-ton 4-section, boom length 14.5m, height 16.5m, crane optional XCMG, SANY, Hongchang Tianma, Chengli Headquarters
Front/rear suspension: 1.45/2.45m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS06270-60
fuel type: Diesel
Displacement: 6.23L
Emission standard: China VI
Max output power: 199kW
Max hp: 270Horsepower
Max torque: 1050N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Body Parameters
Vehicle certification code: CLW5250JSQE6
Body Brand: Chengliwei
Chassis Specs
Chassis Brand: Dongfeng
Chassis Series: Dongfeng Changxing
Chassis Model: DFV1243GP6DJ
rear axle description: 153
Axle ratio: 4.875
Leaf spring count: 9/10,8/13,9/13
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear 9-speed
Tire
Tire Size: 11.00-20 16PR
Number of tires: 10pcs

Photos

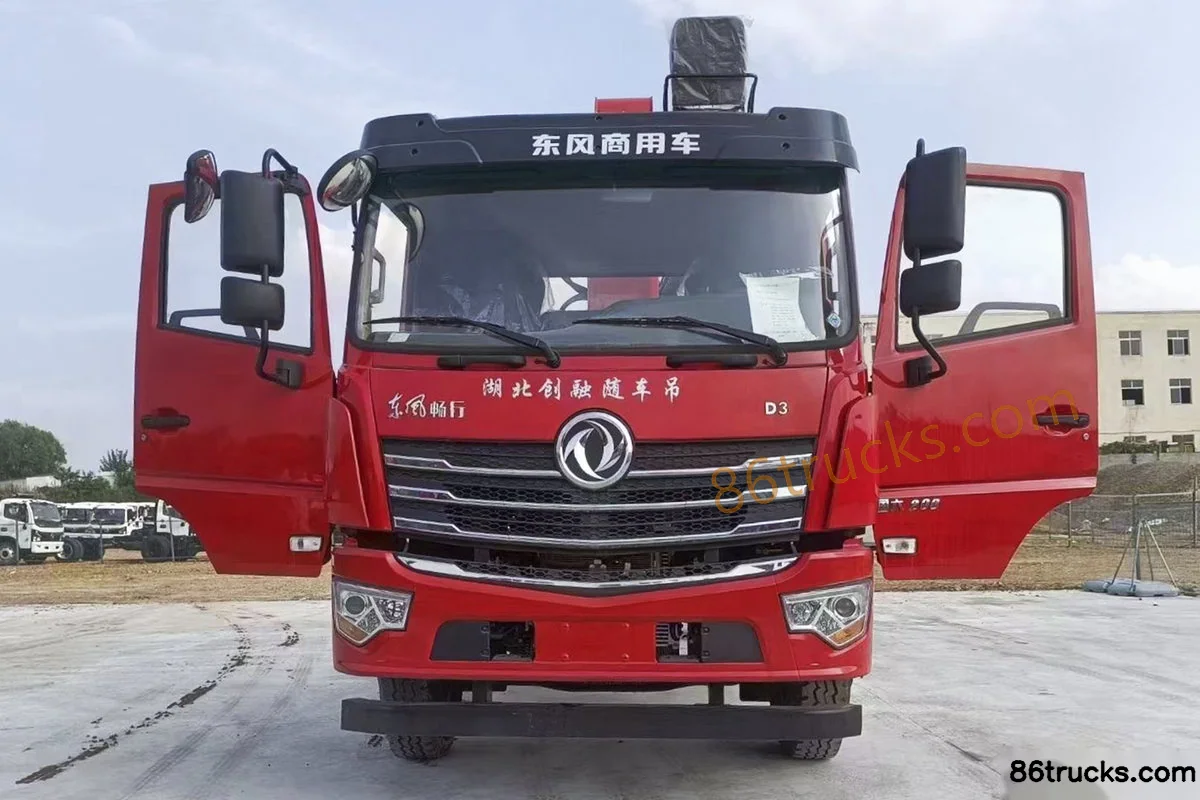

Exterior1

1 photos

FAQ

What is the export price of Dongfeng Changxing D3 270hp 6X4(10 wheels) 8.5m Truck-Mounted Crane (Chengliwei Brand), and what does it include?

Dongfeng Changxing D3 270hp 6X4(10 wheels) 8.5m Truck-Mounted Crane (Chengliwei Brand) export reference is about From $55,000; MSRP is ¥39.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Changxing D3 270hp 6X4(10 wheels) 8.5m Truck-Mounted Crane (Chengliwei Brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Changxing D3 270hp 6X4(10 wheels) 8.5m Truck-Mounted Crane (Chengliwei Brand)?

Key specs of Dongfeng Changxing D3 270hp 6X4(10 wheels) 8.5m Truck-Mounted Crane (Chengliwei Brand): Drive: 6x4; Horsepower: 270 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Changxing D3 270hp 6X4(10 wheels) 8.5m Truck-Mounted Crane (Chengliwei Brand) suited for?

Dongfeng Changxing D3 270hp 6X4(10 wheels) 8.5m Truck-Mounted Crane (Chengliwei Brand) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongfeng Changxing D3 270hp 6X4(10 wheels) 8.5m Truck-Mounted Crane (Chengliwei Brand) differ from other variants in the same series?

Dongfeng Changxing D3 270hp 6X4(10 wheels) 8.5m Truck-Mounted Crane (Chengliwei Brand) belongs to Chengliwei Dongfeng Chassis (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Changxing D3 270hp 6X4(10 wheels) 8.5m Truck-Mounted Crane (Chengliwei Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Changxing D3 270hp 6X4(10 wheels) 8.5m Truck-Mounted Crane (Chengliwei Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
