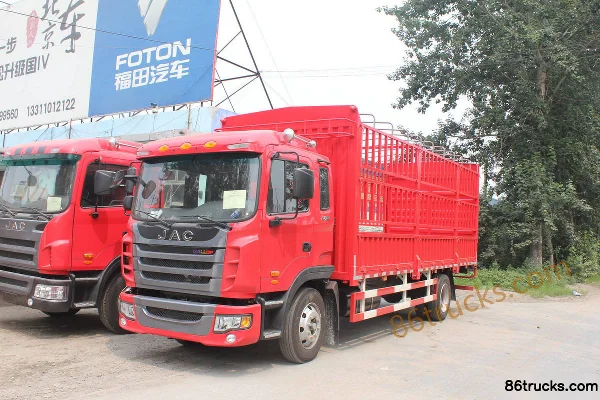

JAC Gallop K3 Medium Truck 160hp 4X2(6 wheels) 6.77m Stake Truck

Export reference
From $23,611
MSRP ¥17M CNY
Horsepower: 160
Emission: China V
Fuel: Diesel
Engine: Yuchai4102
Transmission: Fast Gear
Curb Weight:: 6.3ton
seating capacity: 3Personnel
Rated payload: 9.505ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JAC Gallop K3 Medium Truck 160hp 4X2(6 wheels) 6.77m Stake Truck is a Medium-duty truck featuring 6.77m cargo length, Stake type cargo body, 3Personnel volume and 9.505t payload. Its segment focus covers Daily industrial goods transport, agricultural and sideline products transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Yuchai4102 engine, 160 hp, 4X2 (6 wheels) drive and China V emissions.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5161CCYP3K1A50S2V
Type: stake truck
Drive type: 4X2
Wheelbase: 5000mm
Box length class: 6.8m
engine: YuchaiYC4S160-50
transmission: Fast Gear6DS180T
Rear Axle Ratio: 5.286
Cab length: 9m
Cab width: 2.5m
Cab height: 3.78m
Front track width: 1800mm
rear track: 1800mm
Curb Weight: 6.3ton
Rated payload: 9.505ton
GVWR: 16ton
Max. speed: 100km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
market segment: Daily industrial goods transport, agricultural and sideline products transport, green channel
Front/rear suspension: 1.4/2.6m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4S160-50
Engine info: Yuchai4102
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.767L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 550N·m
Max torque speed: 1300-1800rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear6DS180T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.77m
Cargo box width: 2.4m
Cargo box height: 0.6m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 5600kg
rear axle description: G1P10XB
rear axle allowable load: 10400kg
Axle ratio: 5.286
Leaf spring count: 9/9+7
Tire
Tire Size: 9.00R20
Number of tires: 6pcs

Photos

0 photos

FAQ

What is the export price of JAC Gallop K3 Medium Truck 160hp 4X2(6 wheels) 6.77m Stake Truck, and what does it include?

JAC Gallop K3 Medium Truck 160hp 4X2(6 wheels) 6.77m Stake Truck export reference is about From $23,611; MSRP is ¥17M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop K3 Medium Truck 160hp 4X2(6 wheels) 6.77m Stake Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K3 Medium Truck 160hp 4X2(6 wheels) 6.77m Stake Truck?

Key specs of JAC Gallop K3 Medium Truck 160hp 4X2(6 wheels) 6.77m Stake Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai4102; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K3 Medium Truck 160hp 4X2(6 wheels) 6.77m Stake Truck suited for?

JAC Gallop K3 Medium Truck 160hp 4X2(6 wheels) 6.77m Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop K3 Medium Truck 160hp 4X2(6 wheels) 6.77m Stake Truck differ from other variants in the same series?

JAC Gallop K3 Medium Truck 160hp 4X2(6 wheels) 6.77m Stake Truck belongs to JAC Gallop K3 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K3 Medium Truck 160hp 4X2(6 wheels) 6.77m Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K3 Medium Truck 160hp 4X2(6 wheels) 6.77m Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
