FAW Jiefang New J6P Heavy Truck 2020 390 hp 6X4(10 wheels) 5.6m dump truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: FAW Jiefang
Curb Weight:: 12.11ton
Wheelbase:: 3800+1350mm
Tire Size:: 12.00R20
Rated payload: 12.695ton
Drive 6X4 (10 wheels)
Horsepower 390
Cargo box type: Dump type

Overview

The FAW Jiefang New J6P Heavy Truck 2020 390 hp 6X4(10 wheels) 5.6m dump truck is a Heavy truck featuring 12.695t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a XichaiCA6DM2-39E52 engine, 390 hp, China V emissions and FAW Jiefang transmission.

China V 390 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3250P66K2L1T1AE5
Drive type: 6X4
Wheelbase: 3800+1350mm
engine: XichaiCA6DM2-39E52
transmission: FAW JiefangCA12TAX190M
Rear Axle Ratio: 5.921
Cab length: 8.54m
Cab width: 2.55m
Cab height: 3.68m
Front track width: 2020mm
rear track: 1847/1847mm
Curb Weight: 12.11ton
Rated payload: 12.695ton
GVWR: 25ton
Origin: Changchun/Qingdao/Chengdu
tonnage class: Heavy truck
Approach angle: 24°
departure angle: 22°
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DM2-39E52
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.05L
Emission standard: China V
Max output power: 290kW
Max hp: 390Horsepower
Max torque: 1900N·m
Max torque speed: 1300rpm
Rated speed: 1900rpm
Engine Type: 6-cylinder inline, direct injection, turbocharged intercooled, electronic common rail
Transmission Parameters
Transmission Model: FAW JiefangCA12TAX190M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: New J6P Full-Floating Flat Roof Half-Sleeper
Chassis Specs
Front axle description: 2020 front axle
Front axle allowable load: 7000kg
Frame Dimensions: 300×80×(8+8)mm
rear axle description: Φ300 cast iron wheel reduction axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.921
Leaf spring count: 12/12,10/10
Tire
Tire Size: 12.00R20
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

Photos

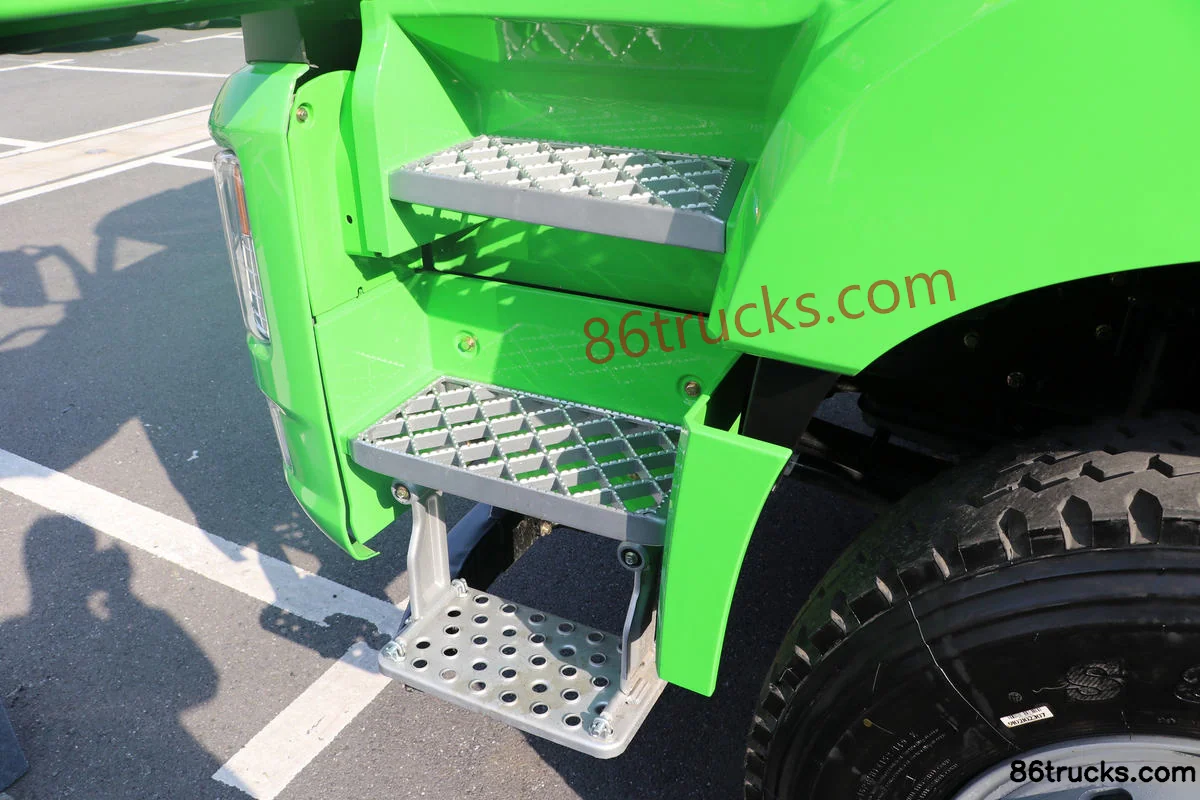

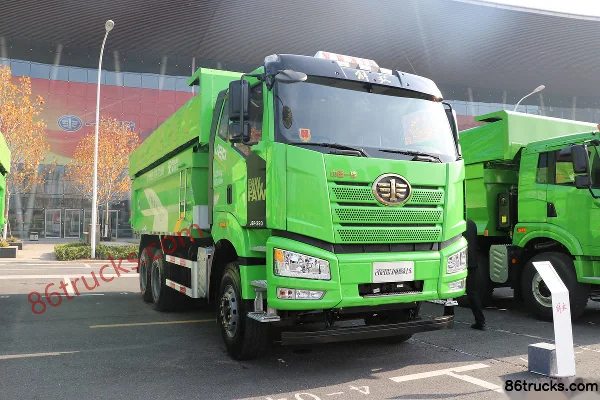

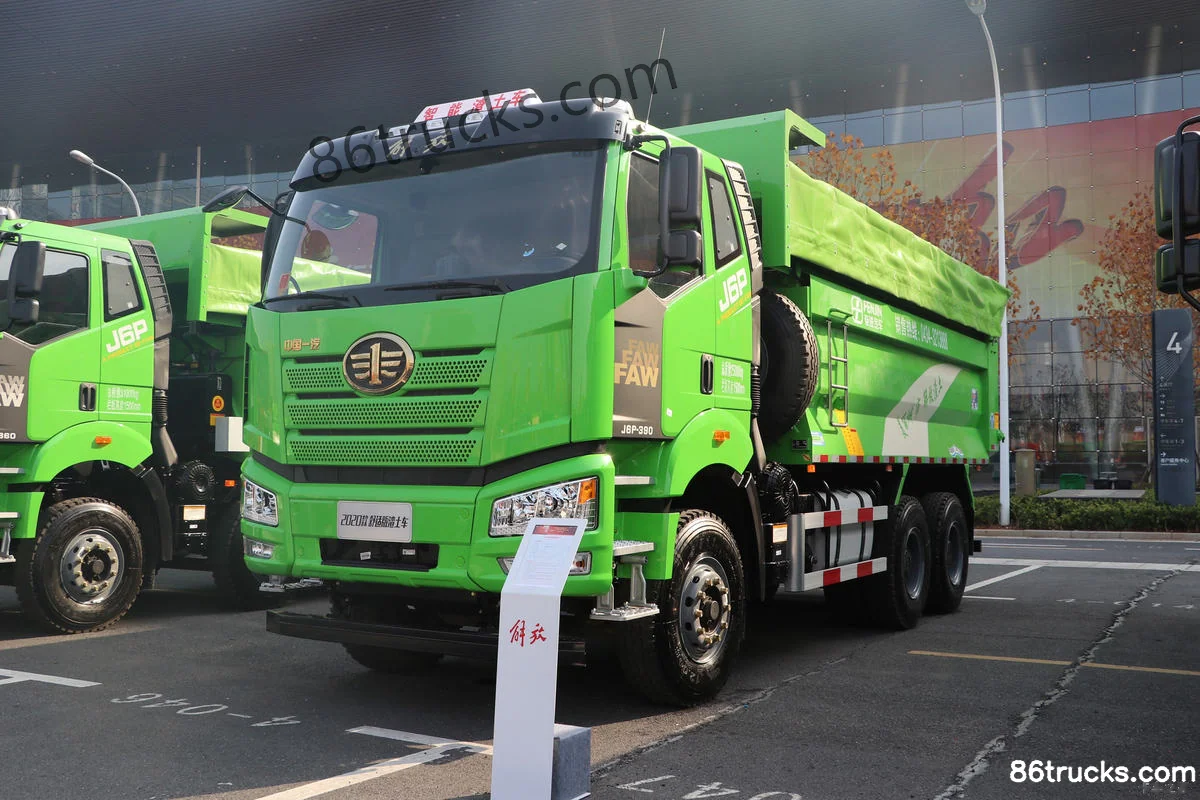

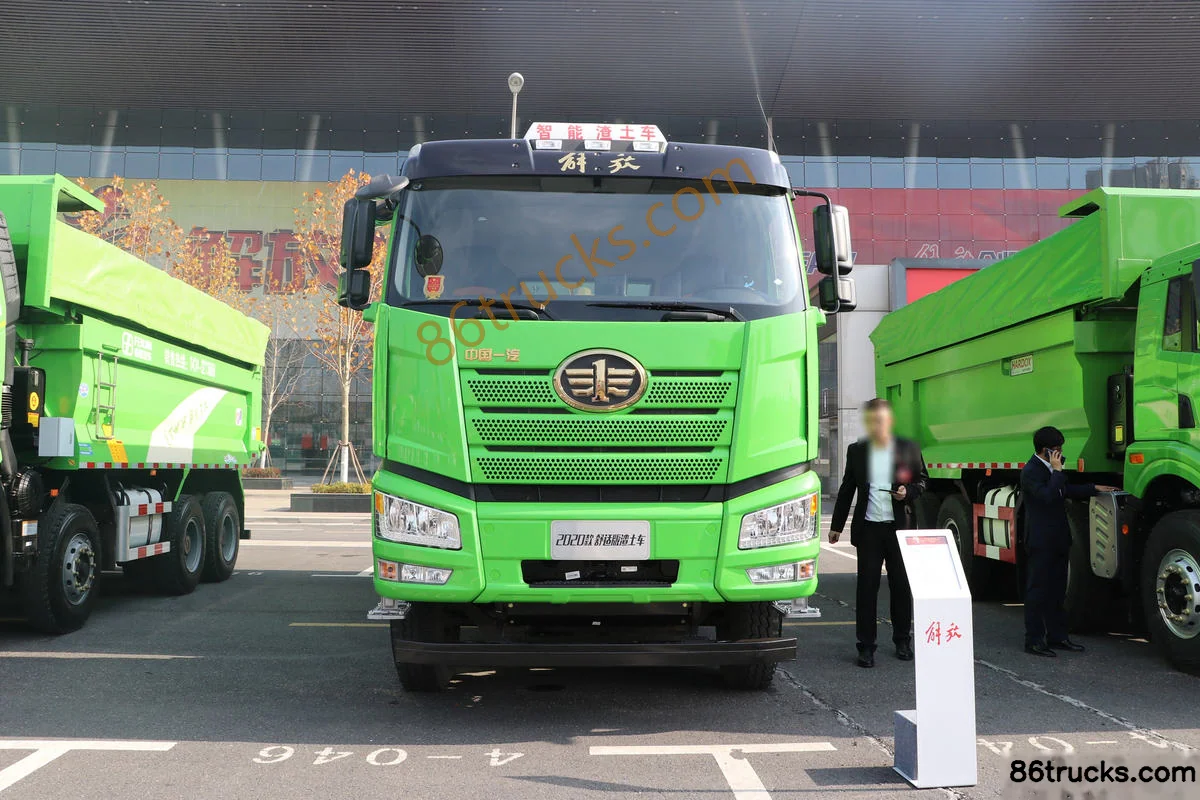

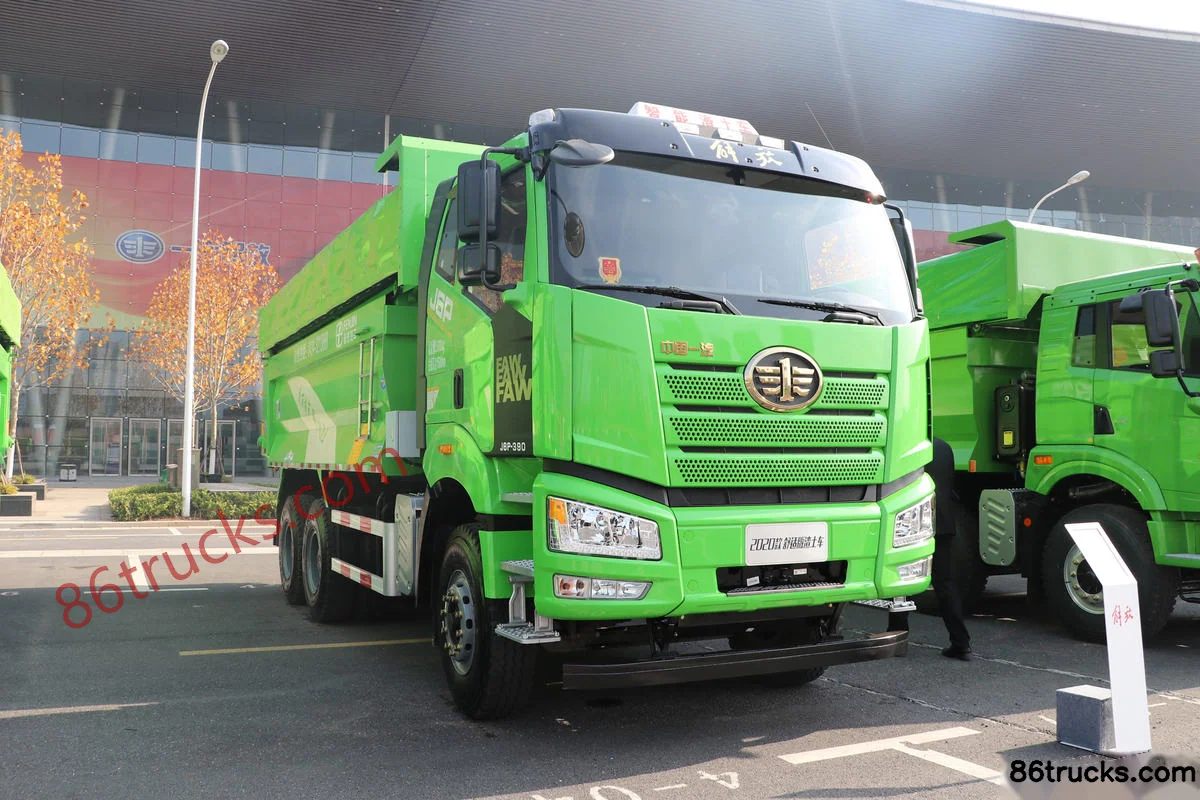

Exterior3

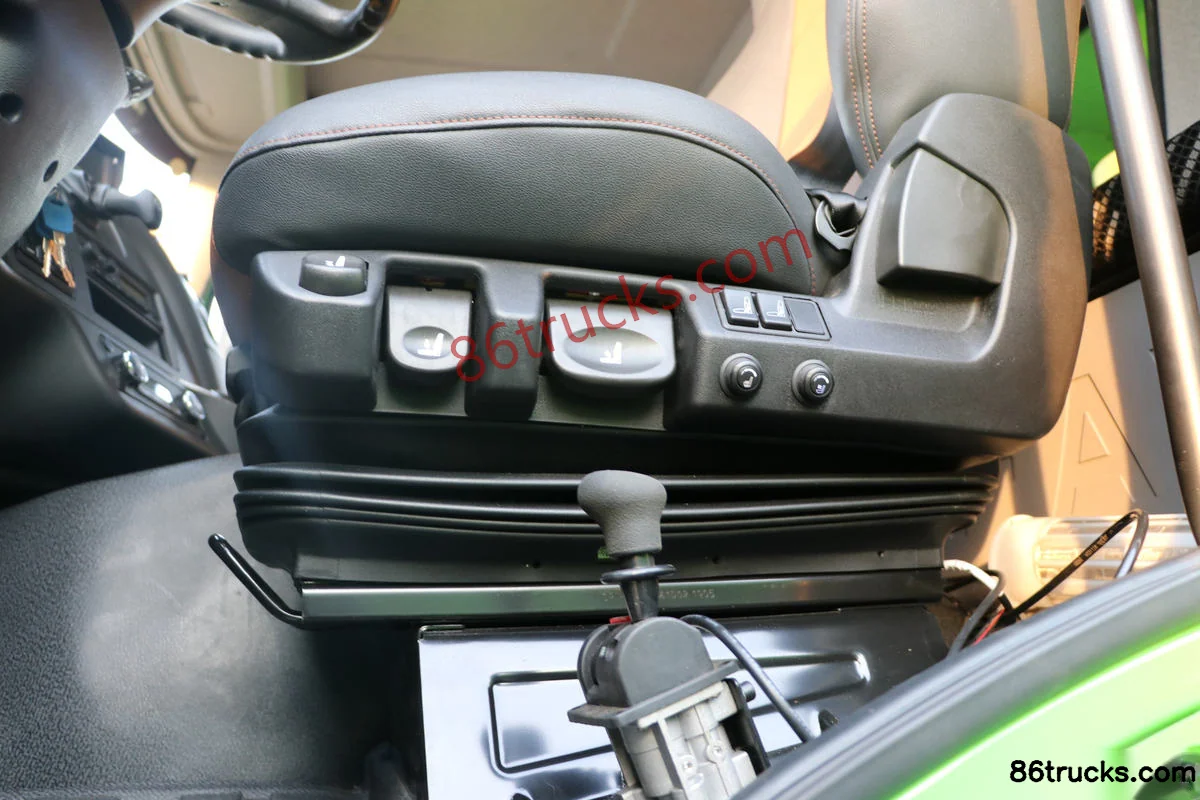

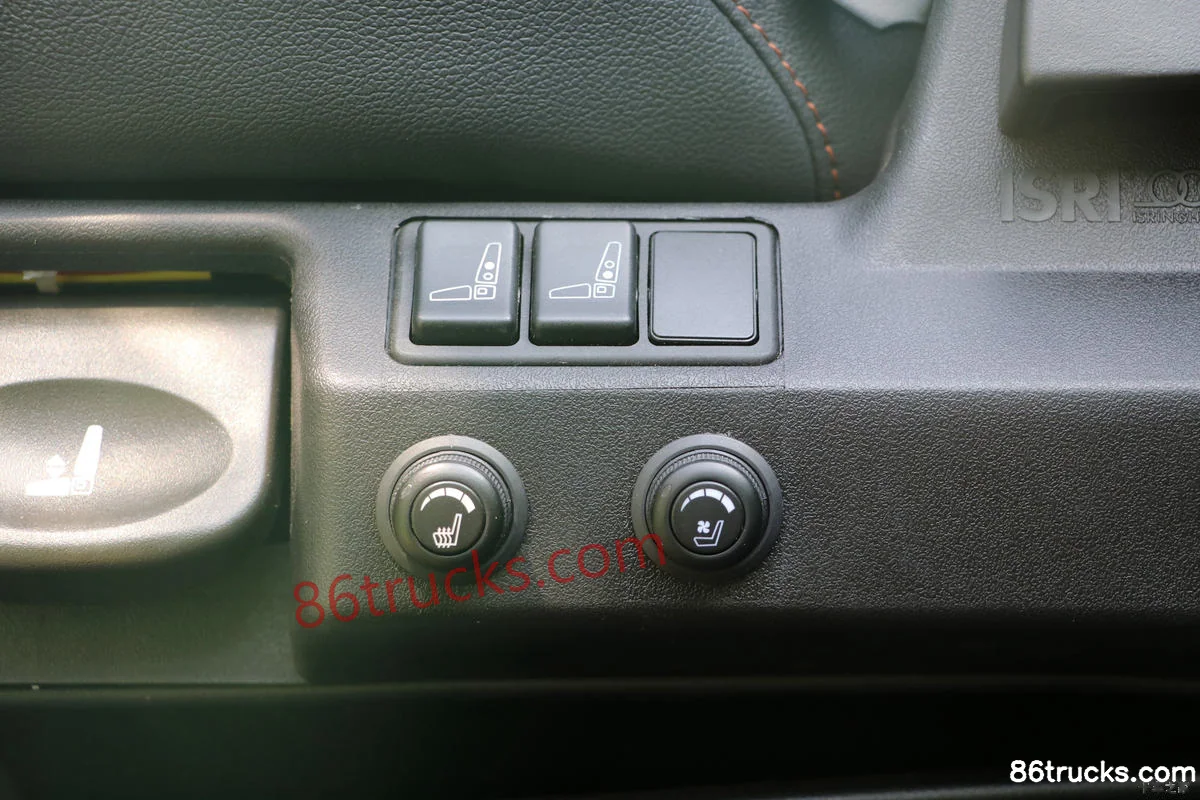

Cab3

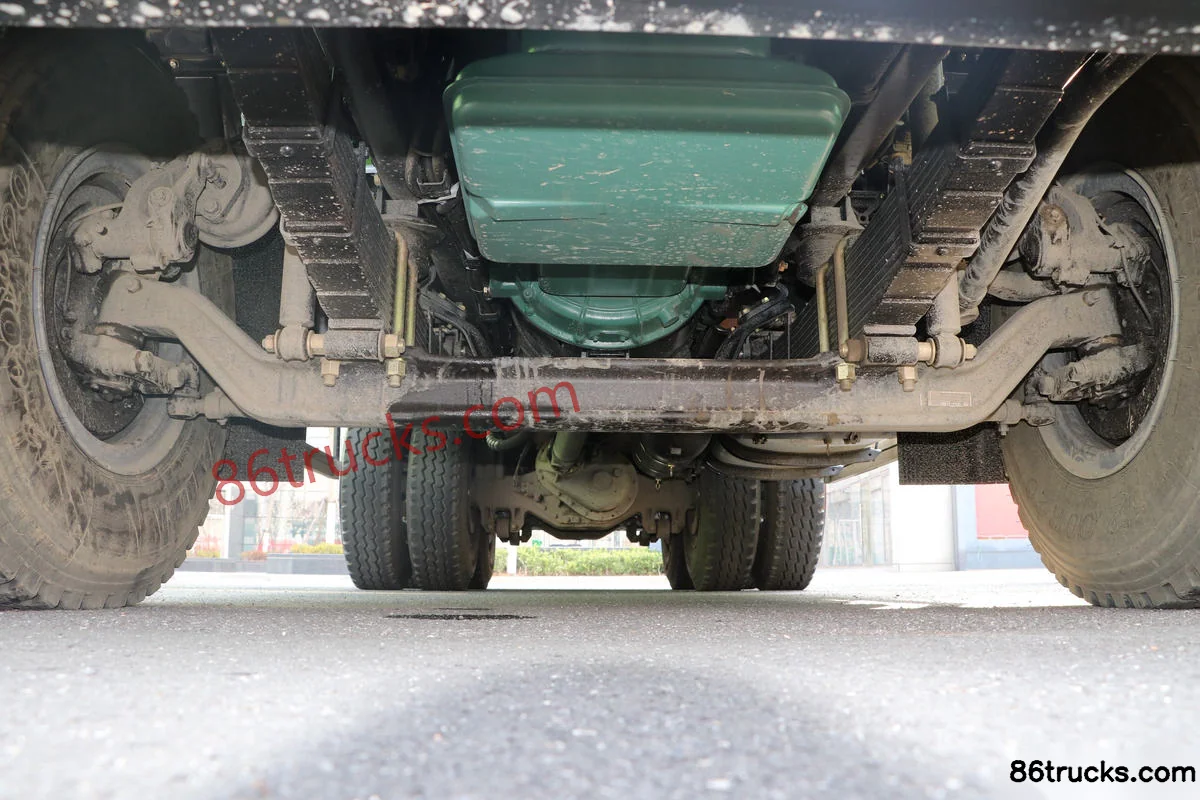

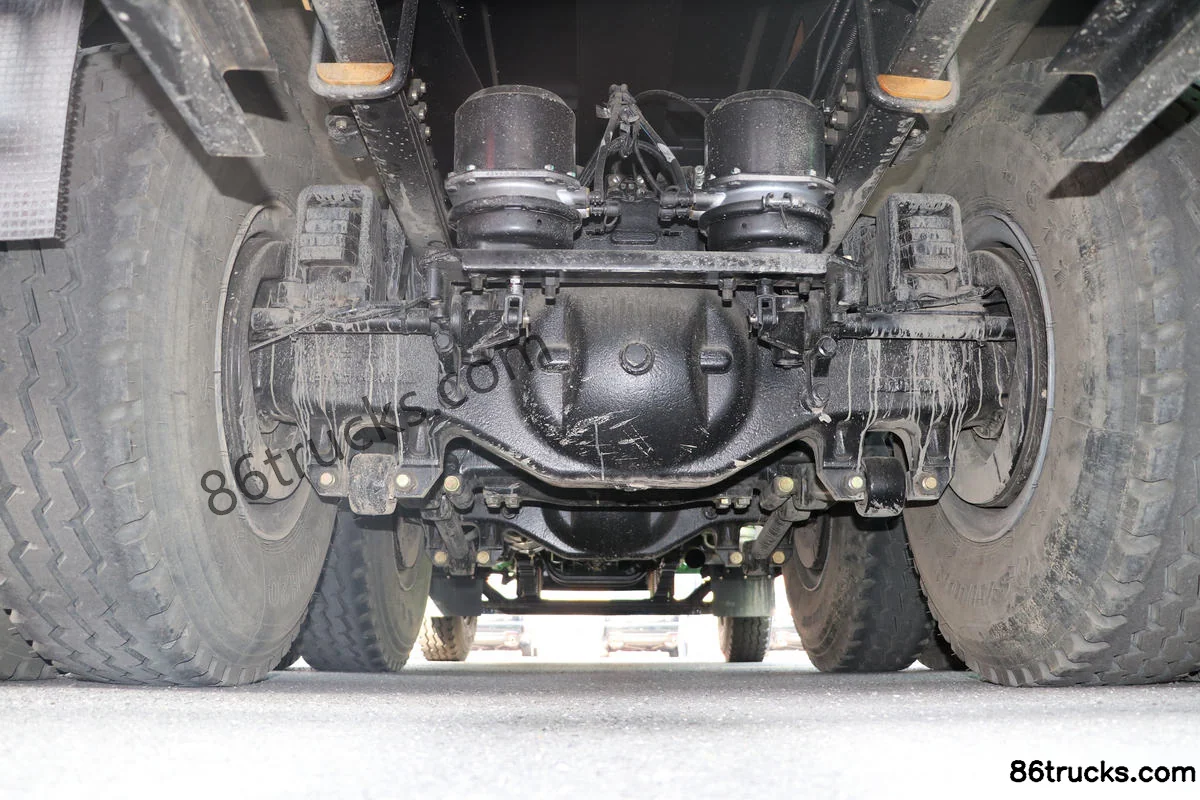

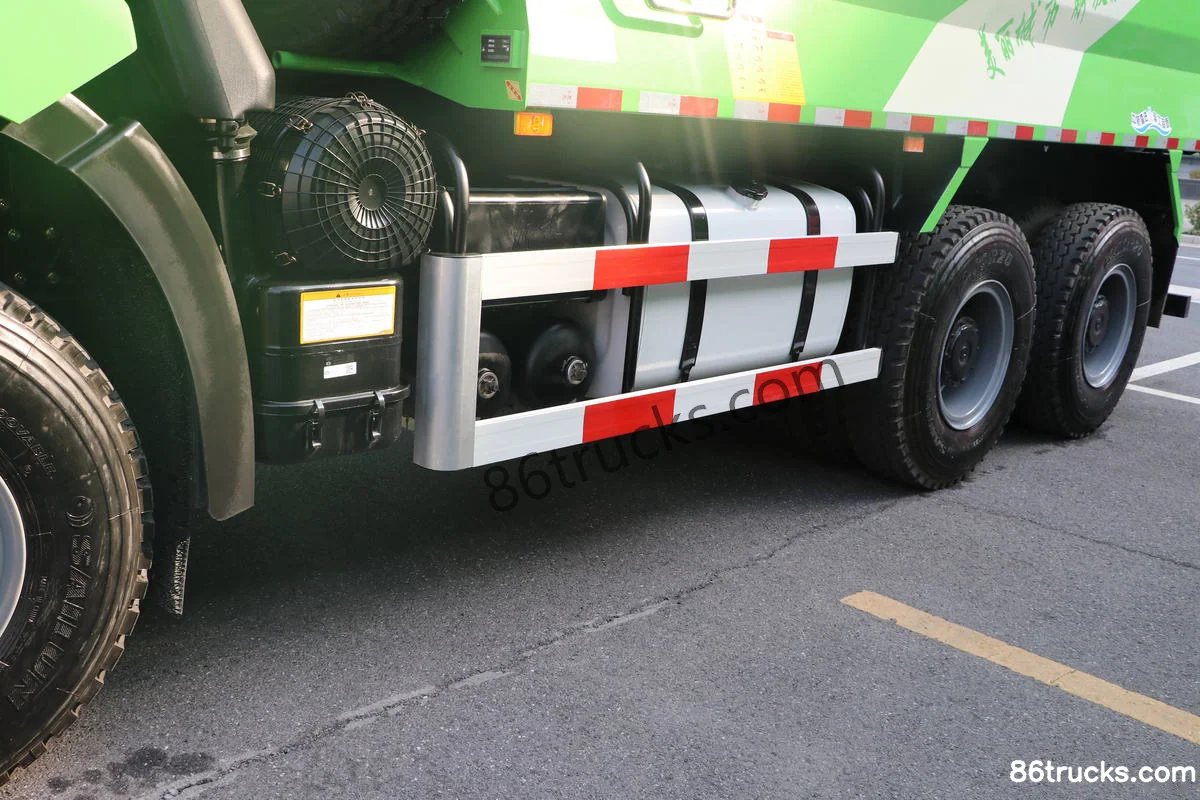

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang New J6P Heavy Truck 2020 390 hp 6X4(10 wheels) 5.6m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang New J6P Heavy Truck 2020 390 hp 6X4(10 wheels) 5.6m dump truck?

Key specs of FAW Jiefang New J6P Heavy Truck 2020 390 hp 6X4(10 wheels) 5.6m dump truck: Drive: 6x4; Horsepower: 390 hp; Emission: China V; Fuel: Diesel; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang New J6P Heavy Truck 2020 390 hp 6X4(10 wheels) 5.6m dump truck suited for?

FAW Jiefang New J6P Heavy Truck 2020 390 hp 6X4(10 wheels) 5.6m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang New J6P Heavy Truck 2020 390 hp 6X4(10 wheels) 5.6m dump truck differ from other variants in the same series?

FAW Jiefang New J6P Heavy Truck 2020 390 hp 6X4(10 wheels) 5.6m dump truck belongs to FAW Jiefang J6P Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang New J6P Heavy Truck 2020 390 hp 6X4(10 wheels) 5.6m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang New J6P Heavy Truck 2020 390 hp 6X4(10 wheels) 5.6m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
